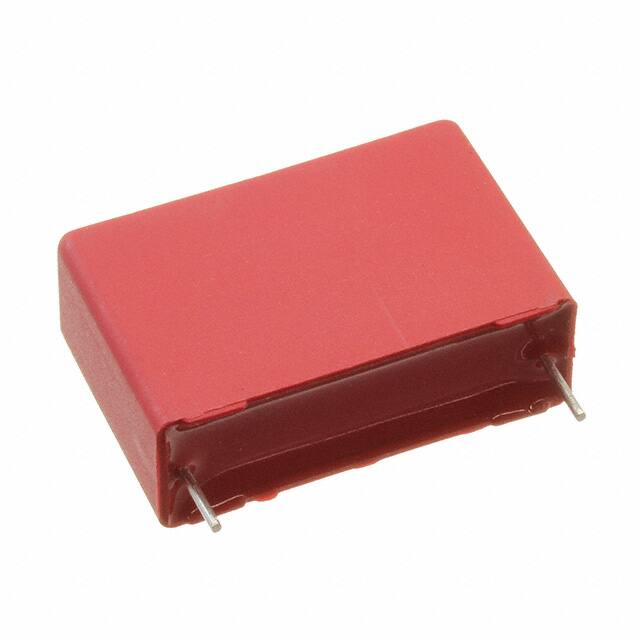

D WIMA MKP 10 Polypropylene (PP) Capacitors for Pulse Applications with Double-Sided Metallized Electrodes in PCM 7.5 mm to 52.5 mm. Capacitances from 1000 pF to 47 mF. Rated Voltages from 100 VDC to 3000 VDC. Special Features Electrical Data ˜ Pulse duty construction ˜ Self-healing ˜ Very low dissipation factor ˜ Negative capacitance change versus temperature ˜ AEC-Q200 qualified ˜ According to RoHS 2011/65/EU Typical Applications For pulse applications e.g. ˜ Switch mode power supplies ˜ TV and monitor sets ˜ Lighting ˜ Audio/video equipment Construction Dielectric: Polypropylene (PP) film Capacitor electrodes: Double-sided metallized plastic film Internal construction: MKP 10: 63 VAC, 180 VAC, 250 VAC, 280 VAC Plastic film Electrode carrier plastic film metallized on both sides Metal contact layer (schoopage) Terminating wire MKP 10: 400 VAC, 600 VAC, 650 VAC, 700 VAC Plastic film Electrode carrier plastic film metallized on both sides Plastic film metallized on one side Metal contact layer (schoopage) Terminating wire MKP 10: 900 VAC (PCM 15 = 3-section) Encapsulation: Plastic film Electrode carrier Solvent-resistant, flame-retardant plastic plastic film metallized case with epoxy resin seal, UL 94 sides V-0 on both Terminations: Tinned wire. Plastic film metallized on one side Marking: Colour: Red. Metal contact layer Marking: Black. (schoopage) L  2000 VDC 2500 VDC  3000 VDC  41.5 41.5 57 1.6 Ur 1.4 U r 1.2 Ur 1.4 Ur 1.4 Ur 1.2 Ur 1.2 U r 1.2 U r 1.2 Ur Climatic test category: 55/100/56 in accordance with IEC Dielectric absorption: 0.05 % Voltage derating: A voltage derating factor of 1.35 % per K must be applied from +85+ C for DC voltages and from +75+ C for AC voltages. Reliability: Operational life  300 000 hours Failure rate  1 fit (0.5 x U r and 40) C) Specific dissipation: Box size* Specific dissipation in Watts per K W x H x L in mm above the ambient temperature 35 x 50 x 57 0.132 45 x 55 x 57 0.164 45 x 65 x 57 0.184 * other box sizes see page 11. Dissipation factors at + 20) C: tan d at f   1 kHz   10 kHz 100 kHz C  0.1 mF 0.1 mF < C T 1.0 mF 10 -4 C > 1.0 mF 10-4   6 x 6x  6 x 10 -4    6 x 10 -4  6 x 10-4 –  15 x 10 -4 – – Maximum pulse rise time: Capacitance max. pulse rise time V/msec at T A < 40) C pF/mF 100 VDC 250 VDC 400 VDC 630 VDC 850 VDC 1000 VDC 1600 VDC 2000 VDC 2500 VDC 3000 VDC 1000   ...  2200  1250 2300 2300 2300 3500 3500 7000 11500 11500 – 3300   ...  6800  1150 1500 1500 1500 3500 3500 7000 11500 11500 – 0.01   ...  0.022  900 1400 1500 1500 2700 2700 3800  4400 11500 – 0.033 ... 0.068  500 1000 1150 1400 2700 2700 2700  2700  2700 2700 0.1   ... 0.22   250  650  650 1150 1800 1800 1800  1800  1800 1800 0.33  ... 0.68   130  390  500  900 1150 1150 1150  1150  1150 1150 1.0   ... 2.2     90  250  250  500  500  500  650   650   650  500 3.3   ... 4.7     65  100  130  190  230  230  330 – – – 6.8   ... 15      45   65   90  160 – – – – – – 22    ... 47      30   45   45 – – – – – – – Mechanical Tests Pull test on pins: d T 0.8 l: 10 N in direction of pins d > 0.8 l: 20 N in direction of pins according to IEC 60068-2-21 Vibration: 6 hours at 10 ... 2000 Hz and 0.75 mm displacement amplitude or 10 g in accordance with IEC 60068-2-6 Low air density: 1kPa = 10 mbar in accordance with IEC 60068-2-13 Bump test: 4000 bumps at 390 m/sec2 in accordance with IEC 60068-2-29 Packing Available taped and reeled up to and including case size 15 x 26 x 31.5 / PCM 27.5 mm. Detailed taping information and graphs at the end of the catalogue. For further details and graphs please refer to Technical Information. 06.21 Terminating wire Capacitance range: 1000 pF to 47 mF Rated voltages: 100 VDC, 250 VDC, 400 VDC, 630 VDC, 850 VDC, 1000 VDC, 1600 VDC, 2000 VDC, 2500 VDC, 3000 VDC Capacitance tolerances: ±20%, ±10%, ±5% Operating temperature range: –55) C to +105) C Insulation resistance at +20+ C: C T 0.33 mF:  1 x 10 5 M¸ C  0.33 mF:  30 000 sec (M¸ x mF) Measuring voltage: 100 V/1 min. Test voltage: 2 sec. 64 D WIMA WIMAMKP FKP 10 4 Continuation General Data 0.01 mF W 4 H 9 L 10 100 VDC/63 VAC* PCM** Part number   7.5 MKP1D021002C_ _ _ _ _ _ 0.015 „ 4 9 10   7.5 MKP1D021502C_ _ _ _ _ _ 0.022 „ 4 9 10   7.5 MKP1D022202C_ _ _ _ _ _ 0.033 „ 0.068 „ 5 4 5 4 5 10.5 9 10.5 9 11 10.3 13 10.3 13 13   7.5 10   7.5 10 10 MKP1D023302E_ _ _ _ _ _ MKP1D023303C_ _ _ _ _ _ MKP1D024702E_ _ _ _ _ _ MKP1D024703C_ _ _ _ _ _ MKP1D026803F_ _ _ _ _ _ 0.1 mF 6 12 13 10 MKP1D031003G_ _ _ _ _ _ 0.12 „ 0.15 „ 6 6 12.5 12.5 18 18 15 15 MKP1D031204C_ _ _ _ _ _ MKP1D031504C_ _ _ _ _ _ 0.18 „ 0.22 „ 7 7 14 14 18 18 15 15 MKP1D031804D_ _ _ _ _ _ MKP1D032204D_ _ _ _ _ _ 0.27 „ 0.33 „ 8 8 15 15 18 18 15 15 MKP1D032704F_ _ _ _ _ _ MKP1D033304F_ _ _ _ _ _ 0.39 „ 0.47 „ 9 9 7 8.5 8.5 16 16 16.5 18.5 18.5 18 18 26.5 26.5 26.5 15 15 22.5 22.5 22.5 MKP1D033904J_ _ _ _ _ _ MKP1D034704J_ _ _ _ _ _ MKP1D034705D_ _ _ _ _ _ MKP1D035605F_ _ _ _ _ _ MKP1D036805F_ _ _ _ _ _ Capacitance 0.047 „ 0.56 „ 0.68 „ 0.82 „ 1.0 mF 10.5 10.5 19 19 26.5 26.5 22.5 22.5 MKP1D038205G_ _ _ _ _ _ MKP1D041005G_ _ _ _ _ _ 1.2 1.5 1.8 2.2 „ „ „ „ 11 11 13 13 21 21 24 24 31.5 31.5 31.5 31.5 27.5 27.5 27.5 27.5 MKP1D041206B_ _ _ _ _ _ MKP1D041506B_ _ _ _ _ _ MKP1D041806D_ _ _ _ _ _ MKP1D042206D_ _ _ _ _ _ 2.7 „ 3.3 „ 17 17 29 29 31.5 31.5 27.5 27.5 MKP1D042706G_ _ _ _ _ _ MKP1D043306G_ _ _ _ _ _ 3.9 „ 4.7 „ 20 20 17 19 19 39.5 39.5 29 32 32 31.5 31.5 41.5 41.5 41.5 27.5 27.5 37.5 37.5 37.5 MKP1D043906J_ _ _ _ _ _ MKP1D044706J_ _ _ _ _ _ MKP1D044707E_ _ _ _ _ _ MKP1D045607F_ _ _ _ _ _ MKP1D046807F_ _ _ _ _ _ MKP1D048207G_ _ _ _ _ _ 5.6 „ 6.8 „ 8.2 „ 20 39.5 41.5 37.5 W 4 4 4 4 4 4 5 4 5 4 5 5 6 5 6 6 6 7 7 6 8 8 6 9 9 7 8.5 8.5 9 H 9 9 9 9 9 9 10.5  9 10.5  9 11 11 12 11 12.5 12.5 15 14 14 15 15 15 15 16 16 16.5 18.5 18.5 19 11 21 11 11 13 13 15 15 13 17 17 17 20 20 19 20 20 21 21 24 24 26 26 24 34.5 34.5 29 39.5 39.5 32 39.5 39.5 24 45.5 250 VDC/180 VAC* L PCM** Part number 10   7.5 MKP1F021002C_ _ _ _ _ _ 13 10 MKP1F021003C_ _ _ _ _ _ 10   7.5 MKP1F021502C_ _ _ _ _ _ 13 10 MKP1F021503C_ _ _ _ _ _ 10   7.5 MKP1F022202C_ _ _ _ _ _ 13 10 MKP1F022203C_ _ _ _ _ _ 10.3   7.5 MKP1F023302E_ _ _ _ _ _ 13 10 MKP1F023303C_ _ _ _ _ _ 10.3   7.5 MKP1F024702E_ _ _ _ _ _ 13 10 MKP1F024703C_ _ _ _ _ _ 13 10 MKP1F026803F_ _ _ _ _ _ 18 15 MKP1F026804B_ _ _ _ _ _ 13 10 MKP1F031003G_ _ _ _ _ _ 18 15 MKP1F031004B_ _ _ _ _ _ 18 15 MKP1F031204C_ _ _ _ _ _ 18 15 MKP1F031504C_ _ _ _ _ _ 26.5 22.5 MKP1F031505B_ _ _ _ _ _ 18 15 MKP1F031804D_ _ _ _ _ _ 18 15 MKP1F032204D_ _ _ _ _ _ 26.5 22.5 MKP1F032205B_ _ _ _ _ _ 18 15 MKP1F032704F_ _ _ _ _ _ 18 15 MKP1F033304F_ _ _ _ _ _ 26.5 22.5 MKP1F033305B_ _ _ _ _ _ 18 15 MKP1F033904J_ _ _ _ _ _ 18 15 MKP1F034704J_ _ _ _ _ _ 26.5 22.5 MKP1F034705D_ _ _ _ _ _ 26.5 22.5 MKP1F035605F_ _ _ _ _ _ 26.5 22.5 MKP1F036805F_ _ _ _ _ _ 31.5 27.5 MKP1F036806A_ _ _ _ _ _ 26.5 22.5 MKP1F038205I_ _ _ _ _ _ 26.5 22.5 MKP1F041005I_ _ _ _ _ _ 31.5 27.5 MKP1F041006B_ _ _ _ _ _ 31.5 27.5 MKP1F041206D_ _ _ _ _ _ 31.5 27.5 MKP1F041506D_ _ _ _ _ _ 31.5 27.5 MKP1F041806F_ _ _ _ _ _ 31.5 27.5 MKP1F042206F_ _ _ _ _ _ 41.5 37.5 MKP1F042207C_ _ _ _ _ _ 31.5 27.5 MKP1F042706I_ _ _ _ _ _ 31.5 27.5 MKP1F043306I_ _ _ _ _ _ 41.5 37.5 MKP1F043307E_ _ _ _ _ _ 31.5 27.5 MKP1F043906J_ _ _ _ _ _ 31.5 27.5 MKP1F044706J_ _ _ _ _ _ 41.5 37.5 MKP1F044707F_ _ _ _ _ _ 41.5 37.5 MKP1F045607G_ _ _ _ _ _ 41.5 37.5 MKP1F046807G_ _ _ _ _ _ 41.5 37.5 MKP1F048207H_ _ _ _ _ _ * AC voltage: f T 1000 Hz; 1.4 x Urms + UDC T Ur New values and box sizes. ** PCM = Printed circuit module = pin spacing Dims. in mm. Ionisation inception level in isolated cases may be lower than admissible rated AC voltage. Part number completion: Version code: 2-pin 4-pin Tolerance: 20 % 10 %   5 % Packing: bulk Pin length: 6-2 = = = = = = = 00 D4 M K J S SD 06.21 Taped version see page 161. Rights reserved to amend design data without prior notification. Continuation page 66 65 D WIMA WIMAMKP FKP 10 4 Continuation General Data 10 mF 20 39.5 100 VDC/63 VAC* PCM** Part number 41.5 37.5 MKP1D051007G_ _ _ _ _ _ 12 „ 15 „ 24 24 28 35 35 40 40 35 45 45 45.5 45.5 38 50 50 55 55 50 65 65 41.5 41.5 41.5 41.5 41.5 41.5 41.5 57 57 57 W 4 4 4 4 4 4 4 4 4 4 4 H 9 9 9 9 9 9 9 9 9 9 9 L 10 10 10 10 10 10 10 10 10 10 10 4 9 10 Capacitance 18 22 27 33 „ „ „ „ 39 „ 47 „ Capacitance 1000 1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 pF „ „ „ „ „ „ „ „ „ „ 8200 „ 0.01 mF 0.012 „ 0.015 „ 0.018 „ 0.022 „ 0.027 „ 0.033 „ 0.039 „ 0.047 „ 0.056 „ 0.068 „ 0.082 „ W H L 37.5 37.5 37.5 37.5 37.5 37.5 37.5 52.5 52.5 52.5 MKP1D051207H_ _ _ _ _ _ MKP1D051507H_ _ _ _ _ _ MKP1D051507L_ _ _ _ _ _ MKP1D051807J_ _ _ _ _ _ MKP1D052207J_ _ _ _ _ _ MKP1D052707K_ _ _ _ _ _ MKP1D053307K_ _ _ _ _ _ MKP1D053309F_ _ _ _ _ _ MKP1D053909J_ _ _ _ _ _ MKP1D054709J_ _ _ _ _ _ 400 VDC/250 VAC* PCM** Part number   7.5 MKP1G011002C_ _ _ _ _ _   7.5 MKP1G011202C_ _ _ _ _ _   7.5 MKP1G011502C_ _ _ _ _ _   7.5 MKP1G011802C_ _ _ _ _ _   7.5 MKP1G012202C_ _ _ _ _ _   7.5 MKP1G012702C_ _ _ _ _ _   7.5 MKP1G013302C_ _ _ _ _ _   7.5 MKP1G013902C_ _ _ _ _ _   7.5 MKP1G014702C_ _ _ _ _ _   7.5 MKP1G015602C_ _ _ _ _ _   7.5 MKP1G016802C_ _ _ _ _ _ 4 4 5 5 4 5 5 4 5.7 5.7 5 6 6 5 6 6 6 9 9 10.5 10.5  9 10.5 10.5  9 12.5 12.5 11 12 12 11 12.5 12.5 15 10 13 10.3 10.3 13 10.3 10.3 13 10.3 10.3 13 13 13 18 18 18 26.5   7.5   7.5 10   7.5   7.5 10   7.5   7.5 10   7.5   7.5 10 10 10 15 15 15 22.5 7 14 18 15 MKP1G018202C_ _ _ _ _ _ MKP1G021002C_ _ _ _ _ _ MKP1G021003C_ _ _ _ _ _ MKP1G021202E_ _ _ _ _ _ MKP1G021502E_ _ _ _ _ _ MKP1G021503C_ _ _ _ _ _ MKP1G021802E_ _ _ _ _ _ MKP1G022202E_ _ _ _ _ _ MKP1G022203C_ _ _ _ _ _ MKP1G022702F_ _ _ _ _ _ MKP1G023302F_ _ _ _ _ _ MKP1G023303F_ _ _ _ _ _ MKP1G023903G_ _ _ _ _ _ MKP1G024703G_ _ _ _ _ _ MKP1G024704B_ _ _ _ _ _ MKP1G025604C_ _ _ _ _ _ MKP1G026804C_ _ _ _ _ _ MKP1G026805B_ _ _ _ _ _ MKP1G028204D_ _ _ _ _ _ W 24 28 35 35 35 35 35 45 45 H 45.5 38 50 50 50 50 50 65 65 W 4 4 4 4 4 4 4 4 4 4 4 4 H 9 9 9 9 9 9 9 9 9 9 9 9 5 10.5 5 4 5 5 5 5 5 5 6 6 5 6 6 6 7 7 6 10.5  9 11 11 11 11 11 11 12 12 11 12.5 12.5 15 14 14 15 9 16 250 VDC/180 VAC* PCM** Part number 41.5 37.5 MKP1F051007H_ _ _ _ _ _ 41.5 37.5 MKP1F051007L_ _ _ _ _ _ 41.5 37.5 MKP1F051207J_ _ _ _ _ _ 41.5 37.5 MKP1F051507J_ _ _ _ _ _ 57 52.5 MKP1F051509F_ _ _ _ _ _ 57 52.5 MKP1F051809F_ _ _ _ _ _ 57 52.5 MKP1F052209F_ _ _ _ _ _ 57 52.5 MKP1F052709J_ _ _ _ _ _ 57 52.5 MKP1F053309J_ _ _ _ _ _ L 630 VDC/400 VAC* PCM** Part number   7.5* MKP1J011002C_ _ _ _ _ _   7.5* MKP1J011202C_ _ _ _ _ _   7.5* MKP1J011502C_ _ _ _ _ _   7.5* MKP1J011802C_ _ _ _ _ _   7.5* MKP1J012202C_ _ _ _ _ _   7.5* MKP1J012702C_ _ _ _ _ _   7.5* MKP1J013302C_ _ _ _ _ _   7.5* MKP1J013902C_ _ _ _ _ _   7.5* MKP1J014702C_ _ _ _ _ _   7.5* MKP1J015602C_ _ _ _ _ _   7.5* MKP1J016802C_ _ _ _ _ _ 10 MKP1J016803C_ _ _ _ _ _ 10.3   7.5* MKP1J018202E_ _ _ _ _ _ 10.3   7.5* MKP1J021002E_ _ _ _ _ _ 13 10 MKP1J021003C_ _ _ _ _ _ 13 10 MKP1J021203F_ _ _ _ _ _ 13 10 MKP1J021503F_ _ _ _ _ _ 18 15 MKP1J021504B_ _ _ _ _ _ 13 10 MKP1J021803F_ _ _ _ _ _ 13 10 MKP1J022203F_ _ _ _ _ _ 18 15 MKP1J022204B_ _ _ _ _ _ 13 10 MKP1J022703G_ _ _ _ _ _ 13 10 MKP1J023303G_ _ _ _ _ _ 18 15 MKP1J023304B_ _ _ _ _ _ 18 15 MKP1J023904C_ _ _ _ _ _ 18 15 MKP1J024704C_ _ _ _ _ _ 26.5 22.5 MKP1J024705B_ _ _ _ _ _ 18 15 MKP1J025604D_ _ _ _ _ _ 18 15 MKP1J026804D_ _ _ _ _ _ 26.5 22.5 MKP1J026805B_ _ _ _ _ _ 18 15 MKP1J028204J_ _ _ _ _ _ L 10 10 10 10 10 10 10 10 10 10 10 13 * AC voltage: f T 1000 Hz; 1.4 x Urms + UDC T Ur New values and box sizes. ** PCM = Printed circuit module = pin spacing * Admissible AC voltage 280 VAC. Dims. in mm. Ionisation inception level in isolated cases may be lower than admissible rated AC voltage. Part number completion: Version code: 2-pin 4-pin Tolerance: 20 % 10 %   5 % Packing: bulk Pin length: 6-2 = = = = = = = 00 D4 M K J S SD 06.21 Taped version see page 161. Rights reserved to amend design data without prior notification. 66 Continuation page 67 D WIMA WIMAMKP FKP 10 4 Continuation General Data W 7 6 8 8 6 9 9 7 8.5 8.5 9 10.5 10.5  9 11 11 11 H 14 15 15 15 15 16 16 16.5 18.5 18.5 19 19 19 19 21 21 21 0.82 „ 1.0 mF 13 24 13 24 400 VDC/250 VAC* Part number L PCM** 18 15 MKP1G031004D_ _ _ _ _ _ 26.5 22.5 MKP1G031005B_ _ _ _ _ _ 18 15 MKP1G031204F_ _ _ _ _ _ 18 15 MKP1G031504F_ _ _ _ _ _ 26.5 22.5 MKP1G031505B_ _ _ _ _ _ 18 15 MKP1G031804J_ _ _ _ _ _ 18 15 MKP1G032204J_ _ _ _ _ _ 26.5 22.5 MKP1G032205D_ _ _ _ _ _ 26.5 22.5 MKP1G032705F_ _ _ _ _ _ 26.5 22.5 MKP1G033305F_ _ _ _ _ _ 31.5 27.5 MKP1G033306A_ _ _ _ _ _ 26.5 22.5 MKP1G033905G_ _ _ _ _ _ 26.5 22.5 MKP1G034705G_ _ _ _ _ _ 31.5 27.5 MKP1G034706A_ _ _ _ _ _ 26.5 22.5 MKP1G035605I_ _ _ _ _ _ 26.5 22.5 MKP1G036805I_ _ _ _ _ _ 31.5 27.5 MKP1G036806B_ _ _ _ _ _ 31.5 27.5 MKP1G038206D_ _ _ _ _ _ 31.5 27.5 MKP1G041006D_ _ _ _ _ _ 1.2 „ 1.5 „ 2.7 „ 3.3 „ 17 17 13 20 20 17 20 20 29 29 24 39.5 39.5 29 39.5 39.5 31.5 31.5 41.5 31.5 31.5 41.5 41.5 41.5 27.5 27.5 37.5 27.5 27.5 37.5 37.5 37.5 MKP1G041206G_ _ _ _ _ _ MKP1G041506G_ _ _ _ _ _ MKP1G041507C_ _ _ _ _ _ MKP1G041806J_ _ _ _ _ _ MKP1G042206J_ _ _ _ _ _ MKP1G042207E_ _ _ _ _ _ MKP1G042707G_ _ _ _ _ _ MKP1G043307G_ _ _ _ _ _ 3.9 4.7 5.6 6.8 20 20 24 24 39.5 39.5 45.5 45.5 41.5 41.5 41.5 41.5 37.5 37.5 37.5 37.5 MKP1G043907G_ _ _ _ _ _ MKP1G044707G_ _ _ _ _ _ MKP1G045607H_ _ _ _ _ _ MKP1G046807H_ _ _ _ _ _ MKP1G046807L_ _ _ _ _ _ MKP1G048207J_ _ _ _ _ _ MKP1G051007J_ _ _ _ _ _ MKP1G051009F_ _ _ _ _ _ MKP1G051207K_ _ _ _ _ _ MKP1G051507K_ _ _ _ _ _ MKP1G051509F_ _ _ _ _ _ MKP1G051809J_ _ _ _ _ _ MKP1G052209J_ _ _ _ _ _ Capacitance 0.1 mF 0.12 „ 0.15 „ 0.18 „ 0.22 „ 0.27 „ 0.33 „ 0.39 „ 0.47 „ 0.56 „ 0.68 „ 1.8 „ 2.2 „ „ „ „ „ 8.2 „ 10 mF 12 „ 15 „ 18 „ 22 „ 28 35 35 35 40 40 35 45 45 38 50 50 50 55 55 50 65 65 41.5 41.5 41.5 57 41.5 41.5 57 57 57 37.5 37.5 37.5 52.5 37.5 37.5 52.5 52.5 52.5 W 9 7 8.5 8.5 9 8.5 8.5 9 11 11 11 11 11 H 16 16.5 18.5 18.5 19 18.5 18.5 19 21 21 21 21 21 630 VDC/400 VAC* L PCM** Part number 18 15 MKP1J031004J_ _ _ _ _ _ 26.5 22.5 MKP1J031005D_ _ _ _ _ _ 26.5 22.5 MKP1J031205F_ _ _ _ _ _ 26.5 22.5 MKP1J031505F_ _ _ _ _ _ 31.5 27.5 MKP1J031506A_ _ _ _ _ _ 26.5 22.5 MKP1J031805F_ _ _ _ _ _ 26.5 22.5 MKP1J032205F_ _ _ _ _ _ 31.5 27.5 MKP1J032206A_ _ _ _ _ _ 26.5 22.5 MKP1J032705I_ _ _ _ _ _ 26.5 22.5 MKP1J033305I_ _ _ _ _ _ 31.5 27.5 MKP1J033306B_ _ _ _ _ _ 31.5 27.5 MKP1J033906B_ _ _ _ _ _ 31.5 27.5 MKP1J034706B_ _ _ _ _ _ 15 15 13 26 26 24 31.5 31.5 41.5 27.5 27.5 37.5 17 29 31.5 27.5 17 15 20 20 19 20 20 29 26 39.5 39.5 32 39.5 39.5 31.5 41.5 31.5 31.5 41.5 41.5 41.5 27.5 37.5 27.5 27.5 37.5 37.5 37.5 24 24 45.5 45.5 41.5 41.5 37.5 37.5 37.5 37.5 37.5 37.5 28 38 41.5 35 35 40 40 50 50 55 55 41.5 41.5 41.5 41.5 35 45 45 50 55 55 57 57 57 37.5 52.5 52.5 52.5 MKP1J035606F_ _ _ _ _ _ MKP1J036806F_ _ _ _ _ _ MKP1J036807C_ _ _ _ _ _ MKP1J038206G_ _ _ _ _ _ MKP1J041006G_ _ _ _ _ _ MKP1J041007D_ _ _ _ _ _ MKP1J041206J_ _ _ _ _ _ MKP1J041506J_ _ _ _ _ _ MKP1J041507F_ _ _ _ _ _ MKP1J041807G_ _ _ _ _ _ MKP1J042207G_ _ _ _ _ _ MKP1J042707H_ _ _ _ _ _ MKP1J043307H_ _ _ _ _ _ MKP1J043307L_ _ _ _ _ _ MKP1J043907J_ _ _ _ _ _ MKP1J044707J_ _ _ _ _ _ MKP1J045607K_ _ _ _ _ _ MKP1J046807K_ _ _ _ _ _ MKP1J046809F_ _ _ _ _ _ MKP1J048209H_ _ _ _ _ _ MKP1J051009H_ _ _ _ _ _ * AC voltage: f T 1000 Hz; 1.4 x Urms + UDC T Ur New values and box sizes. ** PCM = Printed circuit module = pin spacing Dims. in mm. Ionisation inception level in isolated cases may be lower than admissible rated AC voltage. Part number completion: Version code: 2-pin 4-pin Tolerance: 20 % 10 %   5 % Packing: bulk Pin length: 6-2 = = = = = = = 00 D4 M K J S SD Taped version see page 161. Rights reserved to amend design data without prior notification. 06.21 Continuation page 68 67 D WIMA MKP 10 Continuation General Data 1000 pF 1200 „ 1500 „ 1800 „ 2200 „ 2700 „ 3300 „ 3900 „ 4700 „ 5600 „ 6800 „ 8200 „ 0.01 mF 0.012 „ 0.015 „ 0.018 „ 0.022 „ 0.027 „ 0.033 „ 0.039 „ 0.047 „ 0.056 0.068 0.082 0.1 „ „ „ mF 0.12 „ 0.15 „ 0.18 „ 0.22 „ 0.27 0.33 „ 0.39 „ 0.47 „ 0.56 „ 0.68 „ 0.82 „ W 4 4 4 4 4 4 4 4 4 4 4 4.5 4.5 4 5.7 5.7 5 H 9 9 9 9 9 9 9 9 9 9 9 9.5 9.5 9 12.5 12.5 11 5 11 5 5 6 6 5 6 6 6 7 7 6 8 8 6 7 7 11 11 12 12 11 12.5 12.5 15 14 14 15 15 15 15 16.5 16.5 7 16.5 7 11 8.5 8.5 11 11 11 11 11 15 13 17 17 13 17 20 17 16.5 21 18.5 18.5 21 21 21 21 21 26 24 29 29 24 29 39.5 29 19 32 850 VDC/450 VAC* Part number L PCM** 10  7.5 MKP1M011002C_ _ _ _ _ _ 13 10 MKP1M011003C_ _ _ _ _ _ 10  7.5 MKP1M011202C_ _ _ _ _ _ 10  7.5 MKP1M011502C_ _ _ _ _ _ 13 10 MKP1M011503C_ _ _ _ _ _ 10  7.5 MKP1M011802C_ _ _ _ _ _ 10  7.5 MKP1M012202C_ _ _ _ _ _ 13 10 MKP1M012203C_ _ _ _ _ _ 10  7.5 MKP1M012702C_ _ _ _ _ _ 10  7.5 MKP1M013302C_ _ _ _ _ _ 13 10 MKP1M013303C_ _ _ _ _ _ 10.3  7.5 MKP1M013902D_ _ _ _ _ _ 10.3  7.5 MKP1M014702D_ _ _ _ _ _ 13 10 MKP1M014703C_ _ _ _ _ _ 10.3  7.5 MKP1M015602F_ _ _ _ _ _ 10.3  7.5 MKP1M016802F_ _ _ _ _ _ 13 10 MKP1M016803F_ _ _ _ _ _ 13 10 MKP1M018203F_ _ _ _ _ _ 13 10 MKP1M021003F_ _ _ _ _ _ 18 15 MKP1M021004B_ _ _ _ _ _ 13 10 MKP1M021203G_ _ _ _ _ _ 13 10 MKP1M021503G_ _ _ _ _ _ 18 15 MKP1M021504B_ _ _ _ _ _ 18 15 MKP1M021804C_ _ _ _ _ _ 18 15 MKP1M022204C_ _ _ _ _ _ 26.5 22.5 MKP1M022205B_ _ _ _ _ _ 18 15 MKP1M022704D_ _ _ _ _ _ 18 15 MKP1M023304D_ _ _ _ _ _ 26.5 22.5 MKP1M023305B_ _ _ _ _ _ 18 15 MKP1M023904F_ _ _ _ _ _ 18 15 MKP1M024704F_ _ _ _ _ _ 26.5 22.5 MKP1M024705B_ _ _ _ _ _ 26.5 22.5 MKP1M025605D_ _ _ _ _ _ 26.5 22.5 MKP1M026805D_ _ _ _ _ _ 26.5 22.5 MKP1M028205D_ _ _ _ _ _ 26.5 22.5 MKP1M031005D_ _ _ _ _ _ 31.5 27.5 MKP1M031006B_ _ _ _ _ _ 26.5 22.5 MKP1M031205F_ _ _ _ _ _ 26.5 22.5 MKP1M031505F_ _ _ _ _ _ 31.5 27.5 MKP1M031506B_ _ _ _ _ _ 26.5 22.5 MKP1M031805I_ _ _ _ _ _ 26.5 22.5 MKP1M032205I_ _ _ _ _ _ 31.5 27.5 MKP1M032206B_ _ _ _ _ _ 31.5 27.5 MKP1M033306B_ _ _ _ _ _ 31.5 27.5 MKP1M033306F_ _ _ _ _ _ 41.5 37.5 MKP1M033307C_ _ _ _ _ _ 31.5 27.5 MKP1M033906G_ _ _ _ _ _ 31.5 27.5 MKP1M034706G_ _ _ _ _ _ 41.5 37.5 MKP1M034707C_ _ _ _ _ _ 41.5 37.5 MKP1M035607E_ _ _ _ _ _ 31.5 27.5 MKP1M036806J_ _ _ _ _ _ 41.5 37.5 MKP1M036807E_ _ _ _ _ _ 41.5 37.5 MKP1M038207F_ _ _ _ _ _ 8.5 18.5 8.5 11 11 11 11 11 11 18.5 21 21 21 21 21 21 1000 VDC/600 VAC* Part number L PCM** 10  7.5 MKP1O111002C_ _ _ _ _ _ 13 10 MKP1O111003C_ _ _ _ _ _ 10  7.5 MKP1O111202C_ _ _ _ _ _ 10  7.5 MKP1O111502C_ _ _ _ _ _ 13 10 MKP1O111503C_ _ _ _ _ _ 10  7.5 MKP1O111802C_ _ _ _ _ _ 10  7.5 MKP1O112202C_ _ _ _ _ _ 13 10 MKP1O112203C_ _ _ _ _ _ 10  7.5 MKP1O112702C_ _ _ _ _ _ 10  7.5 MKP1O113302C_ _ _ _ _ _ 13 10 MKP1O113303C_ _ _ _ _ _ 10.3  7.5 MKP1O113902D_ _ _ _ _ _ 10.3  7.5 MKP1O114702D_ _ _ _ _ _ 13 10 MKP1O114703C_ _ _ _ _ _ 10.3  7.5 MKP1O115602F_ _ _ _ _ _ 10.3  7.5 MKP1O116802F_ _ _ _ _ _ 13 10 MKP1O116803F_ _ _ _ _ _ 13 10 MKP1O118203F_ _ _ _ _ _ 13 10 MKP1O121003F_ _ _ _ _ _ 18 15 MKP1O121004B_ _ _ _ _ _ 13 10 MKP1O121203G_ _ _ _ _ _ 13 10 MKP1O121503G_ _ _ _ _ _ 18 15 MKP1O121504B_ _ _ _ _ _ 18 15 MKP1O121804C_ _ _ _ _ _ 18 15 MKP1O122204C_ _ _ _ _ _ 26.5 22.5 MKP1O122205B_ _ _ _ _ _ 18 15 MKP1O122704D_ _ _ _ _ _ 18 15 MKP1O123304D_ _ _ _ _ _ 26.5 22.5 MKP1O123305B_ _ _ _ _ _ 18 15 MKP1O123904F_ _ _ _ _ _ 18 15 MKP1O124704F_ _ _ _ _ _ 26.5 22.5 MKP1O124705B_ _ _ _ _ _ 26.5 22.5 MKP1O125605D_ _ _ _ _ _ 26.5 22.5 MKP1O126805D_ _ _ _ _ _ 26.5 22.5 MKP1O128205F_ _ _ _ _ _ 26.5 22.5 MKP1O131005F_ _ _ _ _ _ 31.5 27.5 MKP1O131006B_ _ _ _ _ _ 26.5 22.5 MKP1O131205I_ _ _ _ _ _ 26.5 22.5 MKP1O131505I_ _ _ _ _ _ 31.5 27.5 MKP1O131506B_ _ _ _ _ _ 31.5 27.5 MKP1O131806B_ _ _ _ _ _ 31.5 27.5 MKP1O132206B_ _ _ _ _ _ 15 15 13 17 17 13 20 20 17 26 26 24 29 29 24 39.5 39.5 29 31.5 31.5 41.5 31.5 31.5 41.5 31.5 31.5 41.5 W 4 4 4 4 4 4 4 4 4 4 4 4.5 4.5 4 5.7 5.7 5 H 9 9 9 9 9 9 9 9 9 9 9 9.5 9.5 9 12.5 12.5 11 5 11 5 5 6 6 5 6 6 6 7 7 6 8 8 6 7 7 11 11 12 12 11 12.5 12.5 15 14 14 15 15 15 15 16.5 16.5 20 39.5 * AC voltage: f T 1000 Hz; 1.4 x Urms + UDC T Ur New values and box sizes. ** PCM = Printed circuit module = pin spacing Ionisation inception level in isolated cases may be lower than admissible rated AC voltage. 41.5 27.5 27.5 37.5 27.5 27.5 37.5 27.5 27.5 37.5 37.5 MKP1O132706F_ _ _ _ _ _ MKP1O133306F_ _ _ _ _ _ MKP1O133307C_ _ _ _ _ _ MKP1O133906G_ _ _ _ _ _ MKP1O134706G_ _ _ _ _ _ MKP1O134707C_ _ _ _ _ _ MKP1O135606J_ _ _ _ _ _ MKP1O136806J_ _ _ _ _ _ MKP1O136807E_ _ _ _ _ _ MKP1O138207G_ _ _ _ _ _ Dims. in mm. 06.21 Capacitance Rights reserved to amend design data without prior notification. 68 Continuation page 69 D WIMA MKP 10 Continuation General Data Capacitance W H L 850 VDC/450 VAC* PCM** Part number W 1.0 mF 1.2 „ 1.5 „ 19 20 20 32 39.5 39.5 41.5 41.5 41.5 37.5 37.5 37.5 MKP1M041007F_ _ _ _ _ _ 20 MKP1M041207G_ _ _ _ _ _ 24 MKP1M041507G_ _ _ _ _ _ 24 1.8 „ 2.2 „ 24 24 28 35 35 35 35 45 45 45.5 45.5 38 50 50 50 50 55 65 41.5 41.5 41.5 41.5 41.5 57 57 57 57 37.5 37.5 37.5 37.5 37.5 52.5 37.5 52.5 52.5 MKP1M041807H_ _ _ _ _ _ MKP1M042207H_ _ _ _ _ _ MKP1M042207L_ _ _ _ _ _ MKP1M042707J_ _ _ _ _ _ MKP1M043307J_ _ _ _ _ _ MKP1M043309F_ _ _ _ _ _ MKP1M043909F_ _ _ _ _ _ MKP1M044709H_ _ _ _ _ _ MKP1M045609J_ _ _ _ _ _ H 9 9 9 9 9 L 13 13 13 13 13 2.7 „ 3.3 „ 3.9 „ 4.7 „ 5.6 „ Capacitance 1600 VDC/650 VAC* PCM** Part number 10 MKP1T011003C_ _ _ _ _ _ 10 MKP1T011203C_ _ _ _ _ _ 10 MKP1T011503C_ _ _ _ _ _ 10 MKP1T011803C_ _ _ _ _ _ 10 MKP1T012203C_ _ _ _ _ _ 1000 1200 1500 1800 2200 pF „ „ „ „ W 4 4 4 4 4 2700 3300 3900 4700 „ „ „ „ 4 4 5 5 9 9 11 11 13 13 13 13 10 10 10 10 MKP1T012703C_ _ _ _ _ _ MKP1T013303C_ _ _ _ _ _ MKP1T013903F_ _ _ _ _ _ MKP1T014703F_ _ _ _ _ _ 5600 „ 6800 „ 6 6 5 12 12 11 13 13 18 10 10 15 6800 „ 0.01 mF 5 11 18 15 5 11 18 15 MKP1T015603G_ _ _ _ _ _ MKP1T016803G_ _ _ _ _ _ MKP1T016804B_ _ _ _ _ _ MKP1T018204B_ _ _ _ _ _ MKP1T021004B_ _ _ _ _ _ 6 6 6 7 7 6 8 8 6 7 7 9 10.5 10.5  9 12.5 12.5 15 14 14 15 15 15 15 16.5 16.5 19 19 19 19 18 18 26.5 18 18 26.5 18 18 26.5 26.5 26.5 31.5 26.5 26.5 31.5 15 15 22.5 15 15 22.5 15 15 22.5 22.5 22.5 27.5 22.5 22.5 27.5 11 21 26.5 22.5 0.012 „ 0.015 „ 0.018 „ 0.022 „ 0.027 „ 0.033 „ 0.039 „ 0.047 „ 0.056 „ 0.068 „ 0.082 „ MKP1T021204C_ _ _ _ _ _ MKP1T021504C_ _ _ _ _ _ MKP1T021505B_ _ _ _ _ _ MKP1T022184D_ _ _ _ _ _ MKP1T022204D_ _ _ _ _ _ MKP1T022205B_ _ _ _ _ _ MKP1T022704F_ _ _ _ _ _ MKP1T023304F_ _ _ _ _ _ MKP1T023305B_ _ _ _ _ _ MKP1T023905D_ _ _ _ _ _ MKP1T024705D_ _ _ _ _ _ MKP1T024706A_ _ _ _ _ _ MKP1T025605G_ _ _ _ _ _ MKP1T026805G_ _ _ _ _ _ MKP1T026806A_ _ _ _ _ _ MKP1T028205I_ _ _ _ _ _ 1000 VDC/600 VAC* PCM** Part number H L 39.5 45.5 45.5 41.5 41.5 41.5 28 31 31 38 46 46 41.5 41.5 41.5 37.5 37.5 37.5 MKP1O141007G_ _ _ _ _ _ MKP1O141207H_ _ _ _ _ _ MKP1O141507H_ _ _ _ _ _ MKP1O141507L_ _ _ _ _ _ MKP1O141807I_ _ _ _ _ _ MKP1O142207I_ _ _ _ _ _ 40 40 35 45 45 55 55 50 55 55 41.5 41.5 57 57 57 37.5 37.5 52.5 52.5 52.5 MKP1O142707K_ _ _ _ _ _ MKP1O143307K_ _ _ _ _ _ MKP1O143309F_ _ _ _ _ _ MKP1O143909H_ _ _ _ _ _ MKP1O144709H_ _ _ _ _ _ W 4 4 4 5 5 5 5 5 5 5 6 H 9 9 9 11 11 11 11 11 11 11 15 6 6 6 12.5 12.5 15 7 14 7 6 8 8 6 9 9 7 8.5 8.5 9 10.5 10.5 11 11 11 11 13 14 15 15 15 15 16 16 16.5 18.5 18.5 19 19 19 21 21 21 21 24 37.5 37.5 37.5 2000 VDC/700 VDC* PCM** Part number 10 MKP1U011003C_ _ _ _ _ _ 10 MKP1U011203C_ _ _ _ _ _ 10 MKP1U011503C_ _ _ _ _ _ 10 MKP1U011803F_ _ _ _ _ _ 10 MKP1U012203F_ _ _ _ _ _ 18 15 MKP1U012204B_ _ _ _ _ _ 18 15 MKP1U012704B_ _ _ _ _ _ 18 15 MKP1U013304B_ _ _ _ _ _ 18 15 MKP1U013904B_ _ _ _ _ _ 18 15 MKP1U014704B_ _ _ _ _ _ 26.5 22.5 MKP1U014705B_ _ _ _ _ _ 18 15 MKP1U015604C_ _ _ _ _ _ 18 15 MKP1U016804C_ _ _ _ _ _ 26.5 22.5 MKP1U016805B_ _ _ _ _ _ 18 15 MKP1U018204D_ _ _ _ _ _ 18 15 MKP1U021004D_ _ _ _ _ _ 26.5 22.5 MKP1U021005B_ _ _ _ _ _ 18 15 MKP1U021204F_ _ _ _ _ _ 18 15 MKP1U021504F_ _ _ _ _ _ 26.5 22.5 MKP1U021505B_ _ _ _ _ _ 18 15 MKP1U021804J_ _ _ _ _ _ 18 15 MKP1U022204J_ _ _ _ _ _ 26.5 22.5 MKP1U022205D_ _ _ _ _ _ 26.5 22.5 MKP1U022705F_ _ _ _ _ _ 26.5 22.5 MKP1U023305F_ _ _ _ _ _ 31.5 27.5 MKP1U023306A_ _ _ _ _ _ 26.5 22.5 MKP1U023905G_ _ _ _ _ _ 26.5 22.5 MKP1U024705G_ _ _ _ _ _ 31.5 27.5 MKP1U024706B_ _ _ _ _ _ 26.5 22.5 MKP1U025605I_ _ _ _ _ _ 26.5 22.5 MKP1U026805I_ _ _ _ _ _ 31.5 27.5 MKP1U026806B_ _ _ _ _ _ 31.5 27.5 MKP1U028206D_ _ _ _ _ _ L 13 13 13 13 13 * AC voltage: f T 1000 Hz; 1.4 x Urms + UDC T Ur New values and box sizes. ** PCM = Printed circuit module = pin spacing Dims. in mm. 06.21 Ionisation inception level in isolated cases may be lower than admissible rated AC voltage. Continuation page 71 Rights reserved to amend design data without prior notification. Continuation page 70 69 D WIMA MKP 10 Continuation General Data Capacitance 0.1 mF 0.12 „ 0.15 „ 0.18 „ 0.22 „ 0.27 „ 0.33 „ 0.39 „ 0.47 „ 0.56 „ 0.68 „ 0.82 „ 1.0 mF 1.2 „ 1.5 „ 1.8 „ 2.2 „ 2.7 „ 3.3 „ Capacitance 1000 pF 1200 „ 1500 „ 1800 „ 2200 „ 2700 „ 3300 „ 3900 „ 4700 „ 5600 „ 6800 „ 8200 „ W H L 1600 VDC/650 VAC* PCM** Part number 11 11 13 13 21 21 24 24 26.5 31.5 31.5 31.5 22.5 27.5 27.5 27.5 MKP1T031005I_ _ _ _ _ _ MKP1T031006B_ _ _ _ _ _ MKP1T031206D_ _ _ _ _ _ MKP1T031506D_ _ _ _ _ _ 15 15 13 17 17 17 20 20 19 20 20 26 26 24 34.5 34.5 29 39.5 39.5 32 39.5 39.5 31.5 31.5 41.5 31.5 31.5 41.5 31.5 31.5 41.5 41.5 41.5 27.5 27.5 37.5 27.5 27.5 37.5 27.5 27.5 37.5 37.5 37.5 MKP1T031806F_ _ _ _ _ _ MKP1T032206F_ _ _ _ _ _ MKP1T032207C_ _ _ _ _ _ MKP1T032706I_ _ _ _ _ _ MKP1T033306I_ _ _ _ _ _ MKP1T033307E_ _ _ _ _ _ MKP1T033906J_ _ _ _ _ _ MKP1T034706J_ _ _ _ _ _ MKP1T034707F_ _ _ _ _ _ MKP1T035607G_ _ _ _ _ _ MKP1T036807G_ _ _ _ _ _ 24 45.5 41.5 37.5 28 31 31 38 46 46 41.5 41.5 41.5 37.5 37.5 37.5 MKP1T038207H_ _ _ _ _ _ MKP1T041007H_ _ _ _ _ _ MKP1T041007L_ _ _ _ _ _ MKP1T041207I_ _ _ _ _ _ MKP1T041507I_ _ _ _ _ _ 40 40 35 45 45 55 55 50 65 65 41.5 41.5 57 57 57 37.5 37.5 52.5 52.5 52.5 MKP1T041807K_ _ _ _ _ _ MKP1T042207K_ _ _ _ _ _ MKP1T042209F_ _ _ _ _ _ MKP1T042709J_ _ _ _ _ _ MKP1T043309J_ _ _ _ _ _ W 5 6 5 5 6 5 5 6 5 5 6 6 6 6 7 7 7 H 11 15 11 11 15 11 11 15 11 11 15 12.5 12.5 15 14 14 16.5 8.5 18.5 2500 VDC/700 VAC* L PCM** Part number 18 15 MKP1V011004B_ _ _ _ _ _ 26.5 22.5 MKP1V011005B_ _ _ _ _ _ 18 15 MKP1V011204B_ _ _ _ _ _ 18 15 MKP1V011504B_ _ _ _ _ _ 26.5 22.5 MKP1V011505B_ _ _ _ _ _ 18 15 MKP1V011804B_ _ _ _ _ _ 18 15 MKP1V012204B_ _ _ _ _ _ 26.5 22.5 MKP1V012205B_ _ _ _ _ _ 18 15 MKP1V012704B_ _ _ _ _ _ 18 15 MKP1V013304B_ _ _ _ _ _ 26.5 22.5 MKP1V013305B_ _ _ _ _ _ 18 15 MKP1V013904C_ _ _ _ _ _ 18 15 MKP1V014704C_ _ _ _ _ _ 26.5 22.5 MKP1V014705B_ _ _ _ _ _ 18 15 MKP1V015604D_ _ _ _ _ _ 18 15 MKP1V016804D_ _ _ _ _ _ 26.5 22.5 MKP1V016805D_ _ _ _ _ _ 26.5 22.5 MKP1V018205F_ _ _ _ _ _ 24 45.5 41.5 37.5 W H L 2000 VDC/700 VAC* PCM** Part number 13 24 31.5 27.5 MKP1U031006D_ _ _ _ _ _ 15 15 13 17 17 17 19 19 26 26 24 34.5 34.5 29 32 32 31.5 31.5 41.5 31.5 31.5 41.5 41.5 41.5 27.5 27.5 37.5 27.5 27.5 37.5 37.5 37.5 MKP1U031206F_ _ _ _ _ _ MKP1U031506F_ _ _ _ _ _ MKP1U031507C_ _ _ _ _ _ MKP1U031806I_ _ _ _ _ _ MKP1U032206I_ _ _ _ _ _ MKP1U032207E_ _ _ _ _ _ MKP1U032707F_ _ _ _ _ _ MKP1U033307F_ _ _ _ _ _ 20 20 39.5 39.5 41.5 41.5 37.5 37.5 MKP1U033907G_ _ _ _ _ _ MKP1U034707G_ _ _ _ _ _ 24 24 45.5 45.5 41.5 41.5 37.5 37.5 28 35 35 38 50 50 41.5 41.5 41.5 37.5 37.5 37.5 MKP1U035607H_ _ _ _ _ _ MKP1U036807H_ _ _ _ _ _ MKP1U036807L_ _ _ _ _ _ MKP1U038207J_ _ _ _ _ _ MKP1U041007J_ _ _ _ _ _ 40 40 35 45 45 55 55 50 55 55 41.5 41.5 57 57 57 37.5 37.5 52.5 52.5 52.5 MKP1U041207K_ _ _ _ _ _ MKP1U041507K_ _ _ _ _ _ MKP1U041509F_ _ _ _ _ _ MKP1U041809H_ _ _ _ _ _ MKP1U042209H_ _ _ _ _ _ New values and box sizes. ** PCM = Printed circuit module = pin spacing Ionisation inception level in isolated cases may be lower than admissible rated AC voltage. Part number completion: Version code: 2-pin 4-pin Tolerance: 20 % 10 %   5 % Packing: bulk Pin length: 6-2 = = = = = = = 00 D4 M K J S SD Taped version see page 161. * AC voltage: f T 1000 Hz; 1.4 x Urms + UDC T Ur Dims. in mm. Rights reserved to amend design data without prior notification. 06.21 Continuation page 71 70 D WIMA MKP 10 Continuation General Data Capacitance 0.01 mF 0.012 „ 0.015 „ 0.018 „ 0.022 „ 0.027 „ 0.033 „ 0.039 0.047 0.056 0.068 0.082 0.1 „ „ „ „ „ mF 0.12 „ 0.15 „ 0.18 0.22 0.27 0.33 „ „ „ „ 0.39 „ 0.47 „ 0.56 „ 0.68 „ 0.82 „ 1.0 mF 1.2 „ 1.5 „ W 8.5 10.5 10.5 11 11 11 11 9 11 11 13 13 15 15 13 17 17 15 19 19 24 24 28 31 31 35 35 40 40 35 45 45 H 18.5 19 19 21 21 21 21 19 21 21 24 24 26 26 24 34.5 34.5 26 32 32 45.5 45.5 38 46 46 50 50 55 55 50 55 55 2500 VDC/700 VAC* L PCM** Part number 26.5 22.5 MKP1V021005F_ _ _ _ _ _ 26.5 22.5 MKP1V021205G_ _ _ _ _ _ 26.5 22.5 MKP1V021505G_ _ _ _ _ _ 26.5 22.5 MKP1V021805I_ _ _ _ _ _ 26.5 22.5 MKP1V022205I_ _ _ _ _ _ 26.5 22.5 MKP1V022705I_ _ _ _ _ _ 26.5 22.5 MKP1V023305I_ _ _ _ _ _ 31.5 27.5 MKP1V023306A_ _ _ _ _ _ 31.5 27.5 MKP1V023906B_ _ _ _ _ _ 31.5 27.5 MKP1V024706B_ _ _ _ _ _ 31.5 27.5 MKP1V025606D_ _ _ _ _ _ 31.5 27.5 MKP1V026806D_ _ _ _ _ _ 31.5 27.5 MKP1V028206F_ _ _ _ _ _ 31.5 27.5 MKP1V031006F_ _ _ _ _ _ 41.5 37.5 MKP1V031007C_ _ _ _ _ _ 31.5 27.5 MKP1V031206I_ _ _ _ _ _ 31.5 27.5 MKP1V031506I_ _ _ _ _ _ 41.5 37.5 MKP1V031507D_ _ _ _ _ _ 41.5 37.5 MKP1V031807F_ _ _ _ _ _ 41.5 37.5 MKP1V032207F_ _ _ _ _ _ 41.5 37.5 MKP1V032707H_ _ _ _ _ _ 41.5 37.5 MKP1V033307H_ _ _ _ _ _ 41.5 37.5 MKP1V033307L_ _ _ _ _ _ 41.5 37.5 MKP1V033907I_ _ _ _ _ _ 41.5 37.5 MKP1V034707I_ _ _ _ _ _ 41.5 37.5 MKP1V035607J_ _ _ _ _ _ 41.5 37.5 MKP1V036807J_ _ _ _ _ _ 41.5 37.5 MKP1V038207K_ _ _ _ _ _ 41.5 37.5 MKP1V041007K_ _ _ _ _ _ 57 52.5 MKP1V041009F_ _ _ _ _ _ 57 52.5 MKP1V041209H_ _ _ _ _ _ 57 52.5 MKP1V041509H_ _ _ _ _ _ W 8.5 10.5 10.5 11 11 11 11 9 11 11 13 13 H 18.5 19 19 21 21 21 21 19 21 21 24 24 15 26 15 13 17 17 15 19 19 24 24 26 24 34.5 34.5 26 32 32 45.5 45.5 28 38 40 55 40 35 45 45 55 50 55 55 31 31 35 35 46 46 50 50 3000 VDC/700 VAC* Part number L PCM** 26.5 22.5 MKP1W021005F_ _ _ _ _ _ 26.5 22.5 MKP1W021205G_ _ _ _ _ _ 26.5 22.5 MKP1W021505G_ _ _ _ _ _ 26.5 22.5 MKP1W021805I_ _ _ _ _ _ 26.5 22.5 MKP1W022205I_ _ _ _ _ _ 26.5 22.5 MKP1W022705I_ _ _ _ _ _ 26.5 22.5 MKP1W023305I_ _ _ _ _ _ 31.5 27.5 MKP1W023306A_ _ _ _ _ _ 31.5 27.5 MKP1W023906B_ _ _ _ _ _ 31.5 27.5 MKP1W024706B_ _ _ _ _ _ 31.5 27.5 MKP1W025606D_ _ _ _ _ _ 31.5 27.5 MKP1W026806D_ _ _ _ _ _ 31.5 27.5 MKP1W028206F_ _ _ _ _ _ 31.5 27.5 MKP1W031006F_ _ _ _ _ _ 41.5 37.5 MKP1W031007C_ _ _ _ _ _ 31.5 27.5 MKP1W031206I_ _ _ _ _ _ 31.5 27.5 MKP1W031506I_ _ _ _ _ _ 41.5 37.5 MKP1W031507D_ _ _ _ _ _ 41.5 37.5 MKP1W031807F_ _ _ _ _ _ 41.5 37.5 MKP1W032207F_ _ _ _ _ _ 41.5 37.5 MKP1W032707H_ _ _ _ _ _ 41.5 37.5 MKP1W033307H_ _ _ _ _ _ 41.5 37.5 MKP1W033307L_ _ _ _ _ _ 41.5 37.5 MKP1W033907I_ _ _ _ _ _ 41.5 37.5 MKP1W034707I_ _ _ _ _ _ 41.5 37.5 MKP1W035607J_ _ _ _ _ _ 41.5 37.5 MKP1W036807J_ _ _ _ _ _ 41.5 37.5 MKP1W038207K_ _ _ _ _ _ 41.5 37.5 MKP1W041007K_ _ _ _ _ _ 57 52.5 MKP1W041009F_ _ _ _ _ _ 57 52.5 MKP1W041209H_ _ _ _ _ _ 57 52.5 MKP1W041509H_ _ _ _ _ _ * AC voltage: f T 1000 Hz; 1.4 x Urms + UDC T Ur Part number completion: New values and box sizes. Version code: 2-pin 4-pin Tolerance: 20 % 10 %   5 % Packing: bulk Pin length: 6-2 ** PCM = Printed circuit module = pin spacing Dims. in mm. Ionisation inception level in isolated cases may be lower than admissible rated AC voltage. 2-pin version W PCM b P d c PCM 0.6 7.5 -10 0.8 15 - 27.5 1.0 37.5 pin Rights reserved to amend design data without prior notification. 00 D4 M K J S SD Taped version see page 161. 4-pin version P d = = = = = = = pin c pin c 17 19 20 24 28 31 35 40 35 45 37.5 10   37.5 10   37.5 12.5 37.5 12.5 37.5 10   37.5 20   37.5 20   37.5 20   52.5 20   52.5 20   1.0 0.4 1.0 0.4 1.0 0.4 1.0 0.4 1.0 0.4 1.0 0.4 1.0 0.4 1.0 0.4 1.2 0.8 1.2 0.8 06.21 Continuation page 72 71 D WIMA MKP 10 Continuation 1 10 Impedance change with frequency (general guide). PCM 27.5 PCM 10 Z  Z  0.1 1 -- 22 00 3 7 5 10 00 µF 33 µF 0.0047 -- 0. -µF 0.1 -- -- 7 5 pF 3 pF -- 7 107 108 F 5 7µ 3 0.4 0.001 106 µF 3 µF µF 2 7 5 1.5 02 µF 3.3 0. 3 0.01 0.01 0. 0 15 -- -- 7 5 -- -- 0.1 105 3 5 7 106 107 f/Hz f/Hz 1 1 PCM 37.5 Z  -- Z  00 10 pF -- 0.1 1 0. µF 22 µF µF µF 105 3 5 7 106 107 f/Hz f/Hz 10 47 2 0.001 µF 2. 108 µF 107 µF 7 µF 5 7 22 3 4. 10 -- 106 0 ---- 3 PCM 15 1. F 7 5 3 0.001 0. -- 5µ 0.01 0. -- µF 0.1 7 5 -- 3 µF 22 -- 0.01 -- 7 5 15 0.0 3 0.1 0.0 -- 7 5 1 1 PCM 7.5 PCM 52.5 Z  1 0.1 7 5 7 5 0.1 7 5 -- 3 7 5 3 22 3 -- F PCM 22.5 µF 33 µF 1.0 µF -- 1.5 µF -- 2.2 F µ -3.3 µF -- 4.7 -µF 10 -- 0.01 -- 7 5 3µ 3 0.01 µF 68 0. µF -- 1.0 -- pF pF 300 .03 7 5 3 500 -- 3 -- 0 0.1 -- 1 3 Z  pF 00 47 F -1µ 0.0 F -2µ F 02 µ 0. 33 -- 0.0 -F 1µ 0. Z  µF 0.01 106 3 5 7 107 108 0.001 106 3 5 7 107 108 f/Hz 105 3 5 7 106 107 f/Hz 06.21 f/Hz 0.001 72 Continuation page 73 D WIMA MKP 10 Continuation 103 600 5 2. /5 µF Permissible AC voltage in relation to frequency till 15) C internal temperature rise (general guide). 7 4. Urms V 2 102 2 2. 0.0 3 15 300 µ p 0.0 F/1 F/7 .5 33 0 0. µF 47 /2 µF 2.5 /2 7. 5 5 7. /3 µF 5 The information behind the cross bar denote the PCM of the measured value. 1000 VDC 2 101 102 102 103 5 2 5 103 650 Urms V 2 2 5 2. /2 .5 µF /27 0 5 1. µF 7. /3 µF 102 3 3. 101 22 100 VDC 104 2 5 f 105 Hz 0 0.0 .01 µF 22 /1 µF 0. 5 47 /1 µF 0.1 5 /2 µF 7. /2 5 2.5 1. 5µ F/ 37 .5 5 2. /5 µF 0. 03 3µ F/ 7. 5 3 3. 63 Urms V 5 2 5 1600 VDC 2 2 1 103 2 5 104 2 105 5 5 f 106 Hz 2 103 101 102 2 103 5 2 104 5 2 f 105 Hz 5 103 700 Urms V Urms V 2. 2 2 180 6. 8 33 102 5 2. /5 µF 5 250 VDC 102 µF /3 7. 5 15 2 101 102 2 5 103 2 5 0. 68 µF /2 2. 5 µF /3 7. 5 104 2 0. 22 µF /3 µF 7. /5 5 2. 5 5 2000 VDC 22 00 pF /1 0 0. 0 0. 33 1 µ µF / F/ 1. 22 27.5 0 .5 µF /3 7. 5 2 5 f 105 Hz 101 103 2 5 104 2 5 105 2 5 f 106 Hz 103 700 103 Urms V 15 00 2 101 102 2 5 103 2 5 104 2 102 5 5 7. /3 µF 400 VDC pF /7 .5 5 /1 µF 5 2 2. 5 2. /5 µF 22 15 0. 102 10 00 0. pF 02 47 /15 2µ 00 F/ pF 22 /2 .5 0 2.5 .01 5µ F/ 22 .5 Urms V 2 250 2500 VDC 2 5 105 2 5 f 106 Hz 101 103 2 5 104 2 5 105 2 5 f 106 Hz 103 700 5 Urms V 2 400 .5 37 F/ 8µ 6. Urms V 102 0. 0. 022 15 µF µF /10 /2 7. 5 5 5 7. /3 µF 630 VDC 3000 VDC 2 2 2 5 104 2 5 105 2 5 f 106 Hz 101 103 2 5 104 2 5 105 2 5 f 106 Hz 06.21 101 103 0. 02 2µ 0. F/ 1µ 22 F/ .5 1. 27 0µ .5 F/ 37 .5 102 5 1. 5 0. 04 7µ 0. 22 F/ 27 µF .5 /3 7. 5 Continuation page 74 73 D WIMA MKP 10 Continuation 102 Irms A 4.7 µF/52.5 2.2 µF/37.5 10 0.47 µF/27.5 Permissible AC current in relation to frequency till 15) C internal temperature rise (general guide). 0.015 µF/10 The information behind the cross bar denote the PCM of the measured value. 10-1 10-2 102 Irms A 0.033 µF/22.5 1 .5 F/7 0p 330 102 2 5 103 2 5 1 3.3 µF/52.5 1.5 µF/37.5 0.47 µF/27.5 0.1 µF/22.5 1 0.033 µF/7.5 10-1 102 2 5 103 2 5 104 15 µF/ 22 0.0 µF/15 1 0.0 10-1 100 VDC 10-2 5 f 105 Hz 2 10-2 102 Irms A 33 µF/52.5 15 µF/37.5 102 Irms A 10 6.8 µF/37.5 10 102 2 5 103 2 1600 VDC 5 10-2 1 2 5 103 2 5 104 0 F/1 0p 220 5 f 105 Hz 2 10-2 102 2 104 104 5 f 105 Hz 2 5 22. µF/ 15 0 . 0 5 F/1 0p 100 10-2 5 5 0.022 µF/22.5 .5 F/7 0p 150 2 2 4700 pF/22.5 10-1 103 103 1 400 VDC 5 5 22 µF/52.5 10-1 2 2 f 105 Hz 2000 VDC 2.2 µF/37.5 1 102 5 10 Irms A 0.15 µF/15 10-2 2 10-1 250 VDC 102 104 2.2 µF/52.5 1.0 µF/37.5 0.22 µF/37.5 0.1 µF/22.5 0.033 µF/27.5 0.68 µF/22.5 1 10-1 5 f 105 Hz 2 10 3.3 µF/27.5 1.0 µF/22.5 10 104 102 Irms A 22 µF/37.5 10 102 Irms A 1000 VDC 5 f 105 Hz 10-3 2500 VDC 103 102 Irms A 6.8 µF/37.5 102 Irms A 10 1.5 µF/37.5 10 2 5 104 2 5 105 2 5 f 106 Hz 1.0 µF/37.5 0.22 µF/37.5 0.15 µF/27.5 0.047 µF/27.5 1 1 0.022 µF/10 10-1 630 VDC 102 2 5 103 2 5 104 2 5 f 105 Hz 10-2 102 2 5 103 3000 VDC 2 5 104 2 5 f 105 Hz 06.21 10-2 5 27. µF/ 0.1 5 22. µF/ 22 0.0 10-1 74 D Recommendation for Processing and Application of Through-Hole Capacitors Soldering Process Internal temperature of the capacitor must be kept as follows: Polyester: preheating: T max. T 125° C soldering: T max. T 135° C Polypropylene: preheating: Tmax. T 100° C soldering: T max. T 110° C Single wave soldering Soldering bath temperature: T P 260 ° C Dwell time: t P 5 sec Double wave soldering Soldering bath temperature: T P 260 ° C Dwell time: St P 5 sec Due to different soldering processes and heat requirements the graphs are to be regarded as a recommendation only. WIMA Quality and Environmental Philosophy ISO 9001:2015 Certification ISO 9001:2015 is an international basic standard of quality assurance systems for all branches of industry. The approval according to ISO 9001:2015 of our factories by the infaz (Institut für Auditierung und Zertifizierung) certifies that organisation, equipment and monitoring of quality assurance in our factories correspond to internationally recognized standards. WIMA WPCS The WIMA Process Control System (WPCS) is a quality surveillance and optimization system developed by WIMA. WPCS is a major part of the quality-oriented WIMA production. Points of application during production process: All WIMA capacitors, irrespective of whether through-hole devices or SMD, are made of environmentally friendly materials. Neither during manufacture nor in the product itself any toxic substances are used, e.g. – – – – – Lead PCB CFC Hydrocarbon chloride Chromium 6+ – – – – – PBB/PBDE Arsenic Cadmium Mercury etc. We merely use pure, recyclable materials for packing our components, such as: ” carton ” cardboard ” adhesive tape made of paper ” polystyrene We almost completely refrain from using packing materials such as: ” adhesive tapes made of plastic ” metal clips RoHS Compliance According to the RoHS Directive 2011/65/EU as amended from time to time certain hazardous substances like e.g. lead, cadmium, mercury must not be used any longer in electronic equipment as of July 1st, 2006. For the sake of the environment WIMA has refraind from using such substances since years already. WIMA Kondensatoren sind bleifrei konform RoHS 2011/65/EU WIMA capacitors are lead free in accordance with RoHS 2011/65/EU Tape for lead-free WIMA capacitors DIN EN ISO 14001:2004 WIMA’s environmental management has been established in accordance with the guidelines of DIN EN ISO 14001:2004 to optimize the production processes with regard to energy and resources. 06.21 ” incoming material inspection ” metallization ” film inspection ” schoopage ” pre-healing ” pin attachment ” cast resin preparation/ encapsulation ” 100% final inspection ” Testing as per customer requirements WIMA Environmental Policy 15 D Typical Dimensions for Taping Configuration Vh P P2 Diagram 1: PCM 2.5/5/7.5mm W W1 W0 H H1 W2 P1 D0 d P t F P0 H1 P P1 H P1 d d F P0 P2 Diagram 2: PCM 10/15 mm Diagram 3: PCM 22.5 and 27.5*mm *PCM 27.5 taping possible with two feed holes between components Designation Carrier tape width Dimensions for Radial Taping Symbol PCM 2.5 taping W P0 P2 F PCM 5 taping PCM 7.5 taping PCM 10 taping* PCM 15 taping* PCM 22.5 taping PCM 27.5 taping 18.0 p0.5 18.0 p0.5 18.0 p0.5 18.0 p0.5 18.0 p0.5 18.0 p0.5 18.0 p0.5 for hot-sealing for hot-sealing for hot-sealing for hot-sealing for hot-sealing for hot-sealing for hot-sealing Hold-down tape width W0 6.0 6.0 12.0 12.0 12.0 12.0 12.0      adhesive tape      adhesive tape       adhesive tape       adhesive tape       adhesive tape       adhesive tape       adhesive tape Hole position W1 9.0 p0.5 9.0 p0.5 9.0 p0.5 9.0 p0.5 9.0 p0.5 9.0 p0.5 9.0 p0.5 Hold-down tape position W 2 Feed hole diameter D0 4.0 p0.2 4.0 p0.2 4.0 p0.2 4.0 p0.2 4.0 p0.2 4.0 p0.2 4.0 p0.2 P 12.7 p1.0 12.7 p1.0 12.7 p1.0 25.4 p1.0 25.4 p1.0 38.1 p1.5 3*8.1 p1.5 or 50.8 p1.5 0.5 to 3.0 max. Pitch of component Feed hole pitch P0 12.7 p0.3 cumulative pitch error max. 1.0 mm/20 pitch 0.5 to 3.0 max. 12.7 p0.3 cumulative pitch error max. 1.0 mm/20 pitch 0.5 to 3.0 max. 12.7 p0.3 cumulative pitch error max. 1.0 mm/20 pitch 0.5 to 3.0 max. 12.7 p0.3 0.5 to 3.0 max. cumulative pitch error max. 1.0 mm/20 pitch 12.7 p0.3 cumulative pitch error max. 1.0 mm/20 pitch 0.5 to 3.0 max. 12.7 p0.3 cumulative pitch error max. 1.0 mm/20 pitch 0.5 to 3.0 max. 12.7 p0.3 Feed hole centre to pin P1 5.1 p0.5 3.85 p0.7 2.6 p0.7 7.7 p0.7 5.2 p0.7 7.8 p0.7 5.3 p0.7 Hole centre to component centre P2 6.35 p1.3 6.35 p1.3 6.35 p1.3 12.7 p1.3 12.7 p1.3 19.05 p1.3 19.05 p1.3 Feed hole centre to bottom H edge of the component cumulative pitch error max. 1.0 mm/20 pitch 16.5 p0.3 16.5 p0.3 16.5 p0.5 16.5 p0.5 16.5 p0.5 16.5 p0.5 16.5 p0.5 18.5 p0.5 18.5 p0.5 18.5 p0.5 18.5 p0.5 18.5 p0.5 18.5 p0.5 18.5 p0.5 Feed hole centre to top H+Hcomponent < H1 H+Hcomponent < H1 H+Hcomponent < H1 H+Hcomponent < H1 H+Hcomponent < H1 H+Hcomponent < H1 H+Hcomponent < H1 H edge of the component 1 32.25 max. 32.25 max. 24.5 to 31.5 25.0 to 31.5 26.0 to 37.0 30.0 to 43.0 35.0 to 45.0 Pin spacing at +0.8 F 2.5 p0.5 5.0 7.5 p0.8 10.0 p0.8 15 p0.8 22.5 p0.8 27.5 p0.8 upper edge of carrier tape     –0.2 Pin diameter d 0.4 p0.05 0.5 p0.05 Component alignment Dh p 2.0 max. Total tape thickness t p 2.0 max. +0.06 +0,06 +0,08 +0,08 +0.08 „ 0.5 p0.05 or 0.6 –0.05 „ 0.5 p0.05 or 0.6 –0.05 0.8 –0.05 0.8 –0.05 0.8 –0.05 p 3.0 max. p 3.0 max. p 3.0 max. p 3.0 max. p 3.0 max. 0.6 p0.2 0.6 p0.2 0.6 p0.2 0.6 p0.2 0.6 p0.2 0.6 p0.2 0.6 p0.2 ROLL/AMMO Package (see also page 162) 52 p2 depending on P 360 max. B p2 comp. dimensions REEL P 30 p1 58 Unit AMMO 52 p2 54 p2 500 max. B 60 p2 REEL P 360 max. B 58 p2 or REEL PP 25 p1 P 30 p1 66 p2 68 p2 depending on PCM and component dimensions see details page 163. Dims in mm. 06.21 „ Diameter of pins see General Data. Please clarify customer-specific deviations with the manufacturer. * PCM 10 and PCM 15 can be crimped to PCM 7.5. Position of components according to PCM 7.5 (sketch 1). P 0 = 12.7 or 15.0 is possible 161 D Types of Tape Packaging of Capacitors for Automatic Radial Insertion ˜ REEL Packaging 340 max.  30±1 25±1 360 max. 500 max. ˜ AMMO Packaging 340 max. 370 max. ˜ ROLL Packaging 34 0m ax. 50 max. 50 max. 70 max. . ax 0 m ax. 34 0 m 49 B BAR CODE (Labelling) Labelling of package units in plain text and with alphanumerical Bar Code BARCODE PDF417 BARCODE 2D Datamatrix „ WIMA supplier number „ Date code „ Customer‘s P/O number „ P/O line „ Customer‘s part number „ WIMA part number „ Quantity „ WIMA confirmation number „ Country of origin „ Customer name „ Handling unit number „ Week of delivery. In addition part description of article capacitance value rated voltage dimensions technical note capacitance tolerance packing connecting information 06.21 – – – – – – – – 162 D Packing Quantities for Capacitors with Radial Pins in PCM 2.5 mm to 22.5 mm Size PCM 2.5 mm 5 mm 7.5 mm 10 mm 15 mm 22.5 mm W  2.5  3  3.8  4.6  5.5  2.5  3  3.5  4.5  4.5  5  5.5  5.5  6.5  7.2  7.2  8.5  8.5 11  2.5  3  4  4.5  5  5.7  7.2  3  4  4  4  5  5  6  6  8  5  5  6  6  7  7  8  8  9  9 10 11  5  6  7  8  8.5 10 10.5 10.5 11 12 H  7  7.5  8.5  9 10  6.5  7.5  8.5  6  9.5 10  7 11.5  8  8.5 13 10 14 16  7  8.5  9  9.5 10.5 12.5 12.5  9  8.5  9  9.5 10 11 12 12.5 12 11 13 12.5 14 14 15 15 17 14 16 18 14 14 15 16.5 20 18.5 22 19 20.5 21 24 bulk L  4.6  4.6  4.6  4.6  4.6  7.2  7.2  7.2  7.2  7.2  7.2  7.2  7.2  7.2  7.2  7.2  7.2  7.2  7.2 10 10 10 10.3 10.3 10.3 10.3 13 13.5 13 13 13.5 13 13 13 13 18 19 18 19 18 19 18 19 18 18 19 18 26.5 26.5 26.5 28 26.5 28 26.5 26.5 26.5 28 Codes 0B 0C 0D 0E 0F 1A 1B 1C 1D 1E 1F 1G 1H 1I 1J 1K 1L 1M 1N 2A 2B 2C 2D 2E 2F 2G 3A FA 3C 3D FB 3F 3G 3H 3I 4B FC 4C FD 4D FE 4F FF 4H 4J FG 4M 5A 5B 5D FH 5F FI 5G 5H 5I FJ S 5000 5000 5000 5000 5000 5000 5000 5000 6000 4000 3500 4000 2500 2500 2500 2000 2000 1500 1000 5000 5000 4000 3500 3000 2000 1500 3000 3000 3000 3000 2000 3000 2400 2400 2000 2400 1000 2000 1000 1600 1000 1200  500 1200  900  500 1000 1200 1000  760  500  500 570* 594* 594* 561* 480* Moulded versions. Rights reserved to amend design data without prior notification. 06.21 * TPS (Tray-Packing-System). Plate versions may have different packing units. Samples and pre-production needs on request. pcs. per packing unit REEL AMMO P 360 P 500 340 x 340 490 x 370 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 N O F I H J A C B D 2200 2500 – 2800 – 2000 2300 – 2300 – 1500 1800 – 1800 – 1200 1500 – 1500 –  900 1200 – 1200 – 2200 2500 – 2800 – 2000 2300 – 2300 – 1600 2000 – 2000 – 1300 1500 – 1500 – 1300 1500 – 1500 – 1100 1400 – 1400 – 1000 1200 – 1200 – 1000 1200 – 1200 –  800 1000 – 1000 – 1000 – 1000 –  700  700  950 – 1000 –  600  800  800 – –  600  800  800 – –  500  600  640 – – – 2500 4400 2500 – – 2200 4300 2300 4150 – 1700 3200 1700 3000 – 1500 2900 1400 2700 – 1300 2500 1300 – – 1000 2200 1100 –  900 – 1800 1000 – – 1100 2200 – 1900  900 – 1600 – 1450 –  900 1600 – 1450  900 – 1600 – 1400 –  700 1300 – 1200  700 – 1300 – 1100 –  550 1100 – 1000 – 1100 – 1000  550 – –  400  800  740 1200 – 1150 –  600 –  600 1200 – 1200 – 1000 – 1000  500 –  500 1000 – 1000 – –  450  900  850 –  450  900 –  850 – –  400  800  740 –  400  800 –  740 – –  350  700  650 –  350  700 –  650 – –  300  650  590  300  600  540 – – – –  800 –  770  700  640 – – – – –  600 –  550 – – –  500  480 – –  480 –  450 – – –  420  380 – –  400 –  360  400  360 – – – – –  380 –  350  350  310 – – – ROLL 163 D Packing Quantities for Capacitors with Radial Pins in PCM 27.5 mm to 52.5 mm Size PCM pcs. per packing unit REEL AMMO P 360 P 500 340 x 340 490 x 370 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 H16.5 H18.5 N O F I H J A C B D – – 460/340* – – – – 380/280* – – – –  300 – – – – – – –  270 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – ROLL bulk W  9 11 13 13 15 15 17 17 20 20 H 19 21 24 25 26 26 29 34.5 32 39.5 L 31.5 31.5 31.5 33 31.5 33 31.5 31.5 33 31.5 Codes 6A 6B 6D FK 6F FL 6G 6I FM 6J S 567* 459* 378* 405* 324* 324* 198* 198* 162* 162* 37.5 mm  9 11 13 15 17 19 20 24 28 31 35 40 19 22 24 26 29 32 39.5 45.5 38 46 50 55 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 7A 7B 7C 7D 7E 7F 7G 7H 7L 7I 7J 7K 441* 357* 294* 252* 154* 140* 126* 112*  84*  84*  35*  28* – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 48.5 mm 19 23 27 33 37 31 34 37.5 48 54 56 56 56 56 56 8D 8E 8H 8J 8L 120*  80*  84*  25*  25* – – – – – – – – – – – – – – – – – – – – – – – – – 52.5 mm 25 30 35 45 45 45 45 50 55 65 57 57 57 57 57 9D 9E 9F 9H 9J  70*  60*  25*  20*  20* – – – – – – – – – – – – – – – – – – – – – – – – – 27.5 mm * for 2-inch transport pitches. * TPS (Tray-Packing-System). Plate versions may have different packing units. Samples and pre-production needs on request. Moulded versions. Rights reserved to amend design data without prior notification. 06.21 Updated data on www.wima.com 164 D WIMA Part Number System A WIMA part number consists of 18 digits and is composed as follows: Field   1 -   4: Type description Field   5 -   6: Rated voltage Field   7 - 10: Capacitance Field 11 - 12: Size and PCM Field 13 - 14: Version code (e.g. Snubber versions) Field 15: Capacitance tolerance Field 16: Packing Field 17 - 18: Pin length (untaped) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 M K S 2 C 0 2 1 0 0 1 A 0 0 M S S D 20 % bulk MKS 2 06.21 Type description: SMD-PET = SMDT SMD-PEN = SMDN SMD-PPS = SMDI FKP 02 = FKP0 MKS 02 = MKS0 FKS 2 = FKS2 FKP 2 = FKP2 FKS 3 = FKS3 FKP 3 = FKP 3 MKS 2 = MKS2 MKP 2 = MKP2 MKS 4 = MKS4 MKP 4 = MKP4 MKP 10 = MKP1 FKP 4 = FKP4 FKP 1 = FKP1 MKP-X2 = MKX2 MKP-X1 R = MKX1 MKP-Y2 = MKY2 MP 3-X2 = MPX2 MP 3-X1 = MPX1 MP 3-Y2 = MPY2 MP 3R-Y2 = MPRY MKP 4F = MKPF Snubber MKP = SNMP Snubber FKP = SNFP GTO MKP = GTOM DC-LINK MKP 4 = DCP4 DC-LINK MKP 6 = DCP6 DC-LINK HC = DCHC 63 VDC Rated voltage: 50 VDC = B0 63 VDC = C0 100 VDC = D0 250 VDC = F0 400 VDC = G0 450 VDC = H0 520 VDC = H2 600 VDC = I0 630 VDC = J0 700 VDC = K0 800 VDC = L0 850 VDC = M0 900 VDC = N0 1000 VDC = O1 1100 VDC = P0 1200 VDC = Q0 1250 VDC = R0 1500 VDC = S0 1600 VDC = T0 1700 VDC = TA 2000 VDC = U0 2500 VDC = V0 3000 VDC = W0 4000 VDC = X0 6000 VDC = Y0 250 VAC = 0W 275 VAC = 1W 300 VAC = 2W 305 VAC = AW 350 VAC = BW 440 VAC = 4W 500 VAC = 5W ... 0.01 mF Capacitance: 22 pF = 0022 47 pF = 0047 100 pF = 0100 150 pF = 0150 220 pF = 0220 330 pF = 0330 470 pF = 0470 680 pF = 0680 1000 pF = 1100 1500 pF = 1150 2200 pF = 1220 3300 pF = 1330 4700 pF = 1470 6800 pF = 1680 0.01 mF = 2100 0.022 mF = 2220 0.047 mF = 2470 0.1 mF = 3100 0.22 mF = 3220 0.47 mF = 3470 = 4100 1 mF 2.2 mF = 4220 4.7 mF = 4470 = 5100 10 mF = 5220 22 mF = 5470 47 mF 100 mF = 6100 220 mF = 6220 1000 mF = 7100 1500 mF = 7150 ... 2.5 x 6.5 x 7.2 - Size: 4.8 x 3.3 x 3 Size 1812 = KA 4.8 x 3.3 x 4 Size 1812 = KB 5.7 x 5.1 x 3.5 Size 2220 = QA 5.7 x 5.1 x 4.5 Size 2220 = QB 7.2 x 6.1 x 3 Size 2824 = TA 7.2 x 6.1 x 5 Size 2824 = TB 10.2 x 7.6 x 5 Size 4030 = VA 12.7 x 10.2 x 6 Size 5040 = XA 15.3 x 13.7 x 7 Size 6054 = YA 2.5 x 7 x 4.6 PCM 2.5 = 0B 3 x 7.5 x 4.6 PCM 2.5 = 0C 2.5 x 6.5 x 7.2 PCM 5 = 1A 3 x 7.5 x 7.2 PCM 5 = 1B 2.5 x 7 x 10 PCM 7.5 = 2A 3 x 8.5 x 10 PCM 7.5 = 2B 3 x 9 x 13 PCM 10 = 3A 4 x 9 x 13 PCM 10 = 3C 5 x 11 x 18 PCM 15 = 4B 6 x 12.5 x 18 PCM 15 = 4C 5 x 14 x 26.5 PCM 22.5 = 5A 6 x 15 x 26.5 PCM 22.5 = 5B 9 x 19 x 31.5 PCM 27.5 = 6A 11 x21 x 31.5 PCM 27.5 = 6B 9 x 19 x 41.5 PCM 37.5 = 7A 11 x 22 x 41.5 PCM 37.5 = 7B 19 x 31 x 56 PCM 48.5 = 8D 25 x 45 x 57 PCM 52.5 = 9D ... Version code: Standard = Version A1 = Version A1.1.1 = Version A2 = ... 00 1A 1B 2A Tolerance: ±20 % = ±10 % = ±5 % = ±2.5 % = ±1 % = ... 6 -2 M K J H E Packing: AMMO H16.5 340 x 340 AMMO H16.5 490 x 370 AMMO H18.5 340 x 340 AMMO H18.5 490 x 370 REEL H16.5 360 REEL H16.5 500 REEL H18.5 360 REEL H18.5 500 ROLL H16.5 ROLL H18.5 BLISTER W12 180 BLISTER W12 330 BLISTER W16 330 BLISTER W24 330 Bulk/TPS Standard ... =A =B =C =D =F =H =I =J =N =O =P =Q =R =T =S Pin length (untaped) 3.5 ±0.5 = C9 6 -2 = SD 16 ±1 = P1 ... Pin length (taped) none = 00 The data on this page is not complete and serves only to explain the part number system. Part number information is listed on the pages of the respective WIMA range. 159
