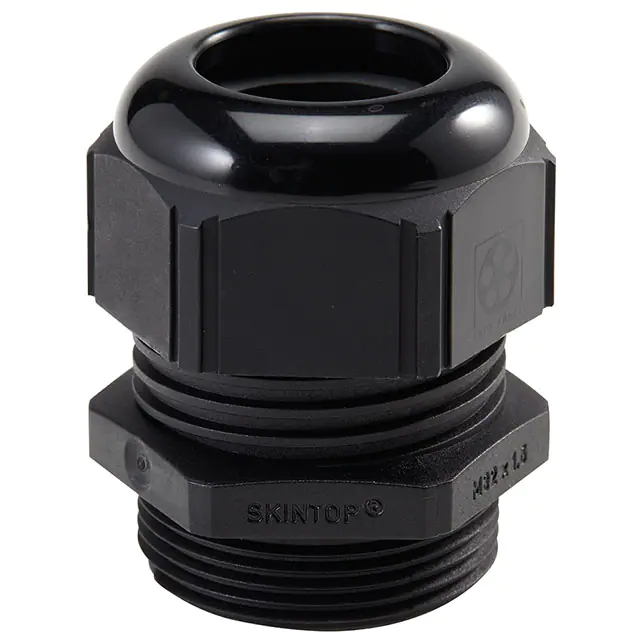

S2513

SKINTOP® UNCONTROLLED COPY Non-metallic cable glands Strain relief cable glands SKINTOP® SLM/SLRM Strain relief with metric thread SKINTOP® SLM/SLRM is a durable, liquid-tight, easy-to-assemble strain relief cable gland with metric thread that is universally suited for all types ­of machinery & equipment, including automation, motion control, process control, and robotics. SKINTOP® SLRM includes reducer bushing. Application advantage • T he heavy duty SKINTOP® design provides great pullout strength and very reliable strain relief • Superior integrated locking mechanism includes an internal ratchet for vibration-proof protection • Multi-trapezoidal thread requires just one twist to tighten Approvals • Generous high-quality neoprene bushing provides a liquidtight and dust-proof hermetic seal Technical data Material: - body: polyamide - bushing: CR Color: black (RAL 9005), UV resistant gray (RAL 7001) Protection: - seal: Locknuts: included Part number with locknut black gray Standard S2507 S1507 S2509 S1509 S2513 S1513 S2516 S1516 S2521 S1521 S2529 S1529 S2536 S1536 S2542 S1542 Reducer bushing S2607 S1607 S2609 S1609 S2613 S1613 S2616 S1616 S2621 S1621 S2629 S1629 S2636 S1636 S2642 S1642 Part number without locknut* Thread black gray 53111200 53111210 53111220 53111230 53111240 53111250 53111260 53111270 53111000 53111010 53111020 53111030 53111040 53111050 53111060 53111070 M12 x 1.5 M16 x 1.5** M20 x 1.5** M25 x 1.5** M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5 53111300 53111310 53111320 53111330 53111340 53111350 53111360 53111370 53111100 53111110 53111120 53111130 53111140 53111150 53111160 53111170 M12 x 1.5 M16 x 1.5** M20 x 1.5** M25 x 1.5** M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5 Temperature range: - static: -40°C to +100°C - dynamic: -20°C to +100°C 70 PSI IP68, 5 bar IP69 NEMA 1, 12 in mm Wrenching flats (SW) in Recognized Recognized Listed Listed Listed Listed Listed Listed 0.138 - 0.276 0.157 - 0.394 0.236 - 0.512 0.315 - 0.669 0.354 - 0.827 0.630 - 1.102 1.063 - 1.339 1.339 - 1.772 3.5 - 7 4 - 10 6 - 13 8 - 17 9 - 21 16 - 28 27 - 34 34 - 45 0.591 0.748 0.984 1.181 1.417 1.811 2.165 2.598 1.181 1.339 1.457 1.575 1.850 2.047 2.441 2.795 0.315 0.315 0.354 0.394 0.394 0.394 0.472 0.472 100 100 100 50 25 10 5 5 Recognized Recognized Listed Listed Listed Listed Listed Listed 0.079 - 0.197 0.138 - 0.276 0.157 - 0.394 0.197 - 0.512 0.236 - 0.591 0.354 - 0.906 0.945 - 1.142 1.102 - 1.535 2-5 3.5 - 7 4 - 10 5 - 13 6 - 15 9 - 23 24 - 29 28 - 39 0.591 0.748 0.984 1.181 1.417 1.811 2.165 2.598 1.181 1.339 1.457 1.575 1.850 2.047 2.441 2.795 0.315 0.315 0.354 0.394 0.394 0.394 0.472 0.472 100 100 100 50 25 10 5 5 UL status Clamping range (øF) Overall length (C) in Thread length (D) in Pack size * The use of a locknut is required per UL if the end-use application consists of inserting the cable gland through a non-threaded hole ** Metric sizes M16, M20, and M25 also available in an extended thread version. To maintain UL rating, please use a locknut Orders of 2000 pieces or more per item will be bulk packaged unless otherwise requested If not otherwise specified, all values relating to the product are nominal values. Photographs are not to scale and are not true representations of the products in question. rev. 2 | 9.18.2018 for current information see:  www.lappusa.com • www.lappcanada.com 499
