AC-DC Power Supplies Enclosed Type
Power
Factor
Correction
World wide Safety
Approvals
EMI
Inrush
current
limiting
OCP
OVP
Remote
ON/OFF
Pulse Load
Parallel
Operation
ADA-series
Feature
Safety agency approvals
UL60950-1, C-UL(CSA60950-1), EN62368-1
Complies with DEN-AN
EMI
Optional parts
High power & peak power
Power up with fan (optional)
Parallel operation / master-slave operation / N+1 redundant
(optional)
Harmonic attenuator (Complies with IEC61000-3-2)
Universal input voltage (AC85 - 264V)
Optional : remote ON/OFF, alarms
Current monitor
DIN rail (35mm) optional
Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B
5-year warranty (refer to Instruction Manual)
Harness
Fan unit
Attachment
CE marking
Low Voltage Directive
RoHS Directive
EMS Compliance : EN61204-3, EN61000-6-2
EN55022-B
EN61000-3-2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
January 31, 2022
ADA-1
AC-DC Power Supplies Enclosed Type

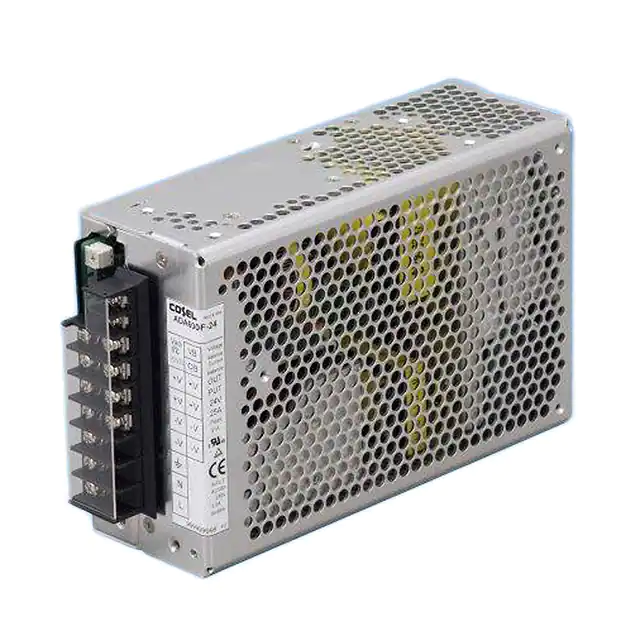

ADA600F
Ordering information
ADA 600
1
2
F
3
-24
4
Example recommended EMI/EMC filter
NAC-20-472
R
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
A higher current rating EMI/EMC filter
may be recommended in view of the
other devices that could be connected
in parallel with the power supply.
-O
5
1 Series name
2 Output wattage
3 Universal input
4 Output voltage
5 Optional *7
G : Low leakage current
E : Low leakage current
and EMI class A
F : with Fan unit
T : Vertical terminal block
J : Connector type
C : with Coating
R : Remote ON/OFF
N1:DIN rail
W : Alarms and Redundant
operation
Specification is changed at
option,refer to Instruction
Manual.
Please refer to derating curve, because the rated load current depends on cooling method that is convection cooling or forced air.
*Make sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
SPECIFICATIONS
MODEL
VOLTAGE[V]
FREQUENCY[Hz]
ACIN 100V
ACIN 200V
ACIN 100V
POWER FACTOR
ACIN 200V
ACIN 100V *1
INRUSH CURRENT[A]
ACIN 200V *1
LEAKAGE CURRENT[mA]
VOLTAGE[V]
ACIN 100V *2
ACIN 100V *2
CURRENT[A]
ACIN 200V *2
ACIN 200V *2
LINE REGULATION[mV]
LOAD REGULATION[mV]
0 to +50C *3
RIPPLE[mVp-p]
-10 - 0C *3
0 to +50C *3
RIPPLE NOISE[mVp-p]
-10 - 0C *3
TEMPERATURE REGULATION[mV] 0 to +50C
*4
DRIFT[mV]
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
OVERVOLTAGE PROTECTION[V]
OPERATING INDICATION
ALARM OUTPUT
REMOTE ON/OFF(RC)
*5
INPUT-OUTPUT -RC
INPUT-FG
*5
OUTPUT-RC-FG
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
HARMONIC ATTENUATOR
CASE SIZE/WEIGHT
COOLING METHOD
EFFICIENCY[%]
INPUT
OUTPUT
PROTECTION
CIRCUIT AND
OTHERS
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
OTHERS
ADA600F-24
ADA600F-30
ADA600F-36
AC85 - 264 1f or DC 120 - 350 (AC64 or DC90 optionally available *6)
50/60 (47 - 63) or DC
84typ (Io=100%)
86typ (Io=100%)
86typ (Io=100%)
86typ (Io=100%)
87typ (Io=100%)
87typ (Io=100%)
0.99typ (Io=100%)
0.98typ (Io=100%)
20typ (Io=100%) (More than 3sec.to re-start)
40typ (Io=100%) (More than 3sec.to re-start)
0.75max (60Hz, According to IEC62368-1 and DEN-AN) (Io=100%)
24
30
36
14 (Peak 25) convection
11 (Peak 20) convection
9 (Peak 16.5) convection
21 (Peak 25) forced air
16.5 (Peak 20) forced air
14 (Peak 16.5) forced air
15 (Peak 31) convection
12 (Peak 24.5) convection 10 (Peak 20.5) convection
25 (Peak 31) forced air
20 (Peak 24.5) forced air
16.5 (Peak 20.5) forced air
96max
120max
144max
150max
180max
240max
120max
160max
200max
160max
230max
260max
150max
190max
230max
180max
250max
280max
240max
300max
360max
96max
120max
144max
500max (ACIN 100V, Io=100%)
20typ (ACIN 100V, Io=100%)
86typ (Io=100%)
89typ (Io=100%)
48
6.5 (Peak 12.5) convection
10.5 (Peak 12.5) forced air
7 (Peak 15.5) convection
12.5 (Peak 15.5) forced air
192max
300max
200max
300max
250max
400max
480max
192max
21.6 - 27.0
27.0 - 33.0
33.0 - 41.0
41.0 - 52.8
23.5 - 24.5
29.0 - 31.0
35.0 - 37.0
47.0 - 49.0
Works over 101% of peak current and recovers automatically
31 - 34.5
40 - 48
51 - 60
64 - 76
LED (Green)
Detecting low input voltage(PF), detecting low output voltage(LV). (Optional : -W, refer to Instruction Manual 6)
Requirement for external source (Option : -R, refer to Instruction Manual 6)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At Room Temperature)
-10 to +71C, 20 - 90%RH (Non condensing) (Refer to “Derating”), 3,000m (10,000feet) max
-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s2 (2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s2 (20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL(CSA60950-1), EN62368-1 Complies with DEN-AN
Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B
Complies with IEC61000-3-2 *8
65X127X195mm [2.56X5X7.68 inches] (WXHXD) (without terminal block) /1.5kg max
Convection/Forced air
*1 The value is primary surge.The current of input surge to a built-in EMI/EMC Filter (0.2ms or
less) is excluded.
*2 Peak loading for 10sec.And Duty 35% max.Refer to Instruction Manual 4.Forced air is shown
in “Derating”.
*3 This is the value that measured on measuring board with capacitor of 22mF within 150mm
from output terminal.Measured by 20MHz oscilloscope or Ripple-Noise meter (Equivalent to
KEISOKU-GIKEN: RM101).
ADA-2
ADA600F-48
*4 Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C,
with the input voltage held constant at the rated input/output.
*5 Applicable when remote control (optional) is added.
*6 Derating is required.Consult us for details.
*7 Please contact us about safety approvals for the model with option.
*8 Please contact us about class C.
* A sound may occur from power supply at pulse loading.
January 31, 2022
ADA600F
Block diagram
Fuse
250V12A
Booster inductor
Noise
filter
AC IN 85 - 264V
Inrush
current
limitting
Detecting
current
Rectifier
Rectifier
&
Smooth
FG
Inverter
Option
Alarm
circuit
PF alarm
(-W)
Detecting
current
Control
Option
RC
(-R)
N+1
Redundancy
Control
External source
(-W)
Control
Over voltage
protection
Inverter
Current Balance (CB)
Master-Slave
circuit
Voltage Balance (VB)
Option
Detecting
output voltage
LV alarm (-W)
Rectifier
&
Smooth
DC OUT
External view
18.1 13
[0.71] [0.51]
(22.6)
4-M4
Mounting hole
(Bottom)
[0.89]
18
29
[1.14]
[4.13]
[5]
105 ±0.5
127
9 8
10
8.6 [0.39]
11
130.5 ±0.5
Terminal cover
29±0.5 26.5
65 [1.04]
[2.56]
2-M4
Mounting hole
48
[5.14]
9
M3.5
FG hole
2-M4
Mounting hole
[1.89]
[1.14]
20
[0.79]
[1.38]
35 ±0.5
[0.71]
195
[7.68]
[0.43]
9
[0.35]
27.5
TB1
[1.08]
[4.51]
114.5
VB
CB
+V
+V
-V
-V
FG
N
L
(19)
[0.75]
[0.35] [0.31]
6.6
Name plate
[0.26]
LED
[0.64]
CN3(Option)
[0.35]
16.2
[0.34]
Voltage adjust
8-M4
Mounting hole
(Both sides)
¶ Pin assign
Symbol
VB
CB
+V
+V
-V
-V
FG
N
L
Function
Voltage balance
Current balance
Output terminal(+)
Output terminal(+)
Output terminal(-)
Output terminal(-)
Frame ground
AC(N)
AC(L)
130.5 ±0.5
48
[5.14]
[1.89]
CN3(Option)
Screw type
M3
M4
Pin No.
2 1
4 3
6 5
8 7
10 9
12 11
14 13
Average 21A max per pin for TB1
¶ Tolerance : ±1 [±0.04]
¶ Weight : 1.5kg max
¶ PCB material / thickness : FR-4 / 1.6mm [0.06]
¶ Chassis and cover material : aluminium
¶ Dimensions in mm, [
]= inches
¶ Mounting torque : 1.2N • m(12.8kgf • cm) max
¶ Screw tighting torque
M4 : 1.6N • m(16.9kgf • cm) max , M3 : 0.8N • m(8.5kgf • cm) max
¶ I/0 terminal for option-J and -T is shown in Instruction Manual 6.
1
RC+
Function
: Remote ON/OFF+(-R)
2
RC-
: Remote ON/OFF-(-R)
3-8
NC
: N.C.
9
LV+
: LV Alarm(-W)
10
LV-
: LV Alarm ground(-W)
11-12
NC
: N.C.
13
PF+
: PF Alarm(-W)
14
PF-
: PF Alarm ground(-W)
January 31, 2022
Connector
Terminal
Chain:SPHD-002T-P0.5
PHDR-14VS Loose:BPHD-001T-P0.5
BPHD-002T-P0.5 *1
*1 Ratchet Hand is nothing
CN3 S14B-PHDSS
Mating connector
Mfr.
J.S.T
ADA-3
AC-DC Power Supplies Enclosed Type
ADA750F
Ordering information
ADA 750
1
2
F
3
-24
4
Example recommended EMI/EMC filter
NAC-20-472
R
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
A higher current rating EMI/EMC filter
may be recommended in view of the
other devices that could be connected
in parallel with the power supply.
-O
5
1 Series name
2 Output wattage
3 Universal input
4 Output voltage
5 Optional *7
G : Low leakage current
E : Low leakage current
and EMI class A
F : with Fan unit
T : Vertical terminal block
J : Connector type
C : with Coating
R : Remote ON/OFF
N1:DIN rail
W : Alarms and Redundant
operation
Specification is changed at
option,refer to Instruction
Manual.
Please refer to derating curve, because the rated load current depends on cooling method that is convection cooling or forced air.
*Make sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
SPECIFICATIONS
MODEL
VOLTAGE[V]
FREQUENCY[Hz]
ACIN 100V
ACIN 200V
ACIN 100V
POWER FACTOR
ACIN 200V
ACIN 100V *1
INRUSH CURRENT[A]
ACIN 200V *1
LEAKAGE CURRENT[mA]
VOLTAGE[V]
ACIN 100V *2
ACIN 100V *2
CURRENT[A]
ACIN 200V *2
ACIN 200V *2
LINE REGULATION[mV]
LOAD REGULATION[mV]
0 to +50C *3
RIPPLE[mVp-p]
-10 - 0C *3
0 to +50C *3
RIPPLE NOISE[mVp-p]
-10 - 0C *3
TEMPERATURE REGULATION[mV] 0 to +50C
*4
DRIFT[mV]
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
OVERVOLTAGE PROTECTION[V]
OPERATING INDICATION
ALARM OUTPUT
REMOTE ON/OFF(RC)
*5
INPUT-OUTPUT -RC
INPUT-FG
*5
OUTPUT-RC-FG
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
HARMONIC ATTENUATOR
CASE SIZE/WEIGHT
COOLING METHOD
EFFICIENCY[%]
INPUT
OUTPUT
PROTECTION
CIRCUIT AND
OTHERS
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
OTHERS
ADA750F-24
ADA750F-30
ADA750F-36
AC85 - 264 1f or DC 120 - 350 (AC64 or DC90 optionally available *6)
50/60 (47 - 63) or DC
86typ (Io=100%)
86typ (Io=100%)
87typ (Io=100%)
88typ (Io=100%)
88typ (Io=100%)
89typ (Io=100%)
0.99typ (Io=100%)
0.98typ (Io=100%)
20typ (Io=100%) (More than 3sec.to re-start)
40typ (Io=100%) (More than 3sec.to re-start)
0.75max (60Hz, According to IEC62368-1 and DEN-AN) (Io=100%)
24
30
36
17 (Peak 42) convection
13.5 (Peak 33.5) convection 11 (Peak 28) convection
25 (Peak 42) forced air
20 (Peak 33.5) forced air
16.5 (Peak 28) forced air
19 (Peak 63) convection
15 (Peak 50) convection
12.5 (Peak 42) convection
31.5 (Peak 63) forced air
24.5 (Peak 50) forced air
20.5 (Peak 42) forced air
96max
120max
144max
150max
180max
240max
120max
160max
200max
160max
230max
260max
150max
190max
230max
180max
250max
280max
240max
300max
360max
96max
120max
144max
500max (ACIN 100V, Io=100%)
20typ (ACIN 100V, Io=100%)
87typ (Io=100%)
89typ (Io=100%)
48
8 (Peak 21) convection
12.5 (Peak 21) forced air
9 (Peak 31.5) convection
15.5 (Peak 31.5) forced air
192max
300max
200max
300max
250max
400max
480max
192max
21.6 - 27.0
27.0 - 33.0
33.0 - 41.0
41.0 - 52.8
23.5 - 24.5
29.0 - 31.0
35.0 - 37.0
47.0 - 49.0
Works over 101% of peak current and recovers automatically
31 - 34.5
40 - 48
51 - 60
64 - 76
LED (Green)
Detecting low input voltage(PF), detecting low output voltage(LV). (Optional : -W, refer to Instruction Manual 6)
Requirement for external source (Option : -R, refer to Instruction Manual 6)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At Room Temperature)
-10 to +71C, 20 - 90%RH (Non condensing) (Refer to “Derating”), 3,000m (10,000feet) max
-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s2 (2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s2 (20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL(CSA60950-1), EN62368-1 Complies with DEN-AN
Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B
Complies with IEC61000-3-2 *8
70X127X230mm [2.76X5X9.06 inches] (WXHXD) (without terminal block) /1.9kg max
Convection/Forced air
*1 The value is primary surge.The current of input surge to a built-in EMI/EMC Filter (0.2ms or
less) is excluded.
*2 Peak loading for 10sec.And Duty 35% max.Refer to Instruction Manual 4.Forced air is shown
in “Derating”.
*3 This is the value that measured on measuring board with capacitor of 22mF within 150mm
from output terminal.Measured by 20MHz oscilloscope or Ripple-Noise meter (Equivalent to
KEISOKU-GIKEN: RM101).
ADA-4
ADA750F-48
*4 Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C,
with the input voltage held constant at the rated input/output.
*5 Applicable when remote control (optional) is added.
*6 Derating is required.Consult us for details.
*7 Please contact us about safety approvals for the model with option.
*8 Please contact us about class C.
* A sound may occur from power supply at pulse loading.
January 31, 2022
ADA750F
Block diagram
Fuse
250V20A
Booster inductor
Noise
filter
AC IN 85 - 264V
Inrush
current
limitting
Detecting
current
Rectifier
Rectifier
&
Smooth
FG
Inverter
Option
Alarm
circuit
PF alarm
(-W)
Detecting
current
Control
Option
RC
(-R)
N+1
Redundancy
Control
External source
(-W)
Control
Over voltage
protection
Inverter
Current Balance (CB)
Master-Slave
circuit
Voltage Balance (VB)
Option
Detecting
output voltage
LV alarm (-W)
Rectifier
&
Smooth
DC OUT
External view
18.1 13
[0.71] [0.51]
(22.6)
Voltage adjust
4-M4
Mounting hole
(Bottom)
LED
(19)
Name plate
[0.64]
230
[9.06]
[0.75]
18
[0.71]
[5]
105 ±0.5
[4.13] 127
9 8
[0.35] [0.31]
10
8.6 [0.39]
[0.34]
M3.5
FG hole
29
[1.14]
175.5 ±0.5
Terminal cover
2-M4
Mounting hole
9
30.5
29 ±0.5
[1.14] 70 [1.2]
38
[6.91]
[0.35]
11
[0.43]
27.5
9
TB1
[1.08]
[4.51]
VB
CB
+V
+V
-V
-V
FG
N
L
[0.35]
114.5
6.6
[0.26]
CN3(Option)
[0.89]
16.2
[1.5]
[2.76]
20
[0.79]
[1.38]
35 ±0.5
2-M4
Mounting hole
175.5 ±0.5
8-M4
Mounting hole
(Both sides)
¶ Pin assign
Symbol
VB
CB
+V
+V
-V
-V
FG
N
L
Function
Voltage balance
Current balance
Output terminal(+)
Output terminal(+)
Output terminal(-)
Output terminal(-)
Frame ground
AC(N)
AC(L)
38
[6.91]
[1.5]
CN3(Option)
Screw type
M3
M4
Pin No.
2 1
4 3
6 5
8 7
10 9
12 11
14 13
Average 21A max per pin for TB1
¶ Tolerance : ±1 [±0.04]
¶ Weight : 1.9kg max
¶ PCB material / thickness : FR-4 / 1.6mm [0.06]
¶ Chassis and cover material : aluminium
¶ Dimensions in mm, [
]= inches
¶ Mounting torque : 1.2N • m(12.8kgf • cm) max
¶ Screw tighting torque
M4 : 1.6N • m(16.9kgf • cm) max , M3 : 0.8N • m(8.5kgf • cm) max
¶ I/0 terminal for option-J and -T is shown in Instruction Manual 6.
1
RC+
Function
: Remote ON/OFF+(-R)
2
RC-
: Remote ON/OFF-(-R)
3-8
NC
: N.C.
9
LV+
Connector
Terminal
Chain:SPHD-002T-P0.5
PHDR-14VS Loose:BPHD-001T-P0.5
BPHD-002T-P0.5 *1
*1 Ratchet Hand is nothing
CN3 S14B-PHDSS
Mating connector
Mfr.
J.S.T
: LV Alarm(-W)
10
LV-
: LV Alarm ground(-W)
11-12
NC
: N.C.
13
PF+
: PF Alarm(-W)
14
PF-
: PF Alarm ground(-W)
January 31, 2022
ADA-5
AC-DC Power Supplies Enclosed Type
ADA1000F
Ordering information
ADA 1000
1
2
F
3
-24
4
Example recommended EMI/EMC filter
NAC-20-472
R
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
A higher current rating EMI/EMC filter
may be recommended in view of the
other devices that could be connected
in parallel with the power supply.
-O
5
1 Series name
2 Output wattage
3 Universal input
4 Output voltage
5 Optional *7
G : Low leakage current
E : Low leakage current
and EMI class A
F : with Fan unit
T : Vertical terminal block
J : Connector type
C : with Coating
R : Remote ON/OFF
N1:DIN rail
W : Alarms and Redundant
operation
Specification is changed at
option,refer to Instruction
Manual.
Please refer to derating curve, because the rated load current depends on cooling method that is convection cooling or forced air.
*Make sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
SPECIFICATIONS
MODEL
VOLTAGE[V]
FREQUENCY[Hz]
ACIN 100V
ACIN 200V
ACIN 100V
POWER FACTOR
ACIN 200V
ACIN 100V *1
INRUSH CURRENT[A]
ACIN 200V *1
LEAKAGE CURRENT[mA]
VOLTAGE[V]
ACIN 100V *2
ACIN 100V *2
CURRENT[A]
ACIN 200V *2
ACIN 200V *2
LINE REGULATION[mV]
LOAD REGULATION[mV]
0 to +50C *3
RIPPLE[mVp-p]
-10 - 0C *3
0 to +50C *3
RIPPLE NOISE[mVp-p]
-10 - 0C *3
TEMPERATURE REGULATION[mV] 0 to +50C
*4
DRIFT[mV]
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
OVERVOLTAGE PROTECTION[V]
OPERATING INDICATION
ALARM OUTPUT
REMOTE ON/OFF(RC)
*5
INPUT-OUTPUT -RC
INPUT-FG
*5
OUTPUT-RC-FG
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
HARMONIC ATTENUATOR
CASE SIZE/WEIGHT
COOLING METHOD
EFFICIENCY[%]
INPUT
OUTPUT
PROTECTION
CIRCUIT AND
OTHERS
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
OTHERS
ADA1000F-24
ADA1000F-30
ADA1000F-36
AC85 - 264 1f or DC 120 - 350 (AC64 or DC90 optionally available *6)
50/60 (47 - 63) or DC
86typ (Io=100%)
86typ (Io=100%)
87typ (Io=100%)
88typ (Io=100%)
88typ (Io=100%)
89typ (Io=100%)
0.99typ (Io=100%)
0.98typ (Io=100%)
20typ (Io=100%) (More than 3sec.to re-start)
40typ (Io=100%) (More than 3sec.to re-start)
0.75max (60Hz, According to IEC62368-1 and DEN-AN) (Io=100%)
24
30
36
21 (Peak 63) convection
16.5 (Peak 50) convection 14 (Peak 42) convection
33 (Peak 63) forced air
26 (Peak 50) forced air
22 (Peak 42) forced air
25 (Peak 83) convection
20 (Peak 66) convection
16.5 (Peak 55) convection
42 (Peak 83) forced air
33.5 (Peak 66) forced air
28 (Peak 55) forced air
96max
120max
144max
150max
180max
240max
120max
160max
200max
160max
230max
260max
150max
190max
230max
180max
250max
280max
240max
300max
360max
96max
120max
144max
500max (ACIN 100V, Io=100%)
20typ (ACIN 100V, Io=100%)
87typ (Io=100%)
89typ (Io=100%)
48
10.5 (Peak 31.5) convection
16.5 (Peak 31.5) forced air
11.5 (Peak 41.5) convection
21 (Peak 41.5) forced air
192max
300max
200max
300max
250max
400max
480max
192max
21.6 - 27.0
27.0 - 33.0
33.0 - 41.0
41.0 - 52.8
23.5 - 24.5
29.0 - 31.0
35.0 - 37.0
47 - 49
Works over 101% of peak current and recovers automatically
31 - 34.5
40 - 48
51 - 60
64 - 76
LED (Green)
Detecting low input voltage(PF), detecting low output voltage(LV). (Optional : -W, refer to Instruction Manual 6)
Requirement for external source (Option : -R, refer to Instruction Manual 6)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (At Room Temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50MW min (At Room Temperature)
-10 to +71C, 20 - 90%RH (Non condensing) (Refer to “Derating”), 3,000m (10,000feet) max
-20 to +75C, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s2 (2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s2 (20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL(CSA60950-1), EN62368-1 Complies with DEN-AN
Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B
Complies with IEC61000-3-2 *8
75X127X280mm [2.95X5X11.02 inches] (WXHXD) (without terminal block) /2.5kg max
Convection/Forced air
*1 The value is primary surge.The current of input surge to a built-in EMI/EMC Filter (0.2ms or
less) is excluded.
*2 Peak loading for 10sec.And Duty 35% max.Refer to Instruction Manual 4.Forced air is shown
in “Derating”.
*3 This is the value that measured on measuring board with capacitor of 22mF within 150mm
from output terminal.Measured by 20MHz oscilloscope or Ripple-Noise meter (Equivalent to
KEISOKU-GIKEN: RM101).
ADA-6
ADA1000F-48
*4 Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C,
with the input voltage held constant at the rated input/output.
*5 Applicable when remote control (optional) is added.
*6 Derating is required.Consult us for details.
*7 Please contact us about safety approvals for the model with option.
*8 Please contact us about class C.
* A sound may occur from power supply at pulse loading.
January 31, 2022
ADA1000F
Block diagram
Fuse
250V25A
Booster inductor
Noise
filter
AC IN 85 - 264V
Inrush
current
limitting
Detecting
current
Rectifier
Rectifier
&
Smooth
FG
Inverter
Option
Alarm
circuit
PF alarm
(-W)
Detecting
current
Control
Option
RC
(-R)
N+1
Redundancy
Control
External source
(-W)
Control
Over voltage
protection
Inverter
Current Balance (CB)
Master-Slave
circuit
Voltage Balance (VB)
Option
Detecting
output voltage
LV alarm (-W)
Rectifier
&
Smooth
DC OUT
External view
19.1 13
[0.75] [0.51]
(23.6)
4-M4
Mounting hole
(Bottom)
Voltage adjust
[0.93]
CN3 17.2
(Option) [0.68]
LED
Name plate (19)
280
[11.02]
18
[5]
[4.13]
[0.43]
17
[9.76]
9
11
248 ±0.5
Terminal cover
29 ±0.5
75
[0.67]
[1.14]
[0.35]
M3.5
FG hole
2-M4
Mounting hole
29
[1.14]
30.5
[1.2]
[2.95]
2-M4
Mounting hole
20
[0.79]
[1.38]
35 ±0.5
[0.71]
[0.34]
10
8.6 [0.39]
[1.08]
27.5
Short piece
Don't take off
the short piece.
9
TB1
105 ±0.5
127
9 8
[0.35] [0.31]
VB
CB
+V
+V
-V
-V
FG
N
L
[0.35]
[4.51]
114.5
6.6
[0.26]
[0.75]
8-M4
Mounting hole
(Both sides)
¶ Pin assign
Symbol
VB
CB
+V
+V
-V
-V
FG
N
L
Function
Voltage balance
Current balance
Output terminal(+)
Output terminal(+)
Output terminal(-)
Output terminal(-)
Frame ground
AC(N)
AC(L)
248 ±0.5
17
[9.76]
[0.67]
CN3(Option)
Screw type
M3
M4
Pin No.
2 1
4 3
6 5
8 7
10 9
12 11
14 13
Average 21A max per pin for TB1
1
RC+
Function
: Remote ON/OFF+(-R)
2
RC-
: Remote ON/OFF-(-R)
3-8
NC
: N.C.
9
LV+
: LV Alarm(-W)
10
LV-
: LV Alarm ground(-W)
11-12
NC
: N.C.
13
PF+
: PF Alarm(-W)
14
PF-
: PF Alarm ground(-W)
Connector
Terminal
Chain:SPHD-002T-P0.5
PHDR-14VS Loose:BPHD-001T-P0.5
BPHD-002T-P0.5 *1
*1 Ratchet Hand is nothing
CN3 S14B-PHDSS
Mating connector
Mfr.
J.S.T
¶ Tolerance : ±1 [±0.04]
¶ Weight : 2.5kg max
¶ PCB material / thickness : FR-4 / 1.6mm [0.06]
¶ Chassis and cover material : aluminium
¶ Dimensions in mm, [
]= inches
¶ Mounting torque : 1.2N • m(12.8kgf • cm) max
¶ Screw tighting torque
M4 : 1.6N • m(16.9kgf • cm) max , M3 : 0.8N • m(8.5kgf • cm) max
¶ I/0 terminal for option-J and -T is shown in Instruction Manual 6.
January 31, 2022
ADA-7
ADA-series
Assembling and Installation Method
Installation method
Chassis of
ADA series
Chassis of
customer system
¡The screw should be inserted up to 6mm max from outside of
the power supply to keep a distance between inside parts and
an isolation.
Screw M4
6mm max
¡When two or more power supplies are used side by side, position them with proper intervals to allow enough air ventilation.
Ambient temperature around each power supply should not
exceed thetemperature range shown in “derating”.
¡Fix firmly, considering weight, though it can be used by the installation method shown in right figure.
+V
Fixed
screw
(4 pcs.)
Fixed
screw
(4 pcs.)
-V
N
L
+V
-V
+V
-V NL
N
L
20mm min
Fixed screw (4 pcs.)
(A)
(B)
Fixed screw (4 pcs.)
(C)
Derating
¡Derating by ambient temperature
Load factor 100% in each derating curve means rating current in Specifications. Please note load factor 100% depends on input voltage
and cooling method.In the hatched area the specification of Ripple, Ripple Noise is different from other area.
¡Convection cooling
1Install the unit to apply enough convection as shown in “Installation method”.
2Do not block the ventilation hole.
¿ A DA600F Ambient temperature Derating
Curve (convection cooling)
(C) mounting (B) mounting (A) mounting
100
80
60
40
25
20
0
-10
0
10
20
30
40 45 50 55 60 65 70
Ambient temperature [C]
*In case of ADA600F-24, load factor 100% means output 24V,
14A at ACIN100V, 24V, 15A at ACIN200V.
80
60
40
25
20
0
-10
(C) mounting (B) mounting (A) mounting
Load factor [%]
80
60
40
25
20
0
-10
0
10
20 25 30
40
Ambient temperature[C]
50 55 60 65 70
*In case of ADA1000F-24, load factor 100% means output 24V,
21A at ACIN100V, 24V, 25A at ACIN200V.
ADA-8
0
10
20 25 30
40
Ambient temperature[C]
50 55 60 65 70
*In case of ADA750F-24, load factor 100% means output 24V,
17A at ACIN100V, 24V, 19A at ACIN200V.
¿ ADA1000F Ambient temperature Derating
Curve (convection cooling)
100
(C) mounting (B) mounting (A) mounting
100
Load factor [%]
Load factor [%]
¿ A DA750F Ambient temperature Derating
Curve (convection cooling)
January 31, 2022
ADA-series
Derating
¡Forced air cooling
Please give the entire power supply in ventilation so that the tem1
Point-B
bottom side
perature of point A and B in right figure is made below a specified
temperature. Point A and B are displayed in chassis.
Terminal
block
air
-Point A 60C or less and point B 65C or less at Ta = 50C
-Point A 80C or less and point B 80C or less at Ta = 71C
Remarks : Please avoid cooling only bottom chassis.
2Ventilation is done evenly and do not block the ventilation hole.
3The confirmation of point A and B in unnecessary when optional fun
+V
-V
+V
-V
top side
air
unit is used. Refer to instraction manual 6. Option.
top side Point-A
top side
air
*The derating curve at forced air is common in ADA600F to
ADA1000F.
¿ AD600F-1000F Ambient temperature Derating Curve (forced air)
Load factor [%]
100
80
60
40
20
0
-10
0
10
20
30
40
50
Ambient temperature [C]
60
70 71 80
*In case of ADA600F-24, load factor 100% means output 24V,
21A at ACIN100V, 24V, 25A at ACIN200V.
*In case of ADA750F-24, load factor 100% means output 24V,
25A at ACIN100V, 24V, 31.5A at ACIN200V.
*In case of ADA1000F-24, load factor 100% means output
24V, 33A at ACIN100V, 24V, 42A at ACIN200V.
Instruction Manual
◆ It is neccessary to read the “Instruction Manual” and “Before using our product” before you use our product.
Instruction Manual
https://en.cosel.co.jp/product/powersupply/ADA/
Before using our product
https://en.cosel.co.jp/technical/caution/index.html
ADA
NOTICE
Basic Characteristics Data
Basic Characteristics Data
Model
ADA600F
ADA750F
ADA1000F
Circuit method
Switching
frequency
[kHz]
Input
current
[A]
Active filter
85
5.9
Forward converter
130
(Peak 7.0)
Active filter
85
6.9
Forward converter
130
(Peak11.8)
Active filter
85
9.5
Forward converter
130
(Peak18.2)
PCB/Pattern
Series/Parallel
operation availability
Double Series Parallel
sided operation operation
Rated
input fuse
Inrush
current
protection
Material
250V 12A
SCR
FR-4
Yes
Yes
Yes
250V 20A
SCR
FR-4
Yes
Yes
Yes
250V 25A
SCR
FR-4
Yes
Yes
Yes
Single
sided
* Refer to Instruction Manual.
* The value of input current is at ACIN 100V and rated load (peak).
January 31, 2022
ADA-9
