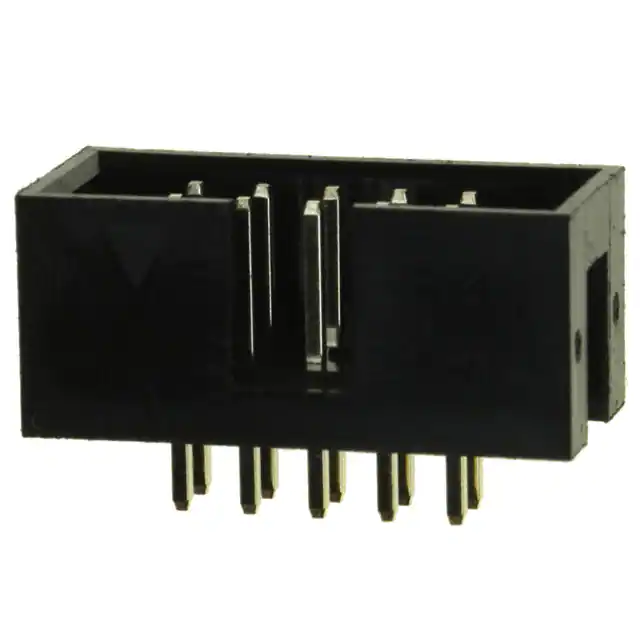

SBH11-PBPC-D05-ST-BK

Headers .100” [2.54 mm] Contact Centers, Shrouded (Box) Headers, Straight/Right Angle/SMT - SBH11 Series Mates with SFH11 series, SFH210 series and SFH213 series SPECIFICATIONS • Centered Polarizing Notch • Operating Temperature: -40°C to +105°C • Processing Temperature: 230°C Max. for 60 seconds, (260°C Max. for 10 seconds) • UL Flammability Rating: 94V-0 • Contact Resistance: 20 milli Ohms Max. • Current Rating: 3 Amps • Dielectric Withstanding: 1000 VAC • Insulation Resistance: 5000 Megohms Min. PART NUMBER OPTIONS SBH11 - P B P C - D 10 - ST - BK SERIES SBH11 = Box Header, .100” [2.54 mm] Contact Centers by .100” [2.54 mm] Row Spacing COLOR BK = Black TERMINATION TYPE ST = Straight RA = Right Angle SM = Surface Mount SP = Surface Mount with Guide Posts INSULATOR MATERIAL P = PBT N or G = Nylon CONTACT MATERIAL B = Brass CONTACT FINISH - RoHS Compliant P = Gold Flash Overall NUMBER OF CONTACT POSITIONS (Pins per Row) 03 thru 08, 10, 12, 13, 15, 17, 20, 22, 25, 30, 32 NUMBER OF ROWS D = Dual Row Headers CONTACT CENTERS C = .100” [2.54 mm] DIMENSIONS For complete drawings, go to www.sullinscorp.com or e-mail techsupport@sullinscorp.com Dimensions in [ ] are in millimeters, all others are in inches. .118[3.00] .100[2.54] STRAIGHT (ST) .256[6.50] Example P/N: SBH11-PBPC-D20-ST-BK .126[3.20] .100[2.54] .423 [10.74] .346[8.80] .100[2.54] .100[2.54] RIGHT ANGLE (RA) .025[0.64] SQ. Example P/N: SBH11-PBPC-D20-RA-BK .418 [10.62] .346[8.80] .358[9.10] .406 [10.30] SURFACE MOUNT (SM) Example P/N: SBH11-NBPC-D20-SM-BK 122 www.sullinscorp.com | 760-744-0125 | toll-free 888-774-3100 | fax 760-744-6081 | info@sullinscorp.com
