CR8348-2000

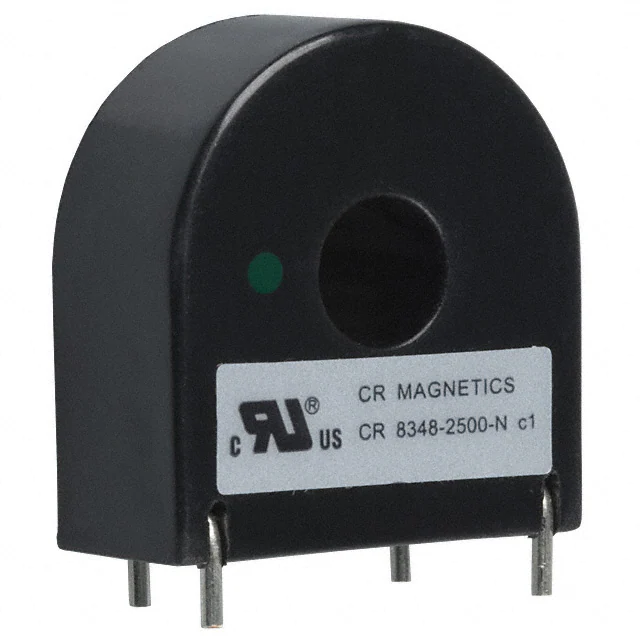

Current Transformers High Ratio Vertical PCB Mount Current Transformer F CR8300 SERIES CR Magnetics CR8300 Series of PCB Mounted Current Transformers are available in a wide range of sizes and materials to meet any AC current sensing needs. Our General Purpose designs are made from the highest quality silicon steel cores available, and meet most of the common AC current measurement needs. Our Revenue Grade CTs (-N) are made from a nickel alloy core which provides the most linear response over temperature and current level. The High Frequency (-F) products are designed for high frequency applications such as high frequency power supplies and motor drives. CR Magnetics offers DC Immune (-D) models that are designed to provide sensing of AC currents where DC offsets also exist. All products are offered in standard sizes, with the most popular turns ratios. UL, CSA, CE, and RoHS acceptance are all standard. Applications Motor Load Measurement Power Meters High Frequency Current Sensing GENERAL PURPOSE VERTICAL PCB CURRENT TRANSFORMERS Vmax RMS Te (typ.) DCR Ω Frequency Pin Diameter 1.8 1613 95 20 - 1 KHz 0.8 X 4.0 MM 20 7.0 1023 24 20 - 1 KHz 1.0 X 3.0 MM 50 13.7 2046 106 20 - 1 KHz 1.0 X 3.0 MM CR8349-1000 50 11.6 1016 35 20 - 1 KHz 1.0 X 6.0 MM CR8349-1500 75 15.5 1520 80 20 - 1 KHz 1.0 X 4.0 MM CR8350-1000 100 16.5 1021 22 20 - 1 KHz 1.0 X 3.0 MM CR8350-2000 200 31.0 2037 73 20 - 1 KHz 1.0 X 3.0 MM CR8320-1600 Ir 10 CR8348-1000 CR8348-2000 Part Number Features High Ratio Standard Footprints Specifications Maximum Continuous Primary Current 4 X Ir Insulation Voltage 3500 Vac/1min Storage Temp. -45°C thru +85 °C Operating Temp. General Purpose & Nickel -40°C thru +85 °C Operating Temp. High Frequency -40°C thru +65 °C REVENUE GRADE VERTICAL PCB CURRENT TRANSFORMERS Ir 40 Vmax RMS Te (typ.) DCR Ω Frequency Pin Diameter CR8348-2500-N 7.5 2510 134 20 - 1 KHz 1.0 X 3.0 MM CR8349-1000-N 50 5.1 1009 32 20 - 1 KHz 1.0 X 3.0 MM CR8349-2500-N 75 11.2 2512 190 20 - 1 KHz 1.0 X 3.0 MM CR8350-2500-N 100 10.5 2511 57 20 - 1 KHz 1.0 X 6.0 MM Part Number Regulatory Agencies HIGH FREQUENCY VERTICAL PCB CURRENT TRANSFORMERS Ir 50 Vmax RMS Te (typ.) DCR Ω Frequency Pin Diameter CR8348-2000-F 3.7 2022 88 20 - 200KHz 1.0 X 6.0 MM CR8349-2000-F 75 16.0 2024 109 20 - 200KHz 1.0 X 3.0 MM CR8350-2000-F 100 10.0 2027 73 20 - 200KHz 1.0 X 3.0 MM Part Number DCR R DC IMMUNE VERTICAL PCB CURRENT TRANSFORMERS Part Number Ir Vmax RMS Te (typ.) DCR Ω Frequency Pin Diameter CR8348-2000-D 50 4.0 2015 57 20 - 1 KHz 1.0 X 6.0 MM CR8349-2000-D 75 7.6 2017 48 20 - 1 KHz 1.0 X 6.0 MM CR8350-2000-D 100 6.3 2020 25 20 - 1 KHz 1.0 X 6.0 MM V= IxR Te VL = Vmax - V I x DCR Te For best linearity, choose R such that V < 0.8 VL VL Ir = Maximum Input Current to be linearly sensed Vmax = Maximum Voltage (Saturation) CT will develop Te = Effective turns ratio including losses (All Specifications tested at 60 Hz) PACKAGE AND PIN OUT DIMENSIONS (mm/in) Part Number Prefix CR8320 CR8348 CR8349 CR8350 A B C D E F G H min max max max E0.3 E0.3 E0.3 typ 8.2 12.7 N/A N/A 5.5 19.4 19.5 .22 .76 .77 .32 .50 6.7 23.5 25 11 15.2 9.5 19 1.90 .27 .93 .98 .43 .60 .37 .75 .07 9 26 28 17 19 1.90 .35 1.02 1.10 .67 .75 .07 12.8 37.5 .50 1.48 15.2 15.5 .60 .61 .16 39 14 25.4 12.7 33.02 3.81 1.54 .55 1.00 .50 1.30 I 4.0 B PINOUT D A H E C X1 3.0 See Chart (.118) F H1 G .15 1.0 Typ. 4 Places (.040) CR8320 2 pins only CR Magnetics, Inc. 3500 Scarlet Oak Blvd. St. Louis MO USA 63122 V: 636-343-8518 F: 636-343-5119 Web: http://www.crmagnetics.com 90 E-mail: sales@crmagnetics.com
