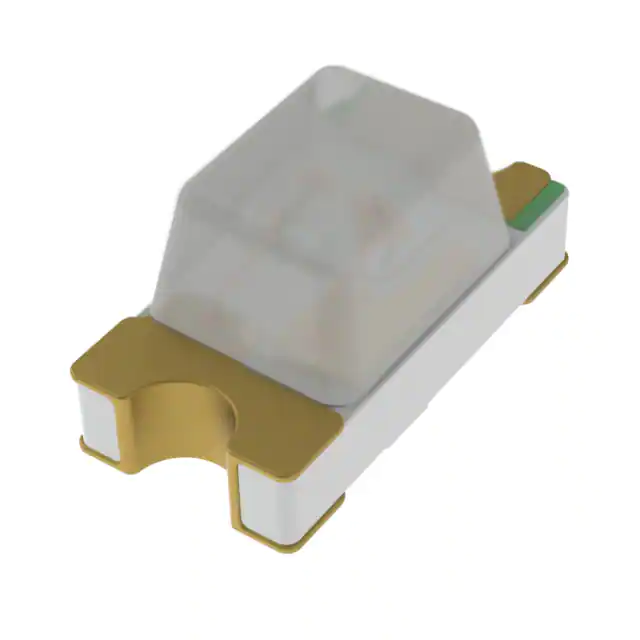

SM0603HCL

SURFACE MOUNT LED RED, 0603 PACKAGE, 2mA SM0603HCL ♦ ♦ ♦ ♦ ♦ ♦ ♦ Industry Standard 0603 Package RoHS Compliant Small Package and Footprint Low Current, 2mA Water Clear Lens Wide Viewing Angle Ideal for Status Indication, Display, and Backlighting Bivar Surface Mount 0603 package LED may be used in nearly any lighting or indication application. The miniature package is ideal for small scale applications such as general indication and backlighting. Low power consumption and excellent long life reliability are suitable for battery powered equipment. Bivar offers water clear LED lens for maximum luminous intensity. Wide variety of wavelength and intensity combinations are available to meet any illumination need. The SM0603 LED is packaged in standard tape and reels for pick and place assemblies. Part Number Material Emitted Color Peak Wavelength λp(nm) TYP. Lens Appearance Luminous Intensity (mcd) TYP. Viewing Angle SM0603HCL AlGaInP HE RED 645 Water Clear 11.5 130° Outline Dimensions Outline Drawings Notes: 1. All dimensions are in inches [millimeters]. 2. Standard tolerance: ±0.010" unless otherwise noted. ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES RoHS Compliant Moisture Sensitivity Level 4 Bivar reserves the right to make changes at any time without notice. Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A. Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com Revision A 05/11 Page 1 of 5 3mm (T1) Package LEDs SURFACE MOUNT Discrete LED AMBER RED, 0603 PACKAGE, 2mA Absolute Maximum Ratings TA = 25°C unless otherwise noted Power Dissipation 78 mW Forward Current ( DC ) 30 mA Peak Forward Current 1 100 mA Reverse Voltage 5V Operating Temperature Range -30 ~ +80°C Storage Temperature Range -40 ~ +85°C Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb ) 2 Notes: 1. 10% Duty Cycle, Pulse Width ≤ 0.1 msec. 260°C 2. Solder time less than 5 seconds at temperature extreme. Electrical / Optical Characteristics TA = 25°C & I F = 2 mA unless otherwise noted Part Number Forward Voltage (V)1 Recommend Forward Current (mA) MIN TYP MAX MIN TYP MAX SM0603HCL / 1.9 2.3 / 2 Notes: 1. Tolerance of forward voltage : ±0.05V. / Reverse Dominant Current Wavelength (nm)2 (μA) Luminous Intensity Iv (mcd) Viewing Angle 2Ө½ (deg) MAX MIN TYP MAX MIN TYP MAX TYP 10 / 631 / 7.2 11.5 / 130 2. Tolerance of dominant wavelength : ±1.0nm. Bivar reserves the right to Bivar make reserves changes the at any time in order to improve design and to supply right to make changes at any time without notice. the best product possible. Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A. Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com Revision A 05/11 Page 2 of 5 3mm (T1) Package LEDs SURFACE MOUNT Discrete LED AMBER RED, 0603 PACKAGE, 2mA Typical Electrical / Optical Characteristics TA = 25°C unless otherwise noted Bivar reserves the right to Bivar make reserves changes the at any time in order to improve design and to supply right to make changes at any time without notice. the best product possible. Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A. Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com Revision A 05/11 Page 3 of 5 3mm (T1) Package LEDs SURFACE MOUNT Discrete LED AMBER RED, 0603 PACKAGE, 2mA Recommended Soldering Conditions Tape and Reel Dimensions Note: 4000 pcs/Reel Outline Drawings Notes: 1. All dimensions are in inches [millimeters]. 2. Standard tolerance: ±0.010" unless otherwise noted. Bivar reserves the right to Bivar make reserves changes the at any time in order to improve design and to supply right to make changes at any time without notice. the best product possible. Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A. Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com Revision A 05/11 Page 4 of 5 3mm (T1) Package LEDs SURFACE MOUNT Discrete LED AMBER RED, 0603 PACKAGE, 2mA Outline Drawings Notes: 1. All dimensions are in inches [millimeters]. 2. Standard tolerance unless otherwise noted: X.XXX ± 0.010" X.X ± 0.1” Packaging and Labeling Plan Note: 1 Reel / Bag Sealed ESD and Moisture Barrier Bag Internal Quality Control Label X.XXX Humidity Indicator Card X.XXX Desiccant Bivar Standard Packaging Label Bivar reserves the right to Bivar make reserves changes the at any time in order to improve design and to supply right to make changes at any time without notice. the best product possible. Bivar, Bivar, Inc. Inc. — —4 4 Thomas, Thomas, Irvine, Irvine, California California 92618, 92618, U.S.A. U.S.A. Phone: Phone: (949) (949) 951-8808 951-8808 Fax: Fax: (949) (949) 951-3974 951-3974 E-mail: E-mail: bivar@bivar.com bivar@bivar.com Web: Web: www.bivar.com www.bivar.com Rev. A A 01/16/08 Revision 05/11 Page Page 4 5 of of 4 5
