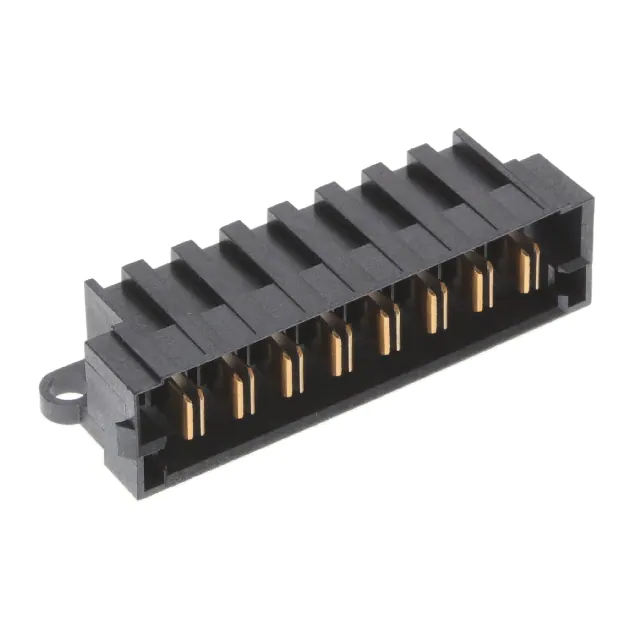

MPT-08-01-03-L-RA-SD

REVISION Q DESIGNED & DIMENSIONED IN MILLIMETERS DO NOT SCALE FROM THIS PRINT (No OF POS x 5.00[.197]) + 6.28 REF "C" "C" MPT-XX-01-XX-X-RA-XX 3.56 .140 (TYP) REF LEAD STYLE -01 TAIL LENGTH -01: FOR 1.57[.062] THICK PCB (USE SUB-T-1M40-01-X) -03: FOR 2.36[.093] THICK PCB (USE SUB-T-1M40-03-X) 14.81 .583 REF 12.27 .483 REF OPTION (SEE NOTE 7) (LEAVE BLANK FOR STANDARD OPTION, FOR EXISTING CUSTOMERS ONLY) (SEE FIG 3, SHT 2) -SD: SCREW DOWN (SEE FIG 1, SHT 1) -LC: LOCKING CLIP (USE LC-07-TM)(SEE FIG 2, SHT 2) No OF POSITIONS -02, -03, -04,-05, -06, -08 RIGHT ANGLE PLATING SPECIFICATION -L: 10µ" GOLD IN CONTACT AREA, MATTE TIN ON TAIL -T: MATTE TIN CONTACT AND TAIL 2.28 .090 1.00 .039 REF(TYP) (No OF POS x 5.00[.197]) + 7.55[.297] REF (No OF POS - 1) x 5.00[.197] C 5.00 .197 (TYP) REF 6.28 .247 REF SECTION "C"-"C" "A" 01 SUB-T-1M40-XX-X CHECK BOW ON THIS SURFACE (SEE NOTE 5) C +0.50 "A" - 0.25 MPT-XX-RA-XX 0.41 .016 C 1.88 .074 "B" "B" "A" +0.13 3.25 - 0.25 +.005 .128 - .010 C +0.13 1.87 - 0.05 0.79 .031 5.08 .200 REF 2.54 .100 REF C +.005 .074 - .002 (TYP) SECTION "B"-"B" SECTION "A"-"A" SCALE 2.5 : 1 (No OF POS x 5.00[.197]) - 3.12[.126] C FIG 1 MPT-04-01-X-RA-SD SHOWN UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN MILLIMETERS. TOLERANCES ARE: NOTES: 1. C REPRESENTS A CRITICAL DIMENSION. 2. BURR ALLOWANCE: 0.038[.0015] MAX. 3. MINIMUM PUSHOUT FORCE: 4.45N[1 LB]. 4. PARTS TO BE PACKAGED IN TRAYS. 5. BOW ALLOWED AT 0.051 MM/MM [.002 IN/IN] 6. MINIMUM -LC PULLOUT FORCE: 2.23N [0.5LB] 7. AS OF REV K SAMTEC WILL ONLY SUPPORT EXISTING BUSINESS WITHOUT -SD OR -LC OPTION SELECTED. F:\DWG\MISC\MKTG\MPT-XX-01-XX-X-RA-XX-MKT.SLDDRW DECIMALS ANGLES .X: 0.3 [.01] 2 .XX: 0.13 [.005] .XXX: 0.051 [.0020] MATERIAL: * DO NOT SCALE DRAWING INSULATOR: LCP, COLOR: BLACK CONTACT: COPPER ALLOY LOCKING CLIP: COPPER ALLOY PROPRIETARY NOTE * THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION AND ALL DESIGN, MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC, INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS WRITTEN CONSENT OF SAMTEC, INC. SHEET SCALE: 2.5:1 520 PARK EAST BLVD, NEW ALBANY, IN 47150 PHONE: 812-944-6733 FAX: 812-948-5047 e-Mail info@SAMTEC.com code 55322 DESCRIPTION: RIGHT ANGLE POWER TERMINAL DWG. NO. MPT-XX-01-XX-X-RA-XX BY: CLAY W 1/31/2007 SHEET 1 OF 2 REVISION Q MPT-XX-RA-LC +0.20 +.008 1.42 - 0.13 .056 - .005 C LC-07-TM 1.42 .056 REF 0.25 .010 (TYP) REF 2 MAX SWAY (TYP) C MPT-XX-RA-LC 11.51 .453 5.79 .228 REF (No OF POS x 5.00[.197]) + 2.40[.094] FIG 3 C MPT-04-01-X-RA SHOWN (DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1) FIG 2 MPT-04-01-X-RA-LC SHOWN (DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1) * PROPRIETARY NOTE * THIS DOCUMENT CONTAINS CONFIDENTIAL AND PROPRIETARY INFORMATION AND ALL DESIGN, MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC, INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS WRITTEN CONSENT OF SAMTEC, INC. DO NOT SCALE DRAWING SHEET SCALE: 2:1 520 PARK EAST BLVD, NEW ALBANY, IN 47150 PHONE: 812-944-6733 FAX: 812-948-5047 e-Mail info@SAMTEC.com code 55322 DESCRIPTION: DWG. NO. RIGHT ANGLE POWER TERMINAL MPT-XX-01-XX-X-RA-XX BY: CLAY W F:\DWG\MISC\MKTG\MPT-XX-01-XX-X-RA-XX-MKT.SLDDRW 1/31/2007 SHEET 2 OF 2
