GGBLA.125.A

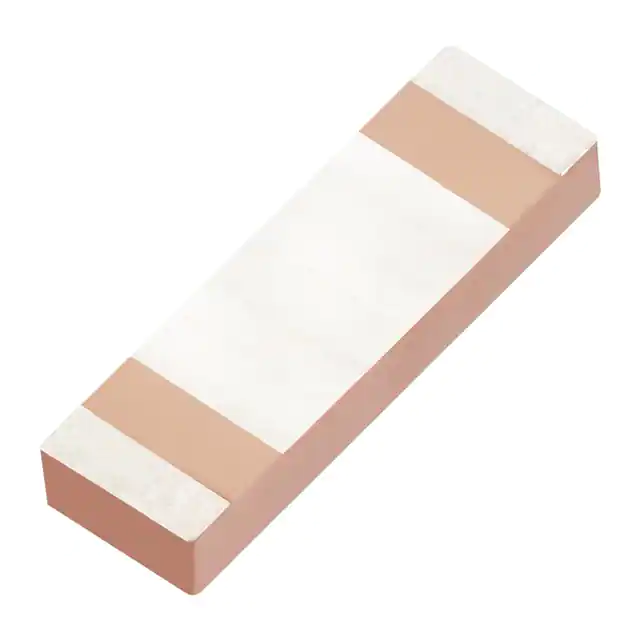

GGBLA.125.A Description: GGBLA.125.A – GPS L1/L2/L5/L6, GLONASS, BeiDou Ceramic Loop Antenna for cm-Level with RTK Features: Low Profile, Small Footprint Embedded Loop Antenna Centimeter-level accuracy achievable with RTK Systems GPS/QZSS (L1/L2) GPS/QZSS/IRNSS (L5) Galileo (E1/E5a/E5b/E6) GLONASS (G1/G2/G3) BeiDou (B1/B2a/B2b) Tuned for SMD Mounting on 80x40mm Ground Plane High efficiency, up to 80% Dimensions: 10 * 3.2 * 1.5 mm RoHS & Reach Compliant SPE-19-8-045-G 1. Introduction 3 2. Specifications 5 3. Antenna Characteristics 7 4. 2D Radiation Patterns 9 5. 3D Radiation Patterns 11 6. Field Test Results 12 7. Mechanical Drawing 13 8. Packaging 18 Changelog 19 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. SPE-19-8-045-G www.taoglas.com 2 1. Introduction 1. Introduction 1. Introduction 1. Introduction 1. The Taoglas GGBLA.125.A is a unique embedded ceramic miniature loop antenna designed for GPS L1,L2, L5 and L6 applications. It also covers all GNSS requirements including GLONASS (L1PT, L1CR, L5R), Galileo (E1, E2, E5a, E5b, E6), BeiDou (B1, B2, B3), IRNSS(L5) & QZSS Frequencies. 1. With dimensions of just 10 x 3.2 x 1.5mm, a keep out area of just 15 x 9.8mm on the PCB, the GGBLA.125 makes an ideal multi band GNSS antenna solution for compact high precision automotive navigation or asset tracking devices where board space is at a premium. An SMD component, delivered on tape and reel, the middle edge-of-board mounted antenna, has an omnidirectional radiation pattern that allows customers to use an omnidirectional antenna in devices where orientation of the product may be unknown, or subject to frequent movement. 1. 1. Introduction Introduction Introduction The wide bandwidth maintains high efficiency and reception stability on all GNSS bands from 1164MHz to 1602MHz. The GGBLA.125 exhibits efficiencies of between 60% and 80%, depending on the band used. With a peak gain of 2.6-3.6dBi, the gain performance compares with the ranges of much larger patch antennas of up to 18 x 18mm. Based on the loop antenna electrical effect, this antenna works best when placed in the center of the edge of the board. Introduction Typical Applications Include: Navigation & RTK Systems Transportation, Marine & Agriculture Autonomous Vehicles UAVs and Robotics IOT Devices Location based applications SPE-19-8-045-G www.taoglas.com 3 As with all onboard SMD antennas, care must be taken to ensure the device ground-plane layout and antenna matching has been done correctly. At any of our global design and test facilities, Taoglas can offer professional Gerber review, transmission line design, general integration support and final matching services of the GGBLA.125.A on your device board. This antenna can be mounted with no performance degradation in either orientation as long as the antenna is soldered correctly via Surface mounting. Please see the integration instructions section for further detail regarding the optimum way to integrate this antenna into your device. For further optimization to customer-specific device environments and for support to integrate and test this antennas performance in your device, contact your regional Taoglas Customer Services Team. SPE-19-8-045-G www.taoglas.com 4 2. Specifications GNSS Frequency Bands Covered 3. GPS L1 L2 Antenna Characteristics2. GLONASS 3. 4. ▓ ▓ ▓ G1 G2 G3 ▓ ▓ ▓ Galileo E1 E5a Antenna Characteristics BeiDou L5 L6 Specifications E5b E6 ▓ ▓ ▓ ▓ B1 B2a B2b B3 ▓ ▓ ▓ ▓ L1 L2C L5 L6 ▓ ▓ Antenna Radiation Patterns3.Antenna QZSS (Regional) Characteristics2.▓ IRNSS (Regional) ▓ ▓ Specifications L5 ▓ 3. SBAS L1/E1/B1 L5/B2a/E5a Antenna Characteristics2. ▓ ▓ G1 G2 Specifications G3 ▓ ▓ ▓ *SBAS systems: WASS(L1/L5), EGNOSS(E1/E5a), SDCM(G1/G2/G3), SNAS(B1/B2a), GAGAN(L1/L5), QZSS(L1/L5), KAZZ(L1/L5). 3. Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3.Antenna Characteristics 4. GNSS Bands and Constellations Antenna Radiation Patterns3.Antenna Characteristics2. SPE-19-8-045-G Specifications www.taoglas.com 5 GNSS Electrical GPS L5/ Galileo E5a GPS L2 GPS L6/ Galileo E6 BeiDou B1/ Galileo E2 GPS L1/ Galileo E1 GLONASS L1 1176.45 1227.6 1278.8 1561 1575.42 1602 Efficiency (%) 80 Typ. 80 Typ. 70 Typ. 60 Typ. 60 Typ. 60Typ. Average Gain (dB) -0.7 -0.8 -1.2 -2.0 -1.8 -1.7 Peak Gain (dBi) 3.6 3.3 3.3 2.6 2.8 3.0 Return loss (dB) < -10 < -10 < -5 < -10 < -10 < -10 Group Delay 1 1 1.2 3 3 3 PCO (cm) 1.46 2.44 2.3 0.34 0.34 0.40 PCV (cm) 9.8 10.3 9.5 7 7.2 7.2 Frequency (MHz) Polarization Linear Impedance 50Ω Mechanical Dimensions (mm) 10 x 3.2 x 1.5 mm Weight (g) 0.17 g Environmental Operating Temperature -40°C to 85°C Storage Temperature -25°C to 85°C Relative Humidity 20°C to 70°C Moisture Sensitivity Level (MSL) 3 (168 Hours) SPE-19-8-045-G www.taoglas.com 6 3. Antenna Characteristics 3.1 4. Return Loss Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics 3.2 Efficiency 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna SPE-19-8-045-G Characteristics www.taoglas.com 7 3.3 Average Gain 3.4 Peak Gain SPE-19-8-045-G www.taoglas.com 8 4. 2D Radiation Patterns 4. 4. 4. 4.1 Antenna Radiation Patterns Test Setup – on 80*40mm Evaluation Board Antenna Radiation Patterns Y 4. Antenna Radiation Patterns X 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns SPE-19-8-045-G Z www.taoglas.com 9 4.2 2D Plots XY Plane X X Y Y XZ Plane Z Z X X YZ Plane Z Z Y SPE-19-8-045-G Y www.taoglas.com 10 5. 3D Radiation Patterns GGBLA.125.A 4.5.1 Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns SPE-19-8-045-G www.taoglas.com 11 6. Field Test Results 4. 4. 6.1 Rooftop test Antenna Radiation Patterns In this section Taoglas will present the field test result for GGBLA.125A antenna. The test was performed when the antenna was mounted on a static rooftop test set up in an open sky environment for at least 6 hours. will show the field test results using the following receiver: 4.TaoglasAntenna Radiation Patterns 1. U-blox ZED-F9P Receiver features: 4. 4. • • • • Multi-band GNSS: 184-channel GPS L1C/A L2C, GLONASS: L1OF L2OF, Galileo: E1B/C E5b, BeiDou: B1I B2I, QZSS: L1C/A L2C Antenna Radiation Patterns Multi‑band RTK with fast convergence times and reliable performance Nav. update rate RTK up to 20 Hz Position accuracy = RTK 0.01 m + 1 ppm CEP Positioning Accuracy Table (2D Accuracy) Antenna Radiation Patterns Correction Test Condition Service RTK DISABLED 4. CEP (50%) DRMS (68%) 2DRMS (95-98.2%) TTFF (sec) 106.72 cm 134.17 cm 268.34 cm 32 12.88 cm 25.75 cm 32 EVB 10.59 cm RTL Radiation ENABLED Antenna Patterns RTK Availability 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns No RTK Float Fixed SPE-19-8-045-G www.taoglas.com 12 7. 6. Mechanical Drawing (Units: mm) 7.1 Antenna Drawing Packaging5. Mechanical Drawing 6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. Packaging5. 6. Packaging 7.2 Mechanical Drawing Antenna Dimensions 7. Bottom Application Note6. Packaging Pin and View Definition – Back View 7. Application Note 7. Application Note6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. Packaging5. SPE-19-8-045-G Mechanical Drawing www.taoglas.com 13 Antenna Footprint - Top Viewop Host PCB Layout – Top View SPE-19-8-045-G www.taoglas.com 14 Clearance Area SPE-19-8-045-G www.taoglas.com 15 Evaluation Board Name SPE-19-8-045-G 1 GGBLA.125.A Antenna 2 GGBLAD.125.A EVB PCB 3 0 hm Resistor (0402) 4 1.2pF Capacitor (0402) 5 3.9pF Capacitor (0402) 6 SMA(F) ST PCB www.taoglas.com 16 Evaluation Board Matching Circuit Matching Circuit Component Component Values R1 0 ohm R2 0 ohm R3 0 ohm C1 1.2 pF C2 3.9 pF SPE-19-8-045-G www.taoglas.com 17 Packaging 6. Packaging5. Mechanical Drawing Ø330mm 8. 1000pcs GGBLA.125.A per Tape & Reel Dimensions - Ø330*28.4 Weight - 700g 6. Packaging 28.4mm 7. Application Note6. Packaging5. Mechanical Drawing 1000pcs GGBLA.125.A per carton 47mm Dimensions - 350*340*47mm Weight - 900g 6. Packaging5. 6. Packaging 350mm Mechanical Drawing 5000pcs GGBLA.125.A per carton Dimensions - 360*370*275mm Weight – 5.3Kg 7. 275mm Application Note6. Packaging 360mm 7. 7. 7. 370mm Application Note Application Note6. Packaging Pallet Dimensions: 1100*1100*1300mm 36 Cartons Per Pallet 9 Cartons Per Layer, 4 Layers 1290mm Application Note6. Packaging5. Drawing 6. 340mm Packaging5. SPE-19-8-045-G Mechanical 1100mm 1100mm Mechanical Drawing www.taoglas.com 18 Changelog for the datasheet SPE-19-8-045 – GGBLA.125.A Revision: G (Current Version) Date: Changes: Changes Made by: 2022-05-11 Updated Packaging Specifications Paul Doyle Previous Revisions Revision: F Revision: A (Original First Release) Date: Changes: Changes Made by: 2021-09-09 Added MSL rating, updated frontpage font. Erik Landi Date: Notes: Author: 2019-04-04 Initial Specification Release Yu Kai Yeung Revision: E Date: Changes: Changes Made by: 2021-05-06 Added L6 band to spec table. Gary West Revision: D Date: Changes: Changes Made by: 2020-06-04 Added Field Test Results Victor Pinazo Revision: C Date: Changes: Changes Made by: 2020-03-18 Modified RTK Table Yu Kai Yeung Revision: B Date: Changes: Changes Made by: SPE-19-8-045-G 2019-12-08 Added GNSS Frequency Matrix and RTK Data Yu Kai Yeung www.taoglas.com 19 www.taoglas.com SPE-19-8-045-G © Taoglas www.taoglas.com 20
