SEN0236

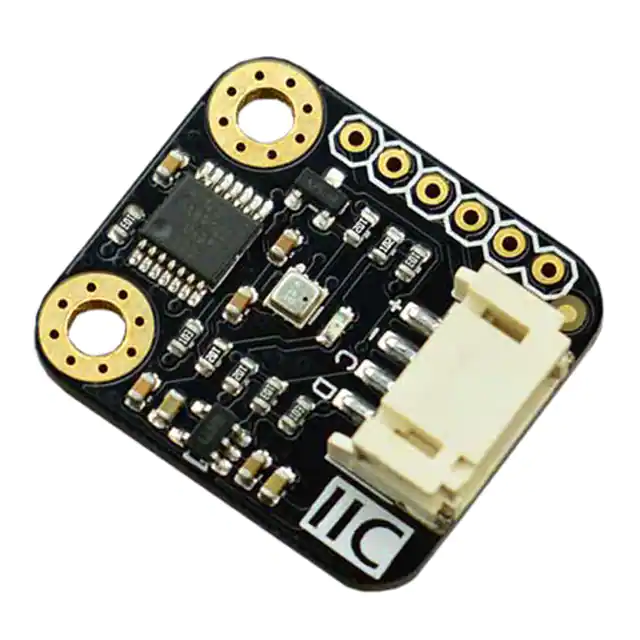

    Gravity: I2C BME280 Environmental Sensor  (Temperature, Humidity, Barometer) SKU: SEN0236    Introduction BME280 is an environmental sensor that integrates onboard temperature sensor, humidity sensor and barometer. The sensor is of high precision, multiple functions, and small size etc. It provides both SPI and I2C interfaces, which make it easy to make a fast prototypes. It can be widely used in environmental monitoring, story height measurement and Internet of Things (IoT) control and so on. Gravity I2C BME280 Environmental Sensor has based on BoSCH newest MEMS sensor (MicroElectro-Mechanical System). It is very stable to compare with other kind of sensors, especially the air pressure measurement, the offset temperature coefficient is ±1.5 Pa/K, equiv. to ±12.6 cm at 1 °C temperature change. Therefore, the stable and multi-function make BME280 become a good choice in many scenes. Specification          Working Voltage：3.3V~5.0V Working Current：2mA Working Temperature：-40 ~+85 Temperature Measuring Range: -40 ~+85 , resolution of 0.1 , deviation of ±0.5 Humidity Measuring Range: 0~100%RH, resolution of 0.1%RH, deviation of ±2%RH Pressure Measuring Range: 300~1100hPa Humidity Sampling Time: 1s Dimension: 22 * 25 mm/ 0.87 * 0.98 inches Weight: 12g Board Overview Num Label Description 1 + 3.3~5V 2 - GND 3 C SCL 4 D SDA Gravity: I2C BME280 Environmental Sensor Layout Tutorial BME280 Environmental Sensor has two interface: I2C and SPI. In this section, we'll show you two examples about how to use. Requirements  Hardware DFRduino UNO x 1 Gravity: I2C BME280 Environmental Sensor x1 M-M/F-M/F-F Jumper wires  Software Arduino IDE (Version requirement: V1.8+), Click to Download Arduino IDE from Arduino® BME280 Environmental Sensor Arduino Library (Github) How to install Libraries in Arduino IDE Arduino I2C Connection Diagram Arduino I2C Connection Arduino I2C Sample Code /*! * @file basicTestI2C.ino * @brief DFRobot's Temperature、Pressure、Humidity and Approx altitude * @n [Get the module here] * @n This example read the Temperature、Pressure、Humidity and Altitude from BME280, and then print them * @n [Connection and Diagram] * * @copyright [DFRobot](http://www.dfrobot.com), 2016 * @copyright GNU Lesser General Public License * * @author [yangyang] * @version * @date */ V1.0 2017-7-5 #include #define SEA_LEVEL_PRESSURE 1013.25f #define BME_CS 10 DFRobot_BME280 bme; //I2C float temp, pa, hum, alt; void setup() { Serial.begin(115200); // I2c default address is 0x77, if the need to change please modify bme.b egin(Addr) if (!bme.begin()) { Serial.println("No sensor device found, check line or address!"); while (1); } Serial.println("-- BME280 DEMO --"); } void loop() { temp = bme.temperatureValue(); pa = bme.pressureValue(); hum = bme.humidityValue(); alt = bme.altitudeValue(SEA_LEVEL_PRESSURE); Serial.print("Temp:"); Serial.print(temp); Serial.println(" C"); Serial.print("Pa:"); Serial.print(pa); Serial.println(" Pa"); Serial.print("Hum:"); Serial.print(hum); Serial.println(" %"); Serial.print("Alt:"); Serial.print(alt); Serial.println(" m"); Serial.println("------END------"); delay(1000); } Expected Results Arduino Serial Monitor Arduino SPI Connection Diagram Arduino SPI Connection Arduino SPI Sample Code /*! * @file basicTestSPI.ino * @brief DFRobot's Temperature、Pressure、Humidity and Approx altitude * @n [Get the module here] * @n This example read the Temperature、Pressure、Humidity and Altitude from BME280, and then print them * @n [Connection and Diagram] * * @copyright [DFRobot](http://www.dfrobot.com), 2016 * @copyright GNU Lesser General Public License * * @author [yangyang] * @version * @date V1.0 2017-7-5 */ #include #define SEA_LEVEL_PRESSURE 1013.25f #define BME_CS 10 DFRobot_BME280 bme(BME_CS); //SPI float temp, pa, hum, alt; void setup() { Serial.begin(115200); // I2c default address is 0x77, if the need to change please modify bme.b egin(Addr) if (!bme.begin()) { Serial.println("No sensor device found, check line or address!"); while (1); } Serial.println("-- BME280 DEMO --"); } void loop() { temp = bme.temperatureValue(); pa = bme.pressureValue(); hum = bme.humidityValue(); alt = bme.altitudeValue(SEA_LEVEL_PRESSURE); Serial.print("Temp:"); Serial.print(temp); Serial.println(" C"); Serial.print("Pa:"); Serial.print(pa); Serial.println(" Pa"); Serial.print("Hum:"); Serial.print(hum); Serial.println(" %"); Serial.print("Alt:"); Serial.print(alt); Serial.println(" m"); Serial.println("------END------"); delay(1000); } Expected Results https://www.dfrobot.com/wiki/index.php/Gravity:_I2C_BME280_Environmental_Sensor_(Temperature,_Humidity,_Barometer)_SKU:_SEN02368-15-17
