AZ5123-01F
Transient Voltage Suppressing Device
Tiny Pacakge for ESD/Transient Protection
Features
ESD Protect for 1 Line with Bi-directional
Provide ESD protection for the protected line to
IEC 61000-4-2 (ESD) ±16kV (air/contact)
IEC 61000-4-4 (EFT) 50A (5/50ns)
AZ5123-01F is a unique design which includes
proprietary clamping cell in a single package.
During transient conditions, the proprietary
clamping cell prevents over-voltage on the power
line or control/data lines, protecting any
downstream components.
IEC 61000-4-5 (Lightning) 5A (8/20µs)
Cable Discharge Event (CDE)
0402 small DFN package saves board space
Protect one I/O line or one power line
Fast turn-on and Low clamping voltage
For low operating voltage applications: 3.3V
maximum
Solid-state silicon-avalanche and active circuit
triggering technology
Green part
AZ5123-01F may be used to meet the ESD
immunity requirements of IEC 61000-4-2, Level 4
(±15kV air, ±8kV contact discharge)
Circuit Diagram /
Pin Configuration
Applications
Mobile Phones
Hand Held Portable Applications
Computer Interfaces Protection
Microprocessors Protection
Serial and Parallel Ports Protection
Control Signal Lines Protection
Power lines on PCB Protection
Latchup Protection
1
2

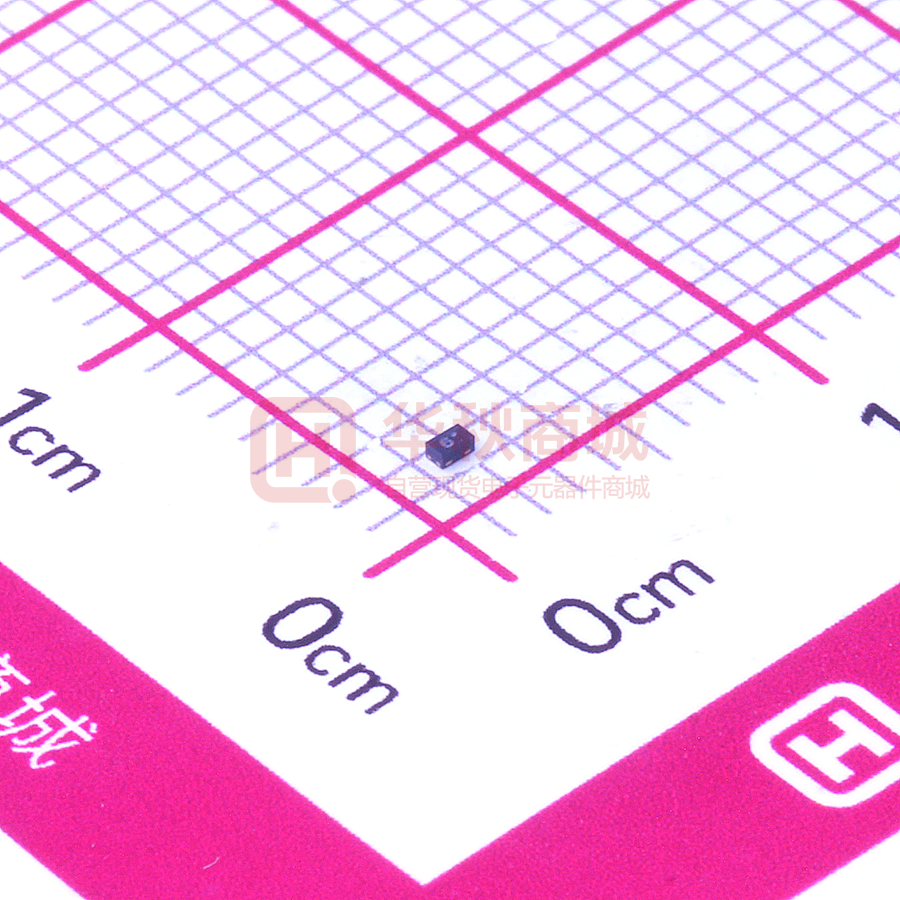

DFN1006P2X (Bottom View)
(1.0mm x 0.6mm x 0.45mm)
Description
AZ5123-01F is a design which includes one
Bi-directional surge rated clamping cell to protect
one power line, or one control line, or one low
speed data line in an electronic systems. The
AZ5123-01F has been specifically designed to
protect sensitive components which are
connected to power and control lines from
over-voltage damage and latch-up caused by
Electrostatic Discharging (ESD), Electrical Fast
Transients (EFT), Lightning, and Cable
Discharge Event (CDE).
Revision 2015/01/26
©2015 Amazing Micro.
1
www.amazingIC.com
AZ5123-01F
Transient Voltage Suppressing Device
Tiny Pacakge for ESD/Transient Protection
SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
RATING
UNITS
Peak Pulse Current (tp =8/20us)
IPP
5
A
Operating Supply Voltage
VDC
±3.6
V
ESD per IEC 61000-4-2 (Air)
VESD
±16
kV
±16
ESD per IEC 61000-4-2 (Contact)
Lead Soldering Temperature
TSOL
260 (10 sec.)
o
Operating Temperature
TOP
-55 to +85
o
-55 to +150
o
Storage Temperature
TSTO
C
C
C
ELECTRICAL CHARACTERISTICS
PARAMETER
SYMBOL
CONDITIONS
T=25 oC.
Stand-Off Voltage
VRWM
Leakage Current
ILeak
VRWM = ±3.3V, T=25 oC.
Breakdown
Voltage
VBV
IBV = 1mA, T=25 oC.
4
Vsurge_CL
IPP=5A, tp=8/20µs, T=25 oC.
ESD Clamping
Voltage
VESD_CL
IEC 61000-4-2 +6kV, T=25 oC, Contact
mode.
CIN
Revision 2015/01/26
©2015 Amazing Micro.
TYP
-3.3
Surge Clamping
Voltage
Channel Input
Capacitance
MINI
6.5
VR= 0V, f = 1MHz, T=25 oC.
UNITS
3.3
V
1.0
µA
6.5
V
8
V
7
13.5
2
MAX
V
16.5
pF
www.amazingIC.com
AZ5123-01F
Transient Voltage Suppressing Device
Tiny Pacakge for ESD/Transient Protection
Typical Characteristics
Clamping Voltage vs. Peak Pulse Current
8
pin-2 to pin-1
Clamping Voltage (V)
7
6
5
pin-1 to pin-2
4
3
Waveform
Parameters:
tr=8µ
µs
td=20µ
µs
2
1
0
4.6
4.8
5.0
5.2
5.4
5.6
5.8
6.0
6.2
Typical Variation of CIN vs. VIN
16
Input Capacitance (pF)
14
12
Pin-1 to pin-2
10
8
6
4
f = 1MHz, T=25 oC,
2
0
-4
-3
-2
-1
0
1
2
3
4
Transmission Line Pulsing (TLP) Current (A)
Peak pulse Current (A)
Transmission Line Pulsing (TLP) Measurement
18
16
14
12
10
8
6
4
2
0
-2
-4
-6
-8
-10
-12
-14
-16
-18
©2015 Amazing Micro.
TLP_I
100ns
+
TLP_V
DUT
-
Pin-1 to Pin-2
-8 -7 -6 -5 -4 -3 -2 -1 0
Input Voltage (V)
Revision 2015/01/26
V_pulse
Pulse from a
transmission line
1
2
3
4
5
6
7
Transmission Line Pulsing (TLP) Voltage (V)
3
www.amazingIC.com
8
AZ5123-01F
Transient Voltage Suppressing Device
Tiny Pacakge for ESD/Transient Protection
Applications Information
The AZ5123-01F is designed to protect one line
In order to obtain enough suppression of ESD
against System ESD/EFT/Lightning pulses by
induced transient, good circuit board is critical.
clamping it to an acceptable reference. It
Thus, the following guidelines are recommended:
provides bi-directional protection.
Minimize the path length between the
protected lines and the AZ5123-01F.
The usage of the AZ5123-01F is shown in Fig. 1.
Place the AZ5123-01F near the input
Protected line, such as data line, control line, or
terminals or connectors to restrict transient
power line, is connected at pin 1. The pin 2 is
coupling.
connected to a ground plane on the board. In
order to minimize parasitic inductance in the
The ESD current return path to ground
should be kept as short as possible.
board traces, all path lengths connected to the
Use ground planes whenever possible.
pins of AZ5123-01F should be kept as short as
NEVER route critical signals near board
possible.
edges and near the lines which the ESD
transient easily injects to.
Input
Output
VBR
Transient
Voltage
-VBR
VCL
gnd
gnd
-VCL
VBR
Normal
Operation
-VBR
gnd
gnd
1
2
2
AZ5123-01F
1
AZ5123-01F
Protected
Devices
Fig. 1
Revision 2015/01/26
©2015 Amazing Micro.
4
www.amazingIC.com
AZ5123-01F
Transient Voltage Suppressing Device
Tiny Pacakge for ESD/Transient Protection
Fig. 2 shows another simplified example of using
data line, and power line from ESD transient
AZ5123-01F to protect the control line, low speed
stress.
VDD
Control Line
2
2
AZ5123-01F
2
1
1
AZ5123-01F
Chip-C
1
Chip-A
Low Speed
Data Line
AZ5123-01F
Chip-B
GND
Fig. 2
Revision 2015/01/26
©2015 Amazing Micro.
5
www.amazingIC.com
AZ5123-01F
Transient Voltage Suppressing Device
Tiny Pacakge for ESD/Transient Protection
Mechanical Details
LAND LAYOUT
0.30
DFN1006P2X
PACKAGE DIAGRAMS
0.55
A
0.60
B
1.40
TOP VIEW
(Unit: mm)
Notes:
C
SIDE VIEW
D
This LAND LAYOUT is for reference
purposes only. Please consult your
manufacturing partners to ensure your
company’s PCB design guidelines are met.
E
MARKING CODE
F
45
O
9
0.05
0.125
BOTTOM VIEW
Symbol
Millimeters
min
max
min
max
A
0.95
1.05
0.037
0.041
B
0.55
0.65
0.022
0.026
C
0.41
0.50
0.016
0.020
D
0.45
Part Number
0.20
0.30
0.008
0.012
F
0.45
0.55
0.018
0.022
©2015 Amazing Micro.
Marking Code
AZ5123-01F
9
0.018
E
Revision 2015/01/26
Top View
Inches
(Green part)
Note. Green means Pb-free, RoHS, and
Halogen free compliant.
6
www.amazingIC.com
AZ5123-01F
Transient Voltage Suppressing Device
Tiny Pacakge for ESD/Transient Protection
Ordering Information
PN#
Material
Type
Reel size
MOQ
AZ5123-01F.R7GR
Green
T/R
7 inch
12,000/reel
MOQ/internal box
MOQ/carton
4 reel=48,000/box 6 box=288,000/carton
Revision History
Revision
Modification Description
Revision 2011/11/09
Formal Release.
Revision 2013/03/20
Update the ESD level from 15kV to 16kV.
Revision 2014/05/23
Add the ordering information.
Revision 2015/01/26
Update the ordering information.
Revision 2015/01/26
©2015 Amazing Micro.
7
www.amazingIC.com
