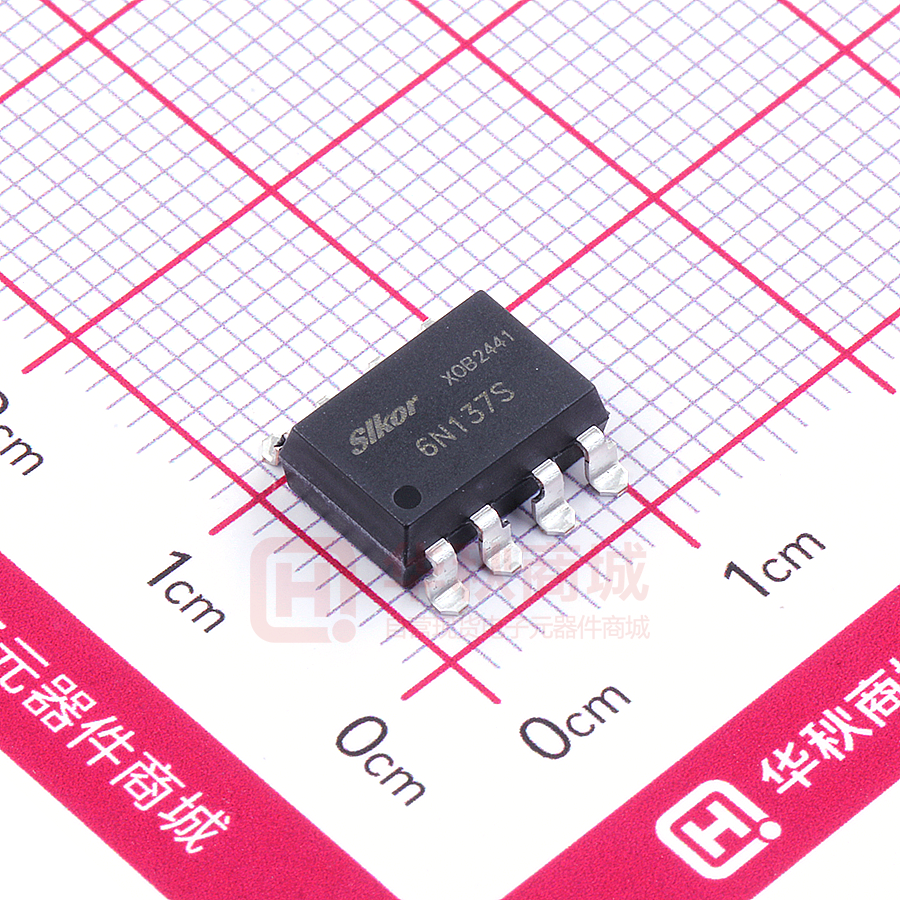

6N137S

6N137S

  • 厂商:

    SLKOR(萨科微)

  • 封装:

    OC_9.76X6.6MM_SM

  • 描述:

    单向光耦 Viso=5000Vrms VF(typ)=1.38V IF=10mA SMD8

  • 详情介绍
  • 数据手册
  • 价格&库存
6N137S 数据手册
6N137,SL2601,SL2611 Series 10Mbit/s High Speed Logic Gate Photo Coupler SCHEMATIC Description The 6N137, SL2601,SL2611 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon high speed integrated photo-detector logic gate with a strobable output in a plastic DIP8 package with different lead forming options. Features  High isolation 5000 VRMS  DC input with logic gate output  Operating temperature range - 55 °C to PIN DEFINITION 1.NC 2.Anode 3.Cathode 4.NC 100 °C  REACH compliance  Halogen free (Optional)  MSL class 1  Regulatory Approvals (Pending Approved)  UL - UL1577  VDE - EN60747-5-5(VDE0884-5)  CQC - GB4943.1, GB8898  cUL- CSA Component Acceptance 8.VCC 7.VE 6.VO 5.GND 6N137 Service Notice No. 5A Applications  Ground loop elimination  LSTTL to TTL, LSTTL or CMOS  Line receiver, data transmission  Data multiplexing  Switching power supply  Pulse transformer replacement  Computer-peripheral interface 6N137M 6N137S 6N137SL 6N137SLM www.slkormicro.com 1 6N137,SL2601,SL2611 Series ABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL VALUE UNIT Note INPUT Forward Current IF 25 mA Peak Forward Current IFP 50 mA 1 Peak Transient Current IF(trans) 1 A 2 Reverse Voltage VR 5 V Enable Voltage VE VCC+0.5 V Input Power Dissipation PI 100 mW OUTPUT Supply Voltage VCC 7 V Output Voltage VO 7 V Output Current IO 50 mA Output Power Dissipation PO 85 mW COMMON Total Power Dissipation Ptot 200 mW Isolation Voltage Viso 5000 Vrms Operating Temperature Topr -55~100 °C Storage Temperature Tstg -55~125 °C Soldering Temperature Tsol 260 °C Note 1. 50% duty, 1ms P.W Note 2. ≤1μs P.W,300pps Note 3. AC For 1 Minute, R.H. = 40 ~ 60% Note 4. For 10 seconds www.slkormicro.com 2 3 4 6N137,SL2601,SL2611 Series RECOMMENDED OPERATION CONDITIONS PARAMETER SYMBOL MIN. MAX. UNIT Operating Temperature TA -40 100 °C VCC 2.7 3.6 V VCC 4.5 5.5 V Low Level Input Current IFL 0 250 μA High Level Input Current IFH 5 15 mA Low Level Enable Voltage VEL 0 0.8 V High Level Enable Voltage VEH 2 VCC V Output Pull-up Resistor RL 330 4k Ω Fan Out (at RL=1kΩ per channel) N - 5 TTL Loads Supply Voltage ELECTRICAL OPTICAL CHARACTERISTICS at Ta=25°C PARAMETER SYMBOL MIN. TYP. MAX. UNIT TEST CONDITION INPUT Forward Voltage VF - 1.38 1.8 V IF=10mA Reverse Current IR - - 10 μA VR=5V Input Capacitance Cin - 13 - pF V=0, f=1MHz OUTPUT High Level Supply Current ICCH - 6.3 10 mA IF=0mA, VE=0.5V,VCC=5.5V Low Level Supply Current ICCL - 8.3 13 mA IF=10mA, VCC=5.5V High Level Enable Current IEH - -0.52 -1.6 mA VE=2.0V, VCC=5.5V Low Level Enable Current IEL - -0.75 -1.6 mA VE=0.5V, VCC=5.5V High Level Enable Voltage VEH 2.0 - - V IF=10mA, VCC=5.5V Low Level Enable Voltage VEL - - 0.8 V IF=10mA, VCC=5.5V TRANSFER CHARACTERISTICS (Ta=-40 to 85°C) VCC=5.5V, VO=5.5V, High Level Output Current IOH - 0.73 100 μA Low Level Output Voltage VOL - 0.28 0.6 V Input Threshold Current IFT - 2.5 5 mA Isolation Resistance Riso - Ω DC500V, 40 ~ 60% R.H. Floating Capacitance CIO - pF V=0, f=1MHz www.slkormicro.com 10^12 10^14 - 1.0 3 IF=250μA, VE=2.0V VCC=5.5V, IF=5mA, VE=2.0V, ICL=13mA VCC=5.5V, VO=0.6V, VE=2.0V, IOL=13mA NOTE 6N137,SL2601,SL2611 Series ELECTRICAL OPTICAL CHARACTERISTICS PARAMETER SYMBOL MIN. TYP. MAX. UNIT TEST CONDITION NOTE SWITCHING CHARACTERISTICS (Ta=-40 to 85°C, VCC=5V, IF=7.5mA unless specified otherwise) Propagation Delay Time TPHL - 35 75 ns CL=15pF, RL=350Ω, Ta=25°C TPLH - 40 75 ns CL=15pF, RL=350Ω, Ta=25°C Pulse Width Distortion |TPHL-TPLH| - 5 35 ns CL=15pF, RL=350Ω Rise Time tr - 27 - ns CL=15pF, RL=350Ω Fall Time tf - 7 - ns CL=15pF, RL=350Ω TEHL - 15 - ns TELH - 15 - ns to Output Low Level Propagation Delay Time to Output High Level Enable Propagation Delay Time to Output Low Level Enable Propagation Delay Time to Output High Level IF=7.5mA, VEH=3.5V, CL=15pF, RL=350Ω IF=7.5mA, VEH=3.5V, CL=15pF, RL=350Ω IF = 7.5mA , VOH=2.0V, 6N137 - - - RL=350Ω, Ta=25°C VCM=10Vp-p Common Mode Transient Immunity at IF = 7.5mA , VOH=2.0V, SL2601 CMH 5000 - - V/μs RL=350Ω, Ta=25°C VCM=50Vp-p Logic High IF = 7.5mA , VOH=2.0V, SL2611 10000 - - RL=350Ω, Ta=25°C VCM=400Vp-p IF = 0mA , VOH=0.8V, 6N137 - - - RL=350Ω, Ta=25°C VCM=10Vp-p Common Mode Transient Immunity at IF = 0mA , VOH=0.8V, SL2601 CML 5000 - - V/μs RL=350Ω, Ta=25°C VCM=50Vp-p Logic Low IF = 0mA , VOH=0.8V, SL2611 10000 - - RL=350Ω, Ta=25°C VCM=400Vp-p www.slkormicro.com 4 6N137,SL2601,SL2611 Series ELECTRICAL OPTICAL CHARACTERISTICS at Ta=25°C PARAMETER SYMBOL MIN. TYP. MAX. UNIT TEST CONDITION INPUT Forward Voltage VF - 1.38 1.8 V IF=10mA Reverse Current IR - - 10 μA VR=5V Input Capacitance Cin - 13 - pF V=0, f=1MHz OUTPUT High Level Supply Current ICCH - 4.3 10 mA IF=0mA, VE=0.5V,VCC=3.3V Low Level Supply Current ICCL - 6.4 13 mA IF=10mA, VCC=3.3V High Level Enable Current IEH - -0.21 -1.6 mA VE=2.0V, VCC=3.3V Low Level Enable Current IEL - -0.42 -1.6 mA VE=0.5V, VCC=3.3V High Level Enable Voltage VEH 2.0 - - V IF=10mA, VCC=3.3V Low Level Enable Voltage VEL - - 0.8 V IF=10mA, VCC=3.3V TRANSFER CHARACTERISTICS (Ta=-40 to 85°C) VCC=3.3V, VO=3.3V, High Level Output Current IOH - 4.1 100 μA Low Level Output Voltage VOL - 0.29 0.6 V Input Threshold Current IFT - 2.2 5 mA Isolation Resistance Riso - Ω DC500V, 40 ~ 60% R.H. Floating Capacitance CIO - pF V=0, f=1MHz www.slkormicro.com 10^12 10^14 - 1.0 5 IF=250μA, VE=2.0V VCC=3.3V, IF=5mA, VE=2.0V, ICL=13mA VCC=3.3V, VO=0.6V, VE=2.0V, IOL=13mA NOTE 6N137,SL2601,SL2611 Series ELECTRICAL OPTICAL CHARACTERISTICS PARAMETER SYMBOL MIN. TYP. MAX. UNIT TEST CONDITION NOTE SWITCHING CHARACTERISTICS (Ta=-40 to 85°C, VCC=3.3V, IF=7.5mA unless specified otherwise) Propagation Delay Time TPHL - 35 75 ns CL=15pF, RL=350Ω, Ta=25°C TPLH - 47 75 ns CL=15pF, RL=350Ω, Ta=25°C Pulse Width Distortion |TPHL-TPLH| - 12 35 ns CL=15pF, RL=350Ω Rise Time tr - 30 - ns CL=15pF, RL=350Ω Fall Time tf - 8.5 - ns CL=15pF, RL=350Ω TEHL - 15 - ns TELH - 15 - ns to Output Low Level Propagation Delay Time to Output High Level Enable Propagation Delay Time to Output Low Level Enable Propagation Delay Time to Output High Level IF=7.5mA, VEH=3.3.3V, CL=15pF, RL=350Ω IF=7.5mA, VEH=3.3.3V, CL=15pF, RL=350Ω IF = 7.5mA , VOH=2.0V, 6N137 - - - RL=350Ω, Ta=25°C VCM=10Vp-p Common Mode Transient Immunity at IF = 7.5mA , VOH=2.0V, SL2601 CMH 5000 - - V/μs RL=350Ω, Ta=25°C VCM=50Vp-p Logic High IF = 7.5mA , VOH=2.0V, 10000 SL2611 - - RL=350Ω, Ta=25°C VCM=400Vp-p IF = 0mA , VOH=0.8V, 6N137 - - - RL=350Ω, Ta=25°C VCM=10Vp-p Common Mode Transient Immunity at IF = 0mA , VOH=0.8V, SL2601 CML 5000 - - V/μs RL=350Ω, Ta=25°C VCM=50Vp-p Logic Low IF = 0mA , VOH=0.8V, SL2611 10000 - - RL=350Ω, Ta=25°C VCM=400Vp-p www.slkormicro.com 6 6N137,SL2601,SL2611 Series CHARACTERISTIC CURVES Fig.1 Forward Current vs. Forward Voltage Fig.2 Forward Voltage vs. Ambient Temperature Fig.3 Input Threshold Current vs. Ambient Temperature Fig.4 Input Threshold Current vs. Ambient Temperature Fig.5 Low Level Output Current vs. Ambient Temperature Fig.6 Low Level Output Current vs. Ambient Temperature www.slkormicro.com 7 6N137,SL2601,SL2611 Series CHARACTERISTIC CURVES Fig.7 Low Level Output Voltage vs. Ambient Temperature Fig.8 Low Level Output Voltage vs. Ambient Temperature Fig.9 High Level Output Current vs. Ambient Temperature Fig.10 High Level Output Current vs. Ambient Temperature Fig.11 Output Voltage vs. Forward Current Fig.12 Output Voltage vs. Forward Current www.slkormicro.com 8 6N137,SL2601,SL2611 Series CHARACTERISTIC CURVES Fig.13 Propagation Delay vs. Forward Current Fig.14 Propagation Delay vs. Forward Current Fig.15 Rise and Fall Time vs. Ambient Temperature Fig.16 Rise and Fall Time vs. Ambient Temperature Fig.17 Propagation Delay vs. Ambient Temperature Fig.18 Propagation Delay vs. Ambient Temperature www.slkormicro.com 9 6N137,SL2601,SL2611 Series CHARACTERISTIC CURVES Fig.19 Pulse Width Distortion vs. Ambient Temperature Fig.20 Pulse Width Distortion vs. Ambient Temperature Fig.21 Enable Propagation Delay vs. Ambient Temperature Fig.22 Enable Propagation Delay vs. Ambient Temperature www.slkormicro.com 10 6N137,SL2601,SL2611 Series TEST CIRCUITS Fig.23 Test Circuits for TPHL, TPLH, tr, tf Fig.24 Waveforms of TPHL, TPLH, tr, tf www.slkormicro.com 11 6N137,SL2601,SL2611 Series TEST CIRCUITS Fig.25 Test Circuits for TEHL, TELH Fig.26 Waveforms of TEHL, TELH www.slkormicro.com 12 2 6N137,SL2601,SL2611 Series TEST CIRCUITS Fig.25 Test Circuits for Common Mode Transient Immunity Fig.26 Waveforms of Common Mode Transient Immunity www.slkormicro.com 13 6N137,SL2601,SL2611 Series PACKAGE DIMENSIONS (Dimensions in mm unless otherwise stated) Standard DIP – Through Hole (DIP Type) Gullwing (400mil) Lead Forming – Through Hole (M Type) www.slkormicro.com 14 6N137,SL2601,SL2611 Series PACKAGE DIMENSIONS (Dimensions in mm unless otherwise stated) Surface Mount Lead Forming (S Type) Surface Mount (Low Profile) Lead Forming (SL Type) www.slkormicro.com 15 6N137,SL2601,SL2611 Series PACKAGE DIMENSIONS (Dimensions in mm unless otherwise stated) Surface Mount (Gullwing) Lead Forming (SLM Type) Recommended Solder Mask (Dimensions in mm unless otherwise stated) Surface Mount Lead Forming & Surface Mount (Low Profile) Lead Forming Surface Mount (Gullwing) Lead Forming www.slkormicro.com 16 6N137,SL2601,SL2611 Series Carrier Tape Specifications (Dimensions in mm unless otherwise stated) Option S(T1) & SL(T1) Option S(T2) & SL(T2) www.slkormicro.com 17 6N137,SL2601,SL2611 Series Carrier Tape Specifications (Dimensions in mm unless otherwise stated) Option SLM(T1) Option SLM(T2) www.slkormicro.com 18 6N137,SL2601,SL2611 Series REFLOW INFORMATION REFLOW PROFILE Profile Feature Sn-Pb Assembly Profile Pb-Free Assembly Profile Temperature Min. (Tsmin) 100 150°C Temperature Max. (Tsmax) 150 200°C Time (ts) from (Tsmin to Tsmax) 60-120 seconds 60-120 seconds Ramp-up Rate (tL to tP) 3°C/second max. 3°C/second max. Liquidous Temperature (TL) 183°C 217°C Time (tL) Maintained Above (TL) 60 – 150 seconds 60 – 150 seconds Peak Body Package Temperature 235°C +0°C / -5°C 260°C +0°C / -5°C Time (tP) within 5°C of 260°C 20 seconds 30 seconds Ramp-down Rate (TP to TL) 6°C/second max 6°C/second max Time 25°C to Peak Temperature 6 minutes max. 8 minutes max. www.slkormicro.com 19
6N137S
物料型号:6N137, SL2601, SL2611

器件简介: - 6N137, SL2601, SL2611系列是一个高速逻辑门光耦,包含一个AlGaAs红外发光二极管作为发射器,与一个硅高速集成光电检测逻辑门在塑料DIP8封装中光耦合,具有可变的引脚形成选项。

引脚分配: - 1. NC - 2. 阳极 - 3. 阴极 - 4. NC - 5. GND - 6. 输出电压VO - 7. 使能电压VE - 8. VCC

参数特性: - 高隔离:5000 VRMS - DC输入与逻辑门输出 - 工作温度范围:-55°C 至 100°C - 符合REACH标准 - 无卤素(可选) - MSL等级1 - 正在等待批准的监管认证

功能详解: - 地环消除 - LSTTL到TTL,LSTTL或CMOS - 线路接收器,数据传输 - 数据多路复用 - 开关电源 - 脉冲变压器替代 - 计算机外围设备接口

应用信息: - 地环消除 - LSTTL到TTL,LSTTL或CMOS转换 - 线路接收器,数据传输 - 数据多路复用 - 开关电源 - 脉冲变压器替代 - 计算机外围设备接口

封装信息: - 标准DIP - 通孔(DIP类型) - Gullwing(400mil)引脚形成 - 通孔(M类型) - 表面安装引脚形成(S类型) - 表面安装(低轮廓)引脚形成(SL类型) - 表面安装(Gullwing)引脚形成(SLM类型)
6N137S 价格&库存

很抱歉,暂时无法提供与“6N137S”相匹配的价格&库存,您可以联系我们找货

免费人工找货
6N137S
  •  国内价格
  • 1+1.59500
  • 30+1.54000
  • 100+1.43000
  • 500+1.32000
  • 1000+1.26500

库存:498
