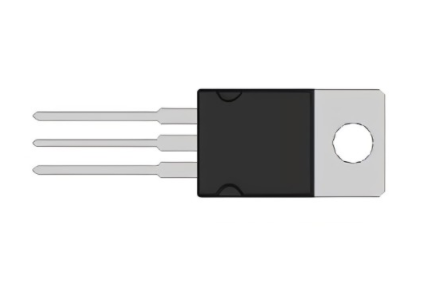

IRF540NPBF

IRF540NPBF www.VBsemi.com N-Channel 100-V (D-S) MOSFET FEATURES PRODUCT SUMMARY V(BR)DSS (V) 100 rDS(on) (Ω) ID (A) 0.032 at VGS = 10 V 45 0.035 at VGS = 4.5 V 40 • TrenchFET® Power MOSFETS • 175 °C Junction Temperature • Low Thermal Resistance Package Available RoHS* COMPLIANT D TO-220AB G G D S S Top View N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Limit Drain-Source Voltage VDS 100 Gate-Source Voltage VGS ± 20 Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C Pulsed Drain Current Avalanche Current Repetitive Avalanche Energya Maximum Power Dissipationa L = 0.1 mH TC = 25 °C TA = 25 °Cc Operating Junction and Storage Temperature Range ID Unit V 45 30 IDM 135 IAR 35 EAR 61 A mJ b PD 127 3.75 W TJ, Tstg - 55 to 175 °C Symbol Limit Unit RthJA 40 RthJC 1.4 THERMAL RESISTANCE RATINGS Parameter Junction-to-Ambient (PCB Mount)c Junction-to-Case (Drain) °C/W Notes: a. Duty cycle ≤ 1 %. b. See SOA curve for voltage derating. c. When Mounted on 1" square PCB (FR-4 material). * Pb containing terminations are not RoHS compliant, exemptions may apply. 服务热线：400-655-8788 1 IRF540NPBF www.VBsemi.com SPECIFICATIONS TJ = 25 °C, unless otherwise noted Parameter Symbol Test Conditions Min. V(BR)DSS VSS = 0 V, ID = 250 µA 100 VGS(th) VDS = VGS, ID = 250 µA 1 IGSS VDS = 0 V, VGS = ± 20 V Typ. Max. Unit Static Drain-Source Breakdown Voltage Gate-Threshold Voltage Gate-Body Leakage Zero Gate Voltage Drain Current On-State Drain Currenta IDSS ± 100 VDS = 100 ,VVGS = 0 V 1 VDS = 80 V, VGS = 0 V, TJ = 125 °C 50 VDS = 80 V, VGS = 0 V, TJ = 175 °C 250 VDS ≥ 5 V, VGS = 10 V ID(on) Drain-Source On-State Resistancea rDS(on) 75 0.032 VGS = 4.5 V, ID = 3 A 0.035 VGS = 10 V, ID = 5 A, TJ = 125 °C Forward Transconductance gfs VDS = 15 V, ID = 15 A V nA µA A VGS = 10 V, ID = 5 A Ω 0.050 VGS = 10 V, ID = 3 A, TJ = 175 °C a 3 0.065 10 S Dynamicb Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss 90 Total Gate Chargec Qg 35 c 2400 VGS = 0 V, VDS = 25 V, f = 1 MHz Gate-Source Charge Qgs Gate-Drain Chargec Qgd 9 RG 1.7 Gate Resistance Turn-On Delay Time c Rise Timec Turn-Off Delay Timec Fall Timec VDS = 50 V, VGS = 10 V, ID = 40 A td(on) tr td(off) VDD = 50 V, RL = 1.25 Ω ID ≅ 40 A, VGEN = 10 V, RG = 2.5 Ω tf pF 270 60 nC 11 Ω 11 20 12 20 30 45 12 20 ns Source-Drain Diode Ratings and Characteristics TC = 25 °Cb IS 40 Pulsed Current ISM 120 Forward Voltagea VSD Continuous Current Reverse Recovery Time Peak Reverse Recovery Current Reverse Recovery Charge IF = 30 A, VGS = 0 V trr IRM(REC) Qrr IF = 30 A, di/dt = 100 A/µs A 1.0 1.5 V 60 100 ns 5 8 A 0.15 0.4 µC Notes: a. Pulse test; pulse width ≤ 300 µs, duty cycle ≤ 2 % b. Guaranteed by design, not subject to production testing. c. Independent of operating temperature. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 服务热线：400-655-8788 2 IRF540NPBF www.VBsemi.com TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted 75 75 VGS = 10 thru 5V 60 45 ID - Drain Current (A) I D - Drain Current (A) 60 4V 30 45 30 TC = 125 °C 15 15 25 °C 2V - 55 °C 0 0 0 2 4 6 8 0 10 1 2 3 4 5 6 VGS - Gate-to-Source Voltage (V) VDS - Drain-to-Source Voltage (V) Output Characteristics Transfer Characteristics 100 0.10 TC = - 55 °C r DS(on) - On-Resistance (Ω) g fs - Transconductance (S) 80 25 °C 60 125 °C 40 0.08 0.06 VGS = 4.5V 0.04 20 VGS = 10 V 0.02 0 0 15 30 45 60 0 75 15 30 75 On-Resistance vs. Drain Current 3500 20 VGS - Gate-to-Source Voltage (V) Ciss 2800 C - Capacitance (pF) 60 ID - Drain Current (A) ID - Drain Current (A) Transconductance 2100 1400 700 Crss VDS = 50 V ID =10 A 16 12 8 4 Coss 0 0 0 服务热线：400-655-8788 45 20 40 60 80 100 0 10 20 30 40 50 VDS - Drain-to-Source Voltage (V) Qg - Total Gate Charge (nC) Capacitance Gate Charge 60 70 3 IRF540NPBF www.VBsemi.com TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted 2.5 100 VGS = 10 V ID = 15 A I S - Source Current (A) (Normalized) r DS(on) - On-Resistance 2.0 1.5 0.8 TJ = 150 °C 10 TJ = 25 °C 0.4 0.0 - 50 - 25 0 25 50 75 100 125 150 1 0 175 0.9 1.2 TJ - Junction Temperature (°C) VSD - Source-to-Drain Voltage (V) Source-Drain Diode Forward Voltage Drain-Source Breakdown Voltage (V) 130 100 I Dav (A) 0.6 On-Resistance vs. Junction Temperature 1000 10 IAV (A) at TA = 25 °C 1 IAV (A) at TA = 150 °C 0.1 0.00001 服务热线：400-655-8788 0.3 0.0001 0.001 0.01 0.1 1 ID = 10 mA 125 120 115 110 105 100 95 - 50 - 25 0 25 50 75 100 125 150 tin (s) TJ - Junction Temperature (°C) Avalanche Current vs. Time Drain-Source Breakdown Voltage vs. Junction Temperature 175 4 IRF540NPBF www.VBsemi.com THERMAL RATINGS 1000 50 100 I D - Drain Current (A) I D - Drain Current (A) 40 30 20 10 0 0 25 50 75 100 125 150 Limited by rDS(on)* 10 µs 10 100 µs 1 ms 10 ms 1 0.1 0.1 175 TC - Ambient Temperature (°C) 1 * VGS Maximum Avalanche and Drain Current vs. Case Temperature DC, 100 ms TC = 25 °C Single Pulse 10 100 1000 VDS - Drain-to-Source Voltage (V) minimum VGS at which rDS(on) is specified Safe Operating Area 2 Normalized Effective Transient Thermal Impedance 1 Duty Cycle = 0.5 0.2 0.1 0.1 0.05 0.02 Single Pulse 0.01 10 -4 10 -3 10 -2 10 -1 1 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Case 服务热线：400-655-8788 5 IRF540NPBF www.VBsemi.com TO-220AB MILLIMETERS A E F D H(1) Q ØP 3 2 L(1) 1 M* L b(1) INCHES DIM. MIN. MAX. MIN. MAX. A 4.25 4.65 0.167 0.183 0.040 b 0.69 1.01 0.027 b(1) 1.20 1.73 0.047 0.068 c 0.36 0.61 0.014 0.024 D 14.85 15.49 0.585 0.610 E 10.04 10.51 0.395 0.414 e 2.41 2.67 0.095 0.105 e(1) 4.88 5.28 0.192 0.208 F 1.14 1.40 0.045 0.055 H(1) 6.09 6.48 0.240 0.255 J(1) 2.41 2.92 0.095 0.115 L 13.35 14.02 0.526 0.552 L(1) 3.32 3.82 0.131 0.150 ØP 3.54 3.94 0.139 0.155 Q 2.60 3.00 0.102 0.118 ECN: X12-0208-Rev. N, 08-Oct-12 DWG: 5471 Notes * M = 1.32 mm to 1.62 mm (dimension including protrusion) Heatsink hole for HVM C b e J(1) e(1) 服务热线：400-655-8788 6 IRF540NPBF www.VBsemi.com Disclaimer All products due to improve reliability, function or design or for other reasons, product specifications and data are subject to change without notice. Taiwan VBsemi Electronics Co., Ltd., branches, agents, employees, and all persons acting on its or their representatives (collectively, the "Taiwan VBsemi"), assumes no responsibility for any errors, inaccuracies or incomplete data contained in the table or any other any disclosure of any information related to the product.(www.VBsemi.com) Taiwan VBsemi makes no guarantee, representation or warranty on the product for any particular purpose of any goods or continuous production. To the maximum extent permitted by applicable law on Taiwan VBsemi relinquished: (1) any application and all liability arising out of or use of any products; (2) any and all liability, including but not limited to special, consequential damages or incidental ; (3) any and all implied warranties, including a particular purpose, non-infringement and merchantability guarantee. Statement on certain types of applications are based on knowledge of the product is often used in a typical application of the general product VBsemi Taiwan demand that the Taiwan VBsemi of. Statement on whether the product is suitable for a particular application is non-binding. It is the customer's responsibility to verify specific product features in the products described in the specification is appropriate for use in a particular application. Parameter data sheets and technical specifications can be provided may vary depending on the application and performance over time. All operating parameters, including typical parameters must be made by customer's technical experts validated for each customer application. Product specifications do not expand or modify Taiwan VBsemi purchasing terms and conditions, including but not limited to warranty herein. Unless expressly stated in writing, Taiwan VBsemi products are not intended for use in medical, life saving, or life sustaining applications or any other application. Wherein VBsemi product failure could lead to personal injury or death, use or sale of products used in Taiwan VBsemi such applications using client did not express their own risk. Contact your authorized Taiwan VBsemi people who are related to product design applications and other terms and conditions in writing. The information provided in this document and the company's products without a license, express or implied, by estoppel or otherwise, to any intellectual property rights granted to the VBsemi act or document. Product names and trademarks referred to herein are trademarks of their respective representatives will be all. Material Category Policy Taiwan VBsemi Electronics Co., Ltd., hereby certify that all of the products are determined to be RoHS compliant and meets the definition of restrictions under Directive of the European Parliament 2011/65 / EU, 2011 Nian. 6. 8 Ri Yue restrict the use of certain hazardous substances in electrical and electronic equipment (EEE) - modification, unless otherwise specified as inconsistent.(www.VBsemi.com) Please note that some documents may still refer to Taiwan VBsemi RoHS Directive 2002/95 / EC. We confirm that all products identified as consistent with the Directive 2002/95 / EC European Directive 2011/65 /. Taiwan VBsemi Electronics Co., Ltd. hereby certify that all of its products comply identified as halogen-free halogen-free standards required by the JEDEC JS709A. Please note that some Taiwanese VBsemi documents still refer to the definition of IEC 61249-2-21, and we are sure that all products conform to confirm compliance with IEC 61249-2-21 standard level JS709A. 服务热线：400-655-8788 7
