PESD24VS1UA
Unidirectional ESD protection diode
Rev. 1 — 7 March 2011
Product data sheet
1. Product profile
1.1 General description

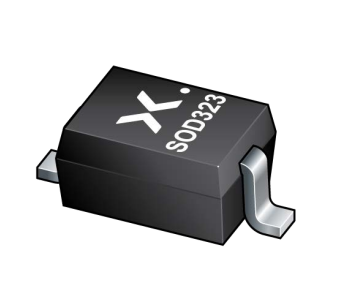

Unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD323 (SC-76) very
small Surface-Mounted Device (SMD) plastic package designed to protect one signal line
from the damage caused by ESD and other transients.
1.2 Features and benefits
Unidirectional ESD protection of one line
Max. peak pulse power: PPP = 160 W
Ultra low leakage current: IRM < 1 nA
ESD protection up to 23 kV
IEC 61000-4-2, level 4 (ESD)
IEC 61000-4-5 (surge); IPP = 3 A
1.3 Applications
Computers and peripherals
Communication systems
Audio and video equipment
Data lines
Controller Area Network (CAN) bus protection
1.4 Quick reference data
Table 1.
Quick reference data
Symbol
Parameter
VRWM
reverse standoff voltage
Cd
diode capacitance
Conditions
VR = 0 V; f = 1 MHz
Min
Typ
Max
Unit
-
-
24
V
-
23
50
pF
2. Pinning information
Table 2.
Pinning
Pin
Description
1
cathode
2
anode
Simplified outline
Graphic symbol
[1]
1
2
1
2
006aaa152
PESD24VS1UA
Nexperia
Unidirectional ESD protection diode
[1]
The marking bar indicates the cathode.
3. Ordering information
Table 3.
Ordering information
Type number
PESD24VS1UA
Package
Name
Description
Version
SC-76
plastic surface-mounted package; 2 leads
SOD323
4. Marking
Table 4.
Marking codes
Type number
Marking code
PESD24VS1UA
2E
5. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Parameter
Conditions
peak pulse power
tp = 8/20 μs
[1]
IPP
peak pulse current
tp = 8/20 μs
[1]
Tj
junction temperature
Tamb
ambient temperature
Tstg
storage temperature
PPP
[1]
PESD24VS1UA
Product data sheet
Min
Max
Unit
-
160
W
-
3
A
-
150
°C
−65
+150
°C
−65
+150
°C
Non-repetitive current pulse 8/20 μs exponential decay waveform according to IEC 61000-4-5.
All information provided in this document is subject to legal disclaimers.
Rev. 1 — 7 March 2011
©
Nexperia B.V. 2017. All rights reserved
2 of 13
PESD24VS1UA
Nexperia
Unidirectional ESD protection diode
Table 6.
ESD maximum ratings
Tamb = 25 °C unless otherwise specified.
Symbol
Parameter
Conditions
electrostatic discharge
voltage
VESD
[1]
IEC 61000-4-2
(contact discharge)
MIL-STD-883
(human body model)
[1]
Min
Max
Unit
-
23
kV
-
10
kV
Device stressed with ten non-repetitive ESD pulses.
Table 7.
ESD standards compliance
Standard
Conditions
IEC 61000-4-2; level 4 (ESD)
> 15 kV (air); > 8 kV (contact)
MIL-STD-883; class 3 (human body model)
> 4 kV
001aaa631
IPP
001aaa630
120
100 %
90 %
100 % IPP; 8 μs
IPP
(%)
80
e−t
50 % IPP; 20 μs
40
10 %
0
10
20
30
30 ns
40
t (μs)
Fig 1.
t
tr = 0.7 ns to 1 ns
0
8/20 μs pulse waveform according to
IEC 61000-4-5
PESD24VS1UA
Product data sheet
60 ns
Fig 2.
ESD pulse waveform according to
IEC 61000-4-2
All information provided in this document is subject to legal disclaimers.
Rev. 1 — 7 March 2011
©
Nexperia B.V. 2017. All rights reserved
3 of 13
PESD24VS1UA
Nexperia
Unidirectional ESD protection diode
6. Characteristics
Table 8.
Characteristics
Tamb = 25 °C unless otherwise specified.
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
VRWM
reverse standoff
voltage
-
-
24
V
IRM
reverse leakage
current
VRWM = 24 V
-
