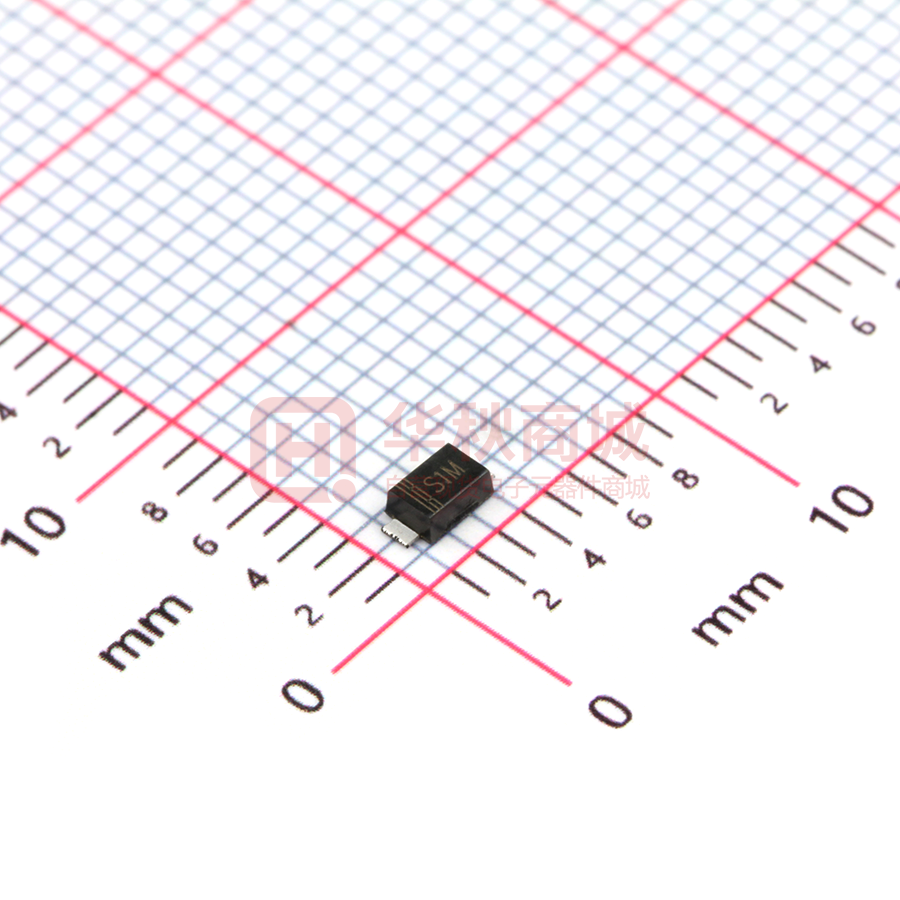

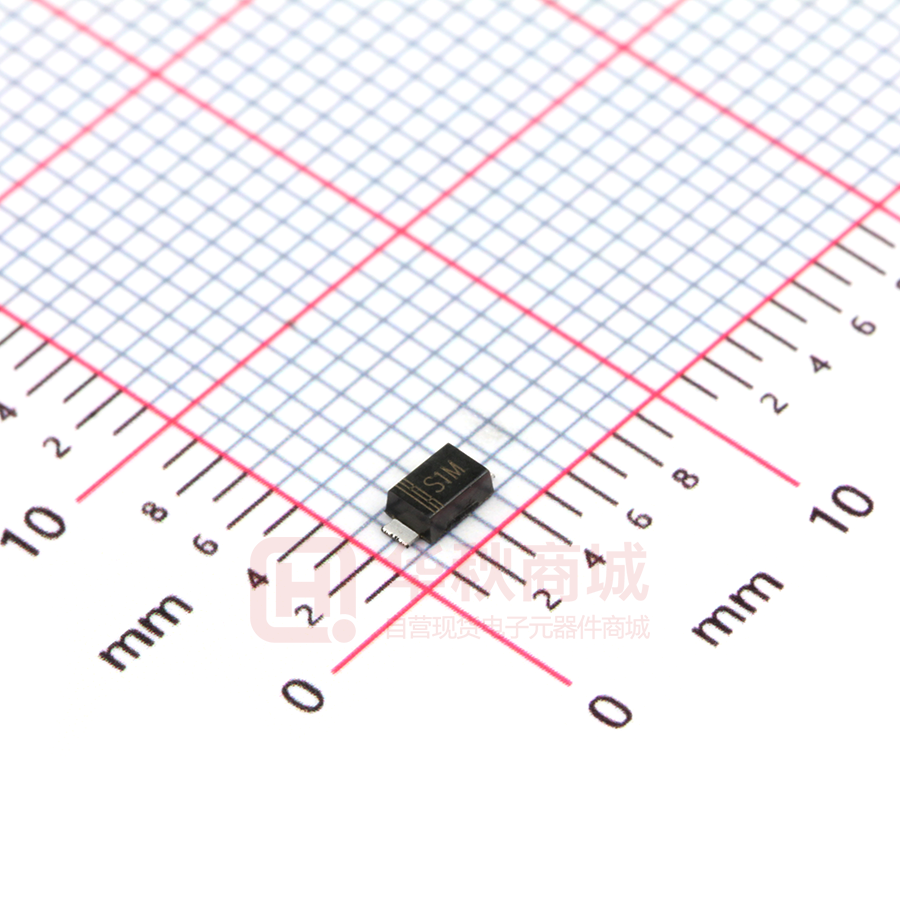

DSR1M

DSR1A THRU DSR1M Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere SURFACE MOUNT STANDARD RECTIFIER Features SOD-123FL  Low profile space  Ideal for automated placement  Glass passivated chip junctions 0.075(1.90) 0.067(1.70) 0.031 (0.80) 0.043 (1.10)  Low forward voltage dropLow leakage current  High forward surge capability  High temperature soldering： 0.114(2.90) 0.102(2.60) 0.051(1.30) 0.039(1.00) 260℃/10 seconds at terminals Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC 0.010(0.25) 0.004(0.10) 0.035(0.90) 0.028(0.70) Mechanical Data 0.154(3.90) 0.141(3.60) Case: JEDEC 6OD-123FL molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Polarity symbol marking on body Mounting Position: Any Weight : 0.007 ounce, 0.02 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(NOTE 1) DSR1A DSR1B DSR1D DSR1G DSR1J DSR1K DSR1M SYMBOLS VRRM VRMS VDC UNITS S1A S1B S1D S1G S1J S1K S1M 50 35 50 100 70 100 200 105 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V I(AV) 1.0 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 25.0 A Maximum instantaneous forward voltage at 0.5A VF V Maximum DC reverse current TA=25℃ at rated DCblocking voltage TA=125℃ IR 1.1 10 50.0 μA Typical junction capacitance (NOTE 2) CJ 4 pF R0JA -50to+150 ℃ Typical thermal resistance(NOTE 3) Storage temperature range http://www.microdiode.com Tj TSTG -55 to +150 Rev:2024A1 ℃ Page :1 DSR1A THRU DSR1M Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere Typical Characterisitics FIG.1 --TYPICAL FORWARD CHARACTERISTIC FIG.2 -- TYPICAL JUNCTION CAPACITANCE 1000 10 CAPACITANCE, pF 8 TJ = 2 5 °C TJ = 150°C m AMPERES INSTANTANEOUS FORWARD CURRENT 9 TJ = 100°C 7 6 5 4 3 2 1 100 600 700 800 900 1000 0 1100 0 INSTANTANEOUS FORWARD VOLTAGE,mV 5 10 15 20 25 30 35 40 REVERSE VOLTAGE,VOLTS FIG.3 -- TYPICAL INSTANTANEOUS FIG.4 -- FORWARD DERATING CURVE REVERSE CHARACTERISTICS AVERAGE FORWARD CURRENT, AMPERES TJ = 150°C 10 TJ = 125°C TJ = 100°C 1 µ AMPERES INSTANTANEOUS REVERSE CURRENT 100 TJ = 7 5 °C TJ = 5 0 °C 0.1 TJ = 2 5 °C 0.01 0 100 200 300 400 500 600 700 800 INSTANTANEOUS REVERSE VOLTAGE,V 1.0 0.8 0.6 0.4 0.2 0 0 25 50 75 100 125 150 175 900 AMBIENT TEMPERATURE, The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2 DSR1A THRU DSR1M Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance SOD-123FL A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 2.1 4.0 1.60 1.55 178.00 50.0 13.00 1.75 3.50 4.00 4.00 2.00 E F B A Carrier width Carrier length Carrier depth Sprocket hole 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width W P D2 T D1 C W1 D 0.25 8.15 10.5 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) SOD-123FL 7" 3,000 4.0 45,000 210*208*203 178 430*430*235 180,000 APPROX. GROSS WEIGHT (kg) 9.0 Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) A 1.2 0.047 B 0.047 C 1.2 3.2 0.126 D 2 0.079 E 4.4 0.173 Unit (inch) Rev:2024A1 Page :3
