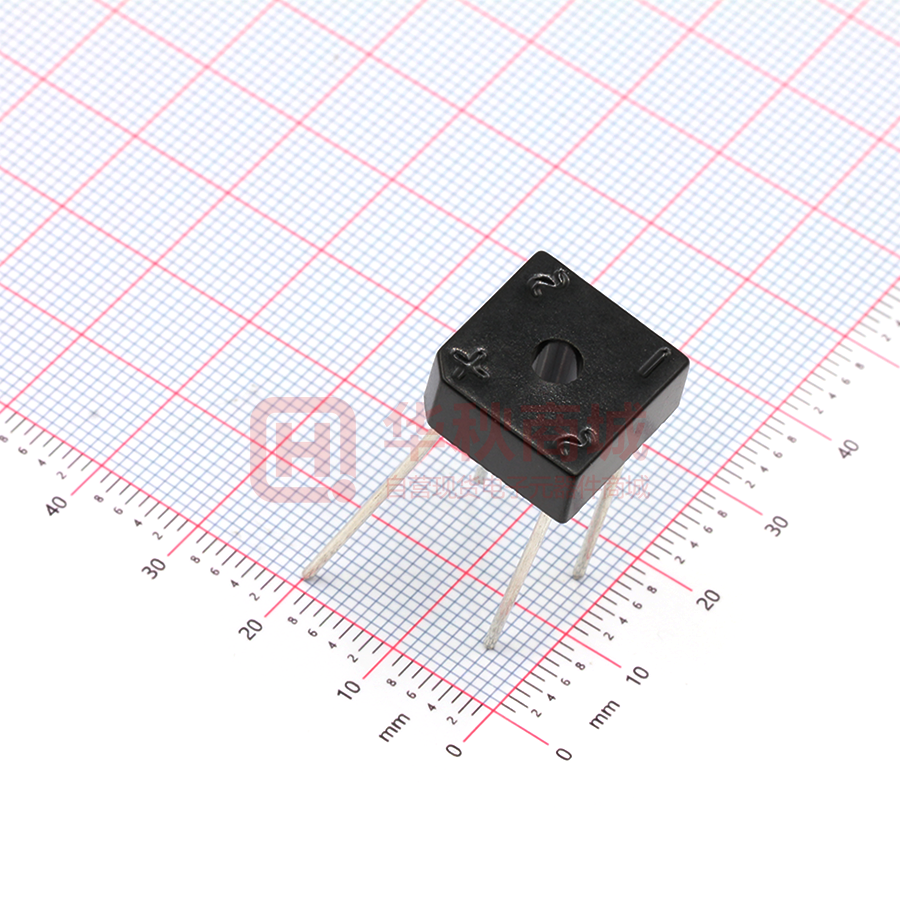

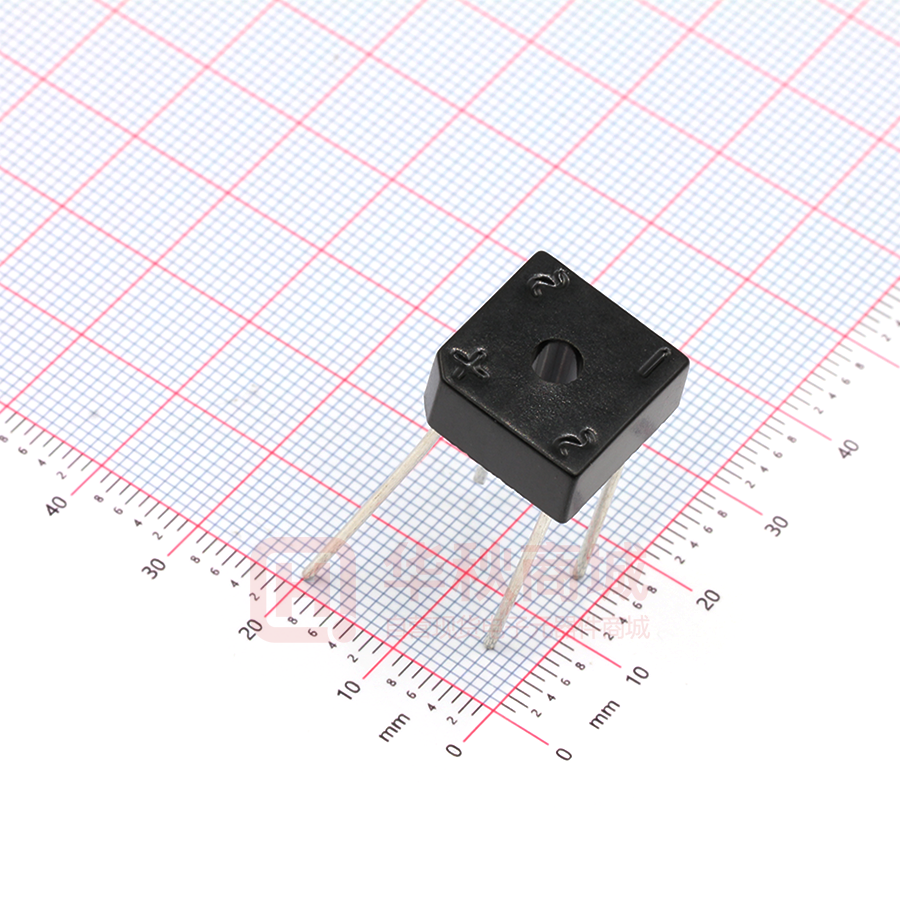

KBPC610

KBPC6005 THRU KBPC610 Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Amperes SILICON BRIDGE RECTIFIERS Features KBPC-6/BR-6  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Ideal for printed circuit boards 0.620(15.7) 0.580(14.7) 0.270(6.9) 0.230(5.8) HOLE FOR NO.6 SCREW 0.445(11.3) 0.405(10.3)  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed: 0.75 (19.1) 0.042(1.1) DIA. 0.039(1.0) TYP. AC MIN. 0.445(11.3) 0.405(10.3) AC 260°C/10 seconds,5 lbs. (2.3kg) tension Mechanical Data Case : JEDEC BR-6 Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.13 ounce, 3.66 grams ~ - + ~ Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage TA=50°C(Note 1) Maximum average forward output rectified current at TA=25°C(Note 2) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Rating for Fusing(t
