品 名
Product Name
版
本
水泥電阻器
Cement Type Resistors
B/3 版
制定日期
2017 年 06 月 10 日
頁數
13-1
Version
Enactment Date
JUN 30, 2017
Page
1. 一般事項
General
1.1 適用 Scope
本承認書適用於 [水泥型電阻器],符合環境關聯物質要求之 RoHS 測試。
This specification is available for Cement Type Resistors,it accords with RoHS test of Environment related
substance requirement。
1.2 形名(例) Type designation (example)
依使用種類、額定電力、公稱電阻值、容許誤差而區別,其構造如下。
The type designation shall be in the following form and as specified.
CR-(?)
5W
10K
種 類
額定電力
Type
Rated power
CR-L
2W
value
CR-M
3W
E-12 Series
CR-YA
5W
CR-YB
7W
CR-TC
10W
CR-YD
15W
CR-YD1
20W
CR-YE
30W
CR-YG
40W
公稱電阻值
Nominal resistance
E-24 Series
J
電阻值容許誤差
Resistance
tolerance
K
±10%
J
±5%
G
±2%
CR-V
1.3
額定電力 Rated power
額定電力係應在周圍溫度 70℃可以連續負載的最大電力, 如表-1;但周圍溫度如超過 70℃
時之額定電力則依圖一的電力遞減曲線實施。
Rated power is maximum power which can be continuously loaded at specified ambient temperature
70℃,as Table-1;however when the ambient temperature exceeds 70℃,rated power should be determined
from the derating curve of Fig.1.
品 名
Product Name
版
水泥電阻器
Cement Type Resistors
本
B/3 版
Version
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
表-1 Table-1
定格電力
最高使用電壓
最高過負荷電壓
Rated power
Maximum working
Maximum overload
voltage
(%)
Rated load(%)
額定電力比
100
Max Intermittence
Overload Voltage
voltage
1W
350V
700V
1500V
2W
350V
700V
1500V
3W
500V
1000V
1500V
5W
750V
1500V
1500V
7W
1000V
1500V
1500V
10W
1000V
1500V
1500V
15W
1000V
15000V
1500V
20W
1000V
1500V
1500V
30W
1000V
1500V
1500V
40W
1000V
1500V
1500V
圖一
120
最高斷續過負荷電壓
電力遞減曲線
線繞型水泥電阻
-55℃
25℃
Figure 1 Power derating curve
Wire Wound Cement Type
70℃
80
60
40
20
0
-60
-40
-20
0
20 40
60
80
100 120
140 160 180 200
Max 155℃
Ambient Temperature(℃)
周圍溫度℃
(定格周圍溫度:
1W~10W
15W 以上
(Rated ambient temperature: 1W~10W
15W or more
70℃
25℃)
70℃
25℃)
220
240 260
13-2
品 名
Product Name
版
水泥電阻器
Cement Type Resistors
本
B/3 版
Version
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
Metal Oxide Film Cement Type
金屬氧化皮膜水泥電阻
(%)
Rated load(%)
額定電力比
120
100
-55℃
25℃
13-3
70℃
80
60
40
20
0
-60
250℃
-40
-20
0
20 40
60
80
100 120
140 160 180 200
220
240 260
Max 150℃
Ambient Temperature(℃)
周圍溫度℃
(定格周圍溫度:
1W~10W
15W 以上
(Rated ambient temperature: 1W~10W
15W or more
70℃
25℃)
70℃
25℃)
1.4 額定電壓 Rated voltage
額定電壓係指對應於額定電力的直流或交流(商用頻率之有效值)的電壓,由下式求得。
The rated voltage shall be the D.C. or A.C.(R.M.S. at power frequency) voltage which corresponds
the rated power and the value of which is calculated from the formula below.
E=√(P×R)
Where
E: 定格電壓 Rated voltage(V)
P: 定格電力 Rated power(W)
R: 公稱電阻值 Nominal resistance(Ω)
使用溫度 Operating Temperature Range:-55℃~+250℃
品 名
Product Name
版
本
Version
水泥電阻器
Cement Type Resistors
B/3 版
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
13-4
2. 構造
Construction
2.1 外形尺寸 External dimensions
參照本承認書的 [5. 外形尺寸]。
The dimensions shall be satisfied with [5. External dimensions].
2.2 構造圖
Structure diagram
CR- (?) 系列之水泥固定電阻器係按下表的材料而構成:
The construction of resistor Cement Type Resistors shall be as follow:
號碼
NO
構造名稱
內
容
1
Item
基體磁器
使用高含鋁量的磁器棒。
2
Ceramic core
電阻體
High alumina ceramic is used.
電阻體的成份係使用金屬氧化皮膜或電阻線(例如 : CN49W Φ1.0mm)。
Resistor element
3
4
5
6
7
Material
端子
The resistor element shall consist of metal oxide film or Resistance wire
(Exemple:CN49W Φ1.0mm) .
鐵帽
Terminal
連接
Tinned iron cap.
導線對鐵帽須以電氣熔接。
Connection
導線
The lead wire,which is plated with solder,shall be mounted to the caps by
welding process.
焊錫或鍍錫的導線。
Lead wire t
矽水泥
Soldered or tinned annealed wire.
使用矽樹酯。符合 UL-94V-0 不然性規定
Silicon cement
磁殼
Silicon resin is used. Accord with UL-94V-0 Nonflammable specification
高頻陶磁器
Ceramic case
High thermal conductivity
品 名
Product Name
版
本
B/3 版
Version
3. 特性
水泥電阻器
Cement Type Resistors
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
13-5
Characteristics
表-2
Table-2
項 目
規格值
試驗方法(依據 JIS C 5202)
Item
Performance
Test methods(Conform to JIS C 5202)
溫度係數
Temperature
Coefficient
金屬氧化皮膜:±350PPM/℃
Metal Oxide Film:±350PPM/℃
電阻線: ±260PPM/℃
Resistor Wire:±260PPM/℃
5.2 項參照
Comply with 5.2
R1-R0 ×106(PPM/℃)
R0(T1-T0)
R0:室溫(T0)所測量之電阻值。
R1:室溫+100℃(T1)後所測量之電阻值。
R0:Resistance value at room temp.( T0).
R1:Resistance value at room temp.plus 100℃ (T1)
短時間過負荷
Short time
overload
±(2%+0.05Ω)以內。
不得有機械的損傷。
Within ±(2%+0.05Ω).
No evidence of mechanical
damage.
絕緣電阻
Insulation
Resistance
耐電壓
Dielectric
Withstanding
Voltage
斷續過負荷
Pulse overload
103MΩ以上。
103MΩ or more.
5.5 項參照 Comply with 5.5
定格電力×10 倍,5 秒。
不可超過最高過負荷電壓(見表-1)
Rated power×10 times,5s
But not to exceed maximum overload voltage.
(See table-1)
5.6 項參照 Comply with 5.6
施加直流電壓 500V 60 秒。
Resistor shall be tested at DC 500V
for 60 seconds.
無電弧放電、燒損及絕緣破
壞等異狀。
5.7 項參照 Comply with 5.7
施加個別規定之交流電壓 60 秒。(見表-1)
No evidence of flashover
mechanical damage,arcing
or insulation breakdown.
±(2%+0.05Ω)以內。
Within ±(2%+0.05Ω)
Resistor shall be tested at AC potential
respecticely for 60 seconds.
(See table-1)
5.8 項參照
Comply with 5.8
額定電壓×4 倍,10000 回(1 秒 ON,25 秒 OFF)。
不可超過最高斷續電壓(見表-1)
Rated voltage X 4 times, 10000 cyc.(1s ON, 25s OFF)
But not to exceed maximum pulse voltage.
(See table-1)
品 名
Product Name
版
本
Version
項 目
Item
焊錫耐熱性
Resistance to
soldering heat
水泥電阻器
Cement Type Resistors
B/3 版
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
規格值
Performance
±(1%+0.05Ω)以內。
不得有機械的損傷。
Within ±(1%+0.05Ω)
No evidence of mechanical
damage.
焊錫附著性
Solderability
導線至少 95%以上新錫覆蓋。
Covered with new solder by 95% at
least.
溫度循環
Temperature
cycle
±(2%+0.05Ω)以內。
不得有機械的損傷。
Within ±(2%+0.05Ω)
No evidence of mechanical
damage.
耐濕負荷壽命
Load life in
humidity
±(5%+0.05Ω)以內。
Within ±(5%+0.05Ω)
負荷壽命
Load life
±(5%+0.05Ω)以內。
Within ±(5%+0.05Ω)
13-6
試驗方法(依據 JIS C 5202)
Test methods(Conform to JIS C 5202)
6.4 項參照 Comply with 6.4
350±10℃, 3±1 秒, 試驗後放置半小時。
350±10℃, 3±1s
After test leave for 0.5h.
6.5 項參照 Comply with 6.5
焊錫溫度:255±5℃。
浸錫時間:3±1 秒。
Test temperature of solder: 255±5℃
Dipping time in solder: 3±1 s
7.4 項參照 Comply with 7.4
低溫側:-55℃/30 分, 室溫:10~15 分鐘
高溫側:+80℃/30 分, 室溫:10~15 分鐘
5回
Low side:-55℃/30min, Room temp.:10 to 15min
High side:80℃/30min, Room temp.:10 to 15min
5 cycles
7.9 項參照 Comply with 7.9
40±2℃, 濕度 90~95%, 1000 小時
定格電壓(90 分鐘 ON, 30 分鐘 OFF)
40±2℃, 90 to 95%RH, 1000h
Rated voltage (90 min ON, 30 min OFF)
7.10 項參照 Comply with 7.10
70±3℃, 1000 小時
定格電壓(90 分鐘 ON, 30 分鐘 OFF)
70±3℃, 1000h
Rated voltage (90 min ON, 30 min OFF)
品 名
Product Name
版
水泥電阻器
Cement Type Resistors
本
B/3 版
Version
4. 表示 Indication
(1)定格電力
(2)公稱抵抗值
(3)抵抗值許容差
例 : Sample
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
Rated Power
Resistance
Tolerance
5W 100Ω J
5. 外形寸法 External dimensions
5.1 CR-L 型 CR-Ltype
d
35±1.5
L
H
W
35±1.5
單位:mm
Unit:mm
瓦特
Watt
阻值範圍(Ω)
尺寸 Dimensions(mm)
L
W
H
Φd±0.05
Resistance Range(Ω)
線繞
金屬氧化皮膜
Wire Wound
Metal Oxide Film
1W
14±1.0
6.5±1.0
6.5±1.0
0.50
0.1Ω~22Ω
25Ω~56KΩ
2W
18±1.0
7.0±1.0
7.0±1.0
0.50
0.1Ω~22Ω
25Ω~56KΩ
3W
22±1.0
8.0±1.0
8.0±1.0
0.68
0.1Ω~47Ω
50Ω~100KΩ
5W
22±1.0
9.5±1.0
9.5±1.0
0.68
0.1Ω~47Ω
50Ω~100KΩ
7W
35±1.5
9.5±1.5
9.5±1.5
0.68
0.5Ω~330Ω
450Ω~100KΩ
10W
48±1.5
9.5±1.5
9.5±1.5
0.68
0.5Ω~450Ω
470Ω~100KΩ
15W
48±1.5
13±1.5
13±1.5
0.68
1Ω~500Ω
510Ω~100KΩ
20W
63±1.5
13±1.5
13±1.5
0.68
1Ω~600Ω
620Ω~100KΩ
30W
75±2.0
19±2.0
17±2.0
0.68
1Ω~600Ω
620Ω~100KΩ
40W
89±2.0
19±2.0
19±2.0
0.68
1Ω~600Ω
620Ω~100KΩ
注:1W 引線長度上 23MM±1.5MM;2W 引線長度上 17.2MM~23.8MM 之间。
13-7
品 名
Product Name
版
本
Version

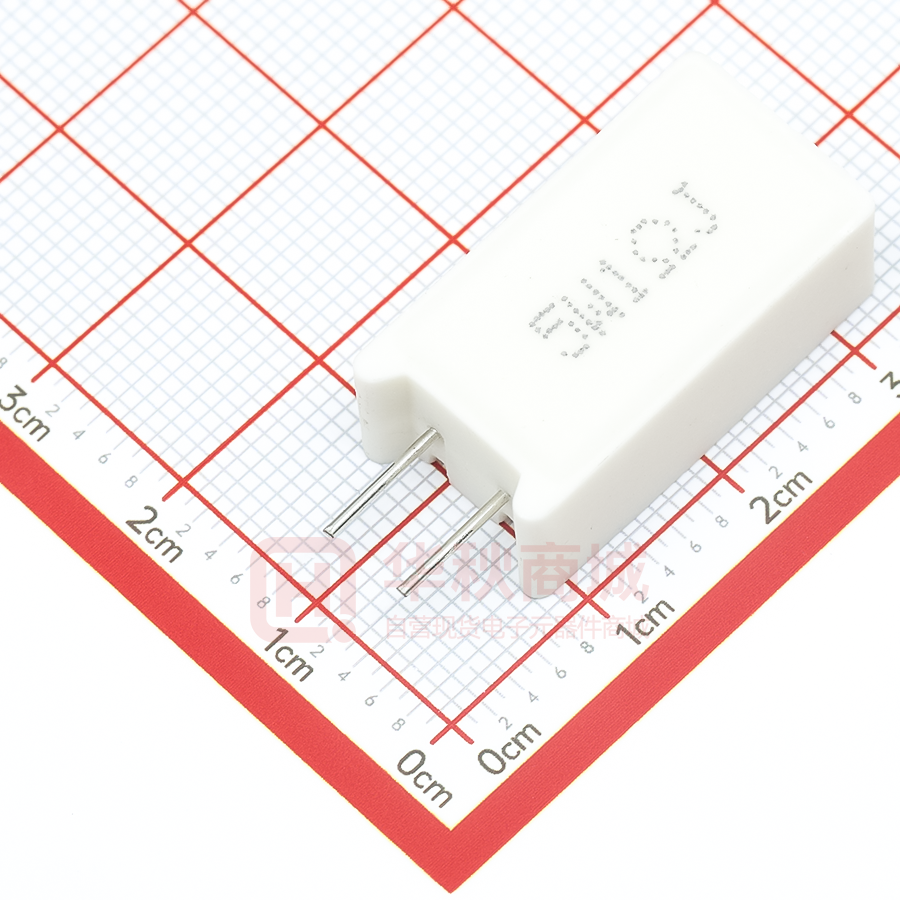

5.2 CR-M 型
水泥電阻器
Cement Type Resistors
B/3 版
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
CR-M type
W
S
H
S
d
5±1.0
P
單位:mm
Unit:mm
瓦特
Watt
阻值範圍(Ω)
尺寸 Dimensions(mm)
W±1.0
Resistance Range(Ω)
線繞
S±1.0
H±1.5
Φd±0.05
P±1.0
金屬氧化皮膜
Wire Wound
Metal Oxide Film
2W
11.5
7.5
20.5
0.50
4.5
0.1Ω~47Ω
50Ω~100KΩ
3W
12
8.5
25
0.68
4.5
0.1Ω~47Ω
50Ω~100KΩ
5W
13
9.5
25
0.68
4.5
0.1Ω~47Ω
50Ω~100KΩ
7W
13
9.5
38
0.68
4.5
0.5Ω~330Ω
450Ω~100KΩ
10W
13
9.5
52
0.68
4.5
0.5Ω~450Ω
470Ω~100KΩ
10W
16
11.5
36
0.68
4.5
0.5Ω~450Ω
470Ω~100KΩ
5.3 CR-YB 型
CR-YBtype
L
W1
H1
H2
P
W3
W2
H3
13-8
品 名
Product Name
版
本
水泥電阻器
Cement Type Resistors
Version
2017 年 06 月 10 日
制定日期
B/3 版
Enactment Date
頁數
JUN 30, 2017
單位:mm
Unit:mm
Page
尺寸 Dimensions(mm)
瓦特
Watt
P±1.5
L
W1±1.2
W2±0.2
W3±0.2
13-9
阻值範圍(Ω)
H1±1.2
H2±0.2
H3±1.5
Resistance Range(Ω)
15
48±1.5
32.5
12.5
10
2.7
12.5
15
36
1.0-820
20
63±2
44
12.5
10
2.7
12.5
15
36
1.0-1K
5.4 CR-YD 型 CR-YD type
L
W
H
H1
P
W1
H2
W2
單位:mm
Unit:mm
尺寸 Dimensions(mm)
瓦特
阻值範圍(Ω)
Watt
L
P±1.5
W±1.0
W1±0.2
W2±0.2
H±0.2
H1±0.2
H2±1.5
3
24±1.0
12
9.5
7.5
1.6
9.5
25
39
0.5-150
5
27±1.0
15
9.5
7.5
1.6
9.5
25
39
0.5-220
7
35±1.5
22.5
9.5
7.5
1.6
9.5
25
39
1-470
10
48±1.5
34
9.5
7.5
1.6
9.5
25
39
1-680
15
48±1.5
32.5
12.5
10
3
12.5
30
47.5
1-820
20
63±2.0
44
12.5
10
3
12.5
30
47.5
1-1K
Resistance Range(Ω)
品 名
Product Name
版
水泥電阻器
Cement Type Resistors
本
B/3 版
Version
5.5 CR-YA 型
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
CR-YA type
W1
H1
H3
0.5
H2
P
W2
W3
單位:mm
Unit:mm
尺寸 Dimensions(mm)
瓦特
5.6
阻值範圍(Ω)
Watt
L
P±1.5
W1±1.0
W2±0.2
W3±0.2
H1±0.2
H2±0.2
H3±0.2
Resistance Range(Ω)
3
24±1.0
12
9.5
5.3
0.9
9.5
10
25.5
0.5-150
5
27±1.0
15
9.5
5.3
0.9
9.5
10
25.5
0.5-220
7
35±1.5
22.5
9.5
5.3
0.9
9.5
10
25.5
1-470
10
48±1.5
34
9.5
5.3
0.9
9.5
10
25.5
1-680
CR-YC 型 CR-YC type
W1
L
H1
H3
H2
P
單位:mm
W2
Unit:mm
W3
尺寸 Dimensions(mm)
瓦特
阻值範圍(Ω)
Watt
L
P±1.5
W1±1.0
W2±0.2
W3±0.2
H1±1
H2±0.2
H3±1.5
Resistance Range(Ω)
3
24±1.0
12
9.5
7.3
1.6
9.5
10
25
0.5-150
5
27±1.0
15
9.5
7.3
1.6
9.5
10
25
0.5-220
7
35±1.5
22.5
9.5
7.3
1.6
9.5
10
25
1-470
10
48±1.5
34
9.5
7.3
1.6
9.5
10
25
1-680
13-10
品 名
Product Name
版
5.7
水泥電阻器
Cement Type Resistors
本
B/3 版
Version
CR-YE 型
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
CR-YE type
L
W1
H1
H2
P
H4
H3
W2
W3
單位:mm
Unit:mm
尺寸 Dimensions(mm)
瓦特
阻值範圍(Ω)
Watt
L
P±1.5
W1±1.0
W2±0.2
W3±0.2
H1±0.2
H2±0.2
H3±1.5
H4±1.5
Resistance Range(Ω)
3
24±1.0
12
9.5
7.4
3
9.5
7.5
4.5
30.4
0.5-150
5
27±1.0
15
9.5
7.4
3
9.5
7.5
4.5
30.4
0.5-220
7
35±1.5
22.5
9.5
7.4
3
9.5
7.5
4.5
30.4
1-470
10
48±1.5
34
9.5
7.4
3
9.5
7.5
4.5
30.4
1-680
5.8
CR-YD1 型
CR-YD1 type
L
W
H1
H3
H2
W3
W1
P
W2
單位:mm
Unit:mm
尺寸 Dimensions(mm)
瓦特
阻值範圍(Ω)
Watt
L
P±1.5
W±1
W2
W3
W1
H1
H2
H3
Resistance Range(Ω)
15
48±1.5
22
12.5
10
1.5
5
12.5
30
47.5
10-820
20
63±2.0
44
12.5
10
1.5
5
12.5
30
47.5
1.0-1K
13-11
品 名
Product Name
版
水泥電阻器
Cement Type Resistors
本
B/3 版
Version
5.9
CR-V 型
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
CR-V type
L1
H1
L3
W1
L2
0.5 H2
H3
W2
L4
W3
單位:mm
Unit:mm
尺寸 Dimensions(mm)
瓦特
阻值範圍(Ω)
Watt
L1
L2±0.2
L3±0.2
H1±0.2
H2±0.2
H3±1.0
W1±1.0
W2±0.2
W3±0.5
Resistance Range(Ω)
5
31±1.0
5
4
1.5
11
9.5
9.5
1.5
11.5
0.5-220
7
49±1.5
10
4
1.5
11
9.5
9.5
1.5
11.5
1-470
10
62.5±2
10
4
1.5
11
9.5
9.5
1.5
11.5
1-680
15
63.5±2
10
4.5
2.5
14.5
13
13
2.5
15.5
1-820
20
75±2
10
4.5
2.5
17.5
13
13
2.5
15.5
1-1K
13-12
品 名
Product Name
版
本
Version
5.10 CR-H 型
水泥電阻器
Cement Type Resistors
B/3 版
制定日期
2017 年 06 月 10 日
頁數
Enactment Date
JUN 30, 2017
Page
CR-H type
W2
L1
W1
P2
P3
3
2.2
h2
W3
L2
H2
t2
H1
單位:mm
Unit:mm
尺寸 Dimensions(mm)
瓦特
阻值範圍(Ω)
Watt
L1
L2±1.0
W3±0.2
P2
P3
t2
h2
W1
W2
H1
H2
Resistance Range(Ω)
10
48±1.5
23
12
6
8
0.6
4
9.5±1.0
5
9.5±1.0
6±1.5
1-680
15
48±1.5
23
12
7
8
0.8
4
12.5±1.2
6
12.5±1.2
7.5±2.0
10-820
20
63±2.0
23
12
7
10
0.8
4
12.5±1.2
6
12.5±1.2
7.5±2.0
1-1K
30
75±2.5
56
18
9
10
0.8
4.2
19±1.5
7.5
19±1.5
10±2.0
1-1K
40
88±2.5
68
18
9
10
0.8
4.2
19±1.5
7.5
19±1.5
10±2.0
1-1K
13-13
很抱歉,暂时无法提供与“CR-M5W1ΩJ”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 10+0.60179
- 100+0.54869
- 500+0.49559
- 1000+0.44249
- 2000+0.40709
- 4000+0.39647
