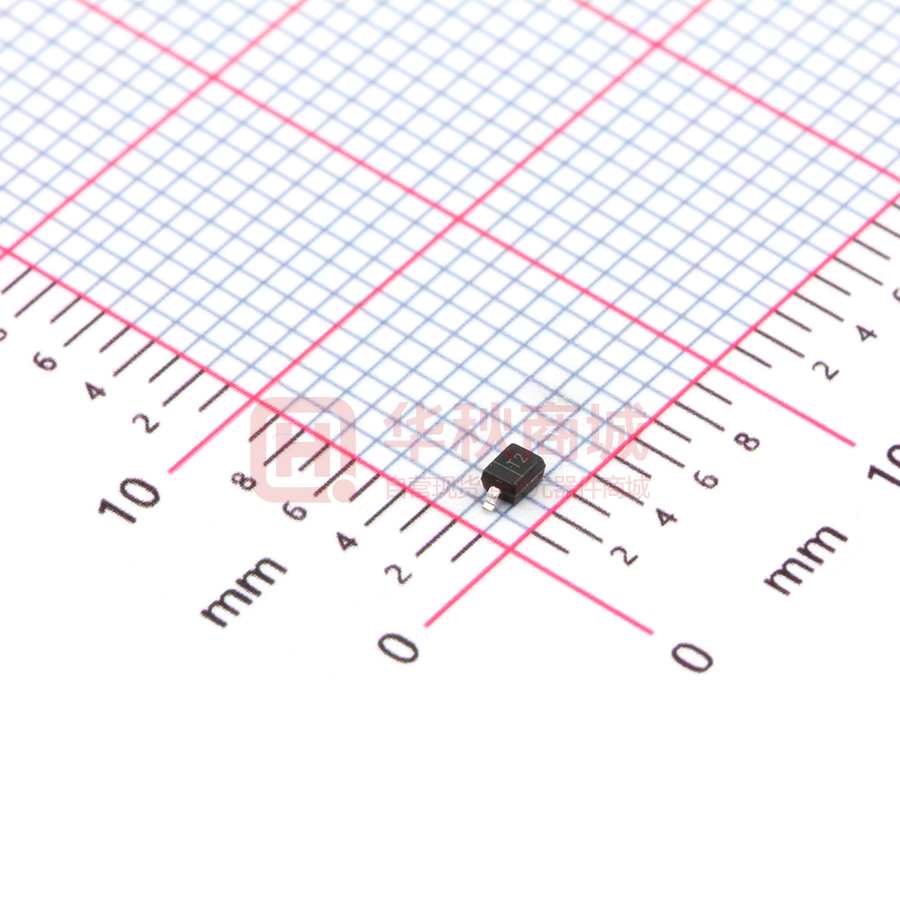

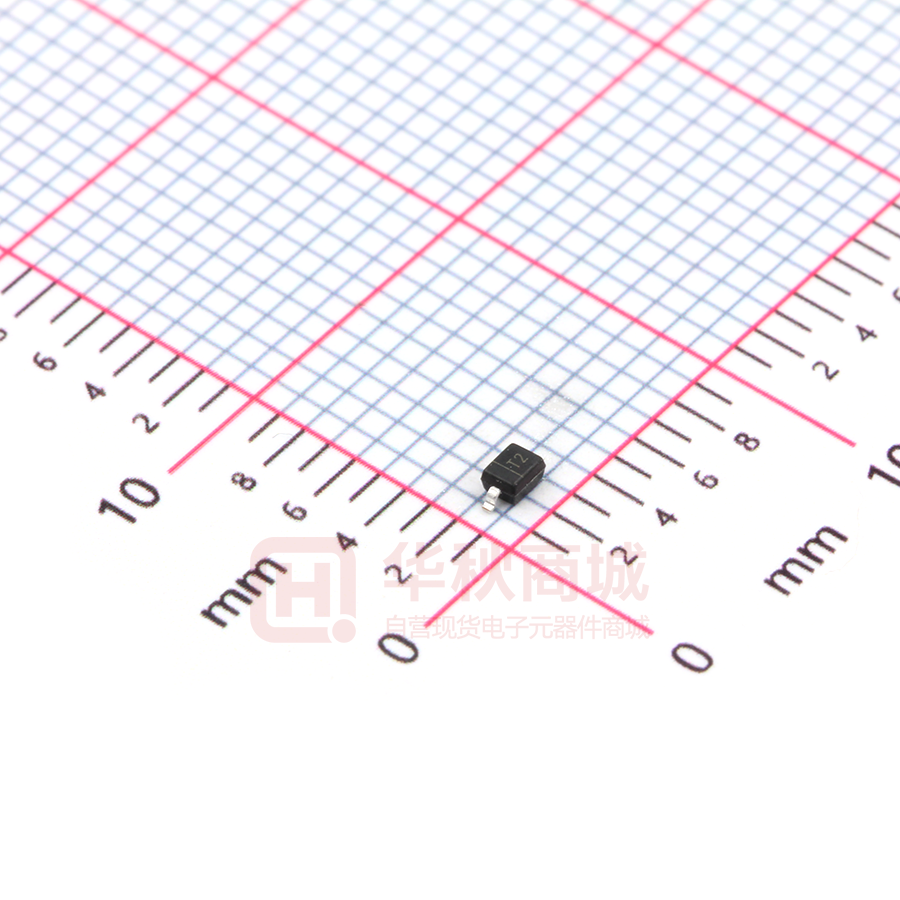

BAV20WS

山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD BAV19WS / BAV20WS / BAV21WS FEATURES ▪ For surface mounted applications ▪ Glass Passivated Chip Junction ▪ Fast reverse recovery time ▪ Ideal for automated placement ▪ Lead free in comply with EU RoHS 2011/65/EU directives PINNING PIN DESCRIPTION 1 Cathode 2 Anode 2 MECHANICAL DATA ▪Case: SOD-323 ▪Terminals: Solderable per MIL-STD-750, Method 2026 ▪A pprox. Weight: 5.48mg / 0.00019oz 1 Top View Simplified outline SOD-323 and symbol Absolute Maximum Ratings at 25 °C Symbols Parameter BAV19WS BAV20WS BAV21WS Units Maximum Repetitive Peak Reverse Voltage V RRM 120 200 250 V Maximum RMS voltage V RMS 100 150 200 V Continuous Forward Current Repetitive Peak Forward Current Non-reptitive Peak Forward Surge Current Total Power Dissipation Operating and Storage Temperature Range at 1s at 1ms at 1 us IF 250 mA I FRM 625 mA I FSM 1 3 9 A P tot 500 mW T j , T stg -55 ~ +150 °C Characteristics at T a = 25 °C Parameter Reverse Breakdown Voltage at I R=100 μA Maximum Forward Voltage at 100 m A at 200 m A Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =150 °C Typical Junction Capacitance at V R=4V, f=1MHz Maximum Reverse Recovery Time (1) Symbols BAV19WS BAV20WS BAV21WS Units V (BR)R 120 200 250 V VF 1.00 1.25 V IR 0.1 100 μA Cj 5 pF t rr 50 ns （1）Measured with IF = 0.5 A, IR = 1 A, Irr = 0.25 A 2016.01 SOD323-K-BAV19WS/BAV20WS/BAV21WS-250mA250V Page 1 of 3 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD BAV19WS / BAV20WS / BAV21WS Fig.2 Typical Reverse Characteristics 600 500 400 300 200 100 0.0 25 75 50 100 125 150 175 Instaneous Reverse Current（μ A） Total Power Dissipation (mW) Fig.1 Forward Current Derating Curve 100 T J =150°C 10 1 0.1 T J =25°C 0.01 00 1.0 0.1 0.4 0.6 0.8 1.0 1.2 1.4 1.6 80 100 120 T J =25°C 10 1 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) 2016.01 60 100 T J =25°C 0.2 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 0.01 0.0 20 percent of Rated Peak Reverse Voltage (%) Ambient Temperature (°C) www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD BAV19WS / BAV20WS / BAV21WS PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-323 E E D b A C A1 ∠ALL ROUND L1 E1 SOD-323 mechanical data A C D E E1 b L1 A1 max 1.1 0.15 1.4 1.8 2.75 0.4 0.45 0.2 min 0.8 0.08 1.2 1.4 2.55 0.25 0.2 max 43 5.9 55 70 108 16 16 min 32 3.1 47 63 100 9.8 7.9 UNIT ∠ mm 9° 8 mil The recommended mounting pad size 1.4 (55) 1.2 (47) Type number Marking code BAV19WS A8 BAV20WS T2 BAV21WS T3 1.2 (47) 1.2 (47) Marking Unit： mm (mil) 2016.01 JD511132B5 Page 3 of 3
