GSC9018RA-5V4000

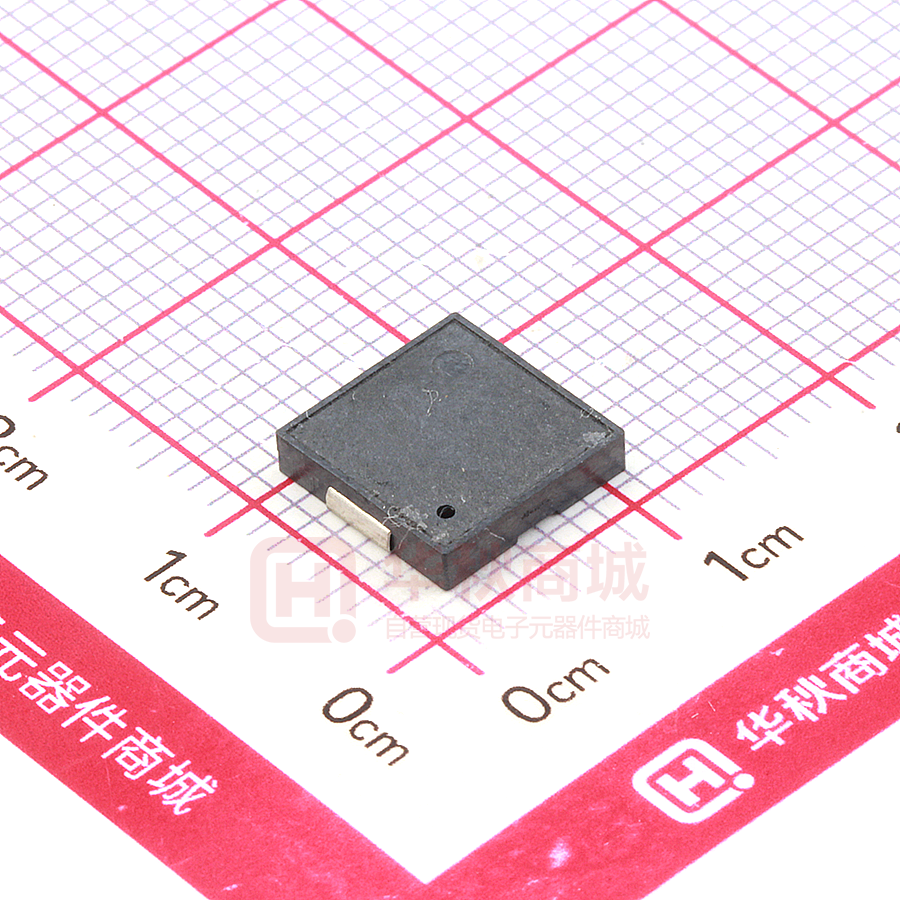

規 格 承 認 書 PECIFICATION FOR APPROVAL 客 戶 CUSTOMER ： 立创 項 目 ITEM ： 贴片式压电无源蜂鸣器（外部驱动） 型 號 TYPE ： GSC9018RA-5V4000 描述 DESCRIPTION ： L9.0 x W9.0 x H1.8 MM 4000Hz 5V ≥70DB 正发音 LCP 材质 客戶料號 CUSTOMER NO. ： 規格書號 SPECIFICATION NO.： 版 本 EDITION NO. ： V1.1 日 期 DATE ： 2018-7-18 客戶承認 CUSTOMER CONFIRMAND SIGN 檢查 TESTED BY 審核 CHECKED BY 承認 APPROVED BY 東莞市赢海電子有限公司 DONGUAN INGHAI ELECTRONICS CO.,LTD 製作 ISSUED BY 審查 CHECKED BY 周明 刘承成 地址：廣東省東莞市虎门镇怀德社区雅瑶工业区 電話 / TEL：0769-83060958 傳真 / FAX： 0769-81608993 網址：HTTP://WWW.INGHAI.COM 確認 APPROVED BY A. SCOPE This specification applies Piezo buzzer, GSC9018RA-5V4000 B. SPECIFICATION No. Item Unit Specification Condition 1 Oscillation Frequency Hz 4000 Square Wave 2 Operating Voltage Vp-p 1~25 3 Rated Voltage Vp-p 5 4 Current Consumption mA MAX. 3 at Rated Voltage 5 Sound Pressure Level dB MIN.70 at 10cm at Rated Voltage 6 Electrostatic Capacity pF 12000±30% at 100Hz 1V 7 Operating Temperature ℃ -20~ +70 8 Storage Temperature ℃ -30 ~ +80 9 Dimension mm 9.0 x 9.0 x H1.8 10 Weight (MAX) gram 0.3 11 Housing Material PPA( Black ) 12 Leading Pin Tin Plated Brass(Sn) 13 Environmental Protection Regulation RoHS See appearance drawing See appearance drawing C. APPEARANCE DRAWING 开放孔 点胶 点胶 点胶 Mark Tol : ± 0.5 Sound holes Unit: mm 建议焊盘尺寸 D.TESTING METHOD Standard Measurement conditions Temperature:25±2℃ Humidity:45-65% Acoustic Characteristics: The oscillation frequency, current consumption and sound pressure are measured by the measuring instruments shown below In the measuring test, buzzer is placed as follows: E. Typical Frequency Response Curve F. Soldering Condition (1)Recommendable reflow soldering condition is as follows (Reflow soldering is twice) Note:It is requested that reflow soldering should be executed after heat of product goes down to normal. Heat resistant line (Used when heat resistant reliability test is performed) (2)Manual soldering Manual soldering temperature 350º C within 5 sec. G. RELIABILITY TEST NO. ITEM 1 High Temperature Test (Storage) 2 Low Temperature Test (Storage) After being Placed in a chamber with -302ºC for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: 10dB. Humidity Test After being Placed in a chamber with 90-95% R.H. at 402ºC for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: 10dB. 3 TEST CONDITION AND REQUIREMENT After being placed in a chamber with 802ºC for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: 10dB. The part shall be subjected to 5 cycles. One cycle shall be consist of： +70ºC +25ºC 4 Temperature Cycle Test +25ºC - 20ºC Allowable variation of SPL after test: 10dB. 5 6 Drop on a hard wood board of 4cm thick, any directions ,6 times, at the height of 75cm . Allowable variation of SPL after test: 10dB. Drop Test After being applied vibration of amplitude of 1.5mm with 10 to 55 Hz band of vibration frequency to each of 3 perpendicular directions for 2 hours . Allowable variation of SPL after test: 10dB. Vibration Test Lead terminals are immersed in rosin for 5 seconds and then immersed in solder bath of +3005ºC for 31 seconds . 7 Solderability Test 8 Terminal Strength Pulling Test 90% min. lead terminals shall be wet with solder (Except the edge of terminals). The force of 9.8N(1.0kg) is applied to each terminal in axial direction for 10 seconds. No visible damage and cutting off. TEST CONDITION. Standard Test Condition 一般测试条件 Judgment Test Condition 争议时测试条件 : : : : a) Temperature : +5 ~ +35℃ a) 温度 : +5 ~ +35℃ a) Temperature : +25 ± 2℃ a) 温度 : +25 ± 2℃ b) Humidity : 45-85% b) 湿度 : 45-85% b) Humidity : 60-70% b) 湿度 : 60-70% c) Pressure : 860-1060mbar c) 气压 : 860-1060mbar c) Pressure : 860-1060mbar c) 气压 : 860-1060mbar H. PACKING STANDARD 1 Reel : 2000PCS 发音孔 通孔 Carton Box (5 Inner Box) Inner Box (1Layer Reel) Inner Box 340mmx340mmx30mm 1x2000PCS=2000PCS Carton Box 350mmx355mmx175mm 5x2000PCS=10,000PCS Revision History 修改项目 1 编带修改 ②公差 修改前 16 宽 ± 0.2 修改后 24 宽 ±0.5 修改日期 2014-7-8 2014-9-26 修改人 Zhu Zhu 确认人
