RL102-601M

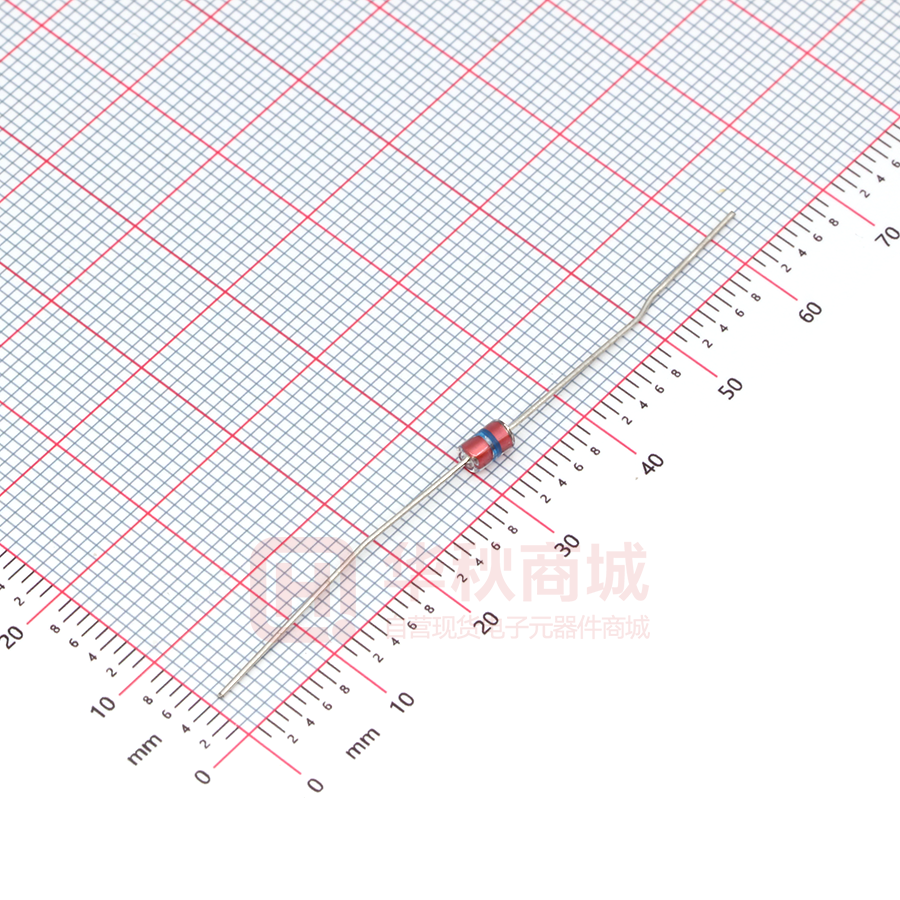

Glass Gas Discharge RL102 Series Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Glass Gas Discharge - RL102 Series Features • RoHS compliant. • Bilateral symmetrical. • Less decay at on/off state. • Approximately zero leaking current before clamping voltage • High capability to withstand repeated lightning strikes. • Low electrode capacitance(≤1.0pF) and high isolation (≥100MΩ). • Temperature, humidity and lightness insensitive. • Working temperature range: : -40℃ ~ +85℃ • Storaging temperature range: -40℃ ~ +125℃ Applications Dimensions • Power Supplies • Motor sparks eliminating • Relay switching spark absorbing • Data line pulse guarding • Electronic devices requiring UL497A and UL497B • Telephone/Fax/Modem • High frequency signal transmitters/receivers • Satellite antenna • Radio amplifiers • Alarm systems • Cathode ray tubes in Monitors/TVs 28±3.0 4.3±0.3 0.5±0.05 Φ2.6±0.3 28±3.0 Part Number Code R L M 1 0 2 - 1 4 Surge Current Capacity DC Spark-over voltage(Vs) Taping form 501:0.5KA 14*10 =140V Blank:Line 102:1KA S:Magnet-type 302:3KA Brand Name 1 1 N DC Sparkover voltage tolerance N:30% M:20% M:SMD Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:1 Glass Gas Discharge - RL102 Series ElectrIcal CharacterlstIcs Type Number DC Spark-Over Voltage Minimum Insulation Resistance Maximum Capacitance (1kHz-6Vmax ) Surge Current Capacity Surge Life Test 10x700µs Color Code Vs R Test Voltage CJ 8/20µs V MΩ V pF A RL102-141N 140±30% 100 50 1 1000 4000V 10 times Black+Yellow RL102-201M 200±20% 100 50 1 1000 4000V 10 times Red RL102-301M 300±20% 100 100 1 1000 4000V 10 times Orange RL102-401M 400±20% 100 250 1 1000 4000V 10 times Yellow RL102-501M 500±20% 100 250 1 1000 4000V 10 times Green RL102-601M 600±20% 100 250 1 1000 4000V 10 times Bule RL102-701M 700±20% 100 250 1 1000 4000V 10 times Purple RL102-102M 1000±20% 100 500 1 1000 4000V 10 times Black RL102-122M 1200±20% 100 500 1 1000 4000V 10 times Brown+Red+Red RL102-152M 1500±20% 100 500 1 1000 4000V 10 times Brown+Green+Red Circuit Protection System Revision:DEC-16 Please refer to http://www.ruilon.com.cn for current information. Page:2 Glass Gas Discharge - RL102 Series Test Methods And Results Items DC Spark-over Voltage Test Method 000 1 ITSM 1 5x310 Standard 50/60 Hz di/dt Measure starting discharge voltage (Vs) by gradually increasing applied DC voltage. Test current is 0.5mA max. And the DC voltage ascends up within 100V/s(Vs
