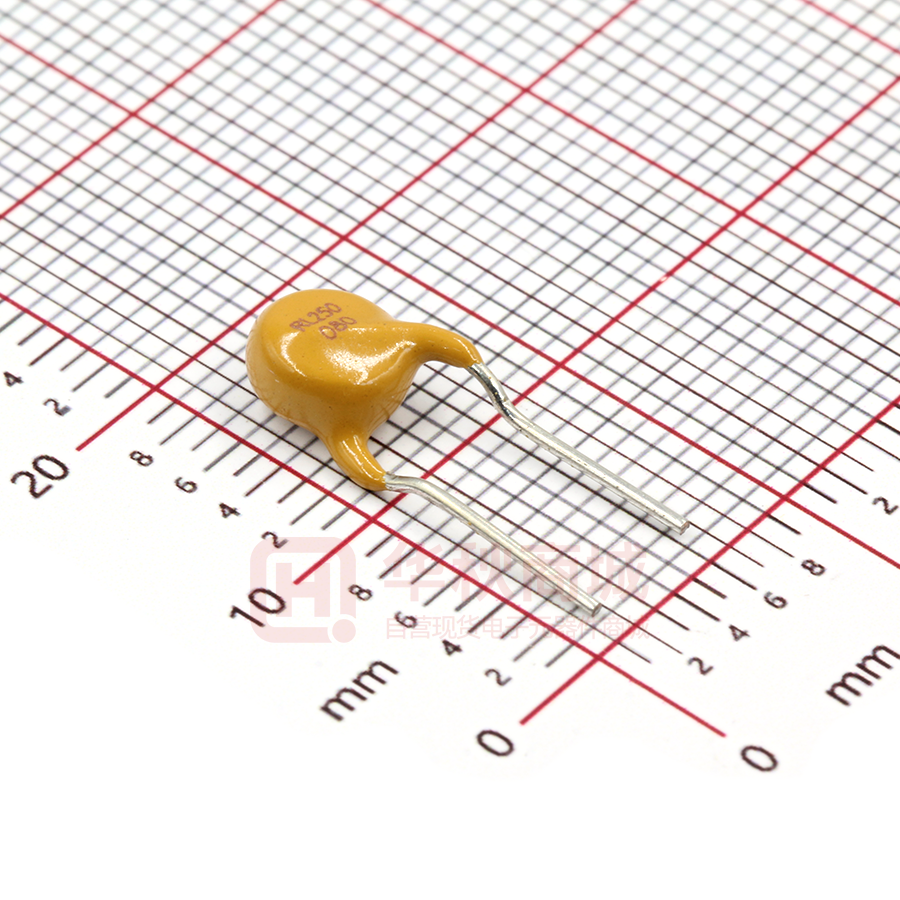

RL250-080

厂商：
RUILON(瑞隆源)
封装：
PTC_D7.4X4.5MM_TM
描述：
最大电压：250V 最大电流：3A 保持电流：80mA

数据手册：

下载RL250-080.pdf

立即购买

详情介绍
数据手册
价格&库存

RL250-080 数据手册

Positive Thermal Coefficient (PTC) RL250 Series Description Positive Thermal Coefficient devices(PTC),provide over-current protection for electrical and electronic devices. They function using conducting strips of metal imbedded inside polymers. Under normal conditions, the devices resistance is near zero, but over-current conditions will heat the PTC and expand the polymer, increasing the impedance. When current returns to normal, the components cool down, returning to their original shape and very low levels of resistance. Applications l Over-current and over-temperature protection of Features automotive electronics l I(hold): 0.02~2.0A l Hard disk drives l 250V Operating voltages l PC motherboards l Radial leaded devices. l Point-of-sale (POS) equipment l Over-current protection l PCMCIA cards l Very high voltage surge capabilities. l USB port protection - USB 2.0, 3.0 & OTG l Available in lead-free version. l HDMI 1.4 Source protection l Fast time–to–trip l Computers & peripherals l RoHS compliant, Lead- Free and Halogen-Free l Industrial control l Security systems Part Number Code R L X LOGO X X - X Voltage rating(VDC) X X Hold current Environmental Specifications Test Conditions Resistance change Passive aging +85℃，1000hrs ±8% typical Humidity aging +85℃，85%R.H.1000hrs ±8% typical Thermal shock +125℃ to -55℃，10times ±12% typical Resistance to solvent MIL-STD-202，Method 215 No change Vibration MIL-STD-202，Method 201 No change Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2018-07-10 Page:1 Positive Thermal Coefficient (PTC) RL250 Series Electrical Characteristic Ihold （A） IT (A) Vmax （V） RL250-020 0.02 0.04 RL250-030 0.03 RL250-040 Model Maximum Time to Trip Imax （A） Pd Typ （W） Current(A) Time(S) 250 0.5 0.5 3 0.06 250 0.5 0.5 0.04 0.08 250 0.5 RL250-050 0.05 0.10 250 RL250-060 0.06 0.12 RL250-080 0.08 RL250-090 Resistance(Ω) Rimin R1max 1.0 80 240 3 1.0 40 180 2 3 1.0 27 100 0.5 1.5 3 1.0 20 90 250 0.5 2 3 1.0 20 90 0.16 250 1 0.5 3 1.0 12 33 0.09 0.18 250 1 0.8 3 1.0 10 33 RL250-100 0.10 0.20 250 1 1.0 3 1.0 10 31 RL250-110 0.11 0.22 250 1 2.0 3 1.0 6 18 RL250-120 0.12 0.24 250 1 2.0 3 1.0 5 18 RL250-145 0.145 0.29 250 1 5 3 1.0 3 14 RL250-180 0.18 0.50 250 3 3 3 1.0 0.8 6 RL250-200 0.20 0.40 250 3 5 5 1.5 1.5 9 RL250-300 0.30 0.60 250 3 6 5 1.5 1.0 9 RL250-400 0.40 0.80 250 3 8 5 2.5 0.75 6 RL250-500 0.50 1.00 250 3 10 5 2.5 0.45 5 RL250-600 0.60 1.20 250 3 12 5 3.0 0.5 5 RL250-800 0.80 1.60 250 5 18 5 3.5 0.4 3 RL250-1000 1.00 2.00 250 5 20 7 4.0 0.28 2.5 RL250-1200 1.20 2.40 250 6 15 3 5.0 0.2 2.5 RL250-1500 1.50 3.00 250 7.5 14 3 6.0 0.13 2.0 RL250-2000 2.00 4.00 250 10 14 5 6.0 0.12 1.5 IH=Hold current: maximum current at which the device will not trip at 25℃ still air. IT=Trip current: minimum current at which the device will nalways at 25℃ still air. V max=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand tithout damage at rated voltage. T trip=Maximum time to trip(s) at assigned current. Pd=Typical power dissipation: typical amount of power dissipated by the decice when in state air environment. Ri min=Minimum device resistance at 25℃ prior to tripping. R1 max=Maximum device resistance is measured one hour post reflow. Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2018-07-10 Page:2 Positive Thermal Coefficient (PTC) RL250 Series Solder reflow conditions Wave Soldering 300 Soldering Temperature:260℃~270℃ 250 Soldering Time:≤3sec. 200 Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Manual soldering Soldering Temperature:250℃~280℃ Temperature℃ 5s max. Soldering 245℃-260 Pre-heating 150 100℃-130℃ 100 Cooling 50 Soldering Time:≤3sec. 0 Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 0 50 100 150 200 250 Time(s) Environmental temperature and IH,IT 300 250 200 150 100 IT 50 IH 0 -30 -20 -10 0 10 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. 20 30 40 50 Revised: 2018-07-10 60 70 80 85 Page:3 Positive Thermal Coefficient (PTC) RL250 Series Product Dimensions Marking Marking Pig.1 Marking Marking Pig.2 Pig.3 Pig.4 Dimensions（mm） Type Number Marking Pig.5 Dimensions（in） A(max) B(max) C(typ) D(max) LeadΦ (typ) Fig 0.6 0.291 0.500 0.201 0.177 0.024 2 4.5 0.6 0.291 0.500 0.201 0.177 0.024 2 5.1 4.5 0.6 0.291 0.500 0.201 0.177 0.024 2 12.7 5.1 4.5 0.6 0.291 0.500 0.201 0.177 0.024 2 7.4 12.7 5.1 4.5 0.6 0.291 0.500 0.201 0.177 0.024 2 RL250-080 7.4 12.7 5.1 4.5 0.6 0.291 0.500 0.201 0.177 0.024 2 RL250-090 7.4 12.7 5.1 4.5 0.6 0.291 0.500 0.201 0.177 0.024 2 RL250-100 7.0 9.3 5.1 4.5 0.6 0.276 0.366 0.201 0.177 0.024 1 RL250-110 7.0 12.6 5.1 4.5 0.6 0.276 0.496 0.201 0.177 0.024 4 RL250-120 7.1 12.6 5.1 4.5 0.6 0.28 0.496 0.201 0.177 0.024 4 RL250-145 7.1 12.6 5.1 4.5 0.6 0.28 0.496 0.201 0.177 0.024 4 RL250-180 10.2 14.5 5.1 4.5 0.6 0.402 0.571 0.201 0.177 0.024 2 RL250-200 12 17 5.1 4.5 0.6 0.472 0.669 0.201 0.177 0.024 2 RL250-300 12 17 5.1 4.5 0.6 0.472 0.669 0.201 0.177 0.024 2 RL250-400 12 17 5.1 4.5 0.6 0.472 0.669 0.201 0.177 0.024 5 RL250-500 16 18 5.1 4.5 0.8 0.63 0.709 0.201 0.177 0.031 1 RL250-600 16 18 5.1 4.5 0.8 0.63 0.709 0.201 0.177 0.031 1 RL250-800 20 22 5.1 4.5 0.8 0.787 0.866 0.201 0.177 0.031 1 RL250-1000 20 22 5.1 4.5 0.8 0.787 0.866 0.201 0.177 0.031 1 RL250-1200 22 28 5.1 4.5 0.8 0.866 1.102 0.201 0.177 0.031 1 RL250-1500 25 30 5.1 4.5 0.8 0.984 1.181 0.201 0.177 0.031 3 RL250-2000 26 32 10.2 4.5 0.8 1.024 1.26 0.402 0.177 0.031 3 A(max) B(max) C(typ) D(max) RL250-020 7.4 12.7 5.1 4.5 RL250-030 7.4 12.7 5.1 RL250-040 7.4 12.7 RL250-050 7.4 RL250-060 LeadΦ (typ) Shape Packaging Part Number Quantity RL250-020~RL250-1000 1000pcs/bag RL250-1200~RL250-2000 500pcs/bag Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2018-07-10 Page:4

下载 PDF

RL250-080

物料型号：RL250系列

器件简介：PTC元件提供过电流保护，正常工作时电阻接近零，过电流时会使PTC发热，聚合物膨胀，电阻增加。电流恢复正常后，元件冷却，恢复低电阻状态。

引脚分配：文档中未明确提供引脚分配信息。

参数特性： - 工作电压：250V - 保持电流(Ihold)：0.02~2.0A - 环境规格包括被动老化、湿度老化、热冲击、耐溶剂和振动测试。

功能详解： - 提供过电流保护，具有很高的电压浪涌承受能力。 - 快速响应时间。 - 符合RoHS标准，无铅和无卤素。

应用信息： - 汽车电子、硬盘驱动器、PC主板、销售点(POS)设备、PCMCIA卡、USB端口保护、HDMI 1.4源保护、计算机和外围设备、工业控制、安全系统。

封装信息：提供了详细的产品尺寸和标记，以及不同型号的封装尺寸。

电气特性表提供了不同型号的详细参数，包括保持电流(Ihold)、触发电流(IT)、最大电压(Vmax)、最大故障电流(Imax)、触发时间(Ttrip)、典型功耗(Pd)、触发前最小电阻(Rimin)和回流后最大电阻(R1max)。

焊接条件：提供了焊接温度和时间的推荐条件。

环境温度和电流特性：展示了在不同环境温度下保持电流(IH)和触发电流(IT)的变化。
