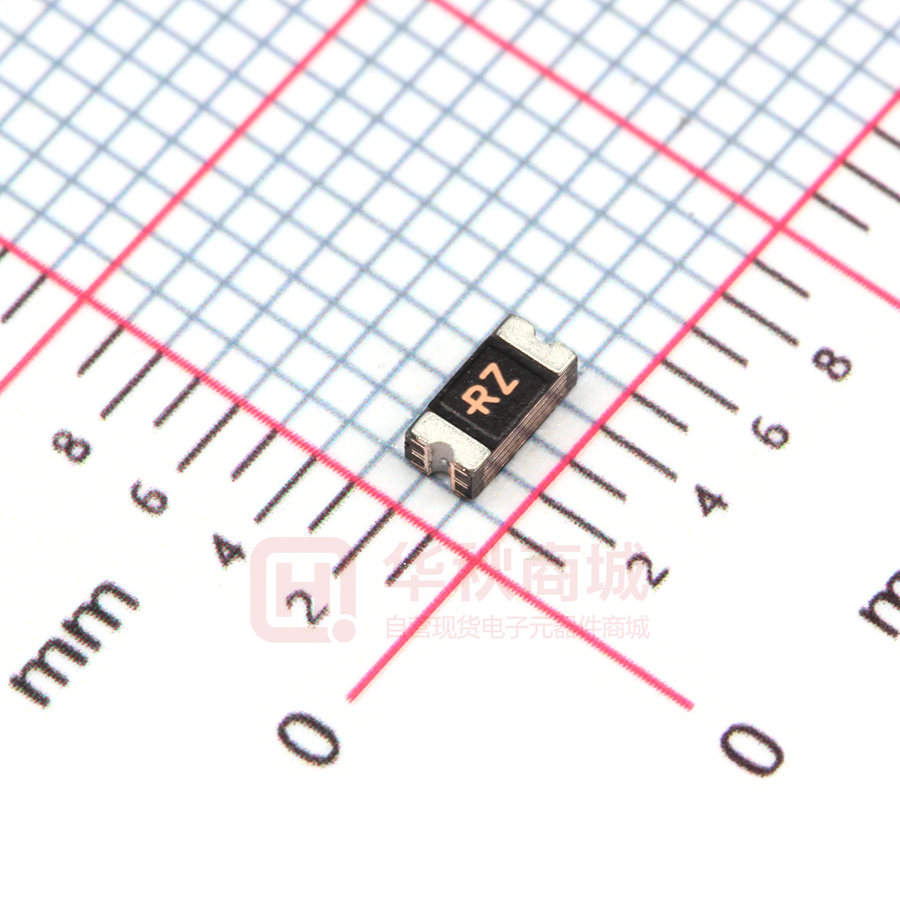

SMD1206P250TF

Positive Thermal Coefficent SMD1206 Series Circuit Protection System Specifications are subject to change without notice. Positive Thermal Coefficent - SMD1206 Series Description The 1206 series provides miniature surface mount overcurrent protection with holding current from 0.05A to 3.0A. This series is suitable for wide range of applications in modern electronics where space is limited. Features Applications • I(hold): 0.05~3.0A • USB peripherals • Very high voltage surge capabilities • Disk drives • Available in lead-free version • CD-ROMs • Fast response to fault current • General electronics • RoHS compliant, Lead- Free and Halogen-Free • Disk drives • Low resistance • Set-top-box and HDMI • Compact design saves board space • Mobile Internet Device (MID) • Compatible with high temperature solders • PDAs / digital cameras • Game console port protection • Plug and play protection for motherboards and peripherals • Mobile phones - battery and port protection Product Name S M Surface Mount Device D X X Device size code X X P X X Polytronics Symbol T F T: Thin Version (Optional) Current Rating Circuit Protection System X F: Lead-free / - - Special Voltage Rating (Optional) Specifications are subject to change without notice. Page:1 D A B E Positive Thermal Coefficent - SMD1206 Series E C Lead style code A Dimensions (mm) B D Type Number C Ihold Itrip A A Maximum Time To Trip Vmax Imax Pd typ Rmin R1max Current A Time (Sec.) VDC A W Ω Ω Package Dimensions (mm) Package A B C D min max min max min max min SMD1206P005TF 0.05 0.15 0.25 1.5 60 100 0.4 3.6 50 1206 3.0 3.5 1.5 1.8 0.7 1.3 0.15 SMD1206P010TF 0.1 0.25 0.5 1.0 60 100 0.4 1.6 15 1206 3.0 3.5 1.5 1.8 0.7 1.3 0.15 SMD1206P012TF 0.12 0.29 0.2 0.2 60 100 0.6 1.5 6 1206 3.0 3.5 1.5 1.8 0.7 1.3 0.15 SMD1206P016TF 0.16 0.37 0.3 0.3 24 100 0.6 1.2 4.5 1206 3.0 3.5 1.5 1.8 0.7 1.3 0.15 SMD1206P020TF 0.2 0.46 8.0 0.08 24 100 0.6 0.35 2.7 1206 3.0 3.5 1.5 1.8 0.5 1.0 0.15 SMD1206P020TF/30 0.2 0.46 8.0 0.08 30 100 0.6 0.35 2.7 1206 3.0 3.5 1.5 1.8 0.5 1.0 0.15 SMD1206P020TF/48 0.2 0.46 8.0 0.08 48 100 0.6 0.35 2.7 1206 3.0 3.5 1.5 1.8 0.5 1.0 0.15 SMD1206P025TF 0.25 0.5 8.0 0.08 16 100 0.6 0.35 2.5 1206 3.0 3.5 1.5 1.8 0.5 1.0 0.15 SMD1206P025TF/30 0.25 0.5 8.0 0.08 30 100 0.6 0.35 2.5 1206 3.0 3.5 1.5 1.8 0.5 1.0 0.15 SMD1206P035TF 0.35 0.75 8.0 0.1 6.0 100 0.6 0.25 1.3 1206 3.0 3.5 1.5 1.8 0.5 1.0 0.15 SMD1206P035TF/16 0.35 0.75 8.0 0.1 16 100 0.6 0.25 1.3 1206 3.0 3.5 1.5 1.8 0.9 1.6 0.15 SMD1206P035TF/24 0.35 0.75 8.0 0.1 24 100 0.6 0.25 1.3 1206 3.0 3.5 1.5 1.8 0.9 1.6 0.15 SMD1206P035TF/48 0.35 0.75 8.0 0.1 48 100 0.6 0.25 1.3 1206 3.0 3.5 1.5 1.8 0.9 1.6 0.15 SMD1206P050TF 0.5 1.0 8.0 0.1 6.0 100 0.6 0.15 0.7 1206 3.0 3.5 1.5 1.8 0.5 1.0 0.15 SMD1206P050TF/13.2 0.5 1.0 8.0 0.1 13.2 100 0.6 0.15 0.7 1206 3.0 3.5 1.5 1.8 0.5 1.0 0.15 SMD1206P050TF/16 0.5 1.0 8.0 0.1 16 100 0.6 0.15 0.7 1206 3.0 3.5 1.5 1.8 0.8 1.4 0.15 SMD1206P050TF/24 0.5 1.0 8.0 0.1 24 100 0.6 0.15 0.7 1206 3.0 3.5 1.5 1.8 0.9 1.6 0.15 SMD1206P050TF/30 0.5 1.0 8.0 0.1 30 100 0.6 0.15 0.7 1206 3.0 3.5 1.5 1.8 0.9 1.6 0.15 SMD1206P075TF 0.75 1.5 8.0 0.2 6.0 100 0.6 0.09 0.5 1206 3.0 3.5 1.5 1.8 0.4 0.8 0.15 SMD1206P075TF/13.2 0.75 1.5 8.0 0.2 13.2 100 0.6 0.09 0.5 1206 3.0 3.5 1.5 1.8 0.8 1.4 0.15 SMD1206P075TF/16 0.75 1.5 8.0 0.2 16 100 0.6 0.09 0.5 1206 3.0 3.5 1.5 1.8 0.9 1.6 0.15 SMD1206P075TF/24 0.75 1.5 8.0 0.2 24 100 0.6 0.09 0.5 1206 3.0 3.5 1.5 1.8 0.9 1.6 0.15 SMD1206P100TF 1.0 1.8 8.0 0.3 6.0 100 0.6 0.055 0.27 1206 3.0 3.5 1.5 1.8 0.4 0.8 0.15 SMD1206P100TF/12 1.0 1.8 8.0 0.3 12 100 0.6 0.055 0.27 1206 3.0 3.5 1.5 1.8 0.5 1.1 0.15 SMD1206P100TF/16 1.0 1.8 8.0 0.3 16 100 0.6 0.055 0.27 1206 3.0 3.5 1.5 1.8 0.5 1.1 0.15 Circuit Protection System Specifications are subject to change without notice. Page:2 D A B E Positive Thermal Coefficent - SMD1206 Series E C Lead style code A Dimensions (mm) B D Ihold C Itrip Type Number Maximum Time To Trip Vmax Imax Pd typ Rmin Package Dimensions (mm) R1max Package A B C D A A Current A Time (Sec.) VDC A W Ω Ω SMD1206P100TF24 1 1.8 8 0.3 24 100 0.6 0.055 0.27 1206 3 3.5 1.5 1.8 0.6 1.2 0.15 SMD1206P110TF 1.1 2.2 8 0.3 6 100 0.8 0.04 0.18 1206 3 3.5 1.5 1.8 0.4 0.8 0.15 SMD1206P110TF/12 1.1 2.2 8 0.3 12 100 1.1 2.2 8 1206 3 3.5 1.5 1.8 0.5 1.1 0.15 MD1206P110TF/24 1.1 2.2 8 0.3 24 100 1.1 2.2 8 1206 3 3.5 1.5 1.8 0.8 1.4 0.15 MD1206P110TF/33 1.1 2.2 8 0.3 33 100 1.1 2.2 8 1206 3 3.5 1.5 1.8 0.8 1.4 0.15 SMD1206P150TF 1.5 3 8 1 6 100 0.8 0.04 0.13 1206 3 3.5 1.5 1.8 0.6 1.2 0.15 SMD1206P150TF/12 1.5 3 8 1 12 100 0.8 0.04 0.13 1206 3 3.5 1.5 1.8 0.6 1.2 0.15 SMD1206P150TF/16 1.5 3 8 1 16 100 0.8 0.04 0.13 1206 3 3.5 1.5 1.8 0.8 1.4 0.15 SMD1206P200TF 2 3.5 8 1.5 6 100 0.8 0.018 0.08 1206 3 3.5 1.5 1.8 0.8 1.4 0.15 SMD1206P200TF/16 2 3.5 8 1.5 6 100 0.8 0.018 0.08 1206 3 3.5 1.5 1.8 0.8 1.4 0.15 SMD1206P250TF 2.5 5.0 8 2.0 6 100 0.8 0.01 0.055 1206 3 3.5 1.5 1.8 0.9 1.6 0.15 SMD1206P260TF 2.6 5.2 8 2.0 6 100 0.8 0.015 0.070 1206 3 3.5 1.5 1.8 0.9 1.6 0.15 SMD1206P300TF 3 6 8 4 6 100 0.8 0.01 1206 3 3.5 1.5 1.8 0.9 1.6 0.15 0.055 min max min max min max min Ihold = Hold current: maximum current device will pass without tripping in 25ºC still air. Itrip = Trip current: minimum current at which the device will trip in 25 ºC still air. Vmax = Maximum voltage device can withstand without damage at rated current (I max) Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax) Pd typ = Typical power dissipated from device when in the tripped state at 25 ºC still air. Rmin = Minimum resistance of device in initial (un-soldered) state. R1max = Maximum resistance of device at 25 ºC measured one hour after tripping or reflow soldering of 260 ºC for 20 sec. Circuit Protection System Specifications are subject to change without notice. Page:3 Positive Thermal Coefficent - SMD1206 Series Thermal Derating Chart Recommended Hold Current (A) at Ambient Temperature (°C) Part Numberr -40℃ -20℃ 0℃ 25 ℃ 40℃ 50 ℃ 60℃ 70℃ 85℃ SMD1206P005TF 0.074 0.066 0.058 0.05 0.0425 0.0375 0.035 0.03 0.0275 SMD1206P010TF 0.148 0.132 0.116 0.10 0.085 0.075 0.07 0.06 0.055 SMD1206P012TF 0.18 0.16 0.14 0.12 0.10 0.09 0.08 0.07 0.05 SMD1206P016TF 0.22 0.2 0.18 0.16 0.14 0.12 0.10 0.9 0.8 SMD1206P020TF 0.28 0.25 0.23 0.20 0.17 0.15 0.14 0.12 0.09 SMD1206P020TF/30 0.28 0.25 0.23 0.20 0.17 0.15 0.14 0.12 0.09 SMD1206P020TF/48 0.28 0.25 0.23 0.20 0.17 0.15 0.14 0.12 0.09 SMD1206P025TF 0.37 0.33 0.29 0.25 0.22 0.20 0.17 0.15 0.12 SMD1206P035TF 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SMD1206P035TF/16 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SMD1206P035TF/24 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SMD1206P035TF/48 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 SMD1206P050TF 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SMD1206P050TF/13.2 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SMD1206P050TF/16 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SMD1206P050TF/24 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SMD1206P050TF/30 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 SMD1206P075TF 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SMD1206P075TF/13.2 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SMD1206P075TF/16 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SMD1206P075TF/24 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 SMD1206P100TF 1.45 1.3 1.15 1.00 0.84 0.77 0.69 0.61 0.48 SMD1206P100TF/12 1.45 1.3 1.15 1.00 0.84 0.77 0.69 0.61 0.48 SMD1206P100TF/16 1.45 1.3 1.15 1.00 0.84 0.77 0.69 0.61 0.48 SMD1206P100TF/24 1.45 1.3 1.15 1.00 0.84 0.77 0.69 0.61 0.48 SMD1206P110TF 1.64 1.46 1.30 1.10 0.92 0.83 0.80 0.65 0.52 SMD1206P110TF/12 1.64 1.46 1.30 1.10 0.92 0.83 0.80 0.65 0.52 SMD1206P110TF/24 1.64 1.46 1.30 1.10 0.92 0.83 0.80 0.65 0.52 SMD1206P110TF/33 1.64 1.46 1.30 1.10 0.92 0.83 0.80 0.65 0.52 SMD1206P150TF 2.20 1.99 1.77 1.50 1.34 1.23 1.10 1.01 0.84 SMD1206P150TFT/12 2.20 1.99 1.77 1.50 1.34 1.23 1.10 1.01 0.84 SMD1206P150TFT/16 2.20 1.99 1.77 1.50 1.34 1.23 1.10 1.01 0.84 SMD1206P200TF 2.60 2.44 2.35 2.00 1.78 1.67 1.50 1.45 1.10 SMD1206P200TF/16 2.60 2.44 2.35 2.00 1.78 1.67 1. 50 1.45 1.10 SMD1206P250TF 3.30 3.10 2.82 2.50 2.14 1.95 1.8 1.51 1.3 SMD1206P260TF 3.43 3.22 2.93 2.60 2.23 2.03 1.87 1.57 1.35 SMD1206P300TF 4.05 3.66 3.36 3.00 2.50 2.28 2.00 1.62 1.35 Circuit Protection System Specifications are subject to change without notice. Page:4 Positive Thermal Coefficent - SMD1206 Series Thermal Derating Curve Average Time-Current Curve Environmental Specifications Test Conditions Resistance change Passive aging +85°C, 1000 hrs. ±5% typical Humidity aging +85°C, 85% R.H. , 168 hours ±5% typical Thermal shock +85°C to -40°C, 20 times ±33% typical Resistance to solvent MIL-STD-202,Method 215 No change Vibration MIL-STD-202,Method 201 No change Ambient operating conditions : - 40 °C to +85 °C Maximum surface temperature of the device in the tripped state is 125 °C Circuit Protection System Specifications are subject to change without notice. Page:5 Positive Thermal Coefficent - SMD1206 Series Soldering Parameters Circuit Protection System Specifications are subject to change without notice. Page:6 Positive Thermal Coefficent - SMD1206 Series Tape and Reel Specificatons Governing Specifications EIA 481-1 W 8.15 ± 0.3 P0 4.0 ± 0.10 P1 4.0 ± 0.10 P2 2.0 ± 0.05 A0 1.95 ± 0.10 B0 3.40 ± 0.10 B1max. 4.35 D0 1.50 + 0.1, -0 F 3.5 ± 0.05 E1 1.75 ± 0.10 E2min. 6.25 T 0.6 T1max. 0.1 K0 1.04 ± 0.1 Leader min. 390 Trailer min. 160 Reel Dimensions A max. 178 N min. 60 W1 9 ± 0.5 W2 12.6 ± 0.5 Circuit Protection System Specifications are subject to change without notice. Page:7 Positive Thermal Coefficent - SMD1206 Series Packaging Part Numberr Halogen Free Packaging Option Quantity Quantity & Packaging Codes SMD1206P005TF Yes Tape and Reel 3500 YR SMD1206P010TF Yes Tape and Reel 3500 YR SMD1206P012TF Yes Tape and Reel 3500 YR SMD1206P016TF Yes Tape and Reel 4500 YR SMD1206P020TF Yes Tape and Reel 4500 YR SMD1206P020TF/30 Yes Tape and Reel 4500 YR SMD1206P020TF/48 Yes Tape and Reel 3500 YR SMD1206P025TF Yes Tape and Reel 3500 YR SMD1206P035TF Yes Tape and Reel 5000 YR SMD1206P035TF/16 Yes Tape and Reel 4500 YR SMD1206P035TF/24 Yes Tape and Reel 3500 YR SMD1206P035TF/48 Yes Tape and Reel 3500 YR SMD1206P050TF Yes Tape and Reel 4500 YR SMD1206P050TF/13.2 Yes Tape and Reel 4500 YR SMD1206P050TF/16 Yes Tape and Reel 3500 YR SMD1206P050TF/24 Yes Tape and Reel 3500 YR SMD1206P050TF/30 Yes Tape and Reel 3500 YR SMD1206P075TF Yes Tape and Reel 4500 YR SMD1206P075TF/13.2 Yes Tape and Reel 4500 YR SMD1206P075TF/16 Yes Tape and Reel 3500 YR SMD1206P075TF/24 Yes Tape and Reel 3500 YR SMD1206P100TF Yes Tape and Reel 4500 YR SMD1206P100TF/12 Yes Tape and Reel 3500 YR SMD1206P100TF/16 Yes Tape and Reel 3500 YR SMD1206P100TF/24 Yes Tape and Reel 3500 YR SMD1206P110TF Yes Tape and Reel 4500 YR SMD1206P110TF/12 Yes Tape and Reel 3500 YR SMD1206P110TF/24 Yes Tape and Reel 3500 YR SMD1206P110TF/30 Yes Tape and Reel 3500 YR SMD1206P150TF Yes Tape and Reel 3500 YR SMD1206P150TFT/12 Yes Tape and Reel 3500 YR SMD1206P150TFT/16 Yes Tape and Reel 3500 YR SMD1206P200TF Yes Tape and Reel 3500 YR SMD1206P200TF/16 Yes Tape and Reel 3500 YR SMD1206P250TF Yes Tape and Reel 3500 YR SMD1206P260TF Yes Tape and Reel 3500 YR SMD1206P300TF Yes Tape and Reel 3500 YR Circuit Protection System Specifications are subject to change without notice. Page:8
