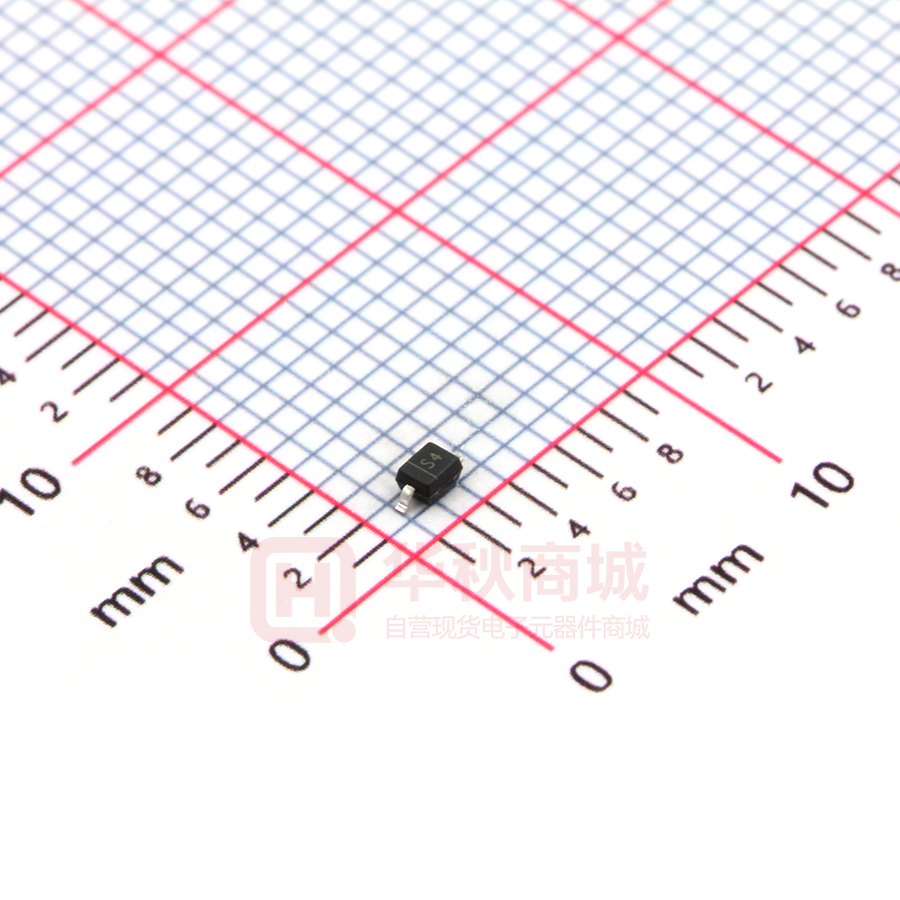

SD103AWS

山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SD103AWS THRU SD103CWS Schottky Barrier Diode FEATURES PINNING • Low Forward Voltage Drop PIN DESCRIPTION • Guard Ring Construction for Transient Protection 1 Cathode • Negligible Reverse Recovery Time 2 Anode • Low Capacitance 2 MECHANICAL DATA ▪Case: SOD-323 ▪Terminals: Solderable per MIL-STD-750, Method 2026 ▪A pprox. Weight: 5.48mg / 0.00019oz 1 Top View Simplified outline SOD-323 and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Symbols SD103AWS SD103BWS SD103CWS Units Peak Repetitive Reverse Voltage V RRM 40 30 20 V RMS reverse voltage V RMS 28 21 14 V Working Peak Reverse Voltage V DC 40 30 20 V Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method) I FSM Parameter Maximum Instantaneous Forward Voltage I F =20mA 13 0.37 VF V I F =200mA Power Dissipation 0.60 SD103AWS,V R =30V SD103BWS,V R =20V IR SD103CWS,V R =10V Thermal Resistance, Junction to Ambient Air Reverse voltage I R =100uA SD103BW – – – 5 – – 5 RθJA 300 V (BR)R 30 uA °C/W 40 V 20 SD103CW Reverse recovery time 5 – SD103AW mW 200 PD Reverse current A trr 10 ns I FM 350 mA C tot 50 pF Junction temperature Tj 125 ℃ Storage temperature T stg -55 ~ +150 ℃ I F =I R =200mA,Irr=0.1xI R ,R L =100Ω Forward Continuons Current Total capacitance 2018.06 V R =0V.f=1MH Z SOD323-S-SD103AWS~SD103CWS-0.2A40V Page 1 of 3 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SD103AWS THRU SD103CWS Fig.2 Typical Reverse Characteristics Power Dissipation (mW) 600 500 400 300 200 100 0 25 75 50 100 125 150 Instaneous Reverse Current ( μA) Fig.1 Power Derating Curve 1000 T J =100°C 100 10 1 T J =25°C 0.1 Peak Forward Surage Current (A) FORWARD CURRENT IF(mA) T J =100°C T J =25°C 10 400 200 600 800 18 8.3 ms Single Half Sine Wave (JEDEC Method) 12 09 06 03 00 1 1000 10 1 10 20 Transient Thermal Impedance（ °C /W） Junction Capacitance ( pF) T J =25°C f=1MHz 1 100 Fig.6 Typical Transient Thermal Impedance 2000 1000 100 10 0.01 Reverse Voltage (V) 2018.06 10 Number of Cycles at 50Hz Fig.5 Typical Junction Capacitance 0 50 15 FORWARD VOLTAGE VF(mV) 100 40 Fig.4 Maximum Non-Repetitive Peak Forward Surage Current 1000 0.1 0 30 Reverse Voltage（v） Fig.3 Forward Characteristics 100 20 10 0 TA, Ambient Temperature (°C) 0.1 1 10 100 t, Pulse Duration（sec） www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD SD103AWS THRU SD103CWS PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-323 E E D b A C A1 ∠ALL ROUND L1 E1 SOD-323 mechanical data A C D E E1 b L1 A1 max 1.1 0.15 1.4 1.8 2.75 0.4 0.45 0.2 min 0.8 0.08 1.2 1.4 2.55 0.25 0.2 max 43 5.9 55 70 108 16 16 min 32 3.1 47 63 100 9.8 7.9 UNIT ∠ mm 9° 8 mil The recommended mounting pad size 1.4 (55) 1.2 (47) Type number Marking code SD103AWS S4 SD103BWS S5 SD103CWS S6 1.2 (47) 1.2 (47) Marking Unit： mm (mil) 2018.06 806252A0 Page 3 of 3
