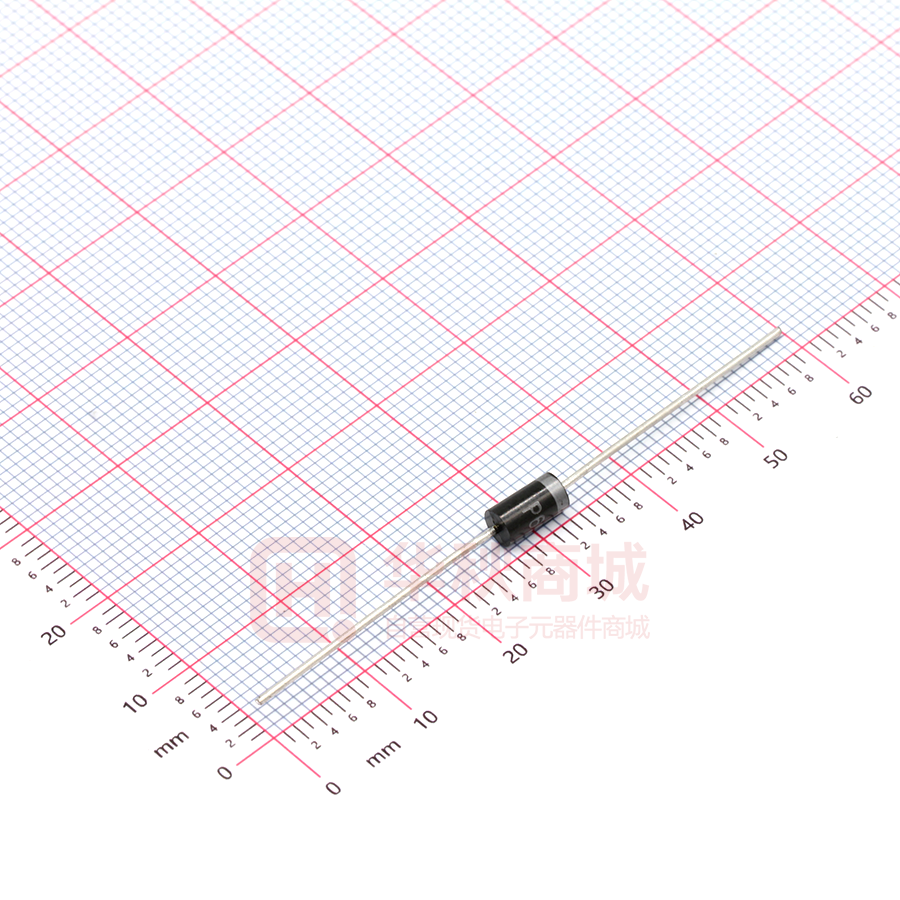

P6KE27A

Transient Voltage Suppressors (TVS) P6KE Series Description The P6KE series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Features l Fast response time l Matte tin lead–free Plated l Low incremental surge resistance l Halogen free and RoHS compliant Electrical symbol l Typical IR less than 1μA above 12V l Compatible with industrial standard package DO-15 l For surface mounted applications to optimize board space BI l 600W peak pulse power capability with at 10/1000μs waveform, repetition rate (duty cycle): 0.01% Cathode Anode l High temperature soldering guaranteed:260°C/10 seconds UNI Part Number Code P 6 K E Series code x x x C A Reverse Stand-Off Voltage 5% Voltage Tolerance Blank:Uni-Directional C:Bi-Directional Mechanical Characteristics Rating Symbol Value Units Peak Pulse Power Dissipation by 10x1000μs test Waveform(Fig.2) (Note1) PPP 600 W Steady State Power Dissipation on inifinite heat sink at TL=75°C(Fig.6) PD 5.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave Unidirectional only (Note 2) IFSM 100 A VF 3.5/6.5 V TJ,TSTG -55 to 150 °C Maximum instantaneous forward voltage at 25 A for unidirectional only Operating junction and Storage Temperature Range. Notes: 1. Non-repetitive current pulse , per Fig. 4 and derated above TA = 25°C per Fig. 3. 2. Measured on 8.3ms single half sine wave or equivalent square wave, duty cycle=4 pulses per minute maximum. Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2018-06-22 Page:1 Transient Voltage Suppressors (TVS) P6KE Series Electrical Characteristics Reverse Stand-Off Voltage Type Number VRWM Breakdown Voltage Test Current Max. Clamping Voltage 10/1000µs Max. Peak Pulse Current 10/1000µs Reverse Leakage IT VC@IPP IPP IR@VRWM VBR @IT Min Max UNI BI V V V mA V A µA P6KE6.8A P6KE6.8CA 5.80 6.45 7.14 10 10.5 57.0 1000 P6KE7.5A P6KE7.5CA 6.40 7.13 7.88 10 11.3 53.0 500 P6KE8.2A P6KE8.2CA 7.02 7.79 8.61 10 12.1 50.0 200 P6KE9.1A P6KE9.1CA 7.78 8.65 9.55 1 13.4 45.0 50 P6KE10A P6KE10CA 8.55 9.50 10.50 1 14.5 41.0 10 P6KE11A P6KE11CA 9.40 10.50 11.60 1 15.6 38.0 5 P6KE12A P6KE12CA 10.20 11.40 12.60 1 16.7 36.0 5 P6KE13A P6KE13CA 11.10 12.40 13.70 1 18.2 33.0 1 P6KE15A P6KE15CA 12.80 14.30 15.80 1 21.2 28.0 1 P6KE16A P6KE16CA 13.60 15.20 16.80 1 22.5 27.0 1 P6KE18A P6KE18CA 15.30 17.10 18.90 1 25.2 24.0 1 P6KE20A P6KE20CA 17.10 19.00 21.00 1 27.7 22.0 1 P6KE22A P6KE22CA 18.80 20.90 23.10 1 30.6 20.0 1 P6KE24A P6KE24CA 20.50 22.80 25.20 1 33.2 18.0 1 P6KE27A P6KE27CA 23.10 25.70 28.40 1 37.5 16.0 1 P6KE30A P6KE30CA 25.60 28.50 31.50 1 41.4 14.4 1 P6KE33A P6KE33CA 28.20 31.40 34.70 1 45.7 13.2 1 P6KE36A P6KE36CA 30.80 34.20 37.80 1 49.9 12.0 1 P6KE39A P6KE39CA 33.30 37.10 41.00 1 53.9 11.2 1 P6KE43A P6KE43CA 36.80 40.90 45.20 1 59.3 10.1 1 P6KE47A P6KE47CA 40.20 44.70 49.40 1 64.8 9.30 1 P6KE51A P6KE51CA 43.60 48.50 53.60 1 70.1 8.60 1 P6KE56A P6KE56CA 47.80 53.20 58.80 1 77.0 7.80 1 P6KE62A P6KE62CA 53.00 58.90 65.10 1 85.0 7.10 1 P6KE68A P6KE68CA 58.10 64.60 71.40 1 92.0 6.50 1 P6KE75A P6KE75CA 64.10 71.30 78.80 1 103.0 5.80 1 P6KE82A P6KE82CA 70.10 77.90 86.10 1 113.0 5.30 1 P6KE91A P6KE91CA 77.80 86.50 95.50 1 125.0 4.80 1 P6KE100A P6KE100CA 85.50 95.00 105.00 1 137.0 4.40 1 P6KE110A P6KE110CA 94.00 105.00 116.00 1 152.0 4.00 1 P6KE120A P6KE120CA 102.00 114.00 126.00 1 165.0 3.60 1 P6KE130A P6KE130CA 111.00 124.00 137.00 1 179.0 3.30 1 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2018-06-22 Page:2 Transient Voltage Suppressors (TVS) P6KE Series Electrical Characteristics Reverse Stand-Off Voltage Type Number VRWM Breakdown Voltage Test Current Max. Clamping Voltage 10/1000µs Max. Peak Pulse Current 10/1000µs Reverse Leakage IT VC@IPP IPP IR@VRWM VBR @IT Min Max UNI BI V V V mA V A µA P6KE150A P6KE150CA 128.00 143.00 158.00 1 207.0 2.90 1 P6KE160A P6KE160CA 136.00 152.00 168.00 1 219.0 2.70 1 P6KE170A P6KE170CA 145.00 162.00 179.00 1 234.0 2.60 1 P6KE180A P6KE180CA 154.00 171.00 189.00 1 246.0 2.40 1 P6KE200A P6KE200CA 171.00 190.00 210.00 1 274.0 2.20 1 P6KE220A P6KE220CA 185.00 209.00 231.00 1 328.0 1.83 1 P6KE250A P6KE250CA 214.00 237.00 263.00 1 344.0 1.75 1 P6KE300A P6KE300CA 256.00 285.00 315.00 1 414.0 1.45 1 P6KE350A P6KE350CA 300.00 332.00 368.00 1 482.0 1.25 1 P6KE400A P6KE400CA 342.00 380.00 420.00 1 548.0 1.10 1 P6KE440A P6KE440CA 376.00 418.00 462.00 1 602.0 1.00 1 P6KE500A P6KE500CA 427.50 475.00 525.00 1 690.0 0.87 1 P6KE520A P6KE520CA 444.60 494.00 546.00 1 717.6 0.84 1 P6KE550A P6KE550CA 470.30 522.50 577.50 1 759.0 0.79 1 P6KE600A P6KE600CA 513.00 570.00 630.00 1 828.0 0.72 1 I-V Curve Characteristics Uni-directional I Bi-directional IPP VC VBR VR IR VF IT VC VBR VR V IT IR IR IT VR VBR VC V IPP IPP PPPM Peak Pulse Power Dissipation -- Max power dissipation VR Stand-off Voltage -- Maximum voltage that can be applied to the TVS without operation VBR Breakdown Voltage -- Maximum voltage that flows though the TVS at a specified test current (IT) VC Clamping Voltage -- Peak voltage measured across the TVS at a specified Ippm (peak impulse current) IR Reverse Leakage Current – Current measured at VR VF Forward Voltage Drop for Uni-directional Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2018-06-22 Page:3 Transient Voltage Suppressors (TVS) P6KE Series Ratings and Characteristic Curves (TA=25°C unless otherwise noted) Figure 1 - TVS Transients Clamping Waveform Figure 2 - Peak Pulse Power Rating Curve 100 PPPM-Peak Pulse Power (kW) Voltage Transients Voltage or Current Voltage Across TVS Current Through TVS TJ initial = Tamb stacked-die, 800W at 10x1000μs, 25°C 10 Single die, 600W at 10x1000μs, 25°C 1 0.1 0.001 0.01 Time 1 10 Figure 4 - Pulse Waveform 100 150 IPPM - Peak Pulse Cur rent, % IRSM Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % Figure 3 - Pulse Derating Curve 0.1 td-Pulse Width (ms) 75 50 25 tr=10μsec TJ =25°C Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM Peak Value IPPM 100 Half Value IPPM ( IPPM ) 2 50 10/1000μsec.Waveform as defined by R.E.A td 0 0 0 25 50 75 100 125 150 175 0 200 1.0 2.0 3.0 4.0 t-Time(ms) TA-Ambient temperature (ºC) Figure 5 - Typical Junction Capacitance Figure 6 - Steady State Power Derating Curve Bi-directional V=0V Uni-directional V=0V 1000 Uni-directional @VR Cj (pF) 100 Bi-directional @VR 10 Tj=25ºC f=1.0MHz Vsig=50mVp-p 1 1.0 10.0 100.0 1000.0 VBR - Reverse Breakdown Voltage (V) Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. PM(AV), Steady State Power Dissipation (W) 10000 5.0 4.0 3.0 2.0 60Hz Resistive or Inductive Load 1.0 0.0 Revised: 2018-06-22 0 25 50 75 100 125 150 TL-Lead Temperature(ºC) 175 200 Page:4 Transient Voltage Suppressors (TVS) P6KE Series Figure 7 - Maximum Non-Repetitive Surge Current IFSM - Peak Forward Surve Current (A) 120 Pulse Width 8.3ms Single Half-Sine-Wave (JEDEC METHOD) 100 80 60 40 20 0 1 10 100 Number of Cycles at 60 Hz Part Marking System Cathode band(for Uni-directional products only) P6KExxxCA Type Number Dimensions Millimeters Inches DIM Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2018-06-22 Min Max Min Max A 25.40 - 1.000 - B 5.80 7.60 0.228 0.299 C 0.70 0.90 0.028 0.035 D 2.60 3.60 0.102 0.142 Page:5 Transient Voltage Suppressors (TVS) P6KE Series Taping and Reel Specifications Symbol Millimeters Inches A 5.08±0.5 0.2±0.019 B 53.0±1.0 2.087±0.039 Z 1.2Max 0.047 Max T 6.0±0.4 0.236±0.015 E 0.8Max 0.031 Max L1-L2 1.0Max 0.039 Max Symbol Millimeters Inches D 250.0±5.0 9.843±0.197 C 75.0±5.0 2.953±0.197 H 114.0±5.0 4.488±0.197 Quantity Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Revised: 2018-06-22 2000PCS / inner box Page:6
