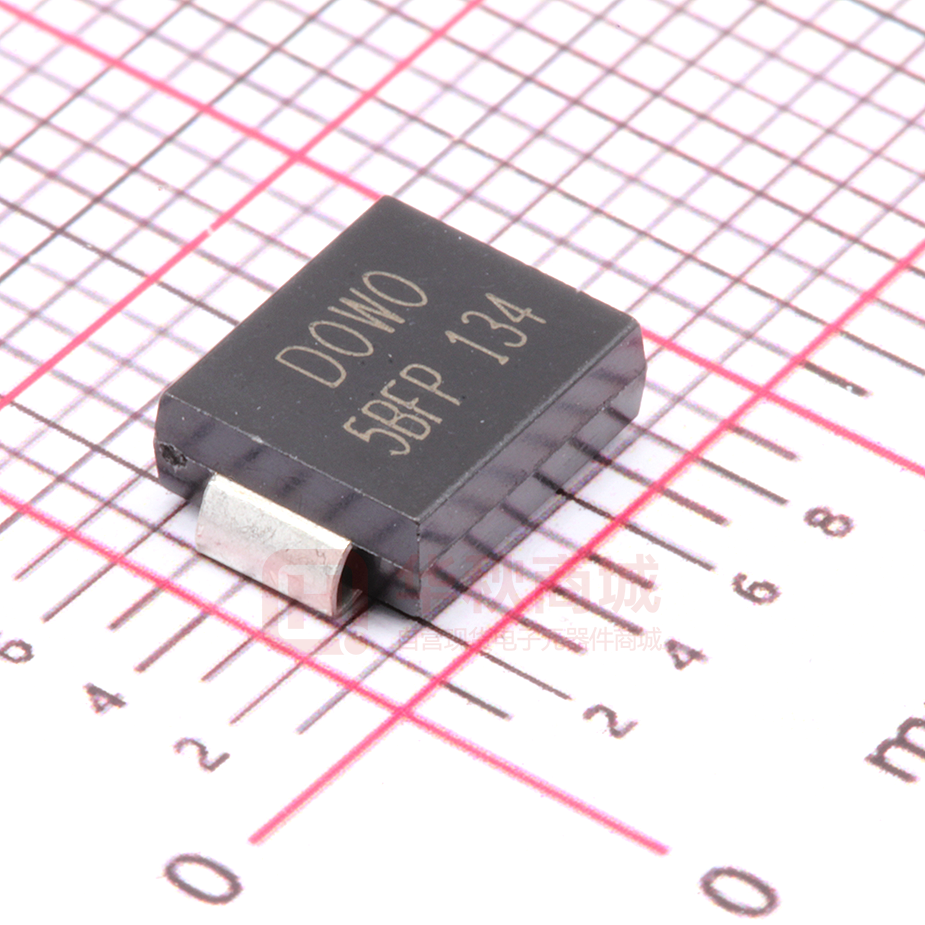

5.0SMDJ36CA

5.0SMDJ Series Transient Voltage Suppressor HF LF RoHS 5.0SMDJxxxXX »Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Excellent clamping capability Low leakage current Low capacitance High surge capability Glass passivated chip Epoxy resin package Built-in strain relief Will not fatigue RoHS Compliant Fast response time: typically less than 1.0ps from 0 Volts to VBR min »Mechanical ■ ■ ■ ■ ■ SMC (DO-214AB) »Applications Characteristics Package: SMC plastic package. Lead Finish: Matte Tin Case Material: Epoxy Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 ■ ■ ■ ■ Telecom Computer Industrial electronic Consumer electronic »Electrical Parameters Parameter Definition +I CJ Junction Capacitance - typical capacitance measured with 0V or VR bias IPP Peak Pulse Current - maximum rated peak impulse current VC Clamping Voltage - Peak voltage measured across the suppressor at a specified Ippm (peak impulse current) VBR Breakdown Voltage - Maximum voltage that flows though the TVS at a specified test current (IT) IR Leakage Current - maximum peak off-state current measured at VR VR Peak Off-state Voltage - maximum voltage that can be applied while maintaining off state VF Uni Bi Ipp IT IR VR VBR VC +V »Summary of Packing Options Package SMC Revision: 2018 Packing Description Packing Quantity Industry Standard Tape/Reel,13" reel 3000 EIA-481-1 Tape/Reel,7" reel 500 EIA-481-1 www.born-tw.com 1/7 5.0SMDJ Series »Absolute Maximum Ratings (TA=25℃ unless otherwise noted) Parameter Symbol Value Units Remarks PPPM 5000 W (Note1)(Note2) Steady State Power Dissipation PD 6.5 W (Note3) Peak Forward Surge Current IFSM 300 A (Note4) Maximum Instantaneous Forward Voltage at 100A VFM 5 V (Note5) Typical Thermal Resistance Junction to Lead RθJL 15 ℃/W Typical Thermal Resistance Junction to Ambient RθJA 75 ℃/W TJ -55 to 150 ℃ TSTG -55 to 150 ℃ Peak Pulse Power Dissipation Operating Temperature Range Storage Temperature Range Notes1: Non-repetitive current pulse , 10/1000us Waveform. Notes2: Mounted on copper pad area of 8×8mm to each terminal. Notes3: Infinite HeatSink at TA=50°C Notes4: Measured on 8.3ms single half sine wave or equivalent square wave, duty cycle=4 perminute maximum. Notes5: For UnidirectionalOnly. »Electrical Characteristics (TA=25°C unless otherwise noted) Part Number (Uni) Part Number (Bi) Marking Code Uni Bi Reverse Stand off Voltage VR (V) Breakdown Voltage VBR @ IT (V) Min Max Test Current IT (mA) Maximum Clamping Voltage VC@ IPP (V) Maximum Peak Pulse Current IPP (A) Maximun Reverse Leakage IR @ VR (μA) 5.0SMDJ12A 5.0SMDJ12CA 5PEP 5BEP 12 13.3 14.7 10 19.9 252 800 5.0SMDJ13A 5.0SMDJ13CA 5PEQ 5BEQ 13 14.4 15.9 10 21.5 233 500 5.0SMDJ14A 5.0SMDJ14CA 5PER 5BER 14 15.6 17.2 10 23.2 216 200 5.0SMDJ15A 5.0SMDJ15CA 5PES 5BES 15 16.7 18.5 1 24.4 205 100 5.0SMDJ16A 5.0SMDJ16CA 5PET 5BET 16 17.8 19.7 1 26 193 50 5.0SMDJ17A 5.0SMDJ17CA 5PEU 5BEU 17 18.9 20.9 1 27.6 181 20 5.0SMDJ18A 5.0SMDJ18CA 5PEV 5BEV 18 20 22.1 1 29.2 172 10 5.0SMDJ20A 5.0SMDJ20CA 5PEW 5BEW 20 22.2 24.5 1 32.4 155 5 5.0SMDJ22A 5.0SMDJ22CA 5PEX 5BEX 22 24.4 26.9 1 35.5 141 5 5.0SMDJ24A 5.0SMDJ24CA 5PEZ 5BEZ 24 26.7 29.5 1 38.9 129 5 5.0SMDJ26A 5.0SMDJ26CA 5PFE 5BFE 26 28.9 31.9 1 42.1 119 5 5.0SMDJ28A 5.0SMDJ28CA 5PFG 5BFG 28 31.1 34.4 1 45.4 110 5 5.0SMDJ30A 5.0SMDJ30CA 5PFK 5BFK 30 33.3 36.8 1 48.4 103 5 5.0SMDJ33A 5.0SMDJ33CA 5PFM 5BFM 33 36.7 40.6 1 53.3 93.9 5 5.0SMDJ36A 5.0SMDJ36CA 5PFP 5BFP 36 40 44.2 1 58.1 86.1 5 5.0SMDJ40A 5.0SMDJ40CA 5PFR 5BFR 40 44.4 49.1 1 64.5 77.6 5 5.0SMDJ43A 5.0SMDJ43CA 5PFT 5BFT 43 47.8 52.8 1 69.4 72.1 5 5.0SMDJ45A 5.0SMDJ45CA 5PFV 5BFV 45 50 55.3 1 72.7 68.8 5 5.0SMDJ48A 5.0SMDJ48CA 5PFX 5BFX 48 53.3 58.9 1 77.4 64.7 5 5.0SMDJ51A 5.0SMDJ51CA 5PFZ 5BFZ 51 56.7 62.7 1 82.4 60.7 5 Revision: 2018 www.born-tw.com 2/7 5.0SMDJ Series »Electrical Characteristics (TA=25°C unless otherwise noted) Breakdown Voltage VBR @ IT (V) Test Current IT (mA) Maximum Clamping Voltage VC@ IPP (V) Maximum Peak Pulse Current IPP (A) Maximun Reverse Leakage IR @ VR (μA) 66.3 1 87.1 57.5 5 64.4 71.2 1 93.6 53.5 5 60 66.7 73.7 1 96.8 51.7 5 5BGM 64 71.1 78.6 1 103 48.6 5 5PGP 5BGP 70 77.8 86 1 113 44.3 5 5.0SMDJ75CA 5PGR 5BGR 75 83.3 92.1 1 121 41.4 5 5.0SMDJ78A 5.0SMDJ78CA 5PGT 5BGT 78 86.7 95.8 1 126 39.7 5 5.0SMDJ85A 5.0SMDJ85CA 5PGV 5BGV 85 94.4 104 1 137 36.5 5 5.0SMDJ90A 5.0SMDJ90CA 5PGX 5BGX 90 100 111 1 146 34.3 5 5.0SMDJ100A 5.0SMDJ100CA 5PGZ 5BGZ 100 111 123 1 162 30.9 5 5.0SMDJ110A 5.0SMDJ110CA 5PHE 5BHE 110 122 135 1 177 28.3 5 5.0SMDJ120A 5.0SMDJ120CA 5PHG 5BHG 120 133 147 1 193 26 5 5.0SMDJ130A 5.0SMDJ130CA 5PHK 5BHK 130 144 159 1 209 24 5 5.0SMDJ150A 5.0SMDJ150CA 5PHM 5BHM 150 167 185 1 243 20.6 5 5.0SMDJ160A 5.0SMDJ160CA 5PHP 5BHP 160 178 197 1 259 19.3 5 5.0SMDJ170A 5.0SMDJ170CA 5PHR 5BHR 170 189 209 1 275 18.2 5 Marking Code Reverse Stand off Voltage VR (V) Part Number (Uni) Part Number (Bi) Uni Bi Min Max 5.0SMDJ54A 5.0SMDJ54CA 5PGE 5BGE 54 60 5.0SMDJ58A 5.0SMDJ58CA 5PGG 5BGG 58 5.0SMDJ60A 5.0SMDJ60CA 5PGK 5BGK 5.0SMDJ64A 5.0SMDJ64CA 5PGM 5.0SMDJ70A 5.0SMDJ70CA 5.0SMDJ75A Revision: 2018 www.born-tw.com 3/7 5.0SMDJ Series »Rating And Characteristic Curves (TA=25°C unless otherwise noted) 100 Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % PPPM - Peak Pulse Power (kW) 100 10 1 0.1 0.001 0.01 0.1 80 60 40 20 0 1 0 td - Pulse Width (ms) 150 Fig.2 - Pulse Derating Curve TJ=25℃ f=1.0MHz Vsig=50mVp-p 10000 100 1000 CJ (pF) IPP - Peak Pulse Current, % IRSM 100 TA - Ambient Temperature (℃) Fig.1 - Peak Pulse Power Rating 50 100 Uni V=0V 10 Bi V=0V Uni V=VR Bi V=VR 0 tr 1 td 14 Fig.3 - Pulse Waveform Fig.4 - Typical Junction Capacitance 300 IFSM - Peak Forward Surge Current (A) 7 6 5 4 3 2 1 0 0 50 100 150 250 200 150 100 50 0 1 10 100 Number of Cycles at 60 Hz TA - Ambient Temperature (℃) Fig.5 - Steady State Power Dissipation Derating Curve Revision: 2018 140 VBR - Reverse Breakdown Voltage (V) t - Time (us) PD - Steady State Power Dissipation (W) 50 Fig.6 - Maximum Non-Repetitive Peak Forward Surge Current Uni-Directional Only www.born-tw.com 4/7 5.0SMDJ Series »Package Dimensions B D C A F H L G Z X Y SMC Dimension Inches MIN NOM Millimeters MAX MIN NOM MAX A 0.22 0.245 5.59 6.22 B 0.305 0.32 7.75 8.13 C 0.114 0.126 2.9 3.2 D 0.26 0.28 6.6 7.11 F 0.006 0.012 0.15 0.305 G H L X Y Z 0.087 0.03 0.008 0.11 0.06 2.2 0.76 0.203 2.8 1.52 0.15 0.119 0.151 3.82 3.03 3.84 »Marking Information 5xxx 5xxx YYWW YYWW 5xxx = Type Code YYWW = Date Code 5xxx = Type Code YYWW = Date Code Revision: 2018 www.born-tw.com 5/7 5.0SMDJ Series »Soldering Parameters tp Temperature (T) TP Ramp-up TL tL Critical Zone TL to TP Ts(max) Ramp-down Ts(min) ts Preheat 25℃ t 25℃ to Peak Time (t) Reflow Condition Pre Heat Lead-free assembly - Temperature Min (Ts(min)) 150°C - Temperature Max (Ts(max)) 200°C - Time (min to max) (ts) Average ramp up rate (Liquidus Temp (TL) to peak) 3°C/second max TS(max) to TL - Ramp-up Rate 3°C/second max Reflow - Temperature (TL) (Liquidus) - Time (tL) 217°C 60 – 150 secs 260+0/-5 °C Peak Temperature (TP) Time within 5°C of actual peak Temperature (tp) Revision: 2018 60 – 180 secs 20 – 40 secs Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (t) Do not exceed 8 minutes Max. 260°C www.born-tw.com 6/7 5.0SMDJ Series »Tape and Reel Specification Cathode Carrier tape P0 W 0.059(1.5) DIA P Cover tape D1 or D2 Dimensions are in inches(millimeters) 0.80 (20.2) Arbor Hole Dia. Direction of Feed W1 Dimension P P0 W W1 D1 D2 Revision: 2018 Inches MIN NOM 0.315 0.157 0.63 0.646 7 13 Millimeters MAX www.born-tw.com MIN NOM 8 4 16 16.4 177.8 330.2 MAX 7/7
