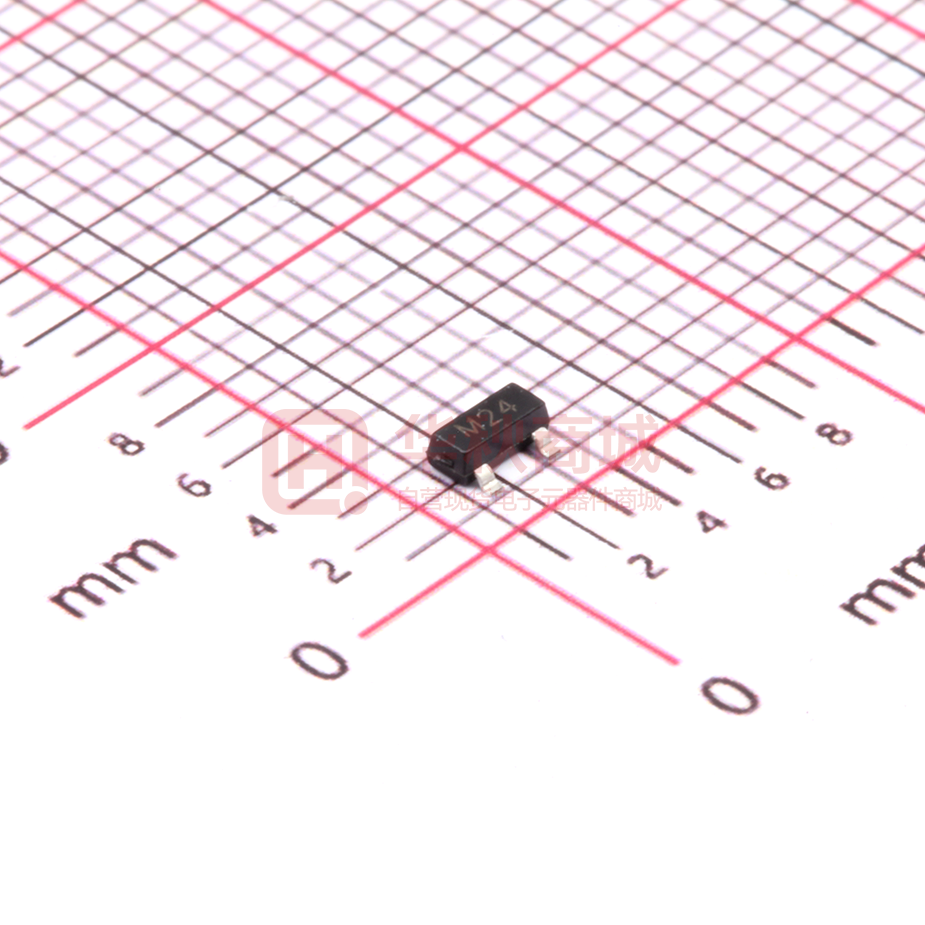

RLST23A242V

ELECTRONICS TVS/ESD Arrays RLST23Axx2V Series Circuit Protection System Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. 30 TVS/ESD Arrays - RLST23Axx2V Series Features Fig.6 Fig.7 • 350 Watts Peak Pulse Power per Line (tp = 8/20μs) • Working voltages: 3.3V、5V、8V、12V、15V、 24V、36V • Low Leakage Current • Low operating and clamping voltages • Lead Free/RoHS compliant • Solid-state silicon avalanche technology • Provides ESD protection to IEC61000-4-2(ESD): ±15kV (air discharge) ±8kV (contact discharge) 31 Mechanical Characteristics Fig.6 Pinout and Functional BlockFig.7 Diagram • JEDEC SOT-23 Package • Molding Compound Flammability Rating : UL 94V-O • Weight 8 Millgrams (Approximate) • Quantity Per Reel : 3,000pcs • Reel Size : 7 inch • Lead Finish : Lead Free 3 3 Applications • High-Speed data lines • Cellular handsets AND accessories • Universal Serial Bus (USB) port protection • Portable instrumentation • LAN/WAN equipment 1 • Peripherals 32 2 1 Fig.10 4 Circuit Protection System 2 1 3 4 Fig.11 3 4 Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Page:1 TVS/ESD Arrays - RLST23Axx2V Series Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power (tp =8/20μs) PPK 350 Watts ESD Voltage (Contact) VESD ±8 Kv ESD Voltage (Air) VESD ±15 Kv TL 260 (10 sec.) °C TJ -55 to +125 °C TSTG -55 to +150 °C Lead Soldering Temperature Operating Temperature Storage Temperature Electrical Parameters (T=25°C) ElectrIcal CharacterlstIcs Per Lin (@ 25°C Unless Otherwise Specified) Reverse Stand-Off Voltage Minimum Breakdown Voltage Peak Pulse Voltage @8/20μS Peak Pulse Current @8/20μS Reverse Leakage @VRWM VRWM VBR@1mA VC@1A IPP IR@VRWM V V V A μA pF RLST23A032V 3.3 4.0 7 13 100 300 RLST23A052V 5 6.0 9.8 10 10 220 RLST23A082V 8 8.5 13.4 8 5 150 RLST23A122V 12 13.3 19 5 1 100 RLST23A152V 15 16.7 24 4 1 90 RLST23A242V 24 26.7 43 3 1 80 RLST23A362V 36 40 60 2 1 70 Type Number Circuit Protection System Typical Capacitance DC=0V CJ@ 1 MHz Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Page:2 TVS/ESD Arrays - RLST23Axx2V Series Characteristic Curves Circuit Protection System Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Page:3 TVS/ESD Arrays - RLST23Axx2V Series Recommended Soldering Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3°C/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) TS max to TL -Ramp-up Rate Time maintained above: -Temperature (TL) -Time (tL) 150°C 200°C 60-180 seconds 3°C/second max. 217°C 60-150 seconds Peak Temperature (TP) 260°C Time within 5°C of actual Peak Temperature (tP) Ramp-down Rate Time 25°C to Peak Temperature Circuit Protection System 20-40 seconds 6°C/second max. 8 minutes max. Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Page:4 TVS/ESD Arrays - RLST23Axx2V Series Package dimension SOT-23 Dimensions Inches DIM Millimeters Min Nom Max Min Nom Max A 0.035 0.040 0.044 0.89 1.00 1.12 A1 0.001 0.002 0.004 0.01 0.06 0.10 b 0.015 0.018 0.020 0.37 0.44 0.50 C 0.003 0.005 0.007 0.09 0.13 0.18 D 0.110 0.114 0.120 2.80 2.90 3.04 E 0.047 0.051 0.055 1.20 1.30 1.40 e 0.070 0.075 0.081 1.78 1.90 2.04 L 0.014 0.021 0.029 0.35 0.54 0.69 HE 0.083 0.094 0.104 2.1 2.4 2.64 Part Number Code R L LOGO S T 2 Package SOT-23 3 A Straight foot overhanging 0 3 VRWM:3.3V 2 V V= Unidirectional C= Bidirectional Protects 2 Lines Ordering Information Part Number Package Min. Order Qty. RLST23Axx2V SOT-23 3000pcs Circuit Protection System Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Page:5 RuiLongYuan Electronics Co., Ltd. · Reproducing and modifying information of the document is prohibited without permission from Ruilongyuan International Inc. · Ruilongyuan International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. · Ruilongyuan International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. · Ruilongyuan International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. · Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications.Ruilongyuan International Inc. makes no representation or warranty that such applications will be suitable for the specifed use without further testing or modifcation. · The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment,aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fullyindemnify Ruilongyuan International Inc. for any damages resulting from such improper use or sale. Tel: +86-755-8290 8296 Circuit Protection System Fax: +86-755-8290 8002 E-mail: jack@ruilon.com Specifications are subject to change without notice. Please refer to http://www.ruilon.com.cn for current information. Page:6
