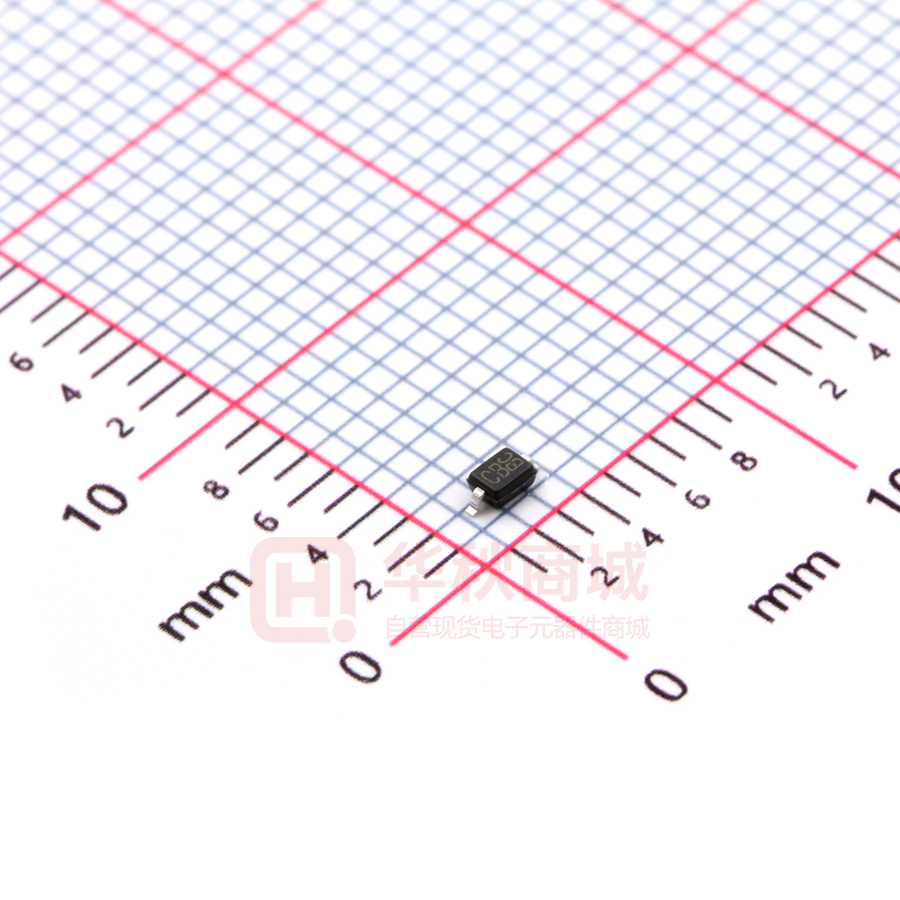

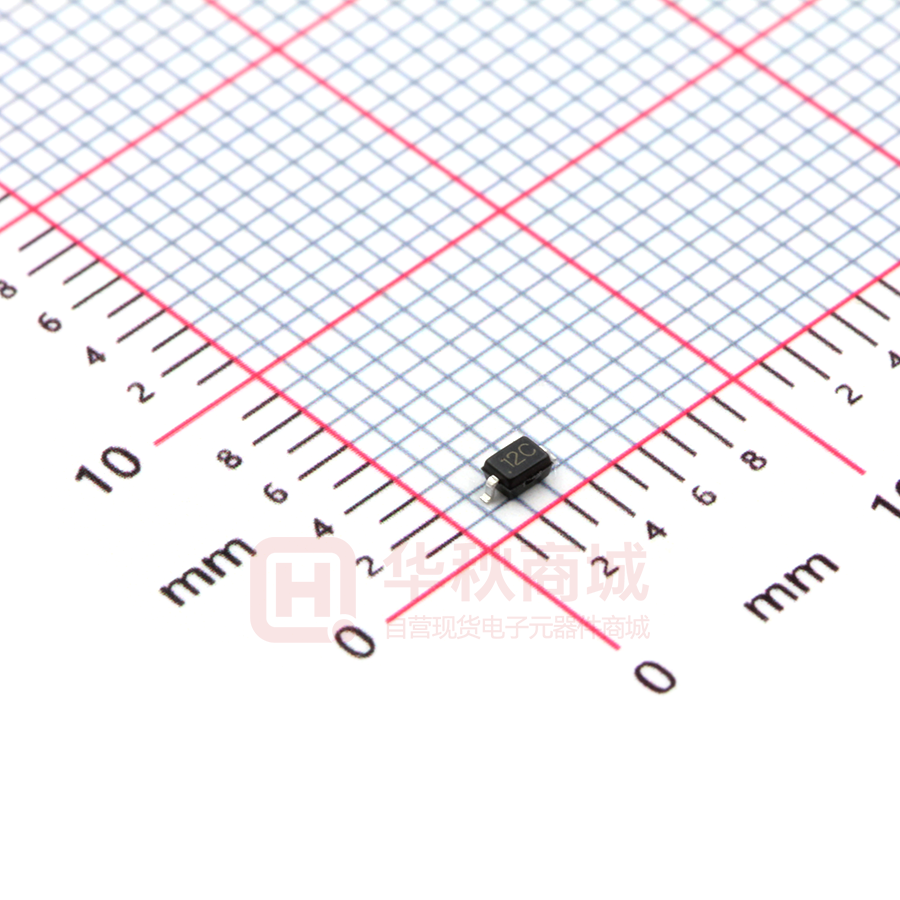

RLSD32A241C

ELECTRONICS TVS/ESD Arrays RLSD32AxxxC Series Circuit Protection System Specifications are subject to change without notice. TVS/ESD Arrays - RLSD32AxxxC Series Features • 350 Watts peak pulse power (tp = 8/20μs) • Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20μs) • Small package for use in portable electronics • Suitable replacement for MLV’s in ESD protection applications • Protects one I/O or power line • Solid-state silicon avalanche technology Mechanical Characteristics • SOD-323 package • Molding compound flammability rating: UL 94V-0 • Packaging: Tape and Reel per EIA 481 • Lead Finish: Matte tin • RoHS Compliant Pinout and Functional Block Diagram 1 Applications • Cell Phone Handsets and Accessories • Microprocessor based equipment • Personal Digital Assistants (PDA’s) • Notebooks, Desktops, and Servers • Portable Instrumentation • Pagers Peripherals 2 Life Support Note • Not Intended for Use in Life Support or Life Saving Applications • The products shown herein are not designed for use in life sustaining or life saving applications unless otherwise expressly indicated Circuit Protection System Specifications are subject to change without notice. Page:1 TVS/ESD Arrays - RLSD32AxxxC Series Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power (tp =8/20μs) Ppk 350 Watts Maximum Peak Pulse Current (tp = 8/20μs) IPP 24 Amps ESD voltage (HBM contact) VESD ±8 Kv ESD voltage (AIR contact) VESD ±15 Kv Lead Soldering Temperature TL 260 (10 sec.) °C Operating Temperature TJ -55 to +125 °C TSTG -55 to +150 °C Storage Temperature Electrical CharacteristIcs PerLin (@ 25°C Unless Otherwise Specified) Type Number Peak Power Dissipation @8/20μS Pppm Reverse Stand-Off Voltage Vrwm Max Peak Pulse Voltage @8/20μS Peak Pulse Current @8/20μS Vc@IPP IPP Reverse Leakage @Vrwm Maximum Capacitance @1MHZ IR@Vrwm Co Max Max W V V A μA pF RLSD32A031C 350 3.3 7.5 5 5 250 RLSD32A051C 350 5 9.8 5 5 200 RLSD32A081C 350 8 12 5 1 125 RLSD32A121C 350 12 19 5 1 70 RLSD32A151C 350 15 24 5 1 60 RLSD32A181C 350 18 29 5 1 40 RLSD32A241C 350 24 36 1 1 37 RLSD32A361C 350 36 58 1 1 30 Circuit Protection System Specifications are subject to change without notice. Page:2 TVS/ESD Arrays - RLSD32AxxxC Series Typical Characteristics Non-Repetitive Peak Pulse Power vs. Pulse Time Power Derating Curve 10 (kW) 110 % of Rated Power or I PP 1 0.1 90 80 70 60 50 40 30 20 10 0.01 0 0.1 1 10 Pulse Duration - t 100 1000 0 110 30 Waveform Parameters: tr = 8µs td = 20µs 25 C e 60 Clamping Voltage - V PP 80 -t 50 40 td = IPP/2 30 75 100 125 150 o A ( C) Clamping Voltage vs. Peak Pulse Current (V) 90 50 Ambient Temperature - T Waveform Parameters: tr = 8µs td = 20µs 100 70 25 p (µs) Pulse Waveform Percent of I Peak Pulse Power - P pk 100 20 10 RLSD32A121C RLSD32A12C 20 RLSD32A051C 15 RLSD32A5.0C 10 5 0 0 5 10 15 Time (µs) 20 25 30 0 0 5 10 15 Peak Pulse Current - I Circuit Protection System 20 25 30 PP (A) Specifications are subject to change without notice. Page:3 TVS/ESD Arrays - RLSD32AxxxC Series F Dimensions E B A C D G F B E C Inches Symbol 0.80 (2X) D G Millimeters Min Max Min Max A --- 0.043 --- 1.1 B 0.004 0.010 0.10 0.25 C 0.045 0.054 1.2 1.4 D 0.012 0.016 0.3 0.4 E 0.060 0.071 1.5 1.8 F 0.090 0.107 2.3 2.7 G 0.006 0.010 0.15 0.25 0.60 (2X) Part Number Code 0.80 (2X) R L S D 1.13 2 A 0 5 1 C 1.9 LOGO Package SOD-323 Straight foot overhanging Vrwm:5V V= Unidirectional C= Bidirectional Protects 1 Lines 1.1 1.9 Circuit Protection System Specifications are subject to change without notice. Page:4 TVS/ESD Arrays - RLSD32AxxxC Series Tape and reel 0 8. R7 6 5. R2 12.3 3000 2500 2000 500 .5 1000 54.4 5.6 R6 8.00 1500 R2 12.3 9.5 A-A Ordering Information Warehouse Storage Conditions of Products · Storage Conditions: Part Number Package Min. Order Qty. RLSD32AxxxC SOD-323 3000pcs 1. Storage Temperature: -10°C~+40°C 2. Relative Humidity:≤75%RH 3. Keep away from corrosive atmosphere and sunlight. 4. Period of Storage: 1 year Circuit Protection System Specifications are subject to change without notice. Page:5 RuiLongYuan Electronics Co., Ltd. · Reproducing and modifying information of the document is prohibited without permission from Ruilongyuan International Inc. · Ruilongyuan International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. · Ruilongyuan International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. · Ruilongyuan International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. · Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications.Ruilongyuan International Inc. makes no representation or warranty that such applications will be suitable for the specifed use without further testing or modifcation. · The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment,aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fullyindemnify Ruilongyuan International Inc. for any damages resulting from such improper use or sale. Circuit Protection System Specifications are subject to change without notice. Page:6
