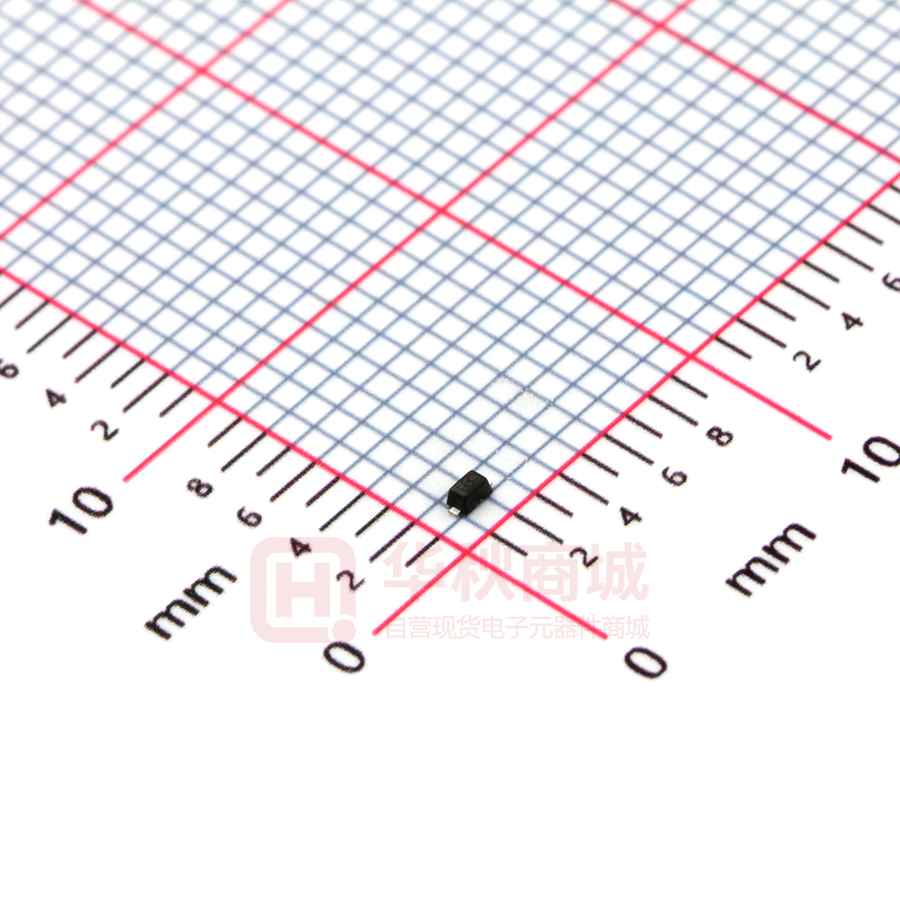

RLSD52A031V

ELECTRONICS TVS/ESD Arrays RLSD52AxxxV Series Circuit Protection System Specifications are subject to change without notice. TVS/ESD Arrays - RLSD52AxxxV Series Features • 200 Watts peak pulse power (tp = 8/20μs) • Transient protection for data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±15kV (contact) IEC 61000-4-4 (EFT) 40A (tp = 5/50ns) Cable Discharge Event (CDE) • Ultra-small SOD-523 package (1.7 x 0.9 x 0.7mm) • Protects one I/O or power line • Low clamping voltage • Working voltage • Low leakage current • Solid-state silicon-avalanche technology Mechanical Characteristics • SOD-523 package • Molding compound flammability rating: UL 94V-0 • Packaging: Tape and Reel per EIA 481 • Lead Finish: Matte tin • RoHS Compliant Pinout and Functional Block Diagram 1 Applications • Switches / Buttons • Test Equipment /Instrumentation • Point-of-Sale Terminals • Medical Equipment • Notebooks / Desktops /Servers • Computer Peripherals 2 Life Support Note • Not Intended for Use in Life Support or Life Saving Applications • The products shown herein are not designed for use in life sustaining or life saving applications unless otherwise expressly indicated Circuit Protection System Specifications are subject to change without notice. Page:1 TVS/ESD Arrays - RLSD52AxxxV Series Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power (tp =8/20μs) Ppk 200 Watts Maximum Peak Pulse Current (tp = 8/20μs) IPP 8 Amps ESD voltage (HBM contact) VESD ±8 Kv ESD voltage (AIR contact) VESD ±15 Kv Lead Soldering Temperature TL 260 (10 sec.) °C Operating Temperature TJ -55 to +125 °C TSTG -55 to +150 °C Storage Temperature ElectrIcal CharacterlstIcs Per Lin (@ 25°C Unless Otherwise Specified) Type Number Peak Power Dissipation @8/20μS Pppm Reverse Stand-Off Voltage Vrwm Max Peak Pulse Voltage @8/20μS Peak Pulse Current @8/20μS Vc@IPP IPP Reverse Leakage @Vrwm Maximum Capacitance @1MHZ IR@Vrwm Co Max Max W V V A μA pF RLSD52A031V 200 3.3 6.5 5 1 200 RLSD52A051V 200 5 9 5 1 110 RLSD52A081V 200 8 15 5 1 70 RLSD52A121V 200 12 17 5 1 60 RLSD52A151V 200 15 22 5 1 50 RLSD52A181V 200 18 28 5 1 40 RLSD52A241V 200 24 32 3 1 25 RLSD52A361V 200 36 55 1 1 20 Circuit Protection System Specifications are subject to change without notice. Page:2 TVS/ESD Arrays - RLSD52AxxxV Series Typical Characteristics Non-Repetitive Peak Pulse Power vs. Pulse Time Power Derating Curve 10 110 % of Rated Power or IPP Peak Pulse Power - P PP (kW) 100 1 0.1 90 80 70 60 50 40 30 20 10 0 0.01 0.1 1 10 100 0 1000 25 50 100 125 150 o Forward Voltage vs. Forward Current Clamping Voltage vs. Peak Pulse Current 25 3.5 3 20 Forward Voltage - VF (V) Clamping Voltage - VC (V) 75 Ambient Temperature - TA ( C) Pulse Duration - tp (us) 15 10 Waveform Parameters: tr = 8µs td = 20µs 5 2.5 2 1.5 1 Waveform Parameters: tr = 8µs td = 20µs 0.5 0 0 0 1 2 3 4 5 6 7 Peak Pulse Current - IPP (A) 8 9 10 Junction Capacitance vs. Reverse Voltage 1.1 0 1 2 3 4 5 Forward Current - IF (A) 6 7 8 ESD Clamping (8kV Contact per IEC 61000-4-2) f = 1 MHz 1 Normalized Capacitance 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0 1 2 3 Reverse Voltage - VR (V) Circuit Protection System 4 5 Specifications are subject to change without notice. Page:3 TVS/ESD Arrays - RLSD52AxxxV FSeries E Package dimension SOD-523 B A G C F D E B A l C Symbo D G F B E C SYMBOL 0.60 (2X) Min Millimeters Nom Max Min Nom Max A DIMENSIONS 0.020 0.024 0.028 0.50 0.60 0.70 MILLIMETERS 0.006 0.008 0.07 0.14 0.20 0.031 0.70 0.80 0.90 MIN NOM MAX 0.028 0.50 0.60 0.70 0.20 C 0.028 0.003 D 0.006 0.010 0.008 0.07 0.14 0.25 0.30 0.35 0.028 E0.031 0.043 0.035 0.047 0.70 0.051 0.90 1.10 0.80 1.20 1.30 0.010 F0.012 0.014 0.059 0.25 0.063 0.30 0.067 0.35 1.50 1.60 1.70 F 0.043 G0.047 0.059 0.063 0.051 0.006 0.067 1.10 0.008 1.50 1.20 0.010 1.30 0.15 1.60 1.70 0.20 0.25 G 0.006 0.010 0.15 0.20 0.020 B C E G Inches INCHES B 0.003 MIN NOM MAX A 0.80 (2X)D D Dimensions 0.024 0.008 0.012 0.035 0.014 0.25 Recommended soldering footprint 0.80 (2X) 1.1 1.9 0.80 (2X) 0.60 (2X) 1.1 1.1 1.9 1.9 Circuit Protection System Specifications are subject to change without notice. Page:4 TVS/ESD Arrays - RLSD52AxxxV Series Part Number Code R L S LOGO D 5 Package SOD-523 2 A 0 Straight foot overhanging 5 1 Vrwm:5V C V= Unidirectional C= Bidirectional Protects 1 Lines Tape and reel 6 R7 5. R2 12.3 0 8. 3000 2500 2000 500 .5 1000 54.4 5.6 R6 8.00 1500 R2 12.3 9.5 A-A Ordering Information Warehouse Storage Conditions of Products Storage Conditions: Part Number Package Min. Order Qty. RLSD52AxxxV SOD-523 3000pcs 1. Storage Temperature: -10°C~+40°C 2. Relative Humidity:≤75%RH 3. Keep away from corrosive atmosphere and sunlight. 4· Period of Storage: 1 year Circuit Protection System Specifications are subject to change without notice. Page:5 RuiLongYuan Electronics Co., Ltd. · Reproducing and modifying information of the document is prohibited without permission from Ruilongyuan International Inc. · Ruilongyuan International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. · Ruilongyuan International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. · Ruilongyuan International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. · Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications.Ruilongyuan International Inc. makes no representation or warranty that such applications will be suitable for the specifed use without further testing or modifcation. · The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment,aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fullyindemnify Ruilongyuan International Inc. for any damages resulting from such improper use or sale. Circuit Protection System Specifications are subject to change without notice. Page:6
