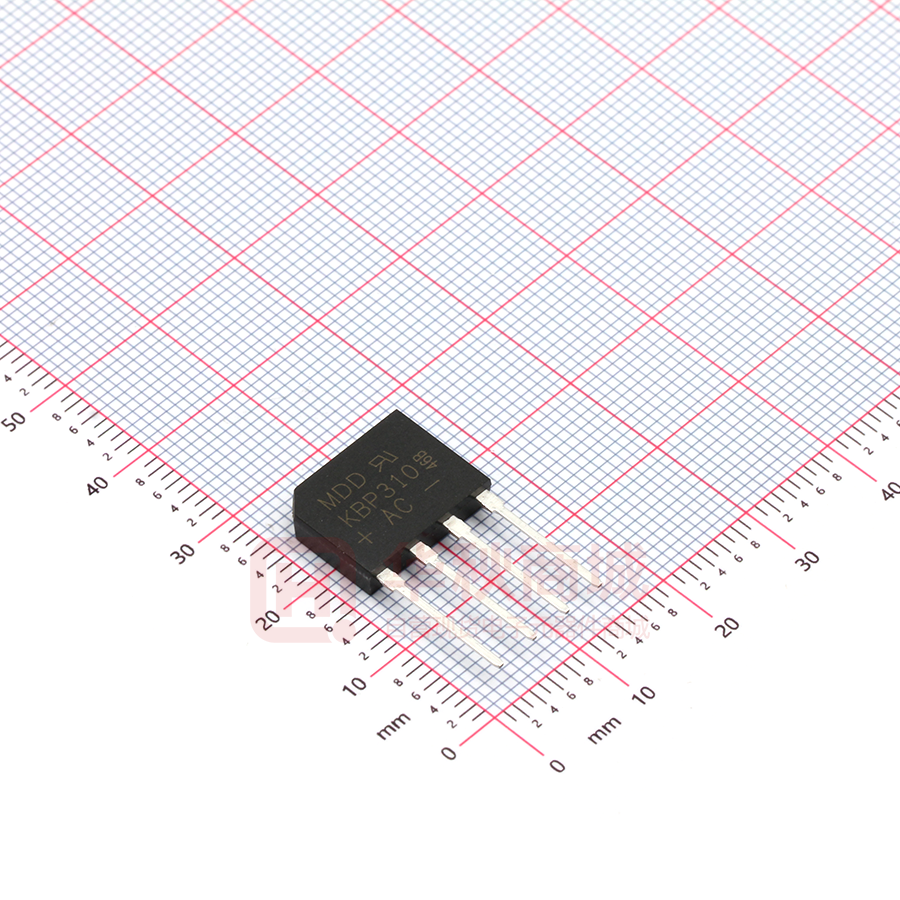

KBP310

KBP3005 THRU KBP310 Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Amperes SINGLE BRIDGE RECTIFIERS Features KBP  Glass Passivated Chip Junction  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 0.559(14.20) 0.543(13.80)  Ideal for printed circuit boards  Low reverse leakage  High forward surge current capability 0.043(1.1) 0.031(0.8) 0.126(3.20) 0.118(3.00) 0.417(10.6) 0.402(10.2) ~ - +~  High temperature soldering guaranteed: 260° C/10 seconds 0.087(2.2) 0.071(1.8) 0.056(1.42) 0.048(1.22) 0.539(13.7) 0.500(12.7) Mechanical Data 0.022(0.55) 0.012(0.3) Case : JEDEC KBP Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.050 ounce, 1.52 grams 0.16(4.06) 0.14(3.56) 0.034(0.86) 0.030(0.76) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward output rectified current at TC=100°C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage drop per birdge element at 3.0A Maximum DC reverse current TA=25°C at rated DC blocking voltage TA=125°C I2t Rating for fusing (3ms≤t ≤8.3ms) Typical Junction Capacitance per element (Note 1) SYMBOLS VRRM VRMS VDC MDD MDD MDD MDD MDD MDD MDD KBP3005 KBP301 KBP302 KBP304 KBP307 KBP308 KBP310 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V I(AV) 3.0 A IFSM 60 A VF 1.1 V IR I2t Cj 10 1 14.91 40 μA mA A2S pF Typical Thermal Resistance (Note 2) RθJA RθJC RθJL 55 10 18 °C/W Operating junction temperature range Storage temperature range TJ TSTG -55 to +150 °C -55 to +150 °C Note: (1) Measured at 1.0MHz and applied reverse voltage of 4.0V DC. (2) Thermal Resistance Junction to Case, Lead and Ambient. http://www.microdiode.com Rev:2024A3 Page :1 KBP3005 THRU KBP310 Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Amperes Ratings And Characteristic Curves Fig. 2 Maximum Non-repetitive Peak Forward Surge Current Fig. 1 Derating Curve for Output Rectified Current 80 Peak Forward Surge Current, Amperes Average Forward Outp ut Current, Amperes 3.0 2.0 60Hz Resistive of Inductive Load 1.0 0 0 50 100 8.3ms Single half-sine-Wave [JEDEC Method] 60 40 20 0 10 1 100 Number of Cycles at 60HZ 150 o Fig. 4 Typical Reverse Characteristics Case Temperature, C 10 Instantaneous Reverse Current ,Amperes Fig. 3 Typical Instantaneous Forward Characteristics 100 40 10 4.0 1.0 0.1 TA=25 C .01 0 20 40 60 80 100 120 140 Percent of Rated Peak Reverse Voltage, % 0.1 Tj=25 C Pulse Width=300us 2% duty cycle .01 0.6 0.7 0.8 0.9 1.0 1.1 Fig. 5 Typical Junction Capacitance 1.2 400 1.3 Instantaneous Forward Voltage, Volts Capacitance, pF Instantaneous Forward Current, Amperes 20 Tc=100 C 1.0 100 10 Tj=25 C f=1.0MHz Ving =50mV p.p. 1 1.5 2 10 100 Reverse Voltage, Volts The curve above is for reference only. http://www.microdiode.com Rev:2024A3 Page :2
