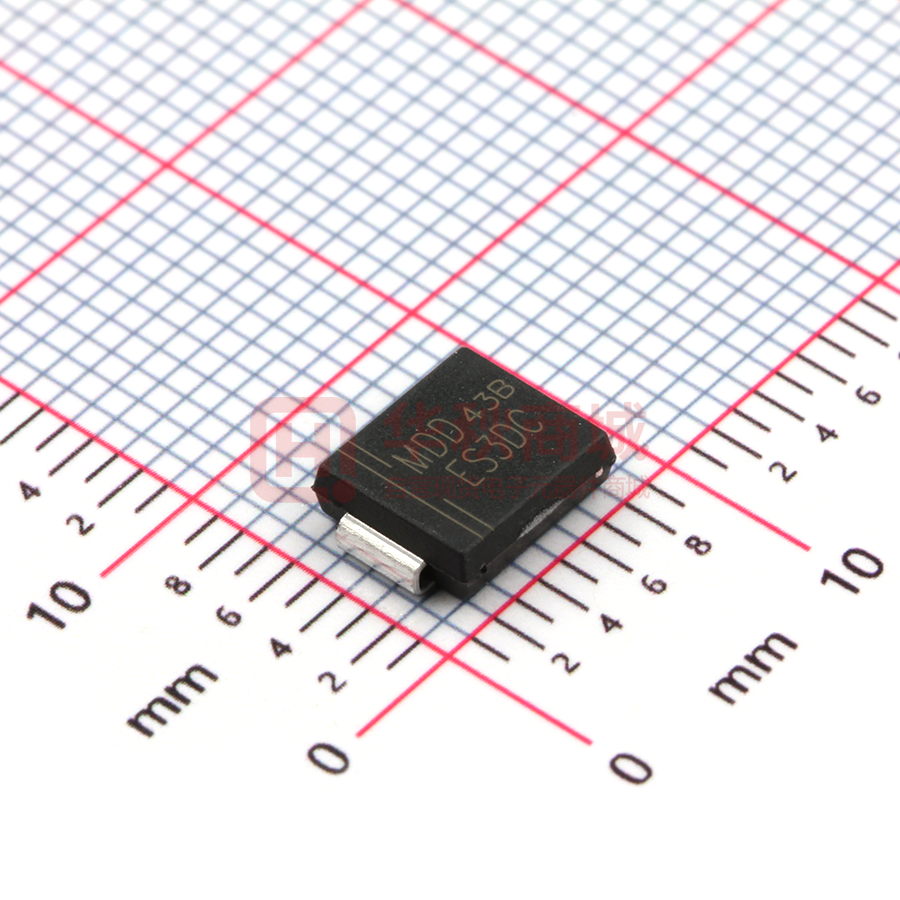

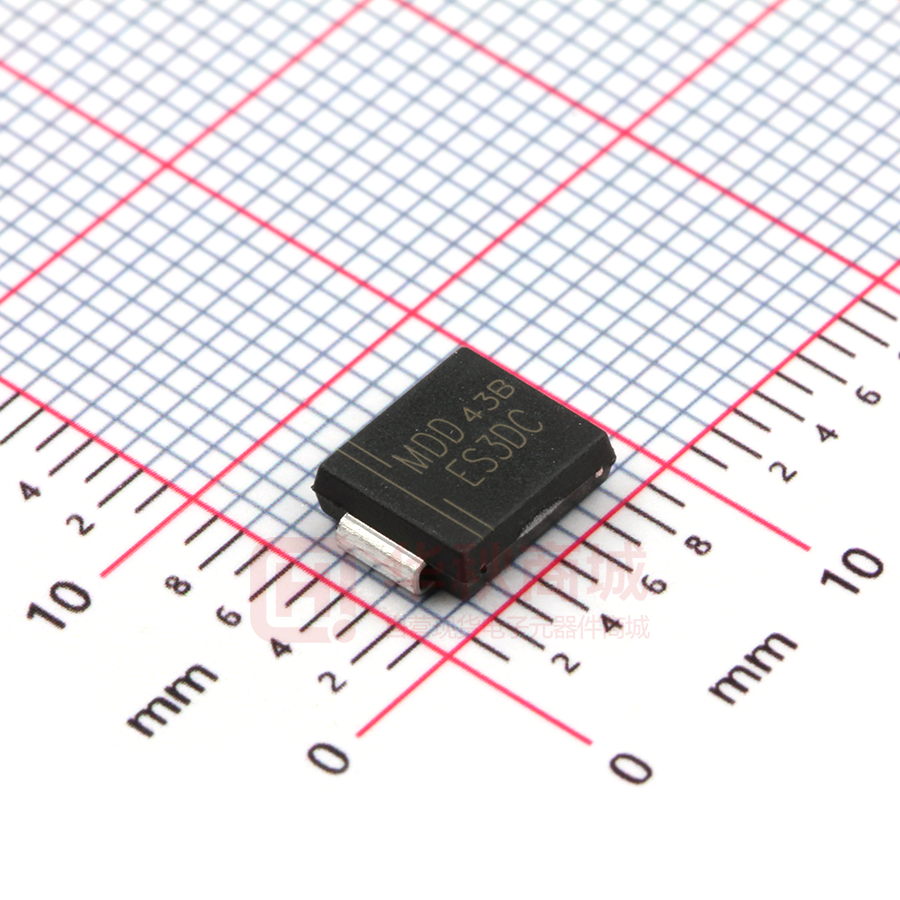

ES3DC

ES3AC THRU ES3JC Reverse Voltage - 50 to 600 Volts Forward Current - 3.0 Ampere SURFACE MOUNT SUPER FAST RECOVERY RECTIFIER Features  The plastic package carries Underwriters Laboratory DO-214AB/SMC Flammability Classification 94V-0  For surface mounted applications  Low reverse leakage  Built-in strain relief,ideal for automated  placement High forward surge current capability  High temperature soldering guaranteed: 0.245(6.22) 0.220(5.59) 0.126 (3.20) 0.114 (2.90) 0.280(7.11) 0.260(6.60)  250°C/10 seconds at terminals 0.012(0.305) 0.006(0.152) Glass passivated chip junction 0.103(2.62) 0.079(2.06) Mechanical Data 0.060(1.52) 0.030(0.76) Case : JEDEC DO-214AB/SMC Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.002 ounce, 0.198 grams 0.008(0.203)MAX. 0.320(8.13) 0.305(7.75) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter ES3AC ES3BC SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=55℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 3.0A Maximum DC reverse current at rated DCblocking voltage Maximum reverse recovery time TA=25℃ TA=125℃ (NOTE 1) VRRM VRMS VDC I(AV) ES3CC ES3DC ES3EC ES3GC MDD MDD MDD ES3AC ES3BC ES3CC 50 35 50 100 70 100 150 105 150 IFSM VF IR trr MDD MDD MDD ES3DC ES3EC ES3GC 200 140 200 300 210 300 400 280 400 ES3JC MDD ES3JC 600 420 600 UNITS V V V 3.0 A 100 A 0.95 1.25 1.7 V 5.0 100.0 μA 35 ns CJ 45.0 pF Typical thermal resistance (NOTE 3) RJA 47.0 ℃/W Operating junction and storage temperature range TJ,TSTG Typical junction capacitance (NOTE 2) -50to+150 ℃ Rev:2020A1 Page :1 Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas DN:T20519A0 http://www.microdiode.com ES3AC THRU ES3JC Reverse Voltage - 50 to 600 Volts Forward Current - 3.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE 3.0 2.4 1.8 Single Phase Half Wave 60Hz Resistive or inductive Load 1.2 0.6 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 100 80 60 40 20 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 20 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 1 0.1 ES3AC-ES3DC ES3EC-ES3GC ES3JC 0.01 0 0.4 0.8 1.2 1.6 1.8 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 10 1,000 100 10 TJ=100 C 1 TJ=25 C 0.1 0.01 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 0 20 40 60 80 100 200 100 10 TJ=25 C TRANSIENT THERMAL IMPEDANCE, C/W PERCENTAGE OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF 100 NUMBER OF CYCLES AT 60 Hz FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 1 0.1 1.0 10 100 REVERSE VOLTAGE,VOLTS t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2020A1 Page :2 ES3AC THRU ES3JC Reverse Voltage - 50 to 600 Volts Forward Current - 3.0 Ampere Packing information P0 unit:mm P1 d Item Symbol Tolerance SMC Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 6.15 8.41 2.42 1.50 330.00 50.00 13.00 1.75 7.50 8.00 4.00 2.00 0.25 16.00 16.50 E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) SMC 13" 3,000 4.0 INNER BOX (mm) REEL DIA, (mm) 190*190*41 330 BOX (pcs) 6000 CARTON SIZE (mm) 365*365*340 CARTON (pcs) 42000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout Symbol Unit (mm) A 4.3 0.170 B 0.160 C 4.1 7.9 0.311 D 3.8 0.150 E 12 0.472 Unit (inch) Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). http://www.microdiode.com Rev:2020A1 Page :3
