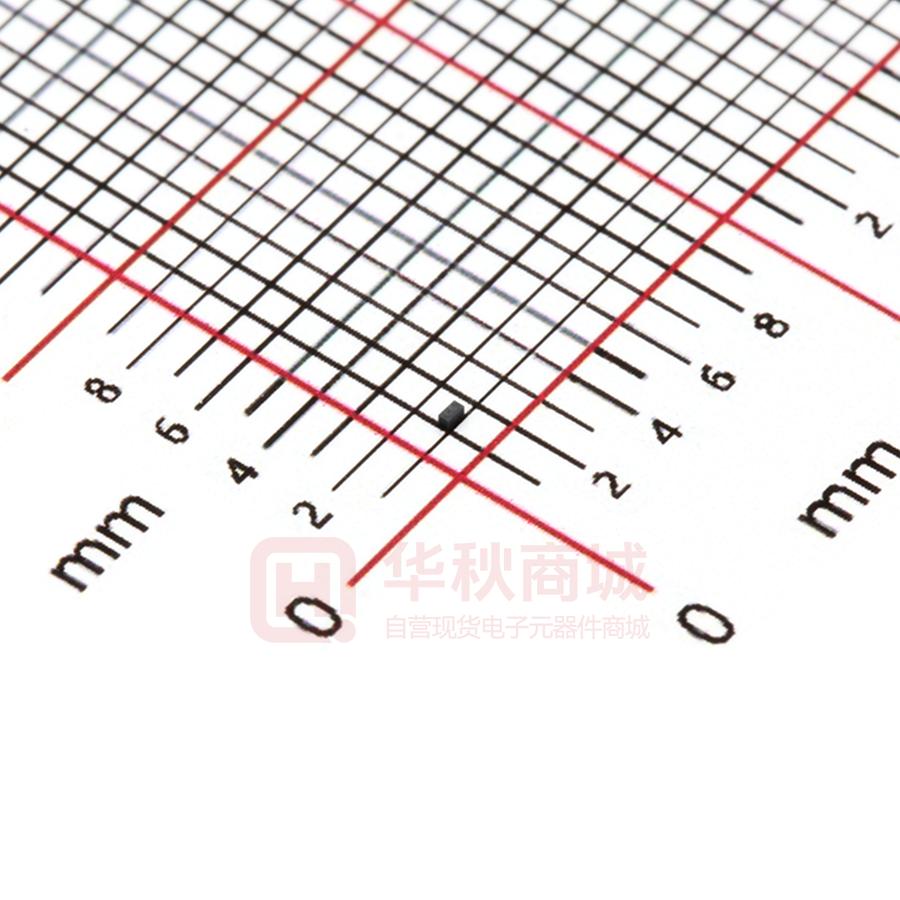

PESDNC2XD5VB

PESDNC2XD5VB ESD Protector Description The PESDNC2XD5VB protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level 1 2 protection, such as fast response time, low operating voltage. It gives designer the flexibility to protect one unidirectional line in applications where arrays are not practical. Applications Feature  DFN0603-2L package  Cellular phones  Replacement for MLV(0201)  Portable devices  Bidirectional configurations  Digital cameras  Response time is typically < 1 ns  Power supplies  Low clamping voltage  RoHS compliant  Transient protection for data lines to IEC 61000-4-2(ESD) ±30KV(air), ±30KV(contact); IEC 61000-4-4 (EFT) 40A (5/50ns) Mechanical Characteristics  Lead finish:100% matte Sn(Tin)  Mounting position: Any  Qualified max reflow temperature:260℃  Device meets MSL 2 requirements  Pure tin plating: 7 ~ 17 um  Pin flatness:≤3mil Electronics Parameter Symbol Parameter VRWM Peak Reverse Working Voltage Rev.06.5 IR Reverse Leakage Current @ VRWM VBR Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ IF I IPP VC VBR VRWM IT IR V IR IT VRWM VBR VC IPP 1 www.prisemi.com ESD Protector PESDNC2XD5VB Electrical characteristics per line@25℃( unless otherwise specified) Parameter Symbol Conditions Peak Reverse Working Voltage VRWM Breakdown Voltage VBR It = 1mA Reverse Leakage Current IR VRWM = 5V T=25℃ Clamping Voltage VC IPP = 1A tP = 8/20μs Clamping Voltage VC IPP = 5A Junction Capacitance Cj VR=0V Min. Typ. Max. Units 5.0 V 5.6 V 1 μA 5.5 7.5 V tP = 8/20μs 7.5 9.5 V f = 1MHz 10 15 pF Absolute maximum rating@25℃ Rating Symbol Value Units Operating Temperature TJ -55 to +150 ℃ Storage Temperature TSTG -55 to +150 ℃ Peak pulse power(tp=8/20us) PPK 40 W Peak pulse current(tp=8/20us) IPP 5 A tf=8μs 100 100 80 60 % Of Rated Power IPP – Peak Pulse Current - % of IPP Typical Characteristics tP =20μs(IPP /2) 40 80 60 40 20 20 0 0 0 5 10 15 t - Time -μs 20 25 0 30 Fig 1.Pulse Waveform Rev.06.5 25 50 75 100 125 TL – Lead Temperature - ℃ 150 Fig 2.Power Derating Curve 2 www.prisemi.com ESD Protector PESDNC2XD5VB 20 16 7.1 6.9 12 IR(nA) Breakdown Voltage (V) (VZ @ IZ) 7.3 6.7 8 6.5 4 6.3 -55 +25 0 +150 0 25 50 75 Temperature (ºC) Temperature (ºC) Fig 3.Typical Breakdown Voltage vs. Temperature 100 125 150 Fig 4.Typical Leakage Current vs. Temperature 10 1000 Pulse waveform: tp=8/20us Peak Pulse Power (W) VC-Clamping Voltage (V) 8 6 4 2 0 0 2 6 4 100 10 1 8 1 IPP-Peak pulse current (A) 1000 100 10 Pulse Duration(us) Fig 5. Clamping voltage vs. Peak pulse current Fig 6. Non-Repetitive Peak Pulse Power vs. Pulse time 40 Current (A) 30 20 10 0 0 2 4 6 8 10 12 14 16 40ns/div Voltage (V) ESD clamping voltage (IEC61000-4-2 +8KV contact) Fig 6. TLP Measurement Rev.06.5 3 www.prisemi.com ESD Protector PESDNC2XD5VB 40ns/div ESD clamping voltage (IEC61000-4-2-8KV contact) Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec 280 240 200 160 120 80 40 0 0 30 60 90 120 150 180 240 210 270 300 330 360 390 420 450 480 Time (sec) PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06.5 4 www.prisemi.com ESD Protector PESDNC2XD5VB Product dimension (DFN0603-2L) D L1 E 2 E B 1 L2 H2 H1 F1 F2 A Millimeters Dim 0.79 0.32 0.3 0.25 Unit:mm MIN Typ. MAX A 0.290 0.300 0.325 B 0.210 0.240 0.270 D 0.570 0.600 0.630 E 0.270 0.300 0.330 F1 0.140 0.170 0.200 F2 0.140 0.170 0.200 L1 0.015 0.030 0.045 L2 0.015 0.030 0.045 H1 0.030 0.045 0.060 H2 0.030 0.045 0.060 Ordering information Device Package Shipping PESDNC2XD5VB DFN0603-2L (Pb-Free) 10000 / Tape & Reel Rev.06.5 5 www.prisemi.com ESD Protector PESDNC2XD5VB IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06.5 6 www.prisemi.com
