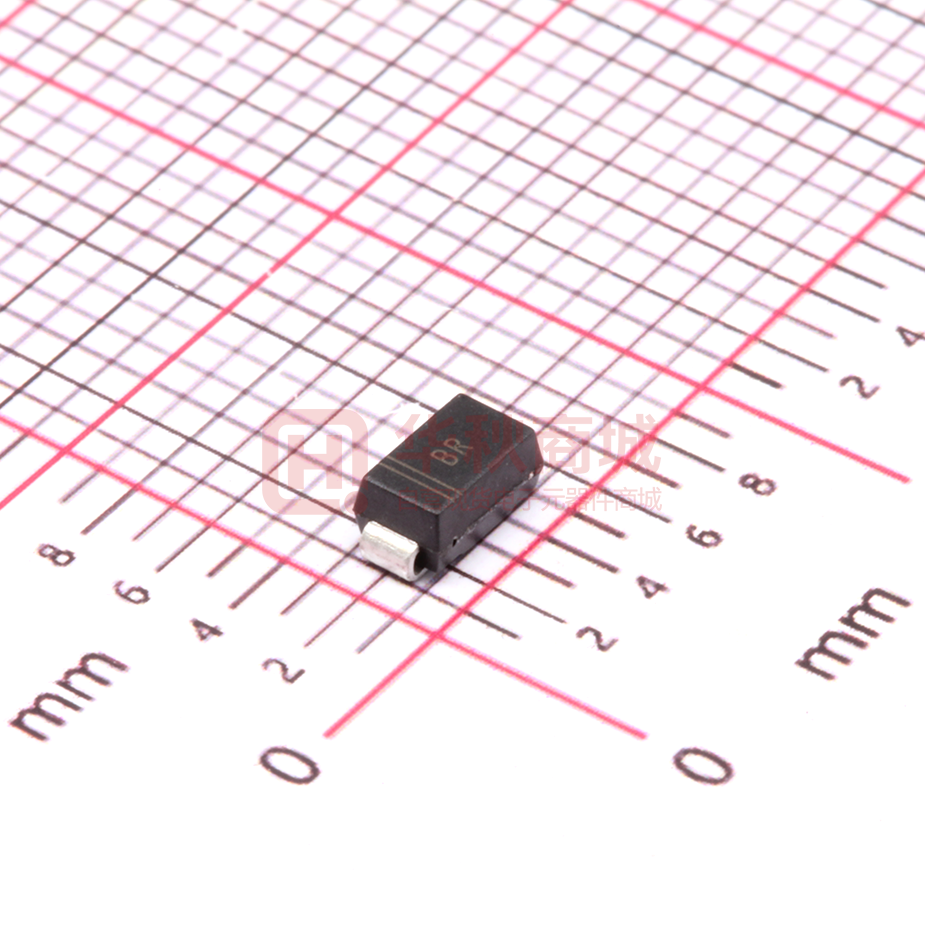

SMAJ17A

SMA6J Series Surface Mount Transient Voltage Suppressors Reverse Voltage: 5.0 to 58 V Peak Pulse Power: 600 W Features ● ● ● ● ● ● ● SMA/ DO-214AC Glass passivated chip 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 % Low leakage Uni and Bidirectional unit Excellent clamping capability Very fast response time RoHS compliant ● ● ● ● [ ] 0.109 2.76 0.099 2.51 [ ] 0.179 4.55 0.162 4.10 Mechanical Data ● [ ] 0.064 1.63 0.049 1.23 Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Solderable per MIL-STD-750, method 2026 Polarity: Color band denotes cathode end except Bipolar Mounting position: Any [ ] 0.012 0.30 0.006 0.15 [ ] 0.089 2.26 0.077 1.96 [ ] 0.206 5.22 0.192 [4.87] [ ] 0.06 1.51 0.03 0.75 0.008 0.20 0 0.00 Dimensions : inch [ mm ] Maximum Ratings(TA=25℃ unless otherwise noted) Parameter (1) Peak power dissipation with a 10/1000μs waveform Peak pulse current wih a 10/1000μs waveform(1) Power dissipation on infinite heatsink at TL = 75 °C Peak forward surge current, 8.3 ms single half sinewave unidirectional only(2) Maximum instantaneous forward voltage at 25 A for (3) unidirectional only Operating junction and storage temperature range Value Symbol PPP 600 IPP See Next Table PD 3.0 UNIT W A W IFSM 60 A VF 3.5 V TJ, TSTG –55 to +150 °C Note: (1)Non-repetitive current pulse per Fig.5 and derated above TA= 25 °C per Fig.1 (2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com SMA6J Series Surface Mount Transient Voltage Suppressors Ratings and Characteristics Curves (TA=25℃ unless otherwise noted) 80 0 100 25 100 175 0 75 Peak Forward Surge Current, (A) Peak Pulse Derating in Percentage of Peak Power or Current, (%) AVERAGE FORWARD CURRENT, (A) AMBIENT TEMPERATURE , (℃) 100 50 25 0 25 50 75 100 125 150 175 60 8.3 ms Single Half Sine-Wave 100 60 18 40 20 0 0 TJ = TJ max. 1 200 1 10 Ambient Temperature ,TA (℃) Fig. 1 - Pulse Derating Curve Fig. 2 - Maximum Non-Repetitive Surge Current 100 3.0 3 0.1 30 73 3 10000 0.22 Steady State Power Dissipation, (W) 0 ## 0 2.0 10 1.0 0.0 1 0 25 50 75 100 125 150 175 0.1 200 0.1 1 10 Lead Temperature , TL (℃) TJ = 25 °C Pulse Width (td) is defined as the point where the peak current 0 0 decays to 50 % of Ipp 1000 0.2 100 Half Value = Ipp 0.5 2 76 1 50 1.5 33 μsec. Waveform 210/1000 23 as defined by R.E.A. 3 13 4 10 50 td 1 2 10000 3 4 450 3000 50 5 450 Bi-directional @zero bias Uni-directional @zero bias Uni-directional 2000 @V 22RWM 100 5 10 1 0 450 1650 4 5 450 1400 5 TJ=25 °C f=1.0MHz 1 10 Bi-directional @VRWM 100 1000 Reverse Breakdown Voltage,VBR (V) Time , (ms) Fig. 5 - Pulse Waveform Revision:20170701-P1 5 Junction Capacitance,CJ (pF) Peak Pulse Current , (% ) 100 1000 Fig. 4 - Peak Pulse Power Rating Curve 10000 Tr=10μs Peak Value (Ipp) 100 Pulse Width ,td (μs) Fig. 3 - Steady State Power Derating Curve 0 100 Number of Cycles at 60 Hz ht t p : // Fig. 6 - Typical Junction Capacitance www.lgesem i .c o m mail:lge@lgesemi.com SMA6J Series Surface Mount Transient Voltage Suppressors Electrical Characteristics(TA=25℃ unless otherwise noted) Part Number Part Number (Uni) (Bi) SMA6J5.0A SMA6J6.0A SMA6J6.5A SMA6J7.0A SMA6J7.5A SMA6J8.0A SMA6J8.5A SMA6J9.0A SMA6J10A SMA6J11A SMA6J12A SMA6J13A SMA6J14A SMA6J15A SMA6J16A SMA6J17A SMA6J18A SMA6J19A SMA6J20A SMA6J22A SMA6J24A SMA6J26A SMA6J28A SMA6J30A SMA6J33A SMA6J36A SMA6J40A SMA6J43A SMA6J45A SMA6J48A SMA6J51A SMA6J54A SMA6J58A SMA6J5.0CA SMA6J6.0CA SMA6J6.5CA SMA6J7.0CA SMA6J7.5CA SMA6J8.0CA SMA6J8.5CA SMA6J9.0CA SMA6J10CA SMA6J11CA SMA6J12CA SMA6J13CA SMA6J14CA SMA6J15CA SMA6J16CA SMA6J17CA SMA6J18CA SMA6J19CA SMA6J20CA SMA6J22CA SMA6J24CA SMA6J26CA SMA6J28CA SMA6J30CA SMA6J33CA SMA6J36CA SMA6J40CA SMA6J43CA SMA6J45CA SMA6J48CA SMA6J51CA SMA6J54CA SMA6J58CA Device Marking Code Uni Bi KE KG KK KM KP KR KT KV KX KZ LE LG LK LM LP LR LT LB LV LX LZ ME MG MK MM MP MR MT MV MX MZ NE NG WE AG AK AM AP AR AT AV AX AZ BE BG BK BM BP BR BT BB BV BX BZ CE CG CK CM CP CR CT CV CX CZ DE DG Maximum Reverse Breakdown Voltage VBR @IT Leakage IR @VRWM Min (V) Max (V) IT (mA) (uA) 6.40 6.67 7.22 7.78 8.33 8.89 9.44 10.00 11.10 12.20 13.30 14.40 15.60 16.70 17.80 18.90 20.00 21.10 22.20 24.40 26.70 28.90 31.10 33.30 36.70 40.00 44.40 47.80 50.00 53.30 56.70 60.00 64.40 7.00 7.37 7.98 8.60 9.21 9.83 10.40 11.10 12.30 13.50 14.70 15.90 17.20 18.50 19.70 20.90 22.10 23.30 24.50 26.90 29.50 31.90 34.40 36.80 40.60 44.20 49.10 52.80 55.30 58.90 62.70 66.30 71.20 10 10 10 10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 800 800 500 200 100 50 10 5.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 Working Peak Reverse Voltage VRWM (V) 5.0 6.0 6.5 7.0 7.5 8.0 8.5 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 22.0 24.0 26.0 28.0 30.0 33.0 36.0 40.0 43.0 45.0 48.0 51.0 54.0 58.0 Maximum Maximum Clamping Reverse Voltage VC Surge Current IPP @IPP (A) (V) 65.2 58.3 53.6 50.0 46.5 44.1 41.7 39.0 35.3 33.0 30.2 27.9 25.9 24.6 23.1 21.7 20.5 19.5 18.5 16.9 15.4 14.3 13.2 12.4 11.3 10.3 9.30 8.65 8.25 7.75 7.28 6.89 6.41 9.2 10.3 11.2 12.0 12.9 13.6 14.4 15.4 17.0 18.2 19.9 21.5 23.2 24.4 26.0 27.6 29.2 30.8 32.4 35.5 38.9 42.1 45.4 48.4 53.3 58.1 64.5 69.4 72.7 77.4 82.4 87.1 93.6 Note: 1. Suffix 'A ' denotes 5% tolerance device. Without 'A' denotes 10% tolerance device 2. Add suffix 'C 'or ' CA ' after part number to specify Bi-directional devices 3. For Bi-Directional devices having VR of 10 volts and under, the IR limit is double Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com
