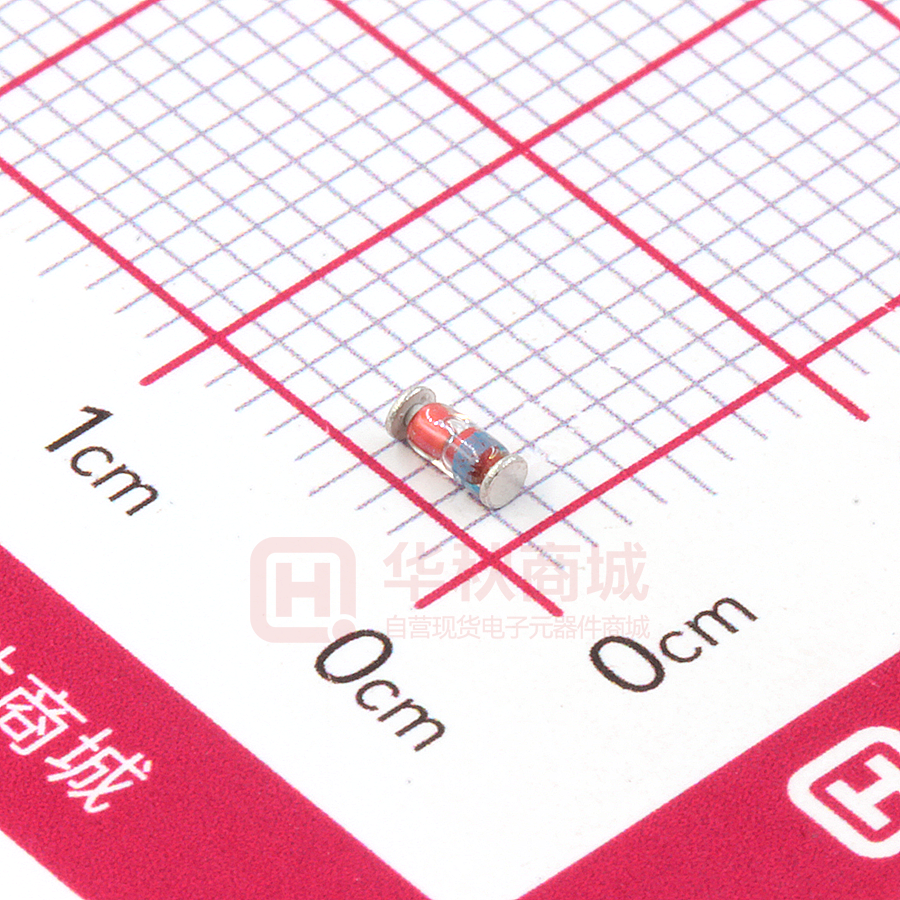

BZV55B11

BZV55B SERIES 500mW.Hermetically Sealed Glass Zener Voltage Rectifiers MINI-MELF Features — — — — — — — — — Zener voltage range 2.0 to 75 volts LL-34(Mini-MELF) package Surface device type mounting Hermetically sealed glass Compression Bonded Construction All external surfaces are corrosion resistant and terminals are readily solderable RoHS compliant Matte Tin(Sn) lead finish Blue color band indicates negative polarity Dimension in millimeters Maximum Ratings and Electrical Characteristics Rating at 25 oC ambient temperature unless otherwise specified. Type Number Power Dissipation Operating and Storage Temperature Range Notes: Value Units 500 -65 to + 200 mW o C These ratings are limiting values above which the serviceability of the diode may be impaired ht t p : // Revision:20170701-P1 Symbol Ptot TJ, TSTG www.lgesemi .c o m mail:lge@lgesemi.com BZV55B SERIES 500mW.Hermetically Sealed Glass Zener Voltage Rectifiers TKVZ - Temperature Coefficient of VZ (10-4/K) Ptot - Total Power Dissipation (mW) RATINGS AND CHARACTERISTIC CURVES (BZV55B SERIES) 600 500 400 300 200 100 0 0 40 80 120 160 200 Tamb - Ambient Temperature (°C) Figure 1. Total Power Dissipation vs. Ambient Temperature 15 10 5 IZ = 5 mA 0 -5 0 CD - Diode Capacitance (pF) Tj = 25 °C 100 IZ = 5 mA 10 150 VR = 2 V Tj = 25 °C 100 50 0 0 5 10 15 20 0 25 5 Figure 2. Typical Change of Working Voltage under Operating Conditions at Tamb=25°C 15 20 25 Figure 5. Diode Capacitance vs. Z-Voltage 100 1.3 1.2 IF - Forward Current (mA) VZtn = VZt/VZ (25 °C) TKVZ = 10 x 10-4/K 8 x 10-4/K 6 x 10-4/K 1.1 4 x 10-4/K 2 x 10-4/K 1.0 0 - 2 x 10-4/K - 4 x 10-4/K 0.9 0.8 - 60 10 VZ - Z-Voltage (V) VZ - Z-Voltage (V) VZtn - Relative Voltage Change 50 200 1 10 Tj = 25 °C 1 0.1 0.01 0.001 0 60 120 180 0 240 Figure 3. Typical Change of Working Voltage vs. Junction Temperature ht t p : // 0.2 0.4 0.6 0.8 1.0 VF - Forward Voltage (V) Tj - Junction Temperature (°C) Revision:20170701-P1 20 40 30 VZ - Z-Voltage (V) Figure 4. Temperature Coefficient of Vz vs. Z-Voltage 1000 VZ - Voltage Change (mV) 10 Figure 6. Forward Current vs. Forward Voltage www.lgesemi .c o m mail:lge@lgesemi.com BZV55B SERIES 500mW.Hermetically Sealed Glass Zener Voltage Rectifiers RATINGS AND CHARACTERISTIC CURVES (BZV55B SERIES) rZ - Differential Z-Resistance (Ω) 100 IZ - Z-Current (mA) 80 Ptot = 500 mW Tamb = 25 °C 60 40 20 0 0 4 6 12 8 1000 IZ = 1 mA 100 5 mA 10 10 mA Tj = 25 °C 1 0 20 5 VZ - Z-Voltage (V) 10 15 20 25 VZ - Z-Voltage (V) Figure 9. Differential Z-Resistance vs. Z-Voltage Figure 7. Z-Current vs. Z-Voltage IZ - Z-Current (mA) 50 Ptot = 500 mW Tamb = 25 °C 40 30 20 10 0 15 20 25 35 30 VZ - Z-Voltage (V) Zthp - Thermal Resistance for Pulse Cond. (KW) Figure 8. Z-Current vs. Z-Voltage 1000 tP/T = 0.5 100 tP/T = 0.2 Single Pulse 10 RthJA = 300 K/W T = Tjmax - Tamb tP/T = 0.01 tP/T = 0.1 tP/T = 0.02 tP/T = 0.05 1 10-1 iZM = (- VZ + (VZ2 + 4rzj x T/Zthp) 1/2)/(2rzj) 100 101 102 tP - Pulse Length (ms) Figure 10. Thermal Response ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com BZV55B SERIES 500mW.Hermetically Sealed Glass Zener Voltage Rectifiers ELECTRICAL CHARACTERISTICS (TA=25OC VZ @ IZT (Volts) unless otherwise noted) VZ Min (V) VZ Max (V) IZT mA ZZT @ IZT Ohms Max IZK mA ZZK @ IZK Ohms IR @ VR uA Max VR V BZV55B2V0 1.96 2.04 5 100 1.0 600 50 1.0 BZV55B2V2 2.16 2.24 5 100 1.0 600 50 1.0 BZV55B2V4 2.35 2.45 5 85 1.0 600 50 1.0 BZV55B2V7 2.65 2.75 5 85 1.0 600 10 1.0 BZV55B3V0 2.94 3.06 5 85 1.0 600 4 1.0 BZV55B3V3 3.23 3.37 5 85 1.0 600 2 1.0 BZV55B3V6 3.53 3.67 5 85 1.0 600 2 1.0 BZV55B3V9 3.82 3.98 5 85 1.0 600 2 1.0 BZV55B4V3 4.21 4.39 5 75 1.0 600 1 1.0 BZV55B4V7 4.61 4.79 5 60 1.0 600 0.5 1.0 BZV55B5V1 5.00 5.2 5 35 1.0 550 0.1 1.0 BZV55B5V6 5.49 5.71 5 25 1.0 450 0.1 1.0 BZV55B6V2 6.08 6.32 5 10 1.0 200 0.1 2.0 BZV55B6V8 6.66 6.94 5 8 1.0 150 0.1 3.0 BZV55B7V5 7.35 7.65 5 7 1.0 50 0.1 5.0 BZV55B8V2 8.04 8.36 5 7 1.0 50 0.1 6.2 BZV55B9V1 8.92 9.28 5 10 1.0 50 0.1 6.8 BZV55B10 9.80 10.2 5 15 1.0 70 0.1 7.5 BZV55B11 10.78 11.22 5 20 1.0 70 0.1 8.2 BZV55B12 11.76 12.24 5 20 1.0 90 0.1 9.1 BZV55B13 12.74 13.26 5 26 1.0 110 0.1 10 BZV55B15 14.70 15.30 5 30 1.0 110 0.1 11 BZV55B16 15.68 16.32 5 40 1.0 170 0.1 12 BZV55B18 17.64 18.36 5 50 1.0 170 0.1 13 BZV55B20 19.60 20.40 5 55 1.0 220 0.1 15 BZV55B22 21.56 22.44 5 55 1.0 220 0.1 16 BZV55B24 23.52 24.48 5 80 1.0 220 0.1 18 BZV55B27 26.46 27.54 2 80 1.0 220 0.1 20 BZV55B30 29.40 30.60 2 80 1.0 220 0.1 22 BZV55B33 32.34 33.66 2 80 1.0 220 0.1 24 BZV55B36 35.28 36.72 2 80 1.0 220 0.1 27 BZV55B39 38.22 39.78 2 90 0.5 500 0.1 28 BZV55B43 42.14 43.86 2 90 0.5 600 0.1 32 BZV55B47 46.06 47.94 2 110 0.5 700 0.1 35 BZV55B51 49.98 52.02 2 125 0.5 700 0.1 38 BZV55B56 54.88 57.12 2 135 0.5 1000 0.1 42 BZV55B62 60.76 63.24 2.5 150 0.5 1000 0.1 47 Type Number BZV55B68 66.64 69.36 2.5 160 0.5 1000 0.1 51 BZV55B75 73.50 76.50 2.5 170 0.5 1000 0.1 56 VF Forward Voltage = 1.0v Maximum @ IF=100mA for all types. Notes: 1. The type numbers listed have zener voltage min/max limits as shown. 2. The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to 10% of the dc zener current (IZT or IZK) is superimposed to IZT or IZK. Version: C08 ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com
