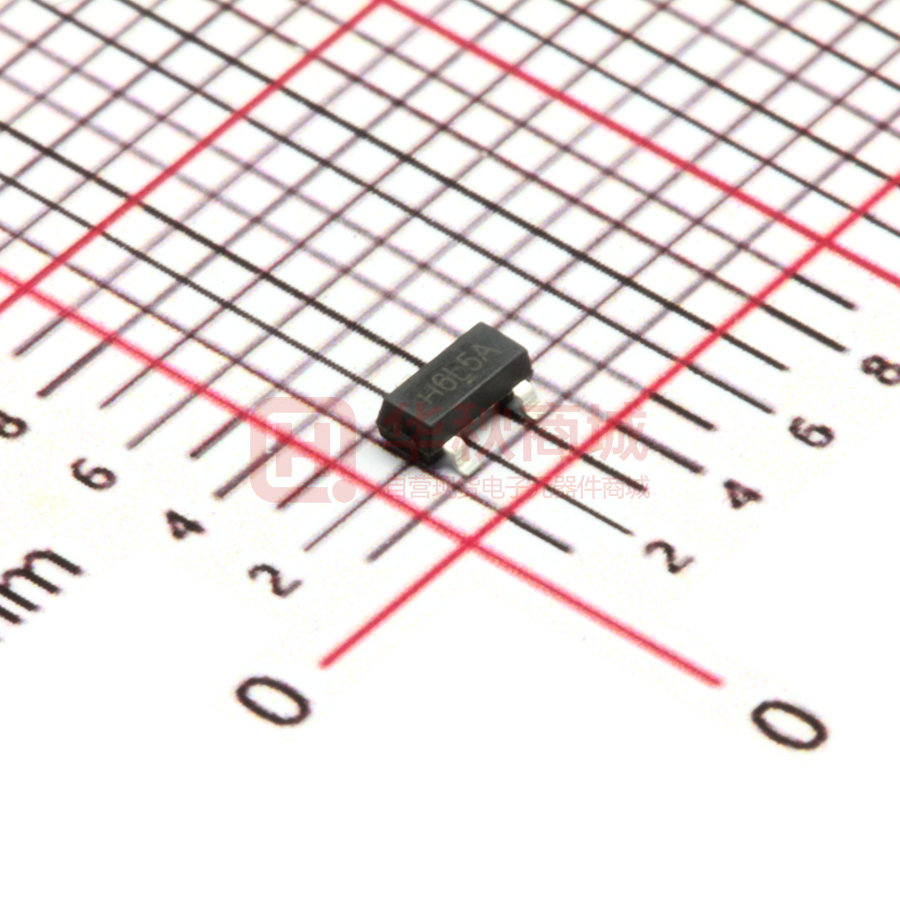

SL3406

SL3406 N-Channel Power MOSFET Product Summary ● VDS ● ID ● RDS(ON)( at VGS=10V) ● RDS(ON)( at VGS=4.5V) 30V 5.6A ＜29 mohm ＜40 mohm General Description ● Trench Power LV MOSFET technology ● High density cell design for low RDS(ON) ● High Speed switching Applications ● Battery protection ● Load switch ● Power management ■ Absolute Maximum Ratings (TA=25℃unless otherwise noted) Parameter Symbol Limit Drain-source Voltage VDS 30 V Gate-source Voltage VGS ±20 V Drain Current TA=25℃ @ Steady State ID TA=70℃ @ Steady State 5.6 4.5 Unit A Pulsed Drain Current A IDM 30 A Total Power Dissipation @ TA=25℃ PD 1.2 W RθJA 104 ℃/ W TJ ,TSTG -55～+150 ℃ Thermal Resistance Junction-to-Ambient @ Steady State B Junction and Storage Temperature Range www.slkormicro.com 1 SL3406 ■ Electrical Characteristics (TJ=25℃ unless otherwise noted) Parameter Symbol Conditions Min Typ Max Units Drain-Source Breakdown Voltage BVDSS VGS= 0V, ID=250μA 30 Zero Gate Voltage Drain Current IDSS VDS=30V,VGS=0V 1 μA IGSS VGS= ±20V, VDS=0V ±100 nA Gate Threshold Voltage VGS(th) VDS= VGS, ID=250μA 1.5 2.2 V 21 29 Static Drain-Source On-Resistance RDS(ON) Static Parameter Gate-Body Leakage Current VGS=10V, ID=5.6A Diode Forward Voltage Maximum Body-Diode Continuous Current 1 V mΩ VGS= 4.5V, ID=5.0A 27 40 IS=5.6A,VGS=0V 0.8 1.2 V 5.6 A VSD IS Dynamic Parameters Input Capacitance Ciss 490 Output Capacitance Coss Reverse Transfer Capacitance Crss 68 Total Gate Charge Qg 5.2 Gate Source Charge Qgs Gate Drain Charge Qgd 1.3 Turn-on Delay Time tD(on) 4.5 Turn-on Rise Time tr VDS=15V,VGS=0V,f=1MHZ 92 pF Switching Parameters VGS=10V,VDS=15V,ID=5.6A 0.9 2.5 VGS=4.5V,VDD=15V, ID=1A, RGEN=2.8Ω Turn-off Delay Time Turn-off Fall Time ns tD(off) 14.5 tf 3.5 A. Pulse Test: Pulse Width≤300us,Duty cycle ≤2%. B. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch. www.slkormicro.com nC 2 SL3406 ■ Typical Performance Characteristics Figure1. Output Characteristics Figure2. Transfer Characteristics Figure3. Capacitance Characteristics Figure4. Gate Charge Figure5. Drain-Source on Resistance www.slkormicro.com Figure6. Drain-Source on Resistance 3 SL3406 Figure7. Safe Operation Area www.slkormicro.com Figure8. Switching wave 4 SL3406 ■ SOT-23 Package information www.slkormicro.com 5
