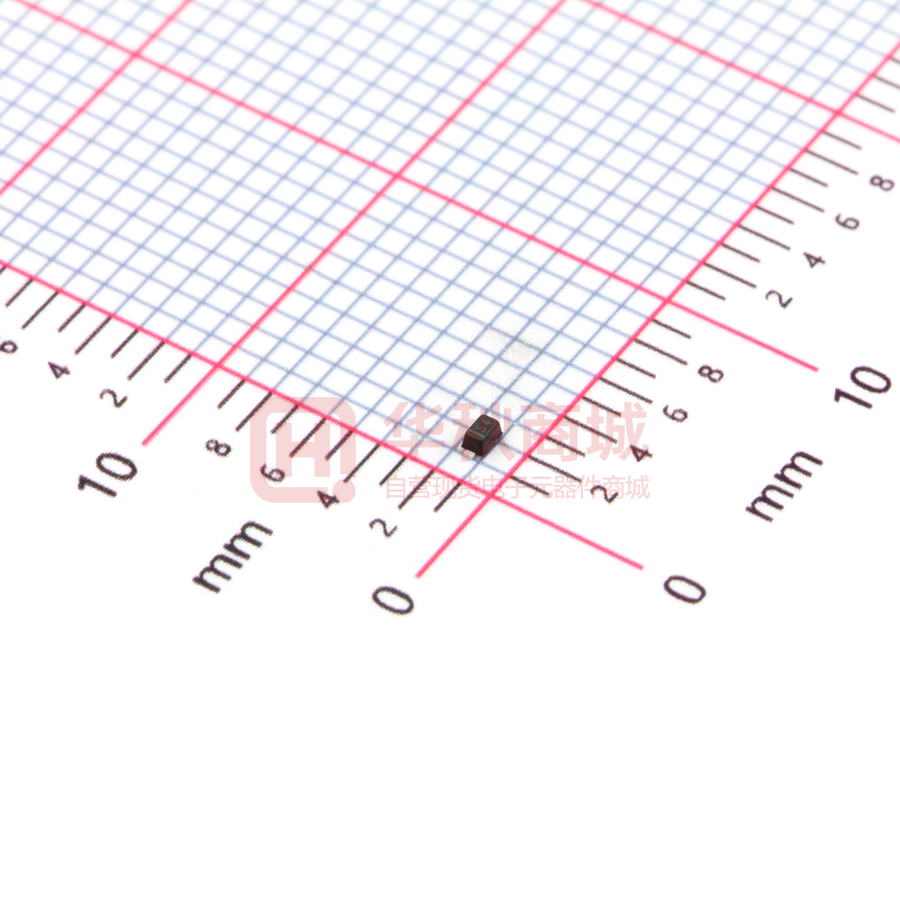

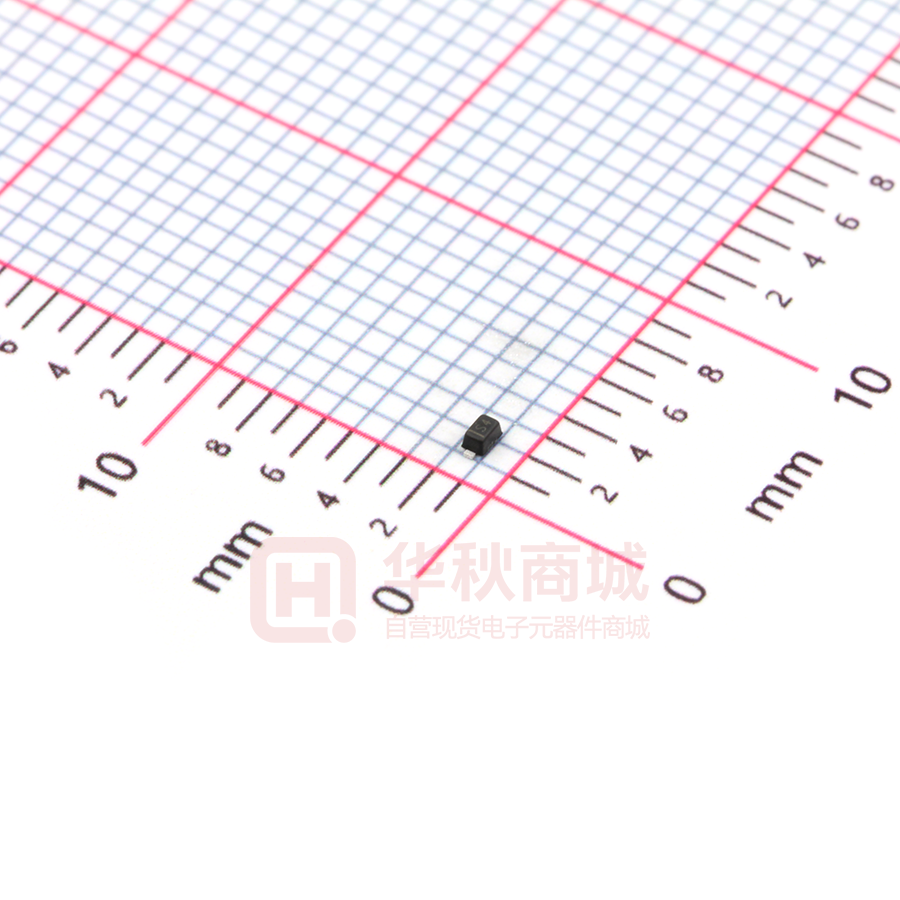

SD103AWT

SD103AWT THRU SD103WT Reverse Voltage 20~40 Volts Forward Current - 2 Ampere FAST SWITHING DIODES Features SOD-523  Low Forwa rd Voltage 0.033(0.85) 0.030(0.75) 0.015 (0.4) 0.012 (0.30) 0.049(1.25) 0.045(1.15) Mechanical Data 0.027(0.70) 0.023(0.60) Case: JEDEC SOD-523 molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight : 0.0007 ounce, 0.02 grams Marking;S4 0.005(0.135) 0.003(0.100) 0.035(0.90) 0.028(0.70) 0.067(1.70) 0.059(1.50) Dimensions in inches and (millimeters) Absolute Maximum Ratings at 25 °C Parameter Peak Repetitive Reverse Voltage Reverse Voltage Symbol SD103AWT SD103BWT SD103CWT SD103AWT SD103BWT SD103CWT Value Unit 40 30 20 40 30 20 VRRM VR V V Average Forward Rectified Current IF(AV) 350 mA Non-Repetitive Peak Forward Surge Current at t = 1 s IFSM 2 A Power Dissipation Ptot 200 mW Tj, Tstg - 65 to + 125 Operating and Storage Temperature Range C O Characteristics at Ta= 25 °C Symbol Min. Typ. Max. SD103AWT SD103BWT SD103CWT V(BR)R 40 30 20 - - SD103AWT SD103BWT SD103CWT IR - - 5 5 5 Forward Voltage at IF = 20 mA at IF = 200 mA VF - - 0.37 0.6 V Total Capacitance at VR = 0 V, f = 1 MHz CT - 50 - pF Reverse Recovery Time at IF = IR = 200 mA, Irr = 0.1 IR, RL = 100 Ω trr - 10 - ns Parameter Reverse Breakdown Voltage at IR =10uA Reverse Leakage Current at VR =30V at VR = 20 V at VR = 10 V Unit V µA DN:T20519A0 http://www.microdiode.com Rev:2020A0 Page :1 SD103AWT THRU SD103WT Reverse Voltage 20~40 Volts Forward Current - 2 Ampere Typical Characterisitics The curve above is for reference only. http://www.microdiode.com Rev:2020A0 Page :2
