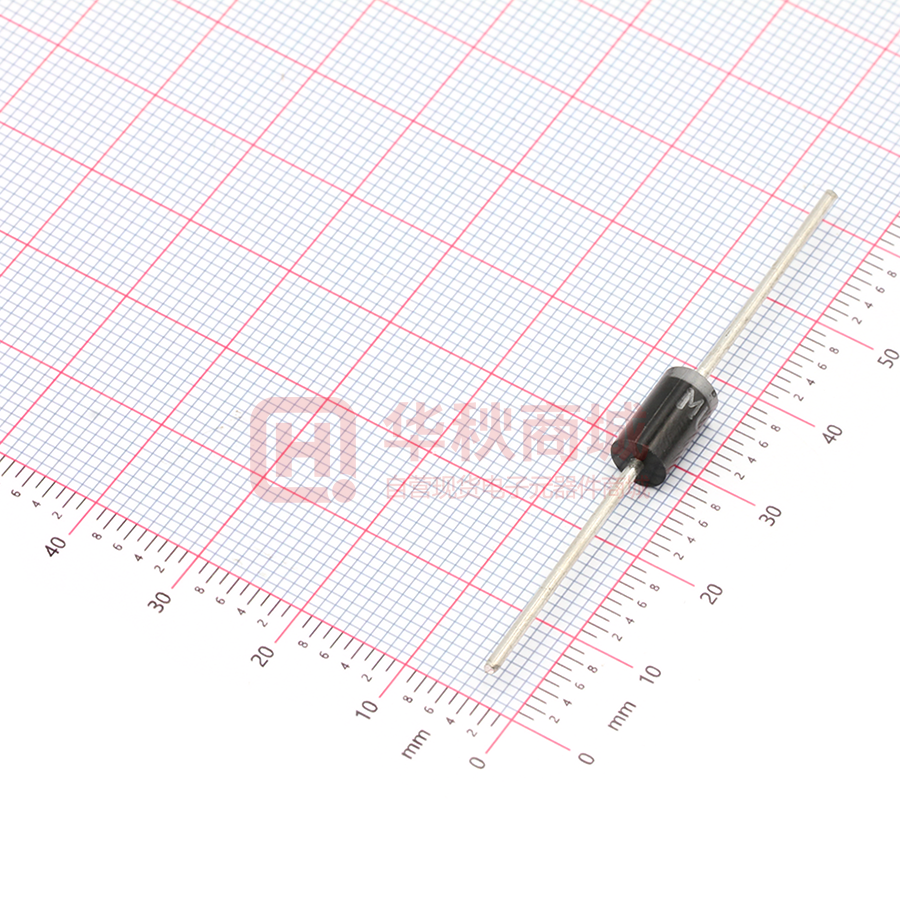

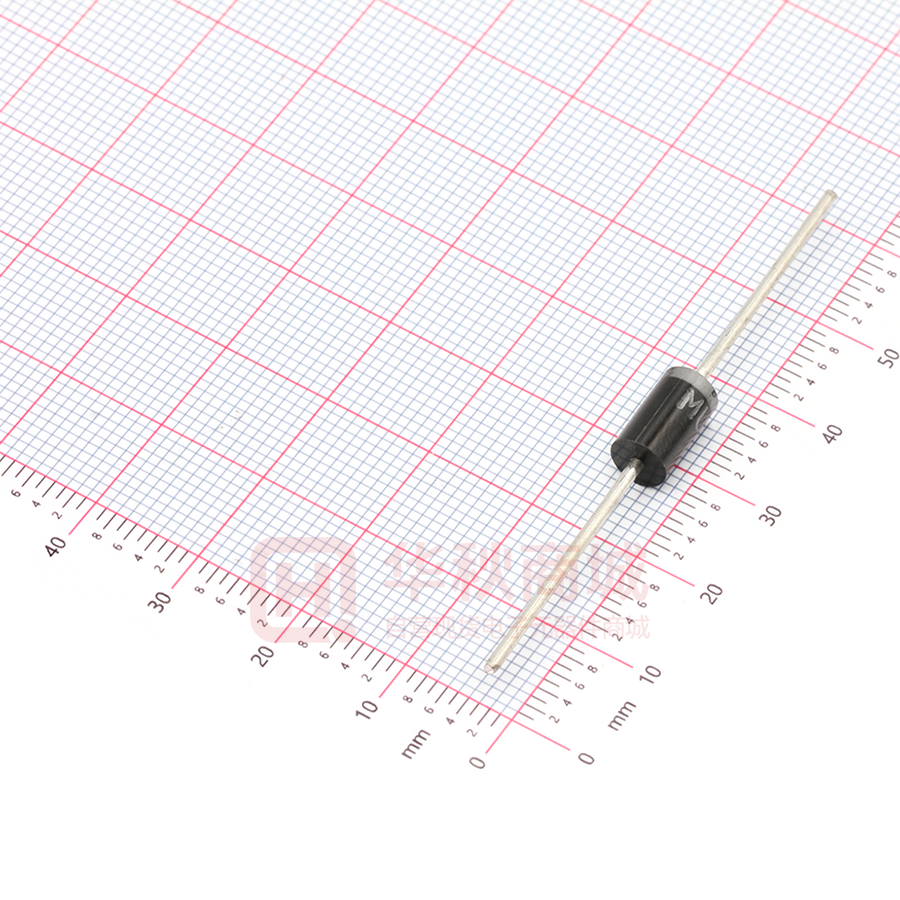

MUR4100

MUR405 THRU MUR4100 Reverse Voltage - 50 to 1000 Volts Forward Current - 4.0 Ampere ULTRA FAST RECTIFIERS Features DO-201AD  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Ultra fast switching for high efficiency 1.0 (25.4) MIN.  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed: 260℃/10 seconds,0.375”(9.5mm) lead length, 0.220(5.6) 0.197(5.0) DIA. 0.375(9.5) 0.285(7.2) 5 lbs. (2.3kg) tension  Glass passivated chip junction Mechanical Data 1.0 (25.4) MIN. Case : JEDEC DO-201AD Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.04 ounce, 1.10 grams 0.052(1.3) 0.048(1.2) DIA. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code VRRM V RMS V DC Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TA=55℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) MDD MDD MDD MUR460 MUR480 MUR4100 50 100 200 400 600 800 1000 35 70 140 280 420 560 50 100 200 400 600 800 700 1000 UNITS V V V IFSM 125 A trr , MDD MUR440 A Maximum reverse recovery time Operating junction and storage temperature range MDD MUR420 4.0 VF Typical thermal resistance (NOTE 2) MDD MUR410 I(AV) Maximum instantaneous forward voltage at 4.0A Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ (NOTE 1) MDD MUR405 0.89 0.95 1.3 1.7 5.0 50.0 IR 25 35 50 V μA 75 ns RθJA 28 ℃/W TJ,T STG -55 to +150 ℃ Note: 1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted http://www.microdiode.com Rev:2024A2 Page :1 MUR405 THRU MUR4100 Reverse Voltage - 50 to 1000 Volts Forward Current - 4.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE 4.0 3.2 2.4 Single Phase Half Wave 60Hz Resistive or inductive Load 1.6 0.8 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 125 100 75 50 25 175 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 AMBIENT TEMPERATURE, C INSTANTANEOUS FORWARD CURRENT,AMPERES 20 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 1 0.1 MUR405-MUR420 MUR440-MUR460 MUR480-MUR4100 0.01 0.2 0.6 1.0 1.4 1.8 2.0 INSTANTANEOUS REVERSE CURRENT, MICROAMPERES NUMBER OF CYCLES AT 60 Hz FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 10 FIG. 4-TYPICAL REVERSE CHARACTERISTICS 1,000 100 TJ=100 C 10 1 TJ=25 C 0.1 0.01 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 100 TJ=25 C 10 1.0 10 REVERSE VOLTAGE,VOLTS TRANSIENT THERMAL IMPEDANCE, C/W JUNCTION CAPACITANCE, pF FIG. 5-TYPICAL JUNCTION CAPACITANCE 0.1 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 200 1 100 10 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 100 t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 MUR405 THRU MUR4100 Reverse Voltage - 50 to 1000 Volts Forward Current - 4.0 Ampere Package Information Taping Specifications Item Symbol Specifications(mm) Component Pitch A 10.0±0.5 Inner Tape Pitch B 52.4±1.5 Component alignment Z 1.2 Max Tape width T 6.0±0.5 Exposed adhesive E 0.8 Max Body eccentricity L1-L2 1.0 Max Ammunition Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 255*74*145 1000 410*275*340 10000 Bulk Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 198*86*21 200 460*220*250 10000 http://www.microdiode.com Rev:2024A2 Page :3
