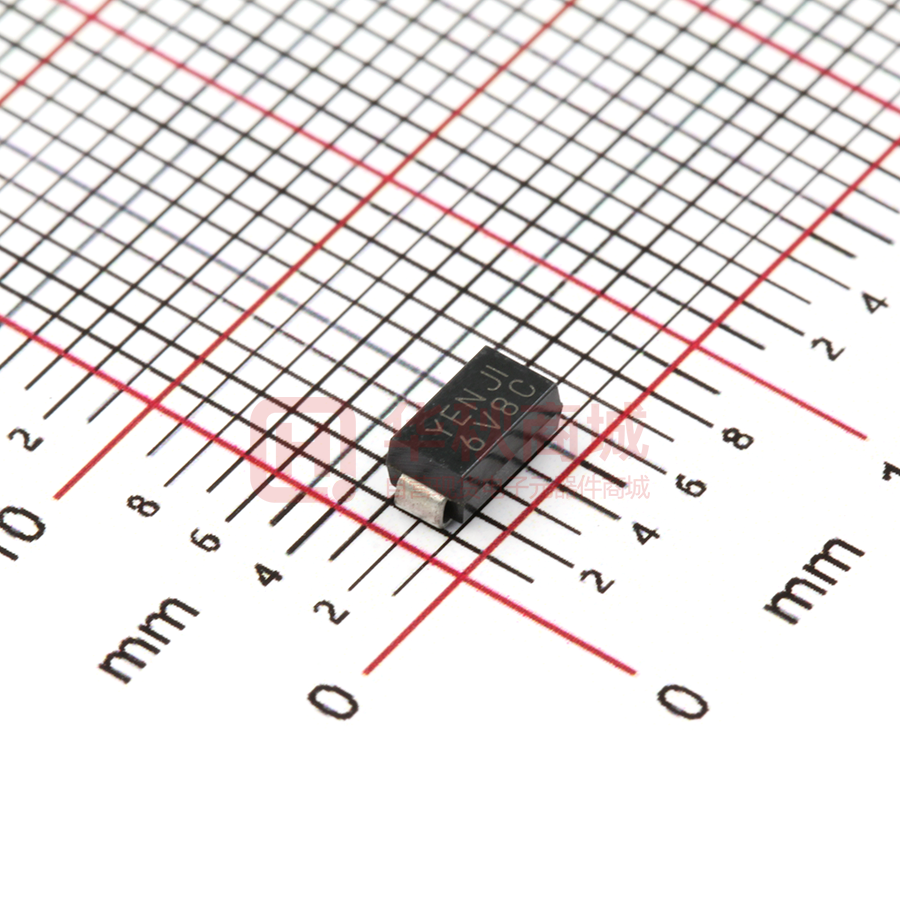

P4SMA6.8CA

P4SMA6.8(C)A THRU P4SMA550(C)A Stand-off Voltage - 6.8 to 550 Volts Peak Pulse Power - 400 W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR Features        DO-214AC/SMA 400W Peak Pulse Power Dissipation 6.8V - 550V Standoff Voltages Uni- and Bi-Directional Versions Available Excellent Clamping Capability Glass Passivated Die Construction Low inductance Fast Response Time Plastic Material: UL Flammability Classification Rating 94V-0 0.110(2.80) 0.100(2.54) 0.067 (1.70) 0.051 (1.30) 0.177(4.50) 0.157(3.99) Mechanical Data 0.012(0.305) 0.006(0.152) Case : SMA Molded plastic body Terminals : Solderable per MIL-STD-750,Method 2026 Polarity Indicator: Cathode Band(Note:Bi-directional deviced have no polarity indicator) Making: Data Code and Marking Code Weight : 0.00095ounce, 0.027grams 0.096(2.42) 0.078(1.98) 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.208(5.28) 0.188(4.80) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Parameter Value Symbol Unit PPPM 400 W Peak Forward Surge Current (Note 3,Fig4 ) IFSM 60 A Peak Pulse Current on 10/1000 us waveform (Note 1) IPPM see Table 1 A Peak Pulse Power Dissipation on TA=25°C (Note 1,2,4, Fig1) ESD Voltage per IEC6100-4-2 Contact VESD1 Air VESD2 Typical Thermal Resistance Junction to Ambient(Note 2) Operating Junction Temperature and Storage Temperature Range) 30 30 kV RθJA 100 °C/W Tj, Tstg -55 ~ +150 °C NOTES: 1. Non-repetitive current pulse, per Fig.3 and derated above TA = 25°C per Fig. 2. 2. Mounted on 5mm2 copper pads to each terminal. 3. Peak Forward Surge Current : 8.3ms single half sine-wave Superimposed on rated load (JEDEC method). 4. Peak pulse power waveform is 10/1000μS. http://www.microdiode.com Rev:2024A2 Page :1 P4SMA6.8(C)A THRU P4SMA550(C)A Stand-off Voltage - 6.8 to 550 Volts Peak Pulse Power - 400W Characteristics at Ta = 25°C Reverse Stand-off Voltage Type UNI P4SMA6.8A Table 1 Breakdown Voltage V BR @ I T Reverse Leakage Max. Clamp Voltage IT I R @ V RWM V C @ I PP I PP Test Current Package Peak Pulse Current SMA Device Marking Ccode V RMW Min Max BI V V V mA μA V A UNI BI P4SMA6.8CA 5.8 6.45 7.14 10 1000 10.5 39.0 6V8A 6V8C P4SMA7.5A P4SMA7.5CA 6.4 7.13 7.88 10 500 11.3 36.3 7V5A 7V5C P4SMA8.2A P4SMA8.2CA 7.02 7.79 8.61 10 200 12.1 33.9 8V2A 8V2C P4SMA9.1A P4SMA9.1CA 7.78 8.65 9.55 1 50 13.4 30.6 9V1A 9V1C P4SMA10A P4SMA10CA 8.55 9.5 10.5 1 10 14.5 28.3 10A 10C P4SMA11A P4SMA11CA 9.4 10.5 11.6 1 5 15.6 26.3 11A 11C P4SMA12A P4SMA12CA 10.2 11.4 12.6 1 5 16.7 24.6 12A 12C P4SMA13A P4SMA13CA 11.1 12.4 13.7 1 1 18.2 22.5 13A 13C P4SMA15A P4SMA15CA 12.8 14.3 15.8 1 1 21.2 19.3 15A 15C P4SMA16A P4SMA16CA 13.6 15.2 16.8 1 1 22.5 18.2 16A 16C P4SMA18A P4SMA18CA 15.3 17.1 18.9 1 1 25.5 16.1 18A 18C P4SMA20A P4SMA20CA 17.1 19 21 1 1 27.7 14.8 20A 20C P4SMA22A P4SMA22CA 18.8 20.9 23.1 1 1 30.6 13.4 22A 22C P4SMA24A P4SMA24CA 20.5 22.8 25.2 1 1 33.2 12.3 24A 24C P4SMA27A P4SMA27CA 23.1 25.7 28.4 1 1 37.5 10.9 27A 27C P4SMA30A P4SMA30CA 25.6 28.5 31.5 1 1 41.4 9.9 30A 30C P4SMA33A P4SMA33CA 28.2 31.4 34.7 1 1 45.7 9.0 33A 33C P4SMA36A P4SMA36CA 30.8 34.2 37.8 1 1 49.9 8.2 36A 36C P4SMA39A P4SMA39CA 33.3 37.1 41 1 1 53.9 7.6 39A 39C P4SMA43A P4SMA43CA 36.8 40.9 45.2 1 1 59.3 6.9 43A 43C P4SMA47A P4SMA47CA 44.7 49.4 1 1 64.8 6.3 47A 47C P4SMA51A P4SMA51CA 40.2 43.6 48.5 53.6 1 1 70.1 5.8 51A 51C P4SMA56A P4SMA56CA 47.8 53.2 58.8 1 1 77.0 5.3 56A 56C P4SMA62A P4SMA62CA 53 58.9 65.1 1 1 85.0 4.8 62A 62C P4SMA68A P4SMA68CA 58.1 64.6 71.4 1 1 92.0 4.5 68A 68C P4SMA75A P4SMA75CA 64.1 71.3 78.8 1 1 103.0 4.0 75A 75C P4SMA82A P4SMA82CA 70.1 77.9 86.1 1 1 113.0 3.6 82A 82C P4SMA91A P4SMA91CA 77.8 86.5 95.5 1 1 125.0 3.3 91A 91C P4SMA100A P4SMA100CA 85.5 95 105 1 1 137.0 3.0 100A 100C P4SMA110A P4SMA110CA 94 105 116 1 1 152.0 2.7 110A 110C P4SMA120A P4SMA120CA 102 114 126 1 1 165.0 2.5 120A 120C P4SMA130A P4SMA130CA 111 124 137 1 1 179.0 2.3 130A 130C P4SMA150A P4SMA150CA 128 143 158 1 1 207.0 2.0 150A 150C P4SMA160A P4SMA160CA 136 152 168 1 1 219.0 1.9 160A 160C P4SMA170A P4SMA170CA 145 162 179 1 1 234.0 1.8 170A 170C P4SMA180A P4SMA180CA 154 171 189 1 1 246.0 1.7 180A 180C P4SMA200A P4SMA200CA 171 190 210 1 1 274.0 1.5 200A 200C P4SMA220A P4SMA220CA 185 209 231 1 1 328.0 1.3 220A 220C P4SMA250A P4SMA250CA 214 237 263 1 1 344.0 1.2 250A 250C P4SMA300A P4SMA300CA 256 285 315 1 1 414.0 1.0 300A 300C P4SMA350A P4SMA350CA 300 332 368 1 1 482.0 0.9 350A 350C P4SMA400A P4SMA400CA 342 380 420 1 1 548.0 0.8 400A 400C P4SMA440A P4SMA440CA 376 418 462 1 1 602.0 0.7 440A 440C P4SMA480A P4SMA480CA 408 456 504 1 1 658.0 0.6 480A 480C P4SMA510A P4SMA510CA 434 485 535 1 1 698.0 0.6 510A 510C P4SMA530A P4SMA530CA 451 503.5 556.5 1 1 725.0 0.6 530A 530C P4SMA540A P4SMA540CA 460 513 567 1 1 740.0 0.5 540A 540C P4SMA550A P4SMA550CA 468 522.5 577.5 1 1 760.0 0.5 550A 550C http://www.microdiode.com Rev:2024A2 Page :2 P4SMA6.8(C)A THRU P4SMA550(C)A Stand-off Voltage - 6.8to 550 Volts Peak Pulse Power - 400 W Ratings and Characteristic Curves TA =25°C unless otherwise noted Fig.1 Peak Pulse Power Rating Curve Fig.2 Forward Current Derating Curve 100 ulse.Wavefom PEAK PULSE POWER(PPP)OR CURRENT(IPP) DERATINGIN PERCENTAGE% Non-Repetive e Shown in Figure.3 PPPM,PEAK PULSE FORWARD ,kW TA=25°C 10 1.0 Mounted o 5.0m m Copper Lann Areas d 0.1 100 80 60 40 20 0 0.1 10 1 100 1000 25 10000 td,PULSE WIDTH ,us Pulse Width (td) is Defined as the Point where the Peak. Ippm,Peak Pulse Current (%) Value Current Decayst to 50% of Ipp Ippm 80 Half Value-Ipp/2 60 10/1000usec Waveform as Defined bye R.E.A. 40 20 0 0 1.0 2.0 T,TIME,ms http://www.microdiode.com 3.0 4.0 IFSM,PEAK FORWARD SURGE CURRENT, AMPERES TA=25°C Peak k 125 150 175 Fig.4 Maximum Non-Repetitive Peak Forward Surge Current 120 100 100 TA,AMBIENT TEMPERATURE,°C Fig.3 Pulse Waveform tf=10usec 75 50 60 50 40 30 20 10 TJ=TJmax 8.3ms Single Half Sinepwave JEDEC Method 0 10 1 100 Number of Cycles at 60Hz Rev:2024A2 Page :3
