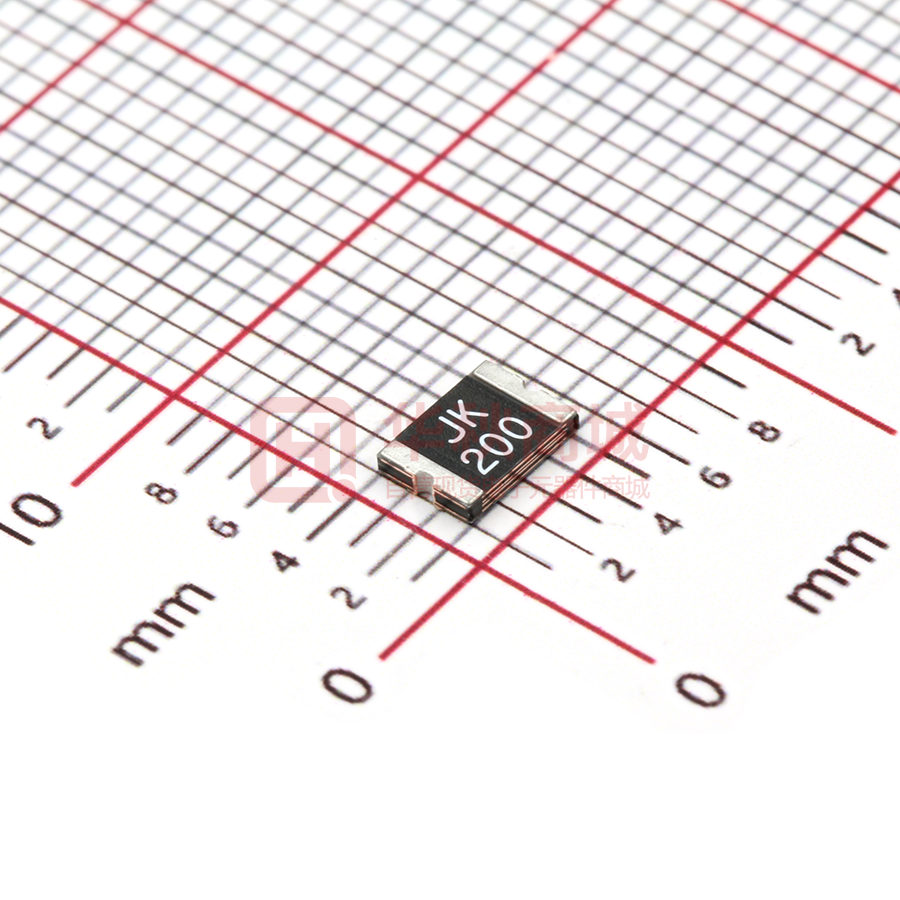

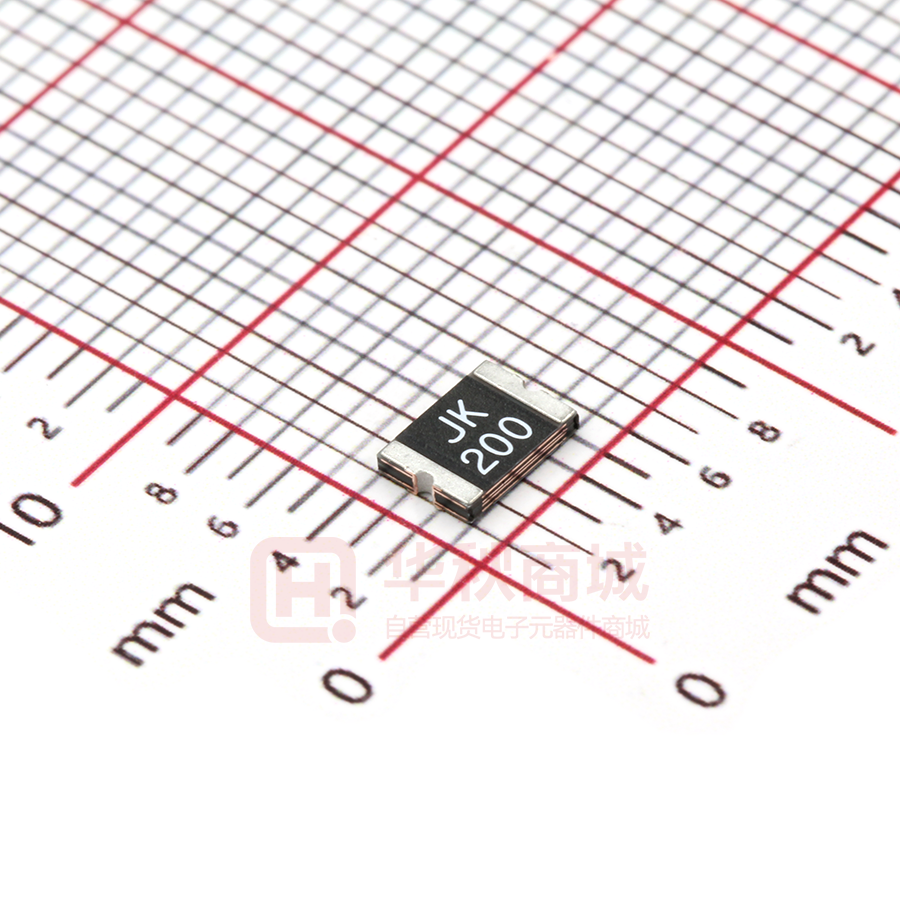

JK-MSMD200-16V

ShenZhen JinRui Electronic Material Co.,Ltd Surface Mountable PTC Resettable Fuse: JK-mSMD Series Features： ² ² ² ² ² ² RoHS Compliant ＆ Halogen Free faster tripping, 1812 Dimension, Surface mountable, Solid state Operation Current: 0.10A~3.50A Maximum Voltage: 6V~60Vdc Operating Temperature：-40℃ TO 85℃ Agency recognition:UL、CSA、TUV Product Dimensions Terminal pad materials :Tin-Plated Nickle-copper Terminal pad solderability : Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3. Pig.1 Unit ：mm A B C D E Max Min Min 0.50 1.00 0.30 0.15 3.41 0.50 1.00 0.30 0.15 3.07 3.41 0.50 1.00 0.30 0.15 4.73 3.07 3.41 0.50 1.10 0.30 0.15 4.37 4.73 3.07 3.41 0.50 1.00 0.30 0.15 4.37 4.73 3.07 3.41 0.50 1.00 0.30 0.15 Model No. Marking on sample Min Max Min Max Min JK-mSMD010 JK010 4.37 4.73 3.07 3.41 JK-mSMD010-60 JK010 4.37 4.73 3.07 JK-mSMD014-33 JK014 4.37 4.73 JK-mSMD014 JK014 4.37 JK-mSMD020 JK020 JK-mSMD030 JK030 ShenZhen JinRui Electronic Material Co.,Ltd Add：Jinke Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong. TEL：0755-26546327 29356619 FAX ：0755-26546562 Specifications are subject to change without notice ！ Web Site ：www.jkpptc.com E-mail:customer@jkpptc.com ShenZhen JinRui Electronic Material Co.,Ltd A B C D E Max Min Min 0.40 0.90 0.30 0.15 3.41 0.40 0.90 0.30 0.15 3.07 3.41 0.40 1.00 0.30 0.15 4.73 3.07 3.41 0.40 0.90 0.30 0.15 4.37 4.73 3.07 3.41 0.50 1.20 0.30 0.15 JK075 4.37 4.73 3.07 3.41 0.60 1.20 0.30 0.15 JK-mSMD110 JK110 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.15 JK-mSMD110-8 JK110 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.15 JK-mSMD110-24 JK110 4.37 4.73 3.07 3.41 0.60 1.30 0.30 0.15 JK-mSMD110-33 JK110 4.37 4.73 3.07 3.41 0.70 1.70 0.30 0.15 JK-mSMD125 JK125 4.37 4.73 3.07 3.41 0.50 1.20 0.30 0.15 JK-mSMD125-8 JK125 4.37 4.73 3.07 3.41 0.30 0.90 0.30 0.15 JK-mSMD150 JK150 4.37 4.73 3.07 3.41 0.30 0.90 0.30 0.15 JK-mSMD150-16 JK150 4.37 4.73 3.07 3.41 0.50 1.20 0.30 0.15 JK-mSMD150-24 JK150 4.37 4.73 3.07 3.41 0.80 1.70 0.30 0.15 JK-mSMD160 JK160 4.37 4.73 3.07 3.41 0.30 0.80 0.30 0.15 JK-mSMD200 JK200 4.37 4.73 3.07 3.41 0.40 1.20 0.30 0.15 JK-mSMD200-12 JK200 4.37 4.73 3.07 3.41 0.50 1.20 0.30 0.15 JK-mSMD200-16 JK200 4.37 4.73 3.07 3.41 0.50 1.20 0.30 0.15 JK-mSMD260 JK260 4.37 4.73 3.07 3.41 0.50 1.20 0.30 0.15 JK-mSMD260-12 JK260 4.37 4.73 3.07 3.41 0.60 1.50 0.30 0.15 JK-mSMD260-16 JK260 4.37 4.73 3.07 3.41 0.80 1.70 0.30 0.15 JK-mSMD300 JK300 4.37 4.73 3.07 3.41 0.50 1.50 0.30 0.15 JK-mSMD350 JK350 4.37 4.73 3.07 3.41 0.50 1.50 0.30 0.15 Model No. Marking on sample Min Max Min Max Min JK-mSMD050 JK050 4.37 4.73 3.07 3.41 JK-mSMD050-24 JK050 4.37 4.73 3.07 JK-mSMD050-30 JK050 4.37 4.73 JK-mSMD075 JK075 4.37 JK-mSMD075-24 JK075 JK-mSMD075-33 ShenZhen JinRui Electronic Material Co.,Ltd Add：Jinke Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong. TEL：0755-26546327 29356619 FAX ：0755-26546562 Specifications are subject to change without notice ！ Web Site ：www.jkpptc.com E-mail:customer@jkpptc.com ShenZhen JinRui Electronic Material Co.,Ltd Thermal Derating Chart-IH（A） Part number Maximum ambient operating temperatures（℃） -40 -20 0 25 40 50 60 70 85 JK-mSMD010 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.03 JK-mSMD014 0.23 0.19 0.17 0.14 0.12 0.10 0.09 0.08 0.06 JK-mSMD020 0.29 0.26 0.23 0.20 0.17 0.15 0.14 0.12 0.10 JK-mSMD030 0.44 0.39 0.35 0.30 0.26 0.23 0.21 0.18 0.15 JK-mSMD050 0.59 0.57 0.55 0.50 0.45 0.43 0.35 0.30 0.23 JK-mSMD075 1.10 0.99 0.87 0.75 0.63 0.57 0.49 0.45 0.35 JK-mSMD110 1.60 1.45 1.28 1.10 0.92 0.83 0.71 0.66 0.52 JK-mSMD110-8 1.60 1.45 1.28 1.10 0.92 0.83 0.71 0.66 0.52 JK-mSMD110-24 1.60 1.45 1.28 1.10 0.92 0.83 0.71 0.66 0.52 JK-mSMD110-33 1.60 1.45 1.28 1.10 0.92 0.83 0.71 0.66 0.52 JK-mSMD125 2.00 1.75 1.52 1.25 1.00 0.95 0.90 0.75 0.53 JK-mSMD125-8 2.00 1.75 1.52 1.25 1.00 0.95 0.90 0.75 0.53 JK-mSMD150 2.30 2.05 1.77 1.50 1.23 1.09 0.95 0.82 0.61 JK-mSMD150-16 2.30 2.05 1.77 1.50 1.23 1.09 0.95 0.82 0.61 JK-mSMD150-24 2.30 2.05 1.77 1.50 1.23 1.09 0.95 0.82 0.61 JK-mSMD160 2.45 2.15 1.89 1.60 1.34 1.25 1.15 0.96 0.79 JK-mSMD200 2.89 2.61 2.30 2.00 1.75 1.66 1.45 1.39 1.19 JK-mSMD200-12 2.89 2.61 2.30 2.00 1.75 1.66 1.45 1.39 1.19 JK-mSMD200-16 2.89 2.61 2.30 2.00 1.75 1.66 1.45 1.39 1.19 JK-mSMD260 3.76 3.39 2.99 2.60 2.28 2.16 1.89 1.81 1.55 JK-mSMD260-12 3.38 3.05 2.69 2.60 2.05 1.94 1.70 1.63 1.39 JK-mSMD260-16 3.38 3.05 2.69 2.60 2.05 1.94 1.70 1.63 1.39 JK-mSMD300 4.34 3.92 3.45 3.00 2.63 2.49 2.18 2.09 1.79 JK-mSMD350 5.06 4.57 4.03 3.50 3.06 2.91 2.54 2.43 2.08 Electrical Characteristic Time to trip R25 Umax (Vdc) Imax (A) Ihold @25°C (A) Itrip @25°C (A) Current Time Rimin R1max (A) (Sec) (Ω) (Ω) JK-mSMD010 30.0 100 0.10 0.30 0.5 1.50 0.750 15.000 JK-mSMD010-60 60.0 100 0.10 0.30 0.5 1.50 0.750 15.000 JK-mSMD014-33 33.0 100 0.14 0.34 1.5 0.15 0.650 6.000 JK-mSMD014 60.0 100 0.14 0.34 1.5 0.15 0.650 6.000 Model No. ShenZhen JinRui Electronic Material Co.,Ltd Add：Jinke Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong. TEL：0755-26546327 29356619 FAX ：0755-26546562 Specifications are subject to change without notice ！ Web Site ：www.jkpptc.com E-mail:customer@jkpptc.com ShenZhen JinRui Electronic Material Co.,Ltd Time to trip R25 Umax (Vdc) Imax (A) Ihold @25°C (A) Itrip @25°C (A) Current Time Rimin R1max (A) (Sec) (Ω) (Ω) JK-mSMD020 30.0 100 0.20 0.40 8.0 0.02 0.350 5.000 JK-mSMD030 30.0 100 0.30 0.60 8.0 0.10 0.250 3.000 JK-mSMD050 15.0 100 0.50 1.00 8.0 0.15 0.150 1.000 JK-mSMD050-24 24.0 100 0.50 1.00 8.0 0.15 0.150 1.000 JK-mSMD050-30 30.0 100 0.50 1.00 8.0 0.15 0.150 1.000 JK-mSMD075 13.2 100 0.75 1.50 8.0 0.20 0.090 0.450 JK-mSMD075-24 24 100 0.75 1.50 8.0 0.20 0.090 0.450 JK-mSMD075-33 33 100 0.75 1.50 8.0 0.20 0.090 0.450 JK-mSMD110 16.0 100 1.10 2.20 8.0 0.30 0.050 0.250 JK-mSMD110-8 8.0 100 1.10 2.20 8.0 0.30 0.050 0.250 JK-mSMD110-24 24.0 100 1.10 2.20 8.0 0.30 0.050 0.250 JK-mSMD110-33 33.0 100 1.10 2.20 8.0 0.30 0.050 0.250 JK-mSMD125-8 8.0 100 1.25 2.50 8.0 0.40 0.050 0.200 JK-mSMD125 16.0 100 1.25 2.50 8.0 0.40 0.050 0.200 JK-mSMD150 8.0 100 1.50 3.00 8.0 0.50 0.040 0.160 JK-mSMD150-16 16.0 100 1.50 3.00 8.0 0.50 0.040 0.160 JK-mSMD150-24 24.0 100 1.50 3.00 8.0 0.50 0.040 0.160 JK-mSMD160 8.0 100 1.60 2.80 8.0 1.00 0.030 0.130 JK-mSMD200 8.0 100 2.00 4.00 8.0 2.00 0.020 0.100 JK-mSMD200-12 12.0 100 2.00 4.00 8.0 2.00 0.020 0.100 JK-mSMD200-16 16.0 100 2.00 4.00 8.0 2.00 0.020 0.100 JK-mSMD260 8.0 100 2.60 5.00 8.0 2.50 0.015 0.050 JK-mSMD260-12 12.0 100 2.60 5.00 8.0 2.50 0.015 0.060 JK-mSMD260-16 16.0 100 2.60 5.00 8.0 2.50 0.015 0.060 JK-mSMD300 6.0 100 3.00 5.00 8.0 4.00 0.012 0.040 Model No. Part Numbering System JK- mSMD-□□□-□ Max Voltage Rating Holding current Rating 1812 series Surface Mount Device JK mark ShenZhen JinRui Electronic Material Co.,Ltd Add：Jinke Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong. TEL：0755-26546327 29356619 FAX ：0755-26546562 Specifications are subject to change without notice ！ Web Site ：www.jkpptc.com E-mail:customer@jkpptc.com ShenZhen JinRui Electronic Material Co.,Ltd Test Procedures And Requirements Test Test Conditions Accept/Reject Criteria Resistance In still air @ 25℃ Rmin≤R≤Rmax Time to Trip Specified current，Vmax，25℃ T≤maximum Time to Trip Hold Current 30min，at IH No trip Trip Cycle Life Vmax，Imax，100cycles No arcing or burning Trip Endurance Vmax，1 hours No arcing or burning Physical Characteristics and Environmental Specifications Physical Characteristics Terminal materials : Tin-Plated Nickle-copper Soldering Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3. zone Environmental Specifications Test Conditions Resistance Change Passive aging 85℃,1000hours ±10% Humidity aging 85℃/85%RH.1000 hours ±5% Thermal shock MIL-STD-202,Method 107G +85℃/-40℃,20times -30% typical resistance change Solvent Resistance MIL-STD-202,Method 215 no change Vibration ML-STD-883C,Test Condition A No chage Electrical Specifications: Ihold = Hold Current. Maximum current device will not trip in 25°C still air. Itrip = Trip Current. Minimum current at which the device will always trip in 25°C still air. Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax). Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax). Pd=Maximum power dissipation when device is in the tripped state in 25°C still air environment at rated voltage. Rimin/max = Minimum/Maximum device resistance prior to tripping at 25°C. R1max = Maximum device resistance is measured one hour post reflow. ShenZhen JinRui Electronic Material Co.,Ltd Add：Jinke Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong. TEL：0755-26546327 29356619 FAX ：0755-26546562 Specifications are subject to change without notice ！ Web Site ：www.jkpptc.com E-mail:customer@jkpptc.com ShenZhen JinRui Electronic Material Co.,Ltd Recommended pad layout (mm) Solder reflow conditions ● Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free. ● Devices are not designed to be wave soldered to the bottom side of the board. ● Recommended maximum paste thickness is 0.25mm (0.010inch). ● Devices can be cleaned using standard industry methods and solvents. ● Soldering temprature profile meets RoHs leadfree process. Notes: If reflow temperatures exceed the recommended profile, devices may not meet the ShenZhen JinRui Electronic Material Co.,Ltd Add：Jinke Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong. TEL：0755-26546327 29356619 FAX ：0755-26546562 Specifications are subject to change without notice ！ Web Site ：www.jkpptc.com E-mail:customer@jkpptc.com ShenZhen JinRui Electronic Material Co.,Ltd performance requirements Tape Specification And Reel Dimensions Coverning Specifications EIA 481-1(Unit:mm) W 12.00+0.30/-0 P0 8.0 ± 0.10 P1 4.0± 0.10 P2 2.0 ± 0.10 A0 3.50 ± 0.10 B0 4.90 ± 0.10 D0 1.50+0.10/-0 F 5.50± 0.05 E1 1.75 ± 0.10 T 0.30± 0.10 Leader min. 390 Trailer min. 160 Reel Dimensions A 178±1.0 N 59±1 W1 8.5+1.0/-0.2 W2 12.0±1 Packaging Quantity Part number Quantity Part number Quantity JK-mSMD010 1500 JK-mSMD110-33 1500 JK-mSMD010-60 1500 JK-mSMD125-8 2000 JK-mSMD014-33 1500 JK-mSMD125 1500 JK-mSMD014 1500 JK-mSMD150 2000 1500 JK-mSMD020 1500 JK-mSMD150-16 JK-mSMD030 1500 JK-mSMD150-24 1500 JK-mSMD050 2000 JK-mSMD160 2000 JK-mSMD050-24 2000 JK-mSMD200 2000 JK-mSMD050-30 2000 JK-mSMD200-12 1500 JK-mSMD075 2000 JK-mSMD200-16 1500 JK-mSMD075-24 2000 JK-mSMD260 1500 JK-mSMD075-33 1500 JK-mSMD260-12 1500 JK-mSMD110 2000 JK-mSMD260-16 1500 JK-mSMD110-8 2000 JK-mSMD300 1500 JK-mSMD110-24 1500 ShenZhen JinRui Electronic Material Co.,Ltd Add：Jinke Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong. TEL：0755-26546327 29356619 FAX ：0755-26546562 Specifications are subject to change without notice ！ Web Site ：www.jkpptc.com E-mail:customer@jkpptc.com ShenZhen JinRui Electronic Material Co.,Ltd Storage The maximum ambient temperature shall not exceed 38℃. Storage temperatures higher than 38℃ could result in the deformation of packaging materials. The maximum relative humidity recommended for storage is 60%. High humidity with high temperature can accelerate the oxidation of the solder plating on the termination and reduce the solderability of the components. Sealed plastic bags with desiccant shall be used to reduce the oxidation of the termination and shall only be opened prior to use. The products shall not be stored in areas where harmful gases containing sulfur or chlorine are present Warning • Use PPTC beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and flame. • PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated. • Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components. • Use PPTC with a large inductance in circuit will generate a circuit voltage (L di/dt) above the rated voltage of the PPTC. • Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space. • Contamination of the PPTC material with certain silicon based oils or some aggressive solvents can adversely impact the performance of the devices.PPTC SMD can be cleaned by standard methods. • Requests that customers comply with our recommended solder pad layouts and recommended reflow profile. Improper board layouts or reflow profilecould negatively impact solderability performance of our devices. Notes The specification is intended to present application,product and technical data to assist the user in selecting PPTC circuit production devices,However,users should imdependently evaluate and test the suitability of each product.JinRui makes on warranties as to the acduracy or completeness of the information and disclaims any liatility resulting form its use,JinRui’s only obligations are those im the JinRui Standard Rerms and Conditions of Sale and in no case will JinRui be liable for any incidental,imdirect,or consequential damages arising from the sale,resale,or misues of its products. Jinrui reserves the right to change of update, without notice, any information contained in this specification. ShenZhen JinRui Electronic Material Co.,Ltd Add：Jinke Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong. TEL：0755-26546327 29356619 FAX ：0755-26546562 Specifications are subject to change without notice ！ Web Site ：www.jkpptc.com E-mail:customer@jkpptc.com
