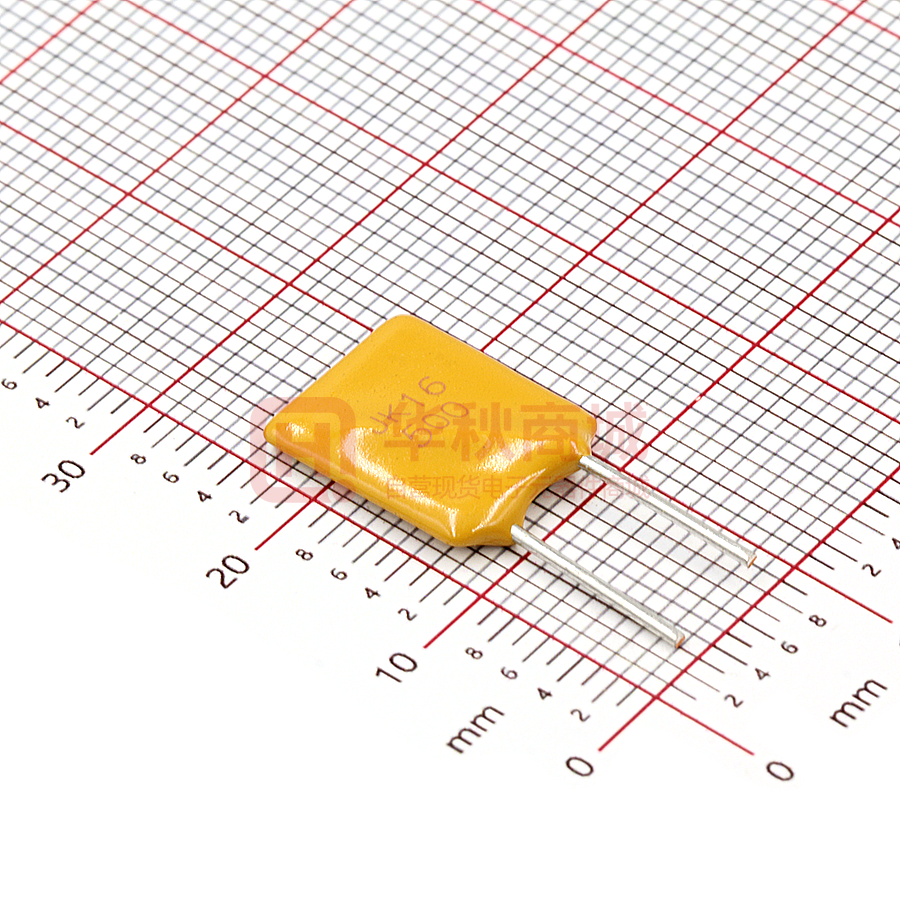

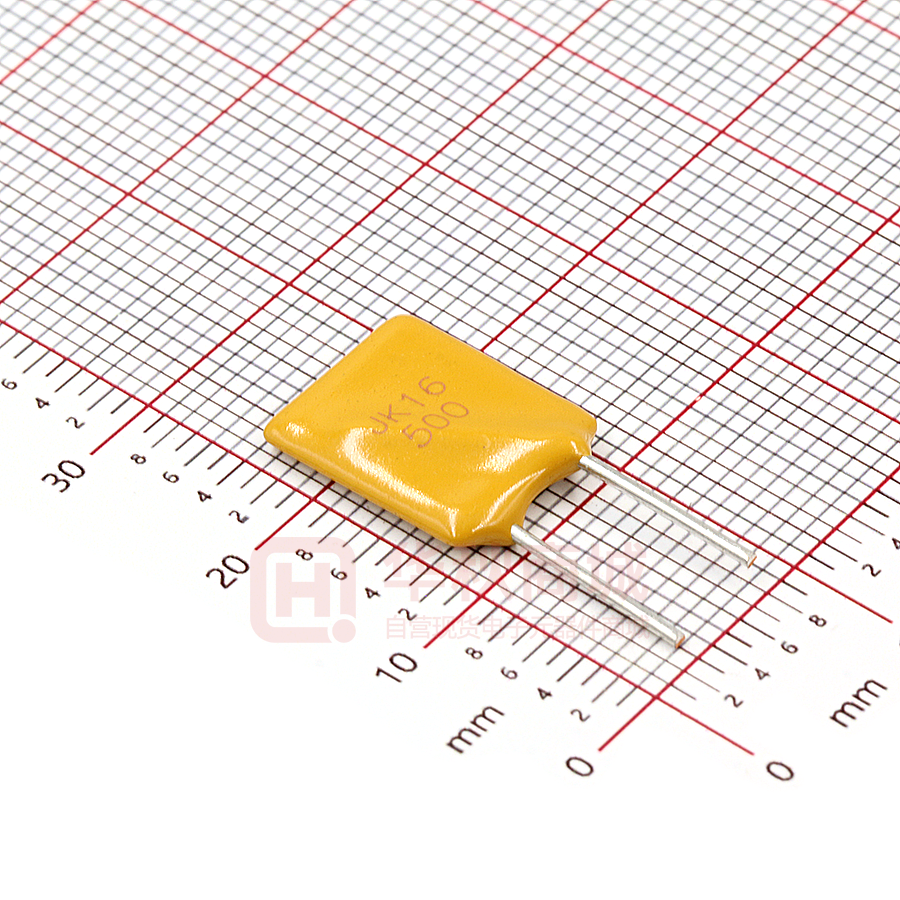

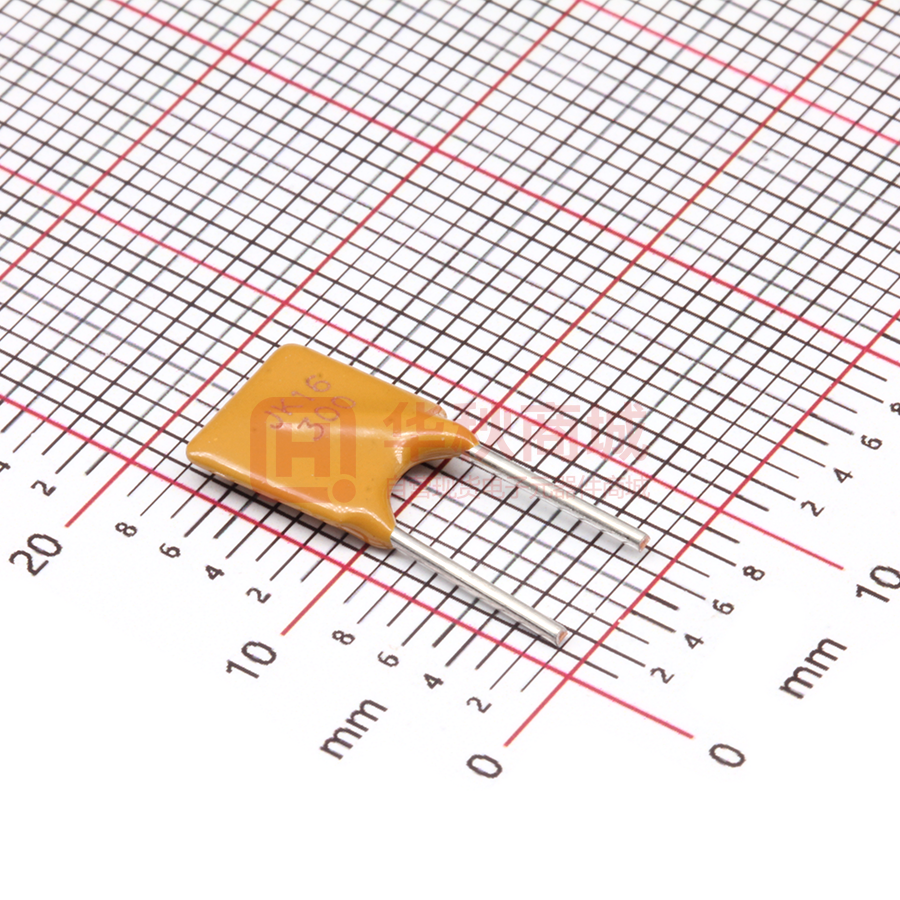

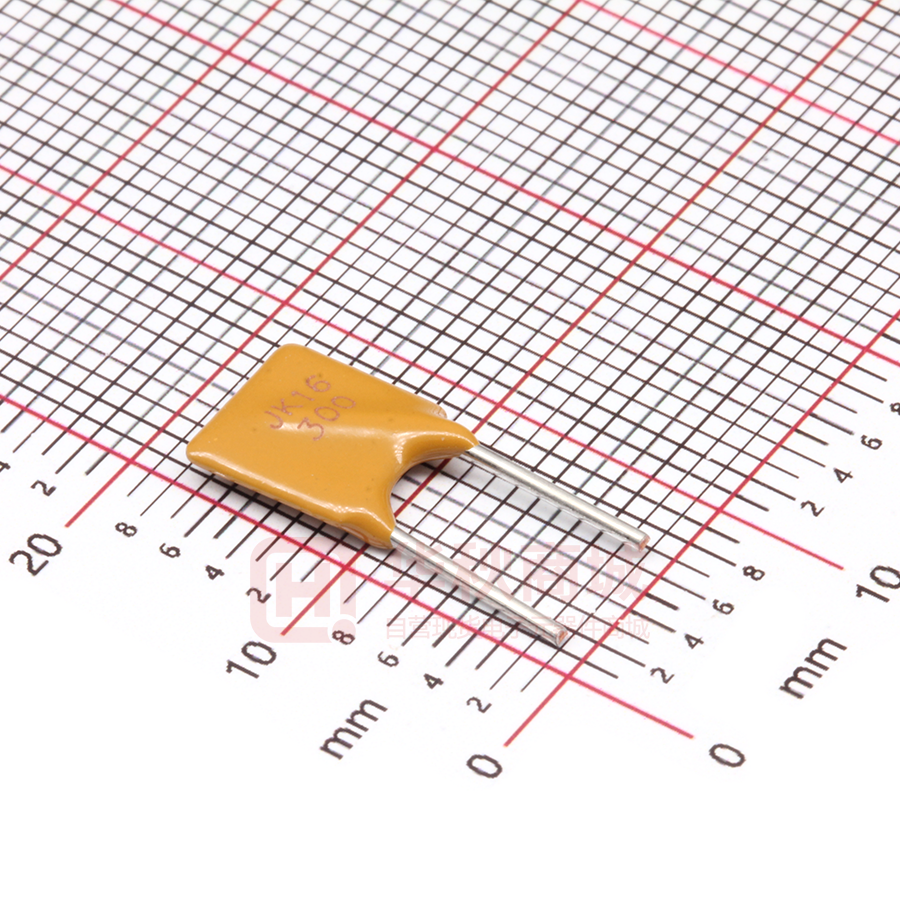

JK16-500

ShenZhen JinRui Electronic Material Co.,Ltd JK16 Polymer PTC Resettable JK16 Series Series Features：      RoHS Compliant ＆ Halogen Free Radial leaded Devices Cured，flame retardant epoxy polymer insulating material meets UL94V-0 requirements Operation Current: 0.1A~14A ，Maximum Voltage: 16Vdc，Operating Temperature：-40℃ TO 85℃ Agency recognition：TUV Product Dimensions Pig.1Pig.2 Unit ：mm JK16 Series Model Dimensions（mm） Lead material Shape A(max) B(max) C(max) D(typ) Tinned matel(mm) Fig JK16-010(T) 5.5 12.0 3.0 5.1 24 AWG/Φ0.5 1 JK16-025(T) 5.5 12.0 3.0 5.1 24 AWG/Φ0.5 1 JK16-030(T) 5.5 12.0 3.0 5.1 24 AWG/Φ0.5 1 JK16-050(T) 5.5 12.0 3.0 5.1 24 AWG/Φ0.5 1 JK16-075(T) 7.4 13.5 3.0 5.1 24 AWG/Φ0.5 1 JK16-090(T) 7.4 13.5 3.0 5.1 24 AWG/Φ0.5 1 JK16-110(T) 7.4 13.5 3.0 5.1 24 AWG/Φ0.5 1 JK16-135(T) 7.4 13.5 3.0 5.1 24 AWG/Φ0.5 1 JK16-160(T) 7.4 14.0 3.0 5.1 24 AWG/Φ0.5 1 JK16-200(T) 9.0 12.0 3.0 5.1 24 AWG/Φ0.5 2 JK16-300 9.0 12.0 3.0 5.1 20 AWG/Φ0.8 2 JK16-400 10.0 13.0 3.0 5.1 20 AWG/Φ0.8 2 JK16-500 10.0 17.5 3.0 5.1 20 AWG/Φ0.8 2 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 1 of 6 ShenZhen JinRui Electronic Material Co.,Ltd JK16 Series JK16-600 13.5 17.5 3.0 5.1 20 AWG/Φ0.8 2 JK16-700 13.5 23.0 3.0 5.1 20 AWG/Φ0.8 2 JK16-800 13.5 23.0 3.0 5.1 20 AWG/Φ0.8 2 JK16-900 15.0 24.0 3.0 5.1 20 AWG/Φ0.8 2 JK16-1000 18.0 26.0 3.0 5.1 20 AWG/Φ0.8 2 JK16-1100 18.0 26.0 3.0 5.1 20 AWG/Φ0.8 2 JK16-1200 22.5 26.0 3.0 10.2 20 AWG/Φ0.8 2 JK16-1300 24.0 30.0 3.0 10.2 20 AWG/Φ0.8 2 JK16-1400 24.0 30.0 3.0 10.2 20 AWG/Φ0.8 2 Note: ① Dimensions A, B, C is the maximum size, D values are typical tolerance of ± 0.50mm Thermal Derating Chart-IH（A） JK16 Series Model Maximum ambient operating temperatures（℃） -40 -20 0 25 40 50 60 70 80 85 JK16-010(T) 0.14 0.13 0.12 0.1 0.09 0.08 0.08 0.07 0.06 0.04 JK16-025(T) 0.37 0.33 0.3 0.25 0.24 0.22 0.2 0.17 0.15 0.11 JK16-030(T) 0.44 0.39 0.36 0.3 0.28 0.26 0.24 0.21 0.18 0.14 JK16-050(T) 0.74 0.66 0.6 0.5 0.48 0.44 0.4 0.35 0.30 0.23 JK16-075(T) 1.11 0.99 0.9 0.75 0.72 0.66 0.6 0.53 0.45 0.35 JK16-090(T) 1.33 1.18 1.08 0.9 0.86 0.79 0.72 0.63 0.54 0.42 JK16-110(T) 1.62 1.45 1.32 1.1 1.05 0.96 0.88 0.78 0.67 0.51 JK16-135(T) 1.99 1.78 1.62 1.35 1.29 1.18 1.08 0.95 0.82 0.63 JK16-160(T) 2.36 2.11 1.92 1.6 1.53 1.40 1.28 1.13 0.97 0.75 JK16-200(T) 2.96 2.64 2.4 2 1.92 1.76 1.6 1.42 1.22 0.94 JK16-300 4.44 3.96 3.6 3 2.88 2.64 2.4 2.13 1.83 1.41 JK16-400 5.92 5.28 4.8 4 3.84 3.52 3.2 2.84 2.44 1.88 JK16-500 7.4 6.6 6 5 4.8 4.4 4 3.55 3.05 2.35 JK16-600 8.88 7.92 7.2 6 5.76 5.28 4.8 4.26 3.66 2.82 JK16-700 10.36 9.24 8.4 7 6.72 6.16 5.6 4.97 4.27 3.29 JK16-800 11.84 10.56 9.6 8 7.68 7.04 6.4 5.68 4.88 3.76 JK16-900 13.32 11.88 10.8 9 8.64 7.92 7.2 6.39 5.49 4.23 JK16-1000 14.8 13.2 12 10 9.6 8.8 8 7.1 6.1 4.7 JK16-1100 16.28 14.52 13.2 11 10.56 9.68 8.8 7.81 6.71 5.17 JK16-1200 17.76 15.84 14.4 12 11.52 10.56 9.6 8.52 7.32 5.64 JK16-1300 19.24 17.16 15.6 13 12.48 11.44 10.4 9.23 7.93 6.11 JK16-1400 20.72 18.48 16.8 14 13.44 12.32 11.2 9.94 8.54 6.58 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 2 of 6 ShenZhen JinRui Electronic Material Co.,Ltd JK16 Series Electrical Characteristic JK16 Series Model IHold (A) ITrip (A) Vmax Imax Pd Max Maximum Time to Trip V（DC） A W Current（A） Time（S） Rmin Rmax JK16-010(T) 0.1 0.3 16 100 0.38 0.5 5 1500 7500 JK16-025(T) 0.25 0.5 16 100 0.45 1.25 5 500 1950 JK16-030(T) 0.3 0.6 16 100 0.49 1.5 5 300 700 JK16-050(T) 0.5 1.0 16 100 0.56 2.5 5 200 500 JK16-075(T) 0.75 1.5 16 100 0.72 3.75 5 100 260 JK16-090(T) 0.9 1.8 16 100 0.83 4.5 5 90 180 JK16-110(T) 1.1 2.2 16 100 0.94 5.5 5 60 150 JK16-135(T) 1.35 2.7 16 100 1.2 6.75 5 40 130 JK16-160(T) 1.6 3.2 16 100 1.4 8 5 40 110 JK16-200(T) 2 4 16 100 2.2 6 15 35 75 JK16-300 3 6 16 100 2.3 9 15 20 60 JK16-400 4 8 16 100 2.4 12 15 20 40 JK16-500 5 10 16 100 2.6 15 15 14 25 JK16-600 6 12 16 100 2.8 18 15 10 21 JK16-700 7 14 16 100 3.0 21 15 8 15 JK16-800 8 16 16 100 3.0 24 15 6 13 JK16-900 9 18 16 100 3.3 27 25 4 12 JK16-1000 10 20 16 100 3.7 30 30 4 11 JK16-1100 11 22 16 100 3.7 33 30 3 9 JK16-1200 12 24 16 100 4.2 36 30 3 8 JK16-1300 13 26 16 100 4.2 39 50 3 8 JK16-1400 14 28 16 100 4.2 40 50 3 7 Nominal resistance（mΩ） Marking System ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 3 of 6 ShenZhen JinRui Electronic Material Co.,Ltd JK16 Series Test Procedures And Requirements JK16 Series Test Test Conditions Accept/Reject Criteria Resistance In still air @ 25℃ Rmin≤R≤Rmax Time to Trip Specified current，Vmax，25℃ Tmaximum Time to Trip Hold Current 60min，at IH No trip Trip Cycle Life Vmax，Imax，100cycles No arcing or burning Trip Endurance Vmax，24hours No arcing or burning Physical Characteristics and Environmental Specifications Physical Characteristics JK16 Series Test Conditions Resistance change Passive aging +85℃，1000hrs ±8% typical Humidity aging +85℃，85%R.H.1000hrs ±8% typical Thermal shock +125℃ to -55℃，10times ±12% typical Resistance to solvent MIL-STD-202，Method 215 No change Vibration MIL-STD-202，Method 201 No change Operation Condition 1 Ambient temperature: -40℃～85℃ 2 Humidity: ≤95%HR(40℃) 3 Atmospheric pressure: 86Kpa ~106Kpa. 4 Vibration frequency: 10Hz ~ 50Hz. 5 Acceleration: 98m/s2. 6 Storage temperature: -40℃~85℃. 7Soldering 7.1 Wave Soldering: Soldering Temperature:240℃~270℃ Soldering Time:≤5sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 4 of 6 ShenZhen JinRui Electronic Material Co.,Ltd JK16 Series recommended curve 7.2 Manual soldering Soldering Temperature:280℃~300℃ Soldering Time: ≤2sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Electrical Specifications: IH=Hold current:maximum current at which the device will not trip at 25℃ still air. IT=Trip current:minimum current at which the device will nalways at 25℃ still air. Vmax=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand tithout damage at rated voltage. Ttrip=Maximum time to trip(s) at assigned current. Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment. Rmin=Minimum device resistance at 25℃ prior to tripping. Rmax=Maximum device resistance at 25℃ prior to tripping. Packaging and Storage JK16-010(T)～JK16-600 JK16-700～JK16-900 JK16-1000～JK16-1400 1000Pcs/Bag 500 Pcs/Bag 200 Pcs/Bag or 2000Pcs/Box ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 5 of 6 ShenZhen JinRui Electronic Material Co.,Ltd Warning: JK16 Series PPTC devices are intended for protection against occasional over-current or over-temperature fault conditions,and should not be used when repeated fault conditions are anticipated.Operation beyond maximum tatings of improper use may result in device damage and possible electrical arcing and flame. Notes： The specification is intended to present application,product and technical data to assist the user in selecting PPTC circuit production devices,However,users should imdependently evaluate and test the suitability of each product.JinRui makes on warranties as to the acduracy or completeness of the information and disclaims any liatility resulting form its use,JinRui’s only obligations are those im the JinRui Standard Rerms and Conditions of Sale and in no case will JinRui be liable for any incidental,imdirect,or consequential damages arising from the sale,resale,or misues of its products.JinRui reserves the right to change of update,without notice,any information contained in this specification. ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 6 of 6
