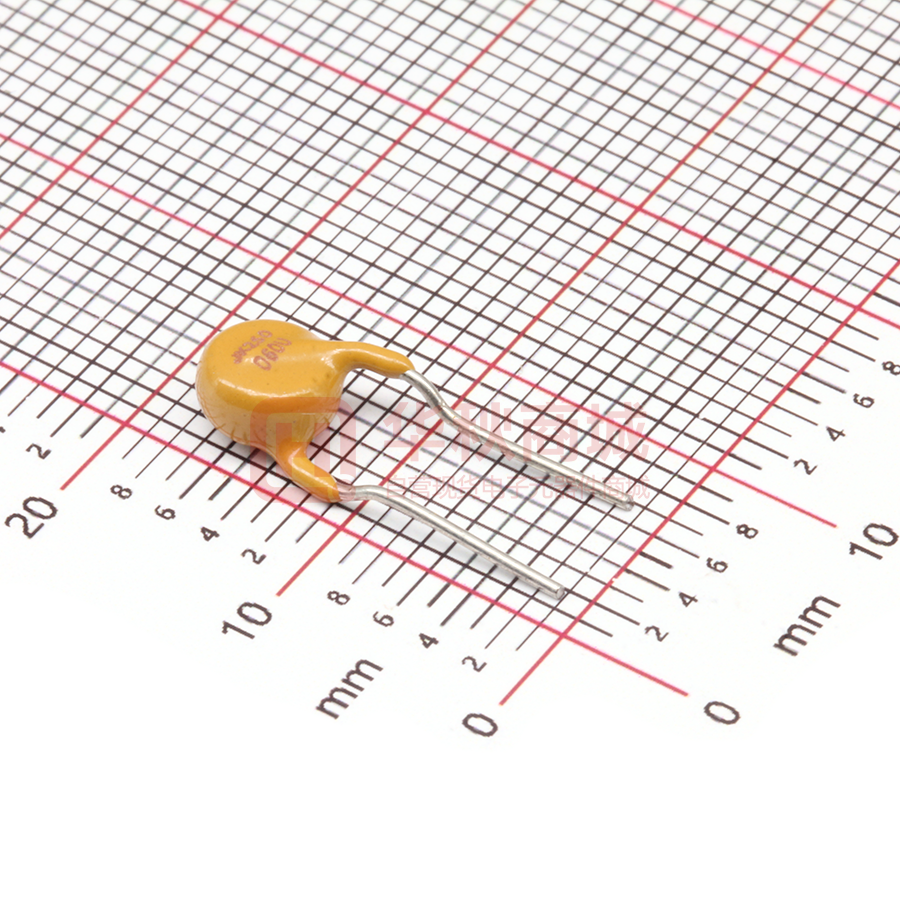

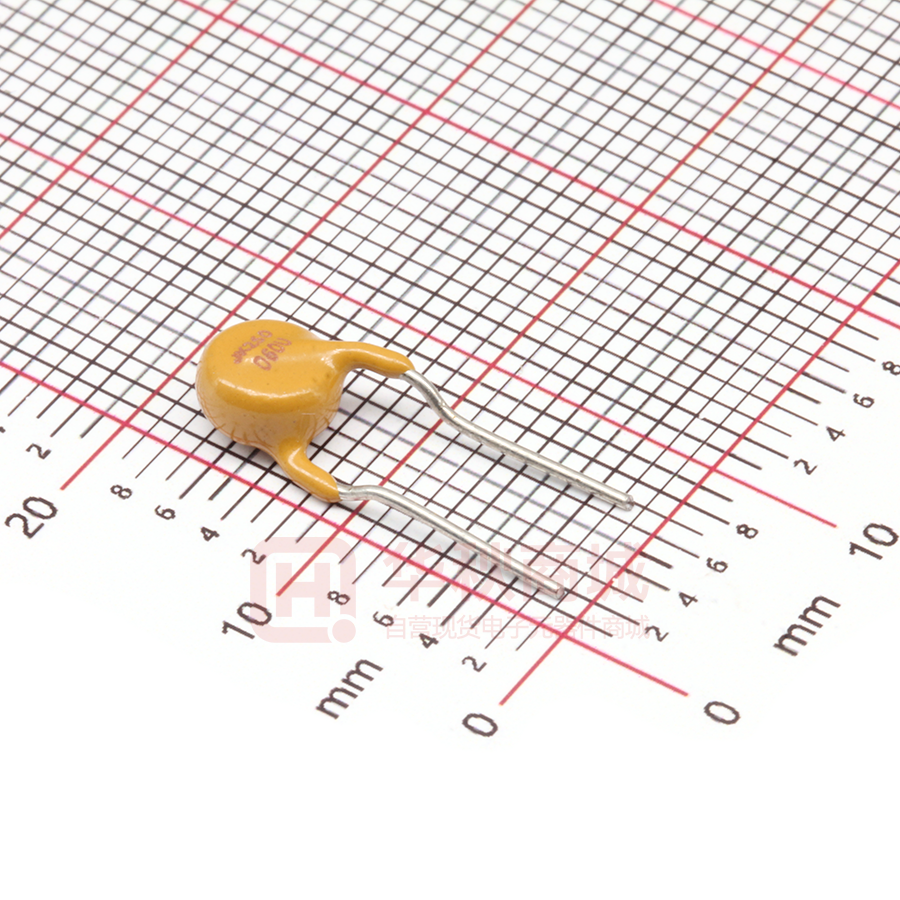

JK250-060U

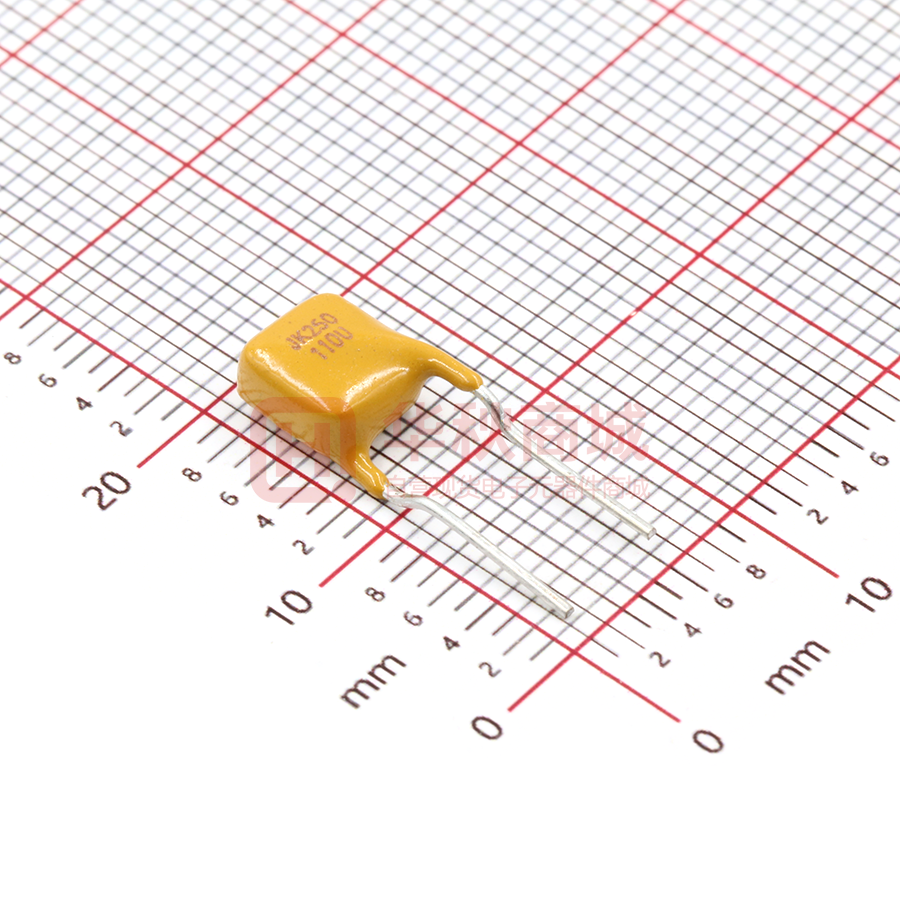

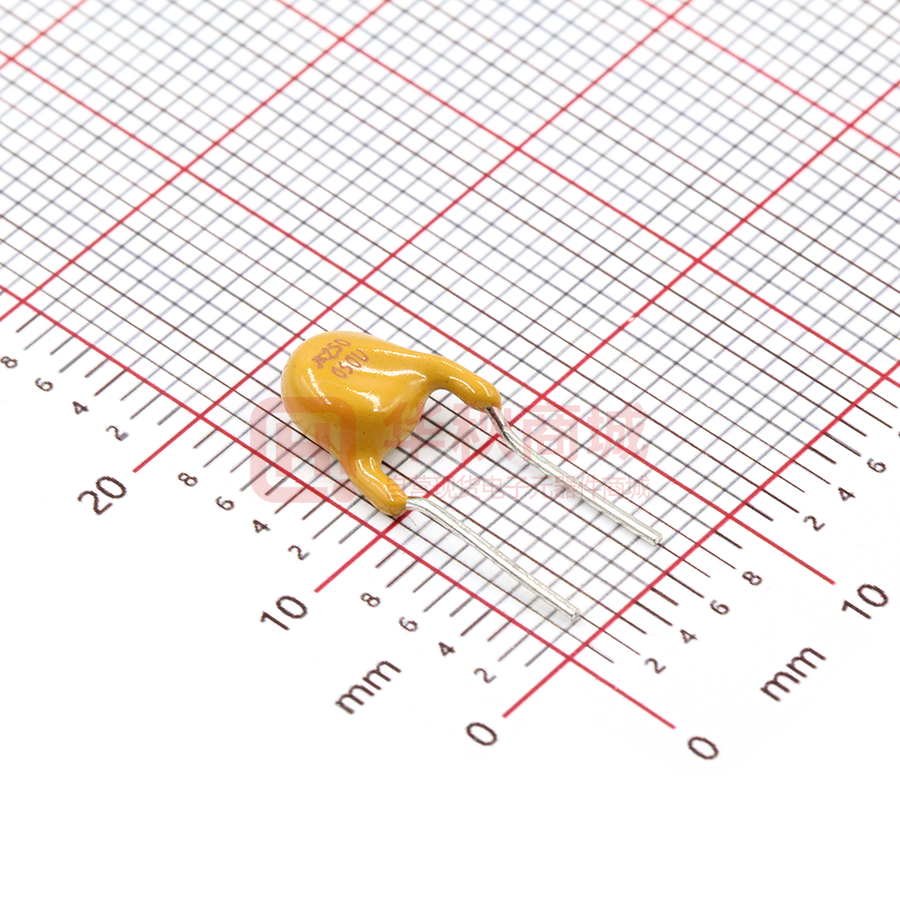

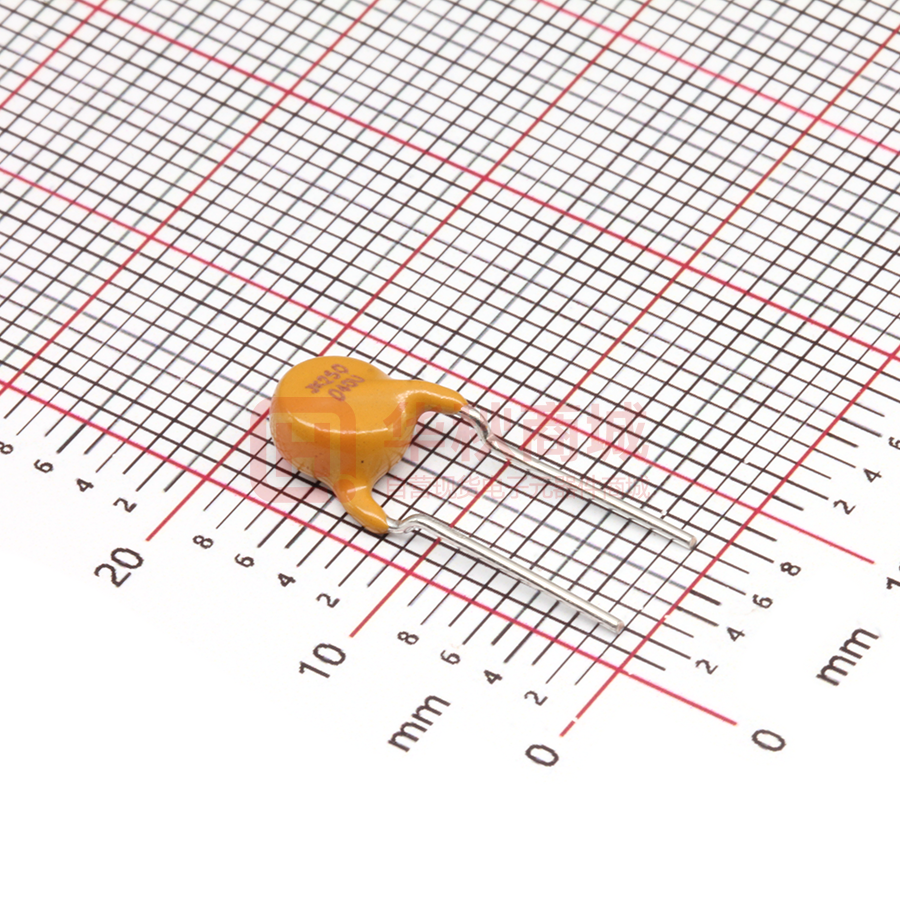

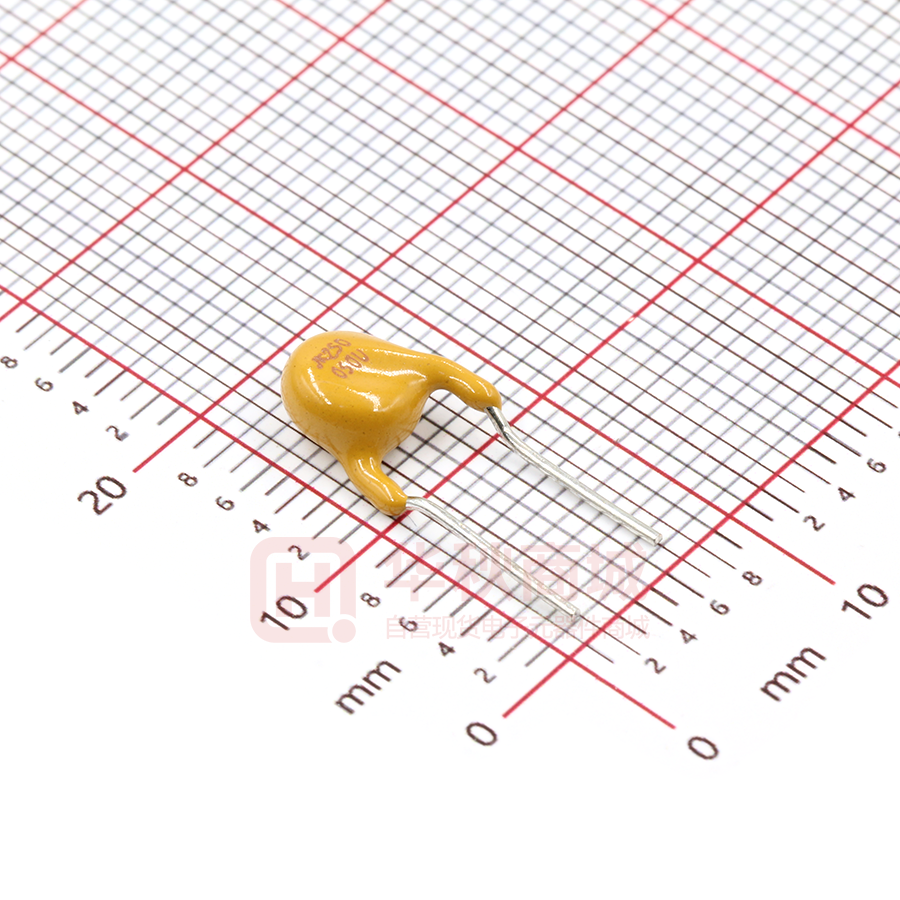

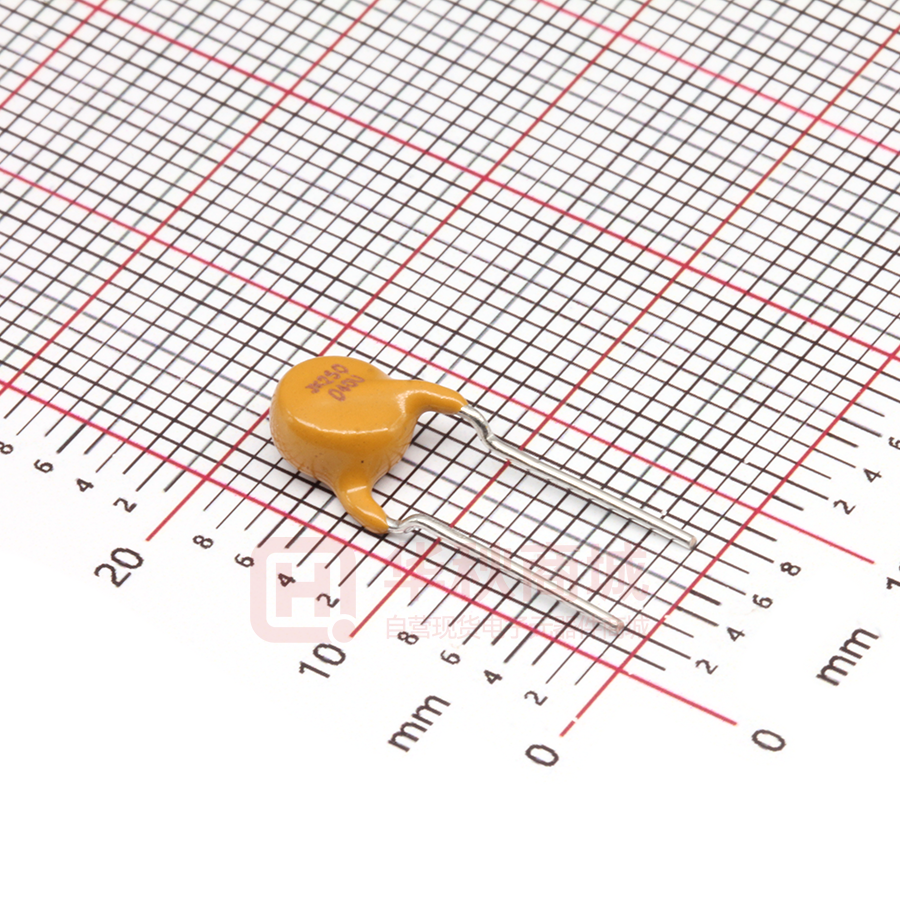

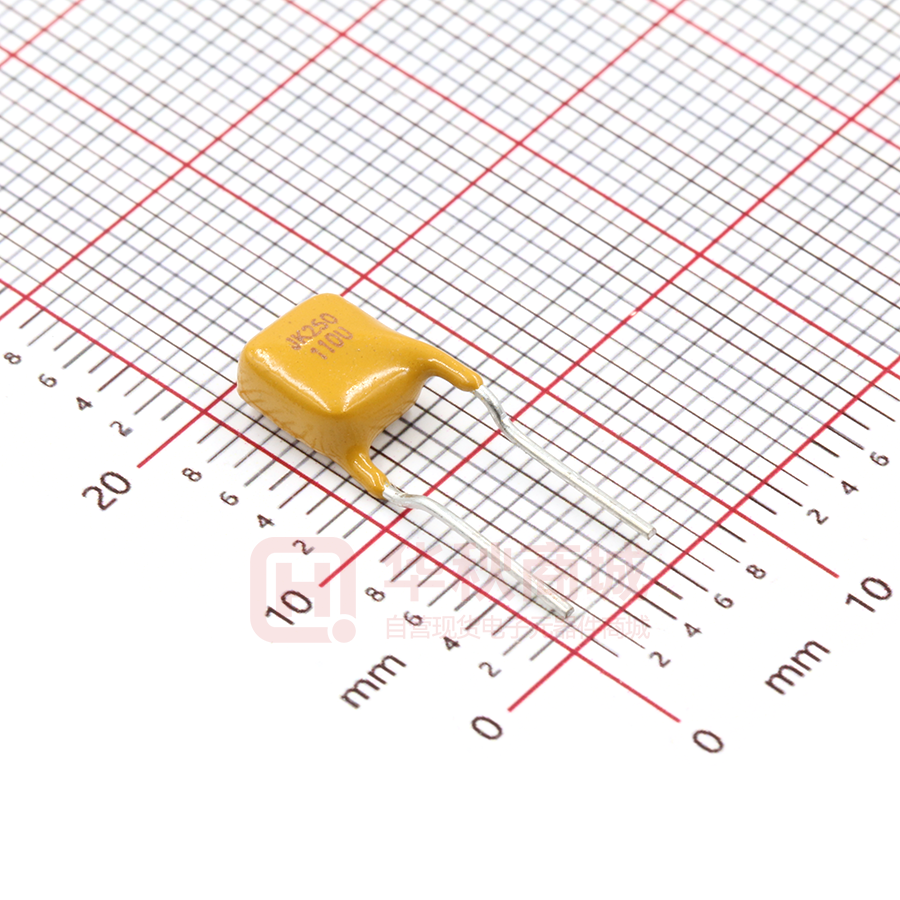

ShenZhen JinRui Electronic Material Co.,Ltd JK250 Polymer PTC Resettable Fuse JK250 Series Series Features：      Radial leaded Devices Cured,flame retardant epoxy polymer insulating material meets UL94V-0 Bulk packaging,or tape and reel available on most models Agency recognition:UL、CSA、TUV Rohs compliant and lead-free Product Dimensions Fig.1 Fig.2 Fig.3 Fig.4 Unit ：mm JK250 Series Model Dimensions（mm） Lead material Shape A(max) B(max) C(max) D(typ) Tinned matel(mm) Fig JK250-020U 7.4 12.7 4.5 5.1 22AWG/Φ0.6 1 JK250-030U 7.4 12.7 4.5 5.1 22AWG/Φ0.6 1 JK250-040U 7.4 12.7 4.5 5.1 22AWG/Φ0.6 1/2 JK250-050U 7.4 12.7 4.5 5.1 22AWG/Φ0.6 1/2 JK250-060U 7.4 12.7 4.5 5.1 22AWG/Φ0.6 1/2 JK250-080U 7.4 12.7 4.5 5.1 22AWG/Φ0.6 2 JK250-090U 7.4 12.7 4.5 5.1 22AWG/Φ0.6 2 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 1 of 4 ShenZhen JinRui Electronic Material Co.,Ltd JK250 Series JK250-100U 7.8 12.6 4.5 5.1 22AWG/Φ0.6 1 JK250-110U 7.0 12.6 4.5 5.1 22AWG/Φ0.6 4 JK250-120U 7.0 12.6 4.5 5.1 22AWG/Φ0.6 4 JK250-145U 7.0 12.6 4.5 5.1 22AWG/Φ0.6 4 JK250-180T 10.2 14.5 3.8 5.1 22AWG/Φ0.6 2 JK250-180U 9.0 11.0 4.5 5.1 22AWG/Φ0.6 4 JK250-200U 12.0 17.0 4.5 5.1 22AWG/Φ0.6 3 JK250-400U 12.0 17.0 4.5 5.1 22AWG/Φ0.6 3 JK250-600U 16.0 18.0 4.5 5.1 22AWG/Φ0.6 3 JK250-800U 20.0 22.5 4.5 5.1 20 AWG/Φ0.8 3 JK250-1000U 20 22.5 4.5 5.1 20 AWG/Φ0.8 3 JK250-1200U 22 28 4.5 5.1 20 AWG/Φ0.8 3 JK250-1500U 25 30 4.5 5.1 20 AWG/Φ0.8 3 JK250-2000U 26 32 4.5 10.2 20 AWG/Φ0.8 3 Note: ① Dimensions A, B, C is the maximum size, D values are typical tolerance of ± 0.75mm. Thermal Derating Chart-IH（A） Model JK-250 series Maximum ambient operating temperatures（℃） -40℃ -20℃ 0℃ 25℃ 30℃ 40℃ 50℃ 60℃ 70℃ 85℃ 148% 132% 117% 100% 91% 85% 77% 68% 61% 45% Electrical Characteristic Maximum Time to Trip Resistance(Ω) Model Ihold （mA） Itrip(mA) Vmax interrupt （V） Imax （A） Pd max （W） Current(A) Time(S) Rmin- Rmax JK250-020U 20 45 250 3 1.0 0.5 0.5 80-160 JK250-030U 30 65 250 3 1.0 0.5 0.5 60-120 JK250-040U 40 80 250 3 1.0 0.5 1.5 30-60 JK250-050U 50 100 250 3 1.0 0.5 2 25-50 JK250-060U 60 120 250 3 1.0 0.5 2 20-60 JK250-080U 80 160 250 3 1.0 1 0.5 12-22 JK250-090U 90 180 250 3 1.0 1 0.8 10-20 JK250-100U 100 200 250 3 1.0 1 1 10-20 JK250-110U 110 220 250 3 1.0 1 2.0 6-12 JK250-120U 120 240 250 3 1.0 1 2.0 6-11 JK250-145U 145 290 250 3 1.0 1 5.0 3.5-6.5 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 2 of 4 ShenZhen JinRui Electronic Material Co.,Ltd JK250 Series JK250-180T 180 650 250 3 1.8 3 3.0 1.0-2.2 JK250-180U 180 650 250 3 1.8 3 1.5 2.0-4.0 JK250-200U 200 400 250 5 2.4 3 5 3-6 JK250-400U 400 800 250 5 2.8 3 8 1-3 JK250-600U 600 1200 250 5 3.2 3 12 0.6-2.0 JK250-800U 800 1600 250 5 3.6 4 18 0.4-1.0 JK250-1000U 1000 2000 250 7 3.6 5 20 0.3-0.8 JK250-1200U 1200 2400 250 7 3.6 6 20 0.2-0.8 JK250-1500U 1500 3000 250 7 4.8 7.5 20 0.2-0.6 JK250-2000U 2000 4000 250 10 4.8 10 20 0.2-0.4 IH=Hold current:maximum current at which the device will not trip at 25℃ still air. IT=Trip current:minimum current at which the device will nalways at 25℃ still air. Vmax=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand tithout damage at rated voltage. Ttrip=Maximum time to trip(s) at assigned current. Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment. Rmin=Minimum device resistance at 25℃ prior to tripping. Rmax=Maximum device resistance at 25℃ prior to tripping. Marking System Environmental Specifications Test Conditions Resistance change Passive aging +85℃，1000hrs ±8% typical Humidity aging +85℃，85%R.H.1000hrs ±8% typical Thermal shock +125℃ to -55℃，10times ±12% typical Resistance to solvent MIL-STD-202，Method 215 No change Vibration MIL-STD-202，Method 201 No change Solder reflow conditions Wave Soldering Soldering Temperature:260℃~270℃ ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 3 of 4 ShenZhen JinRui Electronic Material Co.,Ltd JK250 Series Soldering Time:≤3sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Manual soldering Soldering Temperature:250℃~280℃ Soldering Time: ≤3sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Packaging and Storage Bag quantity JK250～020U～JK250-180U JK250-200U～JK250-600U JK250-800U～JK250-2000U 1000Pcs/Bag 500 Pcs/Bag 200 Pcs/Bag Storage The maximum ambient temperature shall not exceed 40℃.Storage temperatures higher than 40℃ could result in the deformation of packaging materials.The maximum relative humidity recommended for storage is 70%.High humidity with high temperature can accelerate the oxidation the oxidation of the solder plating on the termination and reduce the solderability of the components.sealed plastic bags with desiccant shall be used to teduce the oxidation of the termination and shall only be opened prior to use.the products shall not be stored in areas where harmful gases containing sulfu of chlorine are present. Warning: Please read this specification before use the product。 Using of this product must be sure to follow the requirement of this specification，operation beyond the specified maximum ratings or improper use may result in damage and possible electrical arcing and flame. PPTC resettable fuses are intended for occasional over current protection. Application for repeated over current condition or prolonged trip are not anticipated. Please avoid contact of PPTC resettable fuses with chemical solvent. Prolonged contact will damage the device performance. You are requested not to use our product deviating from the agreed specifications. ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 4 of 4
