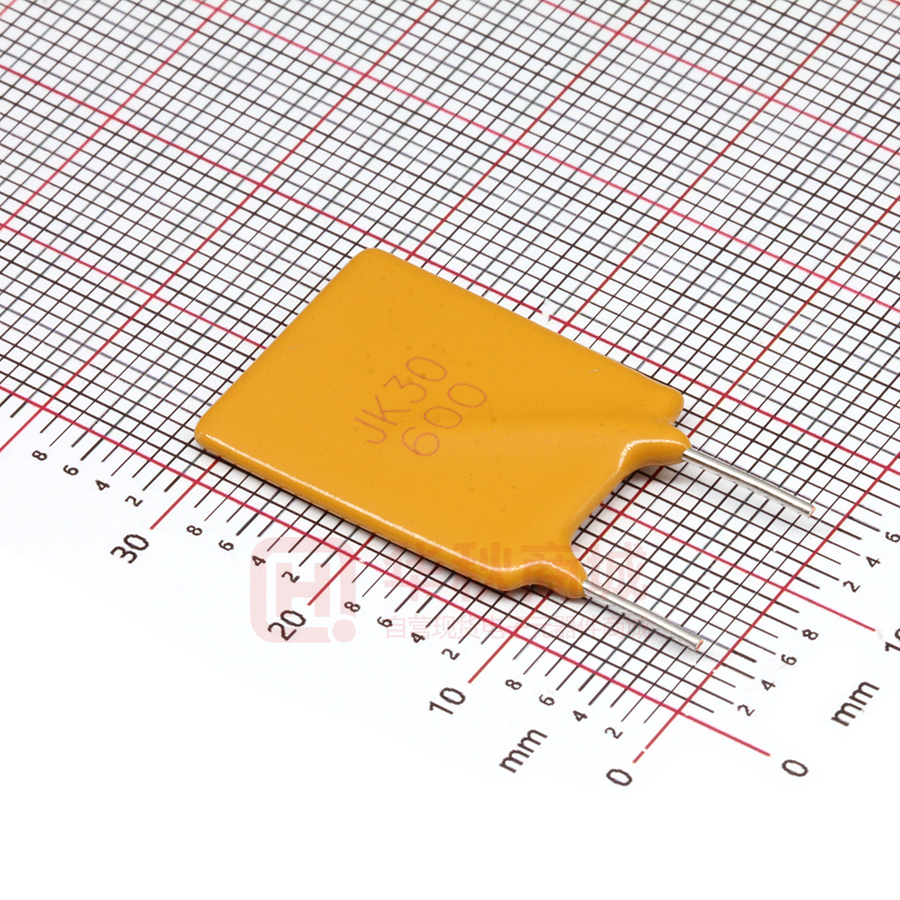

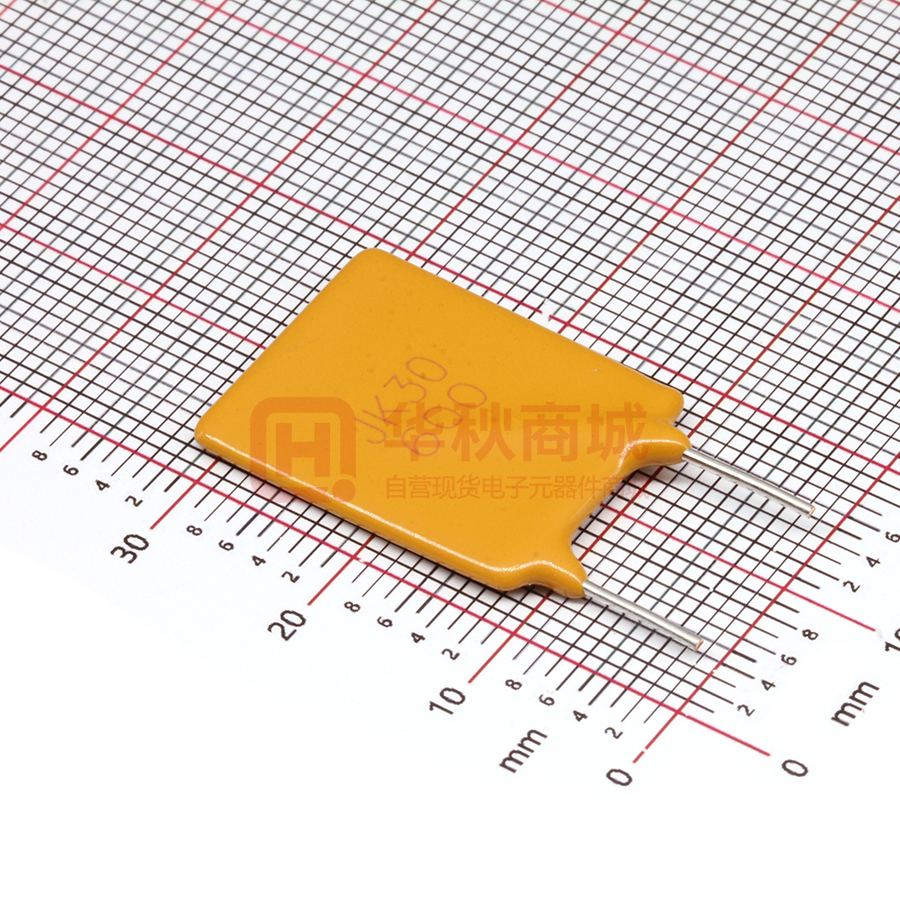

JK30-600

ShenZhen JinRui Electronic Material Co.,Ltd Polymer PTC Resettable Fuse JK30 JK30 Series Series Features：      RoHS Compliant ＆ Halogen Free Radial leaded Devices Cured，flame retardant epoxy polymer insulating material meets UL94V-0 requirements Operation Current: 0.5A~9A ，Maximum Voltage：30Vdc，Operating Temperature：-40℃ TO 85℃ Agency recognition：UL、TUV Product Dimensions Pig.1 Pig.2 Pig.3 Unit ：mm JK30 Series Model Dimensions（mm） Lead material Shape A(max) B(max) C(max) D(typ) Tinned matel(mm) Fig JK30-050 7.4 12.7 3.0 5.1 24AWG/Φ0.5 1 JK30-075 7.4 13.0 3.0 5.1 24AWG/Φ0.5 1 JK30-090 7.4 18.5 3.0 5.1 24AWG/Φ0.5 2 JK30-110 7.4 18.5 3.0 5.1 24AWG/Φ0.5 2 JK30-120 7.4 18.5 3.0 5.1 24AWG/Φ0.5 2 JK30-135 9.2 17.6 3.0 5.1 24AWG/Φ0.5 2 JK30-160 9.2 20.2 3.0 5.1 24AWG/Φ0.5 2 JK30-185 9.2 20.2 3.0 5.1 24AWG/Φ0.5 2 JK30-200 15.2 20.2 3.0 5.1 24AWG/Φ0.5 2 JK30-250 13.2 22.4 3.0 5.1 24AWG/Φ0.5 2 JK30-300 13.2 20.4 3.0 5.1 20 AWG/Φ0.8 3 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 1 of 5 ShenZhen JinRui Electronic Material Co.,Ltd JK30 Series JK30-400 14.0 23.7 3.0 5.1 20 AWG/Φ0.8 3 JK30-500 14.0 23.7 3.0 10.2 20 AWG/Φ0.8 3 JK30-600 17.2 27.0 3.0 10.2 20 AWG/Φ0.8 3 JK30-700 17.2 27.0 3.0 10.2 20 AWG/Φ0.8 3 JK30-800 23.5 29.2 3.0 10.2 20 AWG/Φ0.8 3 JK30-900 23.5 29.2 3.0 10.2 20 AWG/Φ0.8 3 Note: ① Dimensions A, B, C is the maximum size, D values are typical tolerance of ± 0.50mm Thermal Derating Chart-IH（A） JK30 Series Model Maximum ambient operating temperatures（℃） -40 -20 0 25 40 50 60 70 80 85 JK30-050 0.72 0.65 0.57 0.5 0.45 0.41 0.38 0.34 0.30 0.25 JK30-075 1.08 0.97 0.86 0.75 0.68 0.62 0.57 0.51 0.45 0.37 JK30-090 1.30 1.17 1.03 0.9 0.81 0.74 0.69 0.61 0.54 0.45 JK30-110 1.59 1.43 1.26 1.1 1.0 0.91 0.84 0.74 0.67 0.55 JK30-120 1.74 1.56 1.38 1.2 1.09 0.99 0.92 0.81 0.73 0.6 JK30-135 1.95 1.75 1.55 1.35 1.22 1.12 1.03 0.91 0.82 0.67 JK30-160 2.32 2.08 1.84 1.6 1.45 1.32 1.23 1.08 0.97 0.8 JK30-185 2.68 2.40 2.12 1.85 1.68 1.53 1.42 1.25 1.12 0.92 JK30-200 2.9 2.6 2.3 2 1.82 1.66 1.54 1.36 1.22 1 JK30-250 3.62 3.25 2.87 2.5 2.27 2.07 1.92 1.7 1.52 1.25 JK30-300 4.35 3.9 3.45 3 2.73 2.49 2.31 2.04 1.83 1.5 JK30-400 5.8 5.2 4.6 4 3.64 3.32 3.08 2.72 2.44 2 JK30-500 7.25 6.5 5.75 5 4.55 4.15 3.85 3.4 3.05 2.5 JK30-600 8.7 7.8 6.9 6 5.46 4.98 4.62 4.08 3.66 3 JK30-700 10.15 9.1 8.05 7 6.37 5.81 5.39 4.76 4.27 3.5 JK30-800 11.6 10.4 9.2 8 7.28 6.64 6.16 5.44 4.88 4 JK30-900 13.05 11.7 10.35 9 8.19 7.47 6.93 6.12 5.49 4.5 Electrical Characteristic JK30 Series Model IHold(A) ITrip (A) Vmax Imax Pd Max Maximum Time to Trip V（DC） A W Current （A） Time（S） JK30-050 0.5 1.0 30 40 0.5 2.5 JK30-075 0.75 1.5 30 40 0.6 JK30-090 0.90 1.8 30 40 JK30-110 1.10 2.2 30 JK30-120 1.20 2.4 JK30-135 1.35 1.7 Resistance（mΩ） Rmin Rmax 5.0 250 600 3.75 5.0 200 370 0.7 4.5 8.0 100 220 40 0.7 5.5 8.0 70 200 30 40 0.8 6.0 8.0 80 180 30 40 0.8 6.75 8.0 70 160 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 2 of 5 ShenZhen JinRui Electronic Material Co.,Ltd JK30 Series JK30-160 1.60 3.2 30 40 0.9 8.0 8.0 60 140 JK30-185 1.85 3.7 30 40 1.0 9.25 8.0 50 120 JK30-200 2.00 4.0 30 40 1.2 10.0 11 40 100 JK30-250 2.50 5.0 30 40 1.2 12.5 11 30 80 JK30-300 3.00 6.0 30 40 2.0 15.0 11 30 70 JK30-400 4.00 8.0 30 40 2.5 20.0 12.7 10 60 JK30-500 5.00 10 30 40 3.0 25.0 14.5 10 50 JK30-600 6.00 12 30 40 3.5 30.0 16 5 40 JK30-700 7.00 14 30 40 3.8 35.0 17.5 5 30 JK30-800 8.00 16 30 40 4.0 40.0 18.8 5 25 JK30-900 9.00 18 30 40 4.2 40.0 20 5 20 Marking System Test Procedures And Requirements JK30 Series Test Test Conditions Accept/Reject Criteria Resistance In still air @ 25℃ Rmin≤R≤Rmax Time to Trip Specified current，Vmax，25℃ Tmaximum Time to Trip Hold Current 60min，at IH No trip Trip Cycle Life Vmax，Imax，100cycles No arcing or burning Trip Endurance Vmax，24hours No arcing or burning Physical Characteristics and Environmental Specifications Physical Characteristics JK30 Series Test Conditions Resistance change Passive aging +85℃，1000hrs ±8% typical Humidity aging +85℃，85%R.H.1000hrs ±8% typical Thermal shock +125℃ to -55℃，10times ±12% typical Resistance to solvent MIL-STD-202，Method 215 No change Vibration MIL-STD-202，Method 201 No change ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 3 of 5 ShenZhen JinRui Electronic Material Co.,Ltd JK30 Series Operation Condition 1 Ambient temperature: -40℃～85℃ 2 Humidity: ≤95%HR(40℃) 3 Atmospheric pressure: 86Kpa ~106Kpa. 4 Vibration frequency: 10Hz ~ 50Hz. 5 Acceleration: 98m/s2. 6 Storage temperature: -40℃~85℃. 7Soldering 7.1 Wave Soldering: Soldering Temperature:240℃~270℃ Soldering Time:≤5sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 recommended curve 7.2 Manual soldering Soldering Temperature:280℃~300℃ Soldering Time: ≤2sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Electrical Specifications: IH=Hold current:maximum current at which the device will not trip at 25℃ still air. IT=Trip current:minimum current at which the device will nalways at 25℃ still air. Vmax=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand tithout damage at rated voltage. Ttrip=Maximum time to trip(s) at assigned current. Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment. Rmin=Minimum device resistance at 25℃ prior to tripping. Rmax=Maximum device resistance at 25℃ prior to tripping. ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 4 of 5 ShenZhen JinRui Electronic Material Co.,Ltd Packaging and Storage JK30-050～JK30-250 JK30-300～JK30-500 JK30-600～JK30-900 JK30 Series 1000Pcs/Bag or 2000Pcs/Box 500 Pcs/Bag 200 Pcs/Bag Warning: PPTC devices are intended for protection against occasional over-current or over-temperature fault conditions,and should not be used when repeated fault conditions are anticipated.Operation beyond maximum tatings of improper use may result in device damage and possible electrical arcing and flame. Notes： The specification is intended to present application,product and technical data to assist the user in selecting PPTC circuit production devices,However,users should imdependently evaluate and test the suitability of each product.JinRui makes on warranties as to the acduracy or completeness of the information and disclaims any liatility resulting form its use,JinRui’s only obligations are those im the JinRui Standard Rerms and Conditions of Sale and in no case will JinRui be liable for any incidental,imdirect,or consequential damages arising from the sale,resale,or misues of its products.JinRui reserves the right to change of update,without notice,any information contained in this specification. ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 5 of 5
