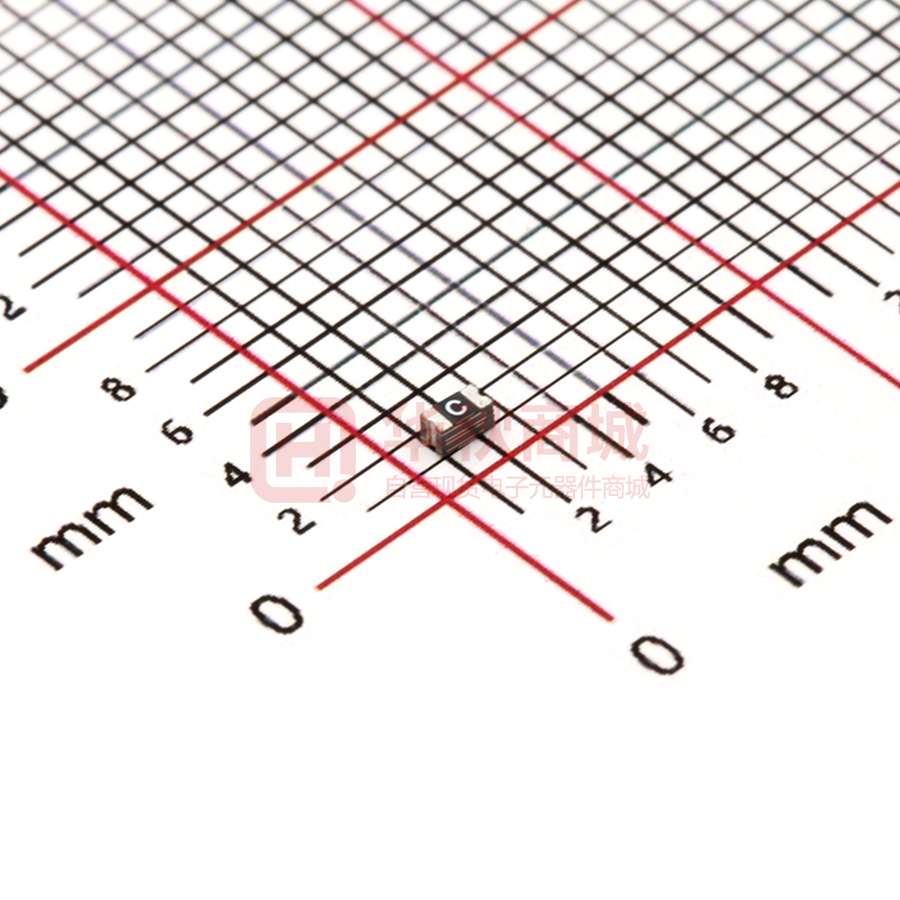

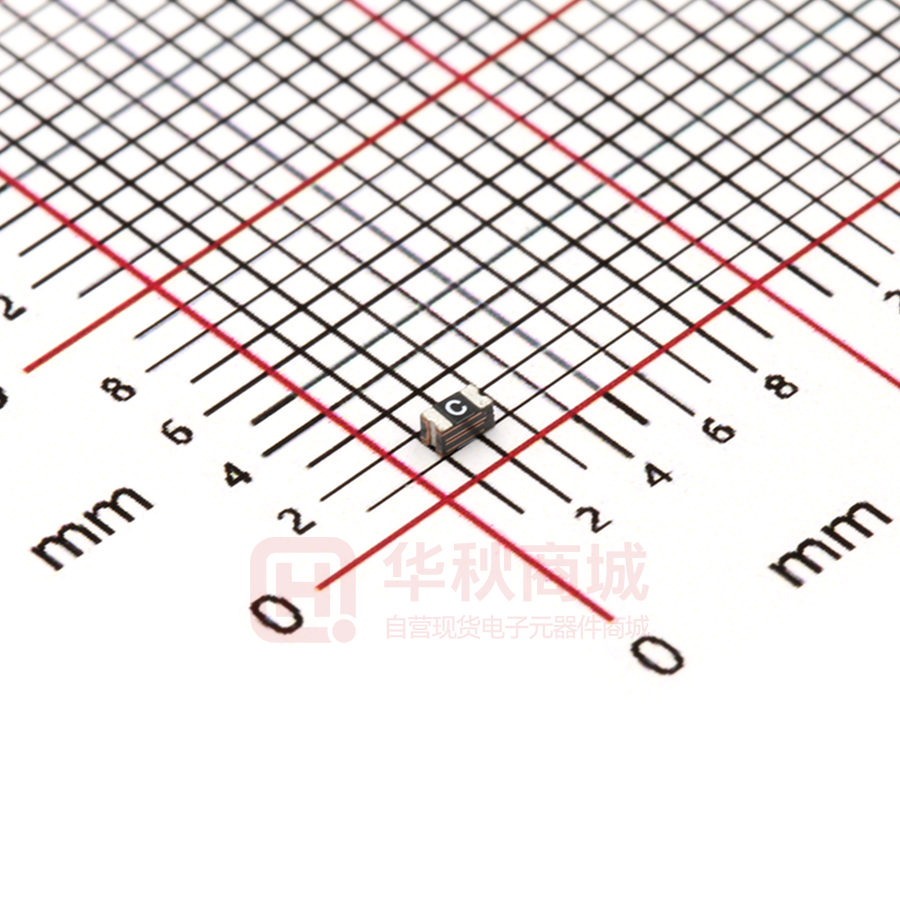

JK-SMD0603-200L

JK-SMD0603-200L PPTC DEVICES Edition：A0 Part Number：Q/JKTD-6-200 Page No: 1 OF 4 Terminal pad materials :Tin-Plated Nickle-copper C Terminal pad solderability : Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3. Table1 :DIMENTION(Unit : mm) Model Marking JK-SMD0603-200L C A B C D E Min. Max. Min. Max. Min. Max Min. Min. 1.45 1.85 0.65 1.05 0.7 1.4 0.15 0.1 Itrip @25℃ (A) Pd Typ (W) 4.0 0.5 Table2 :PERFORMANCE RATINGS: Model Vmax (Vdc) Imax (A) Ihold @25℃ (A) JK-SMD0603-200L 6.0 50.0 2.0 Maximum Time To Trip Resistance Current (A) Time (Sec) Rimin (Ω) R1max (Ω) 8.0 5.0 0.012 0.06 Table3:Test Conditons and Standards Test Conditons Test Item Initial Resistance Holding Current Time to Trip .trip Trip endurance Accept/Reject Criteria 0.012-0.06Ω No Trip ≤5.0 S No arcing or burning In still air, 25℃ 25℃, 2.0A, 60min 25℃, 8.0A 6V, 50.0A, 60min Thermal Derating Chart-IH (A) Temperature (℃) -40 -20 0 25 40 50 60 70 85 IH (A) 2.63 2.27 2.10 2.0 1.63 1.45 1.37 1.12 0.82 SHENZHEN JINRUI ELECTRONIC MATERIAL CO.,LTD INDUSTRY PARK 6 F DISTRICT NO. 3000046 BLDG Hi-Tech SCIENCE & SHANGKENG COMMUNITY GUANLAN STREET BAOAN SHENZHEN TEL：0755－26546327 26584158 Web Site：www.jkpptc.com FAX： 0755－26546562 E-mail:customer@jkpptc.com JK-SMD0603-200L PPTC DEVICES Part Number：Q/JKTD-6-200 Edition：A0 Page No: 2 OF 4 Solder reflow conditions ● Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free. ● Devices are not designed to be wave soldered to the bottom side of the board. ● Recommended maximum paste thickness is 0.25mm (0.010inch). ● Devices can be cleaned using standard industry methods and solvents. ● Soldering temprature profile meets RoHs leadfree process. Notes: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements. SHENZHEN JINRUI ELECTRONIC MATERIAL CO.,LTD INDUSTRY PARK 6 F DISTRICT NO. 3000046 BLDG Hi-Tech SCIENCE & SHANGKENG COMMUNITY GUANLAN STREET BAOAN SHENZHEN TEL：0755－26546327 26584158 Web Site：www.jkpptc.com FAX： 0755－26546562 E-mail:customer@jkpptc.com JK-SMD0603-200L PPTC DEVICES Part Number：Q/JKTD-6-200 Edition：A0 Page No: 3 OF 4 Tape and reel specifications (mm) Coverning Specifications EIA 481-1 W 8.0± 0.1 P0 4.0 ± 0.1 P1 4.0± 0.10 P2 2.0 ± 0.05 A0 0.95± 0.10 B0 1.85± 0.05 D0 1.55± 0.05 F 3.5 ± 0.05 E1 1.75 ± 0.10 T 0.20± 0.02 Leader min. 390 Trailer min. 160 Reel Dimensions A 178 ± 1 N 59 ± 1 W1 8.5+1.0/-0.2 W2 12.0±1 Operating Temperature：-40℃ TO Packaging：Bulk ,4000pcs per bag 85℃ SHENZHEN JINRUI ELECTRONIC MATERIAL CO.,LTD INDUSTRY PARK 6 F DISTRICT NO. 3000046 BLDG Hi-Tech SCIENCE & SHANGKENG COMMUNITY GUANLAN STREET BAOAN SHENZHEN TEL：0755－26546327 26584158 Web Site：www.jkpptc.com FAX： 0755－26546562 E-mail:customer@jkpptc.com JK-SMD0603-200L PPTC DEVICES Part Number：Q/JKTD-6-200 Edition：A0 Page No: 4 OF 4 Recommended pad layout (mm) Storage The maximum ambient temperature shall not exceed 40 ℃ .Storage temperatures higher than 40 ℃ could result in the deformation of packaging materials. The maximum relative humidity recommended for storage is 70%.High humidity with high temperature can accelerate the oxidation the oxidation of the solder plating on the termination and reduce the solderability of the components. Sealed plastic bags with desiccant shall be used to reduce the oxidation of the termination and shall only be opened prior to use, the products shall not be stored in areas where harmful gases containing sulfur of chlorine are present. Warning • Please read this specification before using the product. • Use PPTC beyond the maximum ratings or improper use may result in device damage, electrical arcing and flame. • PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated. • Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components. • Use PPTC with a large inductance in circuit will generate a circuit voltage above the rated voltage of the PPTC. • Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space. • Contamination of the PPTC material with certain silicon based oils or some aggressive solvents can adversely impact the performance of the devices. PPTC can be cleaned by standard methods. • Requests that customers comply with our recommended solder pad layouts and recommended reflow profile. Improper board layouts or reflow profile could negatively impact solderability performance of our devices. SHENZHEN JINRUI ELECTRONIC MATERIAL CO.,LTD INDUSTRY PARK 6 F DISTRICT NO. 3000046 BLDG Hi-Tech SCIENCE & SHANGKENG COMMUNITY GUANLAN STREET BAOAN SHENZHEN TEL：0755－26546327 26584158 Web Site：www.jkpptc.com FAX： 0755－26546562 E-mail:customer@jkpptc.com
