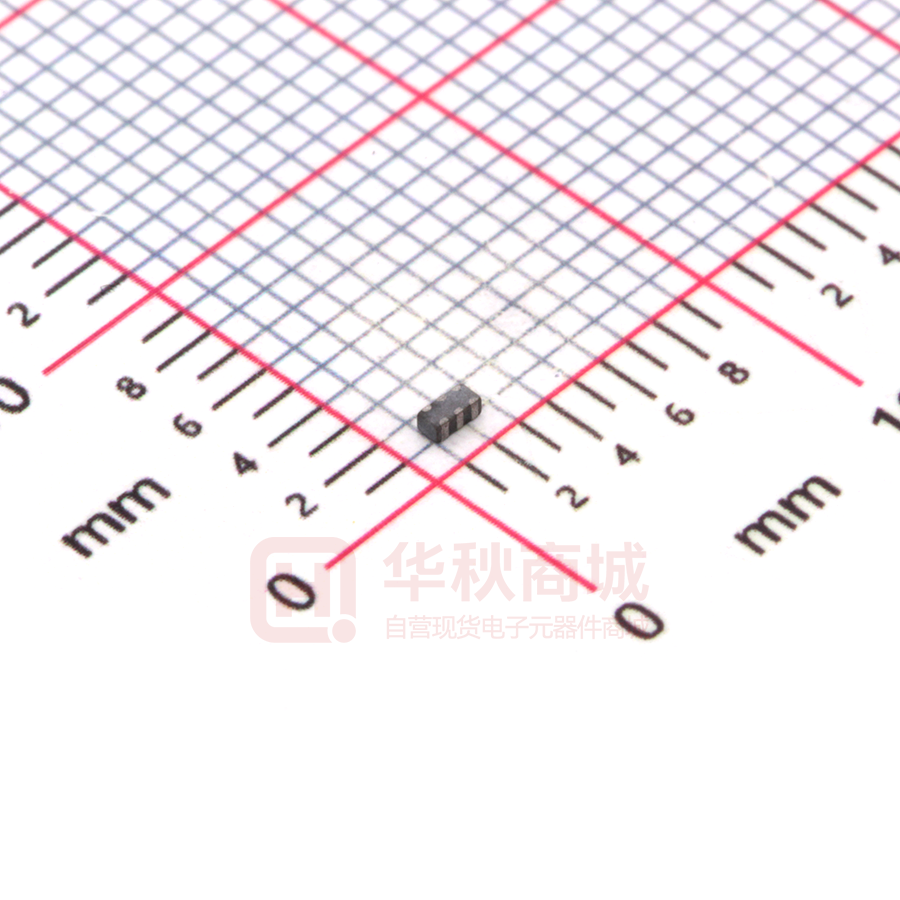

SLFD18-5R950G-07T

Multilayer Chip LC Diplexer – SLFD Series Operating Temp. : -40℃ ~+ 85℃ FEATURES    Small and low profile enables high density mounting Low insertion loss & high attenuation Excellent solderability APPLICATIONS Mobile communication equipment for LTE, 5G systems etc. Bluetooth, Wi-Fi, WLAN etc. ● ● PRODUCT IDENTIFICATION SLFD 18 -2R450G -23 T ① ② ③ ④ ⑤ ① ② Type SLFD LC Diplexer ④ ③ (L×W) (mm) External Dimensions (L×W) (mm) Center Frequency Example Nominal Value 15 [0402] 1×0.5 2R450G 18 [0603] 1.6×0.8 21 [0805] 2×1.2 22 [1008] 2.5×2 2450MHz ⑤ Series Code Packing 01, 02, etc T Tape Carrier Package SHAPE AND DIMENSIONS Type: SLFD15 Series Dimensions and Land Patterns SLFD15-5R950G-04T Dimensions and Land Patterns 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS SLFD18-2R200G-01T/ SLFD18-5R950G-12T Dimensions and Land Patterns SLFD18-2R200G-02T/ SLFD18-3R000G-31T Dimensions and Land Patterns SLFD18-2R450G-22/24T Dimensions and Land Patterns SLFD18-2R450G-23/25T Dimensions and Land Patterns SLFD18-2R450G-26T Dimensions and Land Patterns 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS SLFD18-2R600G-01T/ SLFD18-5R950G-11T Dimensions and Land Patterns SLFD18-5R950G-01/07/35/41T Dimensions and Land Patterns (1) (2) (3) 0.60∮0.10 0.25 (5) (6) 0.80 (4) 0.20∮0.10 0.30∮0.10 0.20∮0.10 0.50∮0.10 SLFD18-5R950G-02/08/36/42T 0.30 0.55 ∮ 0.10 0.15 M ∮ 0.10 1.60∮0.10 (2) (4) (6) : GND (1) : Higher Freq. Port (3) : Lower Freq. Port (5) : Common Port M : MARK Unit : mm Land Unit : mm 0.25 0.50 Dimensions and Land Patterns (1) (2) (3) 0.60∮0.10 0.25 (6) (5) 0.80 (4) 0.20∮0.10 0.30∮0.10 0.20∮0.10 0.50∮0.10 (2) (4) (6) : GND (1) : Lower Freq. Port (3) : Higher Freq. Port (5) : Common Port M : MARK Unit : mm 0.30 0.55 ∮ 0.10 0.15 M ∮ 0.10 1.60∮0.10 Land Unit : mm 0.25 SLFD18-5R950G-03T Dimensions and Land Patterns SLFD18-5R950G-04T Dimensions and Land Patterns 0.50 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS SLFD21-1R400G-01/03T Dimensions and Land Patterns SLFD21-2R200G-01T Dimensions and Land Patterns SLFD21-2R200G-02T Dimensions and Land Patterns SLFD21-2R200G-03T/ SLFD21-2R690G-01T/ Dimensions and Land Patterns SLFD21-5R950G-01T 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS SLFD21-2R200G-04T/ SLFD21-2R690G-02T/ Dimensions and Land Patterns SLFD21-5R950G-02T SLFD21-3R000G-31T Dimensions and Land Patterns SLFD22-1R500G-31T/ SLFD22-3R000G-31T/ Dimensions and Land Patterns SLFD22-4R500G-31T 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD15 TYPE Part Number Characteristic Impedance Frequency Range Frequency Max. IL in BW (@ 25°C) Units Ω - MHz dB Ripple in Max. VSWR BW in BW (@ 25°C) (@ 25℃) dB Min. Attenuation (@ 25℃) dB - 16 dB Min. at Low Band 2400~2500 4800~6000 MHz 0.5 15 dB Min. at 7200~7500 MHz 27 dB Min. at 700~2025 MHz SLFD15-5R9 50G-01T 50 - High Band 5150~5950 - 28 dB Min. at 2400~2690 MHz 10 dB Min. at 1.5 3500~3700 MHz 11 dB Min. at 7250~7800 MHz 20 dB Min. at 10300~11700 MHz Low Band 2400~2500 18 dB Min. at 4800~6000 MHz 15 dB Min. at 5150~7125 MHz 20 dB Min. at 7200~7500 MHz 0.5 24 dB Min. at 500~2400 MHz 26 dB Min. at 2400~2500 MHz 19 dB Min. at 2500~2690 MHz SLFD15-5R 950G-03T - 50 9 dB Min. at - 10300~11900 High Band 5150~7125 0.95 MHz 13.5 dB Min. at 11900~12490 MHz 11.5 dB Min. at 12490~14250 MHz 8 dB Min. at 15510~21370 MHz 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD15 TYPE Part Number Characteristic Impedance Frequency Range Frequency Max. IL in BW (@ 25°C) Ripple in BW (@ 25°C) Units Ω - MHz dB dB Low Band SLFD15-5R 950G-04T 2400~2500 High Band 5150~5950 0.9 Low Band 2400~2500 0.5 50 High Band 4900~5950 - 0.5 50 SLFD15-5R 950G-05T Max. VSWR Min. Attenuation in BW (@ 25℃) (@ 25℃) - - - - 0.9 dB 35 dB Min. at 4800~5000 MHz 25 dB Min. at 7200~7500 MHz 25 dB Min. at 300~2100MHz 32 dB Min. at 2400~2700MHz 10 dB Min. at 7200MHz 20 dB Min. at 9800~11950 MHz 15 dB Min. at 14700~17850 MHz 23 dB Min. at 4800~6000 MHz 23 dB Min. at 7200~7500 MHz 25 dB Min. at 30~2400 MHz 27 dB Min. at 2400~2500 MHz 23 dB Min. at 2500~2690 MHz 20 dB Min. at 10300~11900 MHz SLFD18 TYPE Part Number Characteristic Impedance Frequency Range Frequency Units Ω - MHz Max. IL in BW (@ 25°C) dB Low Band 698~960 0.8 SLFD18-2R2 00G-01T SLFD18-2R 200G-02T 50 Ripple in BW (@ 25°C) dB 20 dB Min. @ 698~960MHz - High Band 1710~2700 0.7 Low Band 698~960 0.8 50 1710~2700 - 25 dB Min. @ 1710~2700MHz 25 dB Min. at 1710~2700 MHz High Band Max. VSWR Min. Attenuation in BW (@ 25℃) (@ 25℃) dB - - 0.7 20 dB Min. at 698~960 MHz 20 dB Min. at 5150~5850 MHz SLFD18-2R 450G-22T Low Band 1570~1610 0.5 High Band 2400~2500 0.5 50 Sunlord - - Specifications subject to change without notice. Please check our website for latest information. 20 dB Min. at 2400~2500MHz 20 dB Min. at 1570~1610MHz 0 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD18 TYPE Part Number Characteristic Impedance Frequency Range Frequency Max. IL in BW (@ 25°C) Ripple in BW (@ 25°C) Units Ω - MHz dB dB SLFD18-2R 450G-23T 50 SLFD18-2R 450G-24T 50 SLFD18-2R 450G-25T 50 SLFD18-3R 000G-31T Low Band 1570~1610 0.45 High Band 2400~2500 0.5 Low Band 1560~1607 0.65 High Band 2300~2700 0.75 Low Band 1560~1607 0.65 High Band 2300~2700 0.75 Low Band 698~2690 0.9 3400~3800 1 5150~5850 0.7 50 Max. VSWR Min. Attenuation in BW (@ 25℃) (@ 25℃) - - - - - - - - 2 High Band dB 20 dB Min. at 2400~2500MHz 20 dB Min. at 1570~1610MHz 15 dB Min. at 2300~2700 MHz 17 dB Min. at 1560~1607 MHz 15 dB Min. at 2300~2700 MHz 17 dB Min. at 1560~1607 MHz 13 dB Min. at 3400~3800MHz 20 dB Min. at 5150~5850MHz 14 dB Min. at 698~2690MHz 18 dB Min. at 10300~11700 MHz 35 dB Min. at 4800~5000MHz Low Band 2400~2500 0.65 30 dB Min. at 7200~7500MHz SLFD18-5R 950G-01T 50 - High Band 4900~5950 2 0.75 28 dB Min. at 30~2100MHz 32 dB Min. at 2400~2700MHz 25 dB Min. at 9800~11900 MHz 15 dB Min. at 14700~17850 MHz 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD18 TYPE Part Number Characteristic Impedance Frequency Range Units Ω - Low Band SLFD18-5R9 50G-02T SLFD18-5R9 50G-03T SLFD18-5R9 50G-04T Frequency Max. IL in BW (@ 25°C) Ripple in BW (@ 25°C) MHz dB dB 2400~2500 0.55 50 High Band 4900~5950 0.75 Low Band 2400~2500 0.5 50 High Band 4900~5950 0.9 Low Band 2400~2500 0.5 50 High Band 4900~5950 Max. VSWR in BW (@ 25℃) - - 2 - 2 - 2 0.9 Min. Attenuation (@ 25℃) dB 30 dB Min. at 4800~5000MHz 25 dB Min. at 7200~7500MHz 25 dB Min. at 30~2100 MHz 30 dB Min. at 2400~2500 MHz 12 dB Min. at 8100~8900 MHz 20 dB Min. at 9800~11900 MHz 15 dB Min. at 14700~17850 MHz 35 dB Min. at 4800~5000MHz 25 dB Min. at 7200~7500MHz 25 dB Min. at 300~2100MHz 32 dB Min. at 2400~2700MHz 10 dB Min. at 7200MHz 20 dB Min. at 9800~11950MH z 15 dB Min. at 14700~17850M Hz 25 dB Min. at 300~2100MHz 32 dB Min. at 2400~2700MHz 35 dB Min. at 4800~5000MHz 10 dB Min. at 7200MHz 25 dB Min. at 7200~7500MHz 20 dB Min. at 9800~11950 MHz 15 dB Min. at 14700~17850 MHz 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD18 TYPE Part Number Characteristic Frequency Frequency Impedance Range Ω Units - MHz Max. IL in BW (@ 25°C) dB Ripple in Max. VSWR BW in BW (@ (@ 25℃) 25°C) dB - Low Band 2400~2500 0.35 dB Max. at 698~960MHz 0.45 dB Max. at 1427~2400MHz 5000~5950MHz 0.4 1.5 IC chipset SLFD18-5R9 50G-07T - 50 High Band 4900~5950 0.6 1.8 Low Band 2400~2500 0.4 1.5 Complex Conjugate to IC chipset SLFD18-5R9 50G-08T - 50 High Band Low Band 4900~5950 698~2690 dB 21 dB Min. at 4800~5000MHz 23 dB Min. at 5000~5950MHz 25 dB Min. at 7200~7500MHz 25 dB Min. at 824~2170MHz 28 dB Min. at 2400~2700MHz 20 dB Min. at 9800~11900MHz 21 dB Min. at 4800~5000MHz 23 dB Min. at 5000~5950MHz 25 dB Min. at 7200~7500MHz 25 dB Min. at 824~2170MHz 28 dB Min. at 2400~2700MHz 20 dB Min. at 9800~11900MHz 32 dB Min. at 4800~5000MHz Complex Conjugate to Min. Attenuation (@ 25℃) 0.6 0.60 dB Max. at 2400~2500MHz 1.8 35 dB Min. at - 1.8 20 dB Min. at 7200~7500MHz 19 dB Min. at 0.60 dB Max. at 2500~2690MHz 7635~8070MHz 32 dB Min. at 698~1805MHz SLFD18-5R9 50G-11T 32 dB Min. at 50 1805~1950MHz 34 dB Min. at 1950~2400MHz High Band 5150~5850 0.7 - 1.8 40 dB Min. at 2400~2500MHz 32 dB Min. at 2500~2690MHz 16 dB Min. at 10300~11700MH z Sunlord Specifications subject to change without notice. Please check our website for latest information. 0 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD18 TYPE Characteristic Frequency Part Number Frequency Impedance Range Ω Units - MHz Max. IL in BW (@ 25°C) dB 0.35 dB Max. at 698~960MHz Ripple in Max. VSWR BW in BW (@ (@ 25℃) 25°C) dB - 698~2690 dB 32 dB Min. at 4800~5000MHz 35 dB Min. at 0.45 dB Max. at 1427~2400MHz Low Band Min. Attenuation (@ 25℃) 5000~5950MHz 20 dB Min. at 0.60 dB Max. at 2400~2500MHz 7200~7500MHz 19 dB Min. at 0.60 dB Max. at 2500~2690MHz 7635~8070MHz 32 dB Min. at SLFD18-5R9 50G-12T 698~1805MHz 50 - 1.8 32 dB Min. at 1805~1950MHz 34 dB Min. at 1950~2400MHz High Band 5150~5850 0.7 40 dB Min. at 2400~2500MHz 32 dB Min. at 2500~2690MHz 20 dB Min. at 10300~11700MHz 20 dB Min. at 700~1300MHz Low Band 2400~2500 25 dB Min. at 0.85 4800~5000MHz 30 dB Min. at 7200~7500MHz 27 dB Min. at SLFD18-5R9 50G-35T 1200~1500MHz 50 - - 26 dB Min. at 1600~2000MHz High Band 4900~6000 1 25 dB Min. at 2300~3000MHz 20 dB Min. at 98000~12000MHz 15 dB Min. at 14700~18000MHz 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD18 TYPE Part Number Characteristic Impedance Frequency Range Units Ω - Frequency Max. IL in BW (@ 25°C) Ripple in BW (@ 25°C) MHz dB dB Max. VSWR in Min. Attenuation (@ BW 25℃) (@ 25℃) dB 20 dB Min. at 700~1300MHz Low Band 2400~2500 25 dB Min. at 0.85 4800~5000MHz 30 dB Min. at 7200~7500MHz 27 dB Min. at 1200~1500MHz SLFD18-5R9 50G-36T 50 - - 26 dB Min. at 1600~2000MHz High Band 4900~6000 25 dB Min. at 1 2300~3000MHz 20 dB Min. at 98000~12000MHz 15 dB Min. at 14700~18000MHz SLFD21 TYPE Part Number Characteristic Impedance Frequency Range Units Ω - SLFD21-1R40 0G-01T 50 SLFD21-1R40 0G-03T 50 Ripple in BW (@ 25°C) Max. VSWR in BW (@ 25℃) MHz dB dB - Low Band 698~960 0.8 High Band 1427~2690 0.75 Low Band 570~960 0.75 High Band 1427~2690 0.85 698~746 0.4 746~960 0.5 Low Band SLFD21-2R20 0G-01T Frequency Max. IL in BW (@ 25°C) 50 - 2 - 2 1710~2400 0.7 dB 22 dB Min. at 1427~2690 MHz 20 dB Min. at 698~915 MHz 17 dB Min. at 915~960 MHz 20 dB Min. at 1427~2700MHz 20 dB Min. at 570~960MHz 25dB Min. at 698~960MHz High Band Min. Attenuation (@ 25℃) - 30dB Min. at 1710~2170MHz 30dB Min. at 2170~2400MHz 30dB Min. at 2400~2700MHz 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD21 TYPE Part Number Characteristic Frequency Impedance Range Ω Units Low Band SLFD21-2R2 00G-02T SLFD21-2R2 00G-03T SLFD21-2R2 00G-04T Frequency Max. IL in BW (@ 25°C) Ripple in BW (@ 25°C) Max. VSWR in BW (@ 25℃) dB - MHz dB 698~746 0.4 746~960 0.5 50 High Band 1710~2400 0.7 Low Band 698~746 746~960 0.4 0.5 50 High Band 1710~2400 Low Band 698~746 746~960 0.4 0.5 1710~2400 0.6 50 High Band Low Band 698~2170 - - - 2 - 2 0.6 0.4 dB at 698-960 MHz 0.5 dB at 1420-1610 MHz 0.65 dB at 1710-1920 MHz 1.40 dB at 1990-2170 MHz 50 High Band 2496~4200 1.35 dB at2496-2515 MHz 1.2 dB at 2515-2675 MHz 0.9 dB at 2675-2690 MHz 1.1 dB at 3300~4200 MHz dB 25dB Min. at 698~960MHz 30dB Min. at 1710~2170MHz 30dB Min. at 2170~2400MHz 30dB Min. at 2400~2700MHz 30 dB Min. at 1710~2170MHz 30 dB Min. at 2170~2400MHz 32 dB Min. at 2400~2700MHz 25 dB Min. at 698~960MHz 30 dB Min. at 1710~2170MHz 30 dB Min. at 2170~2400MHz 32 dB Min. at 2400~2700MHz 25 dB Min. at 698~960MHz 10 dB Min. at 2402~2482 MHz 2 0.8 dB at 1920-1990 MHz SLFD21-2R6 90G-01T Min. Attenuation (@ 25℃) - 14 dB Min. at 2496~2690 MHz 25 dB Min. at 4900~5900 MHz 2 Max. at 2496~2690 MHz 20 dB Min. at 698~960 MHz 2.33 Max. at 3300~4200 MHz 15 dB Min. at 1710~2170 MHz 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD21 TYPE Part Number Characteristic Frequency Frequency Impedance Range Ω Units - Low Band SLFD21-2R6 90G-02T MHz 698~2170 50 High Band 2496~4200 Max. IL in BW (@ 25°C) dB 0.4 dB at 698-960 MHz 0.5 dB at 1420-1610 MHz Ripple in BW (@ 25°C) dB 2 2 Max. at 2496~2690 MHz 20 dB Min. at 698~960 MHz 2.33 Max. at 3300~4200 MHz 15 dB Min. at 1710~2170 MHz 0.35 dB Max. at 617-960MHz 18 dB Min. at 3300~3400MHz 0.45 dB Max. at 1427-1511 MHz 617~2690 0.55dB Max. at 1710-2170MHz 23dB Min. at 3400~3800MHz 0.75 dB Max. at 2300~2496 MHz 30dB Min. at 5150~5925MHz 0.9dB Max. at 2496~2690 MHz SLFD21-3R0 00G-31T 1.3dB Max. at 3300~3400MHz 50 14 dB Min. at 2496~2690 MHz 25 dB Min. at 4900~5900 MHz - 1.1 dB at 3300~4200 MHz Low Band Min. Attenuation (@ 25℃) dB 10 dB Min. at 2402~2482 MHz 0.65 dB at 1710-1920 MHz 0.8 dB at 1920-1990 MHz 1.40 dB at 1990-2170 MHz 1.35 dB at2496-2515 MHz 1.2 dB at 2515-2675 MHz 0.9 dB at 2675-2690 MHz Max. VSWR in BW (@ 25℃) - 30 dB Min. at 617-960MHz - 2 30 dB Min. at 1427-1511 MHz 25dB Min. at 1dB Max. at 3400~3800MHz High Band 3300~5925 1710-2170MH z 22 dB Min. at 2170~2690 MHz 0.5 dB Max. at 5150~5925MHz 25dB Min. at 10300~11850 MHz 5dB Min. at 15450~17775 MHz 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD21 TYPE Characteristic Frequency Part Number Impedance Range Ω Units SLFD21-5R9 50G-01T - Frequency Max. IL in BW (@ 25°C) MHz dB Ripple in BW (@ 25°C) dB Max. VSWR in BW (@ 25℃) dB dB Low Band 2400~2500 0.45 15 20dB Min. at 5150~5850MHz High Band 4900~5950 0.5 12 20dB Min. at 2400~2500MHz Low Band 2400~2500 0.45 15 20dB Min. at 5150~5850MHz High Band 4900~5950 0.5 12 20dB Min. at 2400~2500MHz 50 SLFD21-5R9 50G-02T Min. Attenuation (@ 25℃) 50 23dB Min. at 4800~5000MHz 20dB Min. at 7200~7500MHz 25dB Min. at 2400~2500MHz 20dB Min. at 10300~11700 MHz 23dB Min. at 4800~5000MHz 20dB Min. at 7200~7500MHz 25dB Min. at 2400~2500MHz 20dB Min. at 10300~11700 MHz SLFD22 TYPE Part Number Characteristic Frequency Frequency Impedance Range Units Ω - Low Band SLFD22-1R5 00G-31T 698~1511 50 High Band Sunlord MHz 1710~ 3800 Max. IL in BW (@ 25°C) dB 0.80 dB Max. at 698~960 MHz 1.50 dB Max. at 1447~1463 MHz Ripple in BW (@ 25°C) dB dB 15 dB Min. at 698~960 MHz 15 dB Min. at 1452~1511 MHz 15 dB Min. at 1710~1785 MHz 15 dB Min. at 1805~1880 MHz 1.50 dB Max. at 1452~1496 MHz 1.80 dB Max. at 1496~1511 MHz 1.50 dB Max. at 1710~1785 MHz 1.20 dB Max. at 1805~1880 MHz 10 dB Max. at 1880~2025 MHz 0.75 dB Max. at 2110~2200 MHz 0.75 dB Max. at 2300~2400 MHz 0.75 dB Max. at 2496~2690 MHz 1.30 dB Max. at 3400~3800 MHz Max. VSWR in BW (@ 25℃) -- 15 dB Min. at 1880~2025 MHz Min. Attenuation (@ 25℃) dB 14 dB Min. at 1710~1785 MHz 15 dB Min. at 1805~1880 MHz 15 dB Min. at 1880~2025 MHz 15 dB Min. at 2110~2200 MHz 15 dB Min. at 2300~2400 MHz 20 dB Min. at 2496~2690 MHz 20 dB Min. at 3400~3800 MHz 15 dB Min. at 3800~5950 MHz 15 dB Min. at 698~960 MHz 15 dB Min. at 2110~2200 MHz 15 dB Min. at 2300~2400 MHz 20 dB Min. at 15 dB Min. at 2496~2690 MHz 1452~1511 MHz 10 dB Min. at 20 dB Min. at 3400~3800 MHz 4900~5950 MHz Specifications subject to change without notice. Please check our website for latest information. 0 Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD22 TYPE Part Number Characteristic Frequency Impedance Range Units Ω - Low Band Frequency MHz 617~2690 Max. IL in BW (@ 25°C) dB 0.40 dB Max. at 617~960 MHz 0.50 dB Max. at 1427~1661 MHz 0.60 dB Max. at 1710~2200 MHz Ripple in BW (@ 25°C) dB 0.90 dB Max. at 2300~2690 MHz Max. VSWR in BW (@ 25℃) 20 dB Min. at 617~960 MHz 15 dB Min. at 1427~1661 MHz 15 dB Min. at 1710~2200 MHz 18 dB Min. at 2300~2690 MHz 15 dB Min. at 3300~3400 MHz Min. Attenuation (@ 25℃) dB 15 dB Min. at 3300~3400 MHz 20 dB Min. at 3400~3800 MHz 20 dB Min. at 3800~4200 MHz 20 dB Min. at 4400~5000 MHz 20 dB Min. at 5150~5950 MHz 20 dB Min. SLFD22-3R00 0G-31T 1.10 dB Max. at 3300~3400 MHz 50 at - 20 dB Min. at 617~960 MHz 3400~3800 MHz 20 dB Min. 0.90 dB Max. at 3400~4200 MHz at 3800~4200 18 dB Min. at 1427~1661 MHz MHz High Band 3300~5950 20 dB Min. 0.80 dB Max. at 4400~5000 MHz at 4400~5000 MHz 18 dB Min. at 1710~2200 MHz 18 dB Min. at 2300~2690 MHz 20 dB Min. 0.80 dB Max. at 5150~5950 MHz at 5150~5950 MHz 20 dB Min. at 10300~11700 MHz 15 dB Min. at 15450~17550 MHz 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLFD22 TYPE Part Number Characteristic Frequency Impedance Range Units Ω - Frequency Max. IL in BW (@ 25°C) Ripple in BW (@ 25°C) MHz dB dB 0.40 dB Max. at 1427~1661 MHz 0.50 dB Max. at 1710~2200 MHz Low Band 1427~4200 0.50 dB Max. at 2300~2690 MHz 0.80 dB Max. at 3300~3800 MHz 0.90 dB Max. at 3800~4200 MHz SLFD22-4R500 G-31T 50 1.50 dB Max. at 5150~5250 MHz High Band 5150~5925 1.40 dB Max. at 5250~5330 MHz 1.40 dB Max. at 5490~5730 MHz 1.40 dB Max. at 5730~5925 MHz - Max. VSWR in BW (@ 25℃) Min. Attenuation (@ 25℃) dB 18 dB Min. at 18 dB Min. at 1427~1661 5150~5925 MHz MHz 18 dB Min. at 1710~2200 MHz 20 dB Min. at 18 dB Min. at 6600~8400 MHz 2300~2690 MHz 20 dB Min. at 9900~12800 MHz 18 dB Min. at 3300~3400 MHz 20 dB Min. at 700~2690 MHz 33 dB Min. at 2550~2690 MHz 20 dB Min. at 3300~3800 18 dB Min. at MHz 3400~3800 18 dB Min. at MHz 3800~4200 MHz 6 dB Min. at 6900~7100 MHz 15 dB Min. at 7200~7800 MHz 15 dB Min. at 7800~9800 18 dB Min. at MHz 3800~4200 15 dB Min. at MHz 9800~11700 MHz 18 dB Min. at 11 dB Min. at 5150~5925 14700~17850 MHz MHz 0 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
