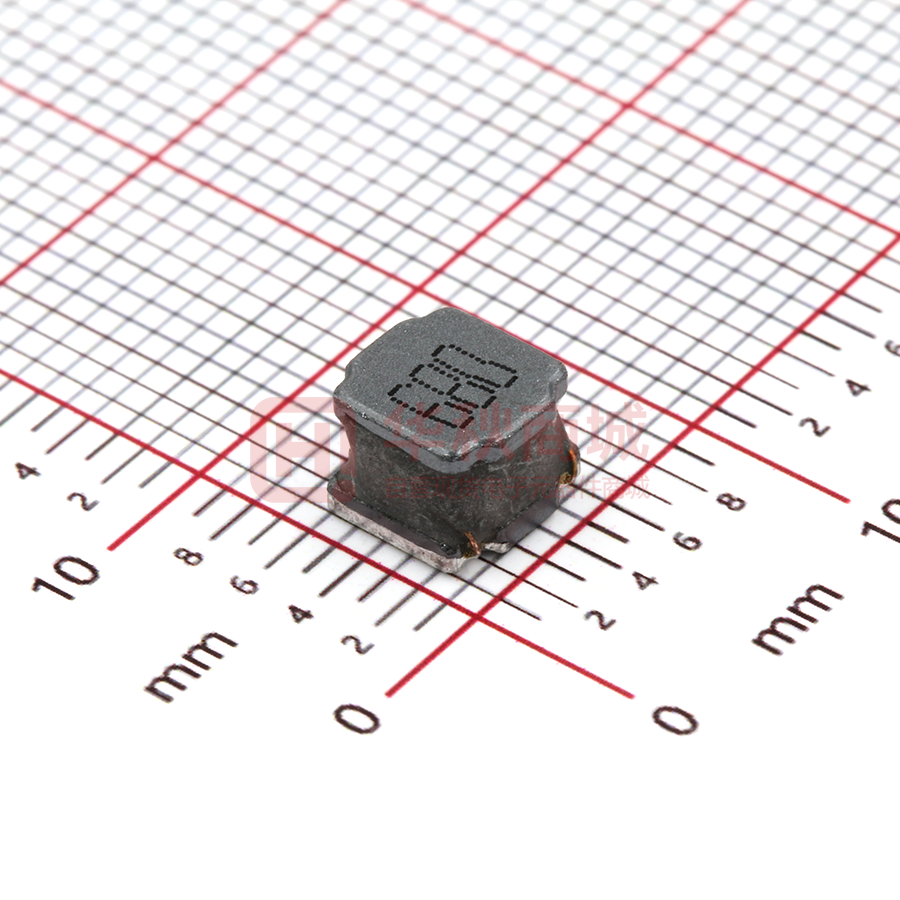

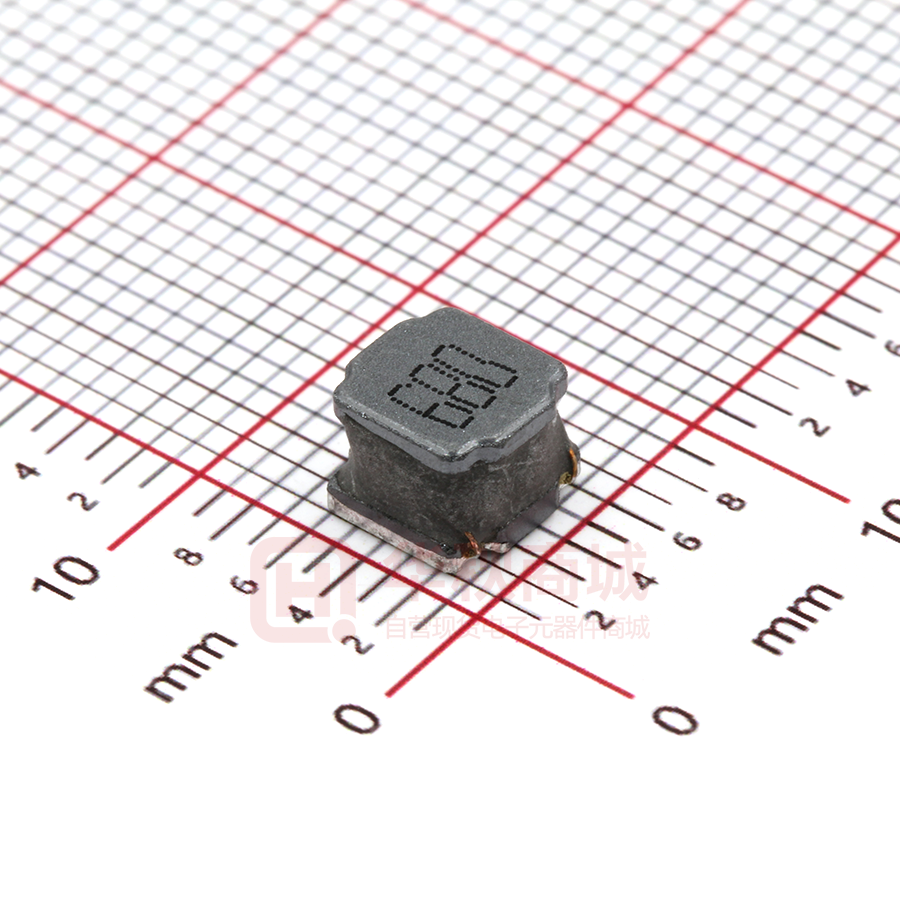

Power Inductor LVS Series
AEC-Q200
RoHS Compliant
Halogen Free
■ Part Numbering
606045
LVS
Internal Code
L
Low DCR
-
1R0
Inductance
(uH)
R47
0.47
1R0
1.0
101
100
M
-
Tolerance
M
T
AU
Internal Code
±20%
±30%
NO
T
FO
R
NE
W
Series Name
L
Dimensions Code
(mm)
404012 4.0x4.0x1.2
404018 4.0x4.0x1.8
505020 5.0x5.0x2.0
505040 5.0x5.0x4.0
606020 6.0x6.0x2.0
606028 6.0x6.0x2.8
606045 6.0x6.0x4.5
606045L 6.0x6.0x4.5
808040 8.0x8.0x4.0
808040L 8.0x8.0x4.0
DE
SI
GN
REACH Compliant
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS404012 - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
LVS404012-1R0□-AU
LVS404012-1R5□-AU
LVS404012-2R2□-AU
LVS404012-3R3□-AU
LVS404012-4R7□-AU
LVS404012-6R8□-AU
LVS404012-100□-AU
LVS404012-150□-AU
LVS404012-220□-AU
LVS404012-330□-AU
LVS404012-470□-AU
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
unit:mm
RDC
(mΩ)±30%
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
48
58
65
90
110
135
190
250
400
600
930
2.50(2.20)
2.10(1.80)
1.70(1.50)
1.30(1.10)
1.10(0.90)
0.90(0.81)
0.78(0.70)
0.65(0.58)
0.52(0.46)
0.44(0.39)
0.35(0.31)
1.70(1.50)
1.60(1.40)
1.50(1.30)
1.40(1.20)
1.20(1.00)
1.00(0.94)
0.90(0.81)
0.85(0.76)
0.75(0.67)
0.70(0.63)
0.50(0.45)
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
1R0
1R5
2R2
3R3
4R7
6R8
100
150
220
330
470
NE
W
Part No.
DE
SI
GN
■ Dimensions
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
NO
T
FO
R
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS404012 - AU Type
■ Characteristics Graph
Inductance vs. DC Current
DE
SI
GN
50
45
40
470
35
330
25
20
220
15
150
10
NE
W
L(uH)
30
100
6R8
5
0
0
0.5
1
4R7
3R3 2R2
1.5
1R5
2
1R0
2.5
3
3.5
4
DC Current(A)
FO
R
Temperature Change vs. DC Current
70
60
470
150
50
T
6R8
220
100
0.8
1
4R7
3R3
2R2
1R0
1R5
△T(℃)
NO
40
30
20
10
0
0
0.2
0.4
0.6
1.2
1.4
1.6
1.8
2
DC Current(A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS404018 - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
1
1.5
1.8
2.2
2.3
3.3
3.6
3.9
4.7
6.8
8.2
10
15
22
33
47
68
100
150
220
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
FO
R
LVS404018-1R0□-AU
LVS404018-1R5□-AU
LVS404018-1R8□-AU
LVS404018-2R2□-AU
LVS404018-2R3□-AU
LVS404018-3R3□-AU
LVS404018-3R6□-AU
LVS404018-3R9□-AU
LVS404018-4R7□-AU
LVS404018-6R8□-AU
LVS404018-8R2□-AU
LVS404018-100□-AU
LVS404018-150□-AU
LVS404018-220□-AU
LVS404018-330□-AU
LVS404018-470□-AU
LVS404018-680□-AU
LVS404018-101□-AU
LVS404018-151□-AU
LVS404018-221□-AU
unit:mm
RDC
(mΩ)±20%
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
32
40
55
60
60
70
75
75
90
110
155
170
250
350
530
720
1000
1500
2500
4000
4.10(3.60)
3.30(2.90)
2.80(2.50)
2.80(2.50)
2.80(2.50)
2.20(1.90)
2.10(1.80)
2.10(1.80)
2.00(1.80)
1.60(1.40)
1.50(1.30)
1.40(1.20)
1.00(0.90)
0.90(0.81)
0.80(0.72)
0.70(0.63)
0.56(0.50)
0.46(0.41)
0.35(0.31)
0.28(0.25)
2.80(2.50)
2.60(2.30)
2.50(2.20)
2.50(2.20)
2.50(2.20)
2.10(1.80)
1.90(1.70)
1.90(1.70)
1.70(1.50)
1.50(1.30)
1.30(1.10)
1.20(1.00)
1.00(0.90)
0.85(0.76)
0.70(0.63)
0.56(0.50)
0.45(0.40)
0.38(0.34)
0.30(0.27)
0.23(0.20)
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
1R0
1R5
1R8
2R2
2R3
3R3
3R6
3R9
4R7
6R8
8R2
100
150
220
330
470
680
101
151
221
NE
W
Part No.
DE
SI
GN
■ Dimensions
T
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
NO
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS404018 - AU Type
■ Characteristics Graph
Inductance vs. DC Current
DE
SI
GN
30
25
L(uH)
20
220
15
150
10
NE
W
100
6R8
5
4R7
3R3
0
0
0.5
1
1.5
2
2.5
2R2
3
1R0
3.5
4
4.5
5
DC Current(A)
70
60
FO
R
Temperature Change vs. DC Current
220
100
6R8
4R7
150
2R2
40
NO
△T(℃)
T
50
1R0
3R3
30
20
10
0
0
0.5
1
1.5
2
2.5
3
3.5
4
DC Current(A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS505020 - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
1.0
1.2
1.5
2.2
2.7
3.3
4.7
5.6
6.8
10
15
22
33
47
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
RDC
(mΩ)±20%
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
21
21
26
35
38
48
60
82
90
120
190
260
460
580
5.10(4.50)
4.80(4.30)
4.20(3.70)
3.40(3.00)
3.40(3.00)
3.05(2.70)
2.20(1.90)
2.05(1.80)
2.00(1.80)
1.60(1.44)
1.30(1.17)
1.00(0.90)
0.80(0.72)
0.65(0.58)
4.00(3.60)
3.80(3.40)
3.50(3.10)
3.20(2.80)
3.20(2.80)
2.80(2.50)
2.90(2.60)
2.00(1.80)
1.80(1.60)
1.60(1.40)
1.20(1.00)
1.00(0.90)
0.75(0.67)
0.65(0.58)
20,30
30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
1R0
1R2
1R5
2R2
2R7
3R3
4R7
5R6
6R8
100
150
220
330
470
FO
R
LVS505020-1R0□-AU
LVS505020-1R2□-AU
LVS505020-1R5□-AU
LVS505020-2R2□-AU
LVS505020-2R7□-AU
LVS505020-3R3□-AU
LVS505020-4R7□-AU
LVS505020-5R6□-AU
LVS505020-6R8□-AU
LVS505020-100□-AU
LVS505020-150□-AU
LVS505020-220□-AU
LVS505020-330□-AU
LVS505020-470□-AU
unit:mm
NE
W
Part No.
DE
SI
GN
■ Dimensions
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
NO
T
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS505020 - AU Type
■ Characteristics Graph
Inductance vs. DC Current
DE
SI
GN
55
50
45
470
40
L(uH)
35
30
330
25
20
220
NE
W
15
150
10
100
6R8
5
0
0
0.5
1
1.5
4R7
2
2.5
3R3
3
2R2
3.5
1R5
4
1R0
4.5
5
5.5
6
DC Current(A)
FO
R
Temperature Change vs. DC Current
60
470
330
50
150
220
100
6R8
4R7
3R3
2R2
1R5
1R0
△T(℃)
NO
T
40
30
20
10
0
0
1
2
3
4
5
DC Current(A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS505040 - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
1.0
1.2
1.5
2.2
3
3.3
3.6
4.7
6.8
10
15
22
27
33
47
68
100
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
FO
R
LVS505040-1R0□-AU
LVS505040-1R2□-AU
LVS505040-1R5□-AU
LVS505040-2R2□-AU
LVS505040-3R0□-AU
LVS505040-3R3□-AU
LVS505040-3R6□-AU
LVS505040-4R7□-AU
LVS505040-6R8□-AU
LVS505040-100□-AU
LVS505040-150□-AU
LVS505040-220□-AU
LVS505040-270□-AU
LVS505040-330□-AU
LVS505040-470□-AU
LVS505040-680□-AU
LVS505040-101□-AU
unit:mm
RDC
(mΩ)±30%
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
14
15
16
21
21
26
31
32
50
60
90
135
180
190
310
540
800
7.5(6.70)
7.4(6.60)
7.1(6.30)
5.7(5.10)
4.8(4.30)
4.8(4.30)
4.2(3.70)
4.2(3.70)
3.3(2.90)
2.8(2.50)
2.3(2.00)
1.8(1.60)
1.6(1.40)
1.5(1.30)
1.2(1.00)
1.0(0.90)
0.7(0.60)
4.6(4.10)
4.5(4.00)
4.4(3.90)
3.7(3.30)
3.5(3.10)
3.5(3.10)
3.3(2.90)
3.2(2.80)
2.4(2.10)
2.2(1.90)
1.8(1.60)
1.4(1.20)
1.2(1.00)
1.1(0.99)
0.9(0.81)
0.78(0.7)
0.6(0.50)
30
30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
1R0
1R2
1R5
2R2
3R0
3R3
3R6
4R7
6R8
100
150
220
270
330
470
680
101
NE
W
Part No.
DE
SI
GN
■ Dimensions
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
NO
T
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS505040 - AU Type
■ Characteristics Graph
Inductance vs. DC Current
DE
SI
GN
50
45
470
40
35
330
25
270
20
220
15
150
10
NE
W
L(uH)
30
100
5
0
0
1
2
6R8
3
4R7
3R6 3R3 2R2
4
5
1R5
6
7
1R0
8
9
10
DC Current(A)
FO
R
Temperature Change vs. DC Current
70
470
60
220
6R8
100
150
4R7 3R63R3
2R2
330
270
1R0
T
50
1R5
△T(℃)
NO
40
30
20
10
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
DC Current(A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS606020 - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
LVS606020-R50□-AU
LVS606020-R90□-AU
LVS606020-1R0□-AU
LVS606020-1R5□-AU
LVS606020-2R2□-AU
LVS606020-3R3□-AU
LVS606020-4R7□-AU
LVS606020-6R8□-AU
LVS606020-100□-AU
LVS606020-150□-AU
LVS606020-220□-AU
0.5
0.9
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
unit:mm
RDC
(mΩ)±30%
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
13
18
19
26
34
40
58
85
125
190
260
8.0(7.20)
6.3(5.60)
6.2(5.50)
5.0(4.50)
4.2(3.70)
3.2(2.80)
2.5(2.20)
2.2(1.90)
2.0(1.80)
1.3(1.10)
1.1(0.99)
5.3(4.7)
4.2(3.7)
4.1(3.6)
3.6(3.2)
3.2(2.8)
2.7(2.4)
2.2(1.9)
1.8(1.6)
1.6(1.4)
1.3(1.1)
1.1(0.99)
30
30
30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
R50
R90
1R0
1R5
2R2
3R3
4R7
6R8
100
150
220
NE
W
Part No.
DE
SI
GN
■ Dimensions
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
NO
T
FO
R
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS606020 - AU Type
■ Characteristics Graph
Inductance vs. DC Current
20
DE
SI
GN
25
220
L(uH)
15
150
10
100
5
NE
W
6R8
4R7
0
0
0.5
1
1.5
2
2.5
3
3R3
3.5
2R2
4
1R5
4.5
5
R90
5.5
6
6.5
7
DC Current(A)
80
70
150
6R8
R90
4R7
100
2R2
1R5
3R3
220
T
60
FO
R
Temperature Change vs. DC Current
△T(℃)
NO
50
40
30
20
10
0
0
1
2
3
4
5
6
DC Current(A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS606028 - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
1
1.5
2.2
2.7
3.3
4.7
6
6.8
10
15
22
33
47
68
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
FO
R
LVS606028-1R0□-AU
LVS606028-1R5□-AU
LVS606028-2R2□-AU
LVS606028-2R7□-AU
LVS606028-3R3□-AU
LVS606028-4R7□-AU
LVS606028-6R0□-AU
LVS606028-6R8□-AU
LVS606028-100□-AU
LVS606028-150□-AU
LVS606028-220□-AU
LVS606028-330□-AU
LVS606028-470□-AU
LVS606028-680□-AU
LVS606028-101□-AU
100
unit:mm
RDC
(mΩ)±30%
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
13
16
20
26
28
38
45
50
65
95
135
220
320
420
7.60(6.80)
6.30(5.60)
5.40(4.80)
4.90(4.40)
4.30(3.80)
3.70(3.30)
3.30(2.90)
3.10(2.70)
2.50(2.20)
2.00(1.80)
1.60(1.40)
1.30(1.10)
1.10(0.99)
0.98(0.88)
5.20(4.60)
4.80(4.30)
4.00(3.60)
3.70(3.30)
3.50(3.10)
3.20(2.80)
2.80(2.50)
2.70(2.40)
2.30(2.00)
1.80(1.60)
1.50(1.30)
1.40(1.20)
1.00(0.90)
0.90(0.81)
20,30
30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
1R0
600
0.82(0.73)
0.8(0.72)
20,30
101
NE
W
Part No.
DE
SI
GN
■ Dimensions
100kHz,1V
1R5
2R2
2R7
3R3
4R7
6R0
6R8
100
150
220
330
470
680
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
NO
T
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS606028 - AU Type
■ Characteristics Graph
Inductance vs. DC Current
DE
SI
GN
25
20
L(uH)
220
15
150
10
NE
W
100
6R0
5
4R7
3R3
0
0
1
2
3
4
2R2
5
1R5
1R0
7
8
6
9
DC Current(A)
FO
R
Temperature Change vs. DC Current
70
220
60
6R0
100
4R7 3R3
2R2
1R0
1R5
T
50
150
△T(℃)
NO
40
30
8
20
10
0
0
1
2
3
4
5
6
7
DC Current(A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS606045 - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
1.0
1.2
1.5
1.8
2.2
2.3
3
3.3
3.6
3.9
4.5
4.7
5.1
5.6
6.3
6.8
8.2
10
15
18
22
27
33
47
56
68
100
220
330
1000
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
NO
T
FO
R
LVS606045-1R0□-AU
LVS606045-1R2□-AU
LVS606045-1R5□-AU
LVS606045-1R8□-AU
LVS606045-2R2□-AU
LVS606045-2R3□-AU
LVS606045-3R0□-AU
LVS606045-3R3□-AU
LVS606045-3R6□-AU
LVS606045-3R9□-AU
LVS606045-4R5□-AU
LVS606045-4R7□-AU
LVS606045-5R1□-AU
LVS606045-5R6□-AU
LVS606045-6R3□-AU
LVS606045-6R8□-AU
LVS606045-8R2□-AU
LVS606045-100□-AU
LVS606045-150□-AU
LVS606045-180□-AU
LVS606045-220□-AU
LVS606045-270□-AU
LVS606045-330□-AU
LVS606045-470□-AU
LVS606045-560□-AU
LVS606045-680□-AU
LVS606045-101□-AU
LVS606045-221□-AU
LVS606045-331□-AU
LVS606045-102□-AU
unit:mm
RDC
(mΩ)±30%
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
12
13
15
17
18
19
22
24
24
26
31
31
33
40
40
43
53
57
80
100
125
160
165
245
310
330
500
1300
1800
6000
12.2(10.50)
10.6(9.50)
10.4(9.30)
9.6(8.60)
8.8(7.90)
8.8(7.90)
7.8(7.00)
7.5(6.70)
7.5(6.70)
7.0(6.30)
6.7(6.00)
6.7(6.00)
6.0(5.40)
5.5(4.90)
5.5(4.90)
5.3(4.70)
4.6(4.10)
4.5(4.00)
3.4(3.00)
3.1(2.70)
3.0(2.70)
2.5(2.20)
2.3(2.00)
1.9(1.70)
1.7(1.50)
1.6(1.40)
1.3(1.10)
0.82(0.73)
0.7(0.63)
0.4(0.36)
6.5(5.80)
5.9(5.30)
5.9(5.30)
5.6(5.00)
5.1(4.50)
5.0(4.50)
4.4(3.90)
4.3(3.80)
4.3(3.80)
4.0(3.60)
3.9(3.50)
3.9(3.50)
3.5(3.10)
3.3(2.90)
3.3(2.90)
3.2(2.80)
2.9(2.60)
2.7(2.40)
2.2(1.90)
1.8(1.60)
1.9(1.70)
1.3(1.10)
1.4(1.20)
1.2(1.00)
1.1(0.99)
1.0(0.90)
0.8(0.72)
0.38(0.34)
0.35(0.31)
0.22(0.19)
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
1R0
1R2
1R5
1R8
2R2
2R3
3R0
3R3
3R6
3R9
4R5
4R7
5R1
5R6
6R3
6R8
6R8
100
150
180
220
270
330
470
560
680
101
221
331
102
NE
W
Part No.
DE
SI
GN
■ Dimensions
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS606045 - AU Type
■ Characteristics Graph
Inductance vs. DC Current
90
DE
SI
GN
100
101
80
70
680
50
470
40
330
30
NE
W
L(uH)
60
220
20
150
10
0
0
1
2
3
4
100
6R8
5
6
1R8
7
8
9
1R0
10
11
12
13
14
15
DC Current (A)
80
70
FO
R
Temperature Change vs. DC Curent
101
680
470
330
220
4R5
6R8
150
3R0
2R3
1R8
1R0
T
60
100
△T(℃)
NO
50
40
30
.
20
10
0
0
1
2
3
4
5
6
7
8
DC Current (A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS606045L - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
LVS606045L-R50□-AU
LVS606045L-2R2□-AU
LVS606045L-3R3□-AU
LVS606045L-4R7□-AU
LVS606045L-6R8□-AU
LVS606045L-100□-AU
LVS606045L-150□-AU
LVS606045L-220□-AU
LVS606045L-330□-AU
LVS606045L-101□-AU
0.5
2.2
3.3
4.7
6.8
10
15
22
33
100
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
unit:mm
RDC
(mΩ)Max.
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
9
17
24
30
40
50
80
120
170
595
11(9.90)
6.8(6.10)
5.5(4.90)
4.6(4.10)
4.0(3.60)
3.2(2.80)
2.6(2.30)
2.1(1.80)
1.7(1.50)
0.95(0.85)
8.0(7.20)
5.5(4.90)
4.7(4.20)
4.0(3.60)
3.5(3.10)
3.2(2.80)
2.5(2.20)
2.0(1.80)
1.6(1.40)
0.92(0.82)
30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
R50
2R2
3R3
4R7
6R8
100
150
220
330
101
NE
W
Part No.
DE
SI
GN
■ Dimensions
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
NO
T
FO
R
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS606045L - AU Type
■ Characteristics Graph
Inductance vs. DC Current
DE
SI
GN
40
35
330
L(uH)
30
25
20
220
15
150
10
NE
W
100
6R8
5
0
0
1
2
3
4R7
4
5
3R3
2R2
6
7
8
9
DC Current(A)
70
FO
R
Temperature Change vs. DC Current
330
60
100
6R8 4R7
3R3
2R2
T
50
220 150
△T(℃)
NO
40
30
20
10
0
0
1
2
3
4
5
6
7
8
DC Current(A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS808040 - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
0.9
1.0
1.4
1.5
2
2.2
2.5
3.3
3.9
4.7
5.6
6.8
10
12
15
18
22
33
47
68
100
120
150
180
220
270
820
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
NO
T
FO
R
LVS808040-R90□-AU
LVS808040-1R0□-AU
LVS808040-1R4□-AU
LVS808040-1R5□-AU
LVS808040-2R0□-AU
LVS808040-2R2□-AU
LVS808040-2R5□-AU
LVS808040-3R3□-AU
LVS808040-3R9□-AU
LVS808040-4R7□-AU
LVS808040-5R6□-AU
LVS808040-6R8□-AU
LVS808040-100□-AU
LVS808040-120□-AU
LVS808040-150□-AU
LVS808040-180□-AU
LVS808040-220□-AU
LVS808040-330□-AU
LVS808040-470□-AU
LVS808040-680□-AU
LVS808040-101□-AU
LVS808040-121□-AU
LVS808040-151□-AU
LVS808040-181□-AU
LVS808040-221□-AU
LVS808040-271□-AU
LVS808040-821□-AU
unit:mm
RDC
(mΩ)±30%
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
7
8
9
10
11
12
13
15
18
18
23
25
38
45
50
68
80
110
160
240
340
425
480
650
670
900
2800
13.8(12.00)
13.0(11.50)
10.8(9.50)
10.0(9.00)
9.60(8.50)
9.20(8.10)
8.20(7.20)
7.50(6.60)
6.10(5.40)
6.00(5.30)
5.70(5.00)
5.40(4.70)
4.30(3.70)
3.80(3.30)
3.60(3.10)
3.10(2.60)
2.80(2.40)
2.30(2.00)
1.90(1.60)
1.70(1.40)
1.40(1.10)
1.10(0.95)
1.00(0.88)
0.98(0.88)
0.94(0.80)
0.83(0.73)
0.40(0.35)
8.05(7.10)
7.95(7.00)
7.80(6.90)
7.70(6.80)
7.40(6.50)
7.20(6.30)
6.30(5.50)
6.00(5.30)
5.50(4.90)
5.50(4.80)
5.20(4.50)
5.10(4.40)
3.80(3.30)
3.50(3.00)
3.20(2.70)
2.70(2.30)
2.60(2.20)
2.00(1.70)
1.75(1.40)
1.45(1.20)
1.10(0.95)
1.00(0.80)
0.90(0.75)
0.70(0.63)
0.60(0.50)
0.55(0.45)
0.38(0.30)
30
30
30
30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
R90
1R0
1R4
1R5
2R0
2R2
2R5
3R3
3R9
4R7
5R6
6R8
100
120
150
180
220
330
470
680
101
121
151
181
221
271
821
NE
W
Part No.
DE
SI
GN
■ Dimensions
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS808040 - AU Type
■ Characteristics Graph
Inductance vs. DC Current
DE
SI
GN
40
35
30
330
L(uH)
25
20
220
15
150
10
NE
W
100
6R8
5
0
0
2
4
4R7
6
3R3
2R0
8
R90
1R4
10
12
14
16
DC Current(A)
80
70
470
680
101
220
150
100
6R8 4R7
330
3R3
2R0
T
60
FO
R
Temperature Change vs. DC Current
1R4
R90
NO
△T(℃)
50
40
30
20
10
0
0
1
2
3
4
5
6
7
8
9
10
DC Current(A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS808040L - AU Type
■ Recommended Land Pattern
unit:mm
■ Electrical Characteristics
Inductance Test Freq.
(uH)
LVS808040L-1R0□-AU
LVS808040L-2R2□-AU
LVS808040L-3R3□-AU
LVS808040L-4R7□-AU
LVS808040L-8R2□-AU
LVS808040L-100□-AU
LVS808040L-150□-AU
LVS808040L-220□-AU
1.0
2.2
3.3
4.7
8.2
10
15
22
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
100kHz,1V
unit:mm
RDC
(mΩ)Max.
Isat(A)
Typ.(Max)
Irms(A)
Typ.(Max)
Tolerance
(±%)
Marking
10
12
19
22
37
42
58
85
9.5(8.40)
7.2(6.30)
5.6(4.99)
4.4(3.80)
3.6(3.10)
3.1(2.60)
2.5(2.10)
2.0(1.70)
8.5(7.50)
7.3(6.40)
6.0(5.30)
5.0(4.40)
3.8(3.30)
3.5(3.00)
3.0(2.60)
2.5(2.10)
30
20,30
20,30
20,30
20,30
20,30
20,30
20,30
1R0
2R2
3R3
4R7
8R2
100
150
220
NE
W
Part No.
DE
SI
GN
■ Dimensions
Note: When ordering, please specify tolerance code. Tolerance: M=±20% / T=±30%
1. Operating temperature range －40℃～125℃
NO
T
FO
R
2. Isat for Inductance drop 30% from its value without current
3. Irms for a 40℃ temperature rise from 25℃ ambient with current
4. Measure Equipment:
L: Agilent HP4284A+Agilent HP42841A
RDC: DIGITAL MILLINHM METER CHROMA 16502, or equivalent
Isat: Agilent HP4284A
Irms: Agilent HP4284A
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
LVS808040L - AU Type
■ Characteristics Graph
Inductance vs. DC Current
DE
SI
GN
30
25
L(uH)
20
220
15
150
10
100
NE
W
8R2
4R7
5
0
0
1
2
3
4
5
2R2
6
7
8
9
DC Current(A)
60
2R2
150
100 8R2
40
NO
△T(℃)
4R7
220
T
50
FO
R
Temperature Change vs. DC Current
70
30
20
10
0
0
1
2
3
4
5
6
7
8
9
DC Current(A)
Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are
subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without
Chilisin approval. Please contact our sales department before ordering.
www.chilisin.com.tw
Automotive
Power Inductor LVS Series
AEC-Q200
■ Packaging
DE
SI
GN
Tape Dimensions
FO
R
NE
W
Reel Dimensions
Dimensions in mm
TYPE
Tape Dimensions
Reel Dimensions
Quantity
A0
B0
K0
D
E
F
W
P
P0
P2
A
B
C
D
PCS / Reel
4.25
4.25
1.3
1.55
1.75
5.5
12
8.1
4
2
180
60
13
13.2
1000
4.25
4.25
2.10
1.55
1.75
5.5
12
8.1
4
2
178
60
13
13.2
800
LVS505020
5.25
5.25
2.2
1.55
1.75
5.5
12
8.1
4
2
330
100
13
13.4
2000
LVS505040
5.2
5.2
4.2
1.55
1.75
5.5
12
8.1
4
2
330
100
13
13.4
1500
LVS606020
6.25
6.25
2.2
1.55
1.75
7.5
16
12
4
2
330
100
13
16.0
2000
LVS606028
6.25
6.25
3.00
1.55
1.75
7.5
16
12
4
2
330
100
13
16.0
1500
LVS606045
6.25
6.25
4.65
1.55
1.75
7.5
16
12
4
2
330
100
13
16.0
1000
LVS808040
8.25
8.25
4.15
1.55
1.75
7.5
16
12
4
2
330
100
13
16.0
1000
LVS404012
NO
T
LVS404018
www.chilisin.com.tw
工商网监
湘ICP备2023018690号
