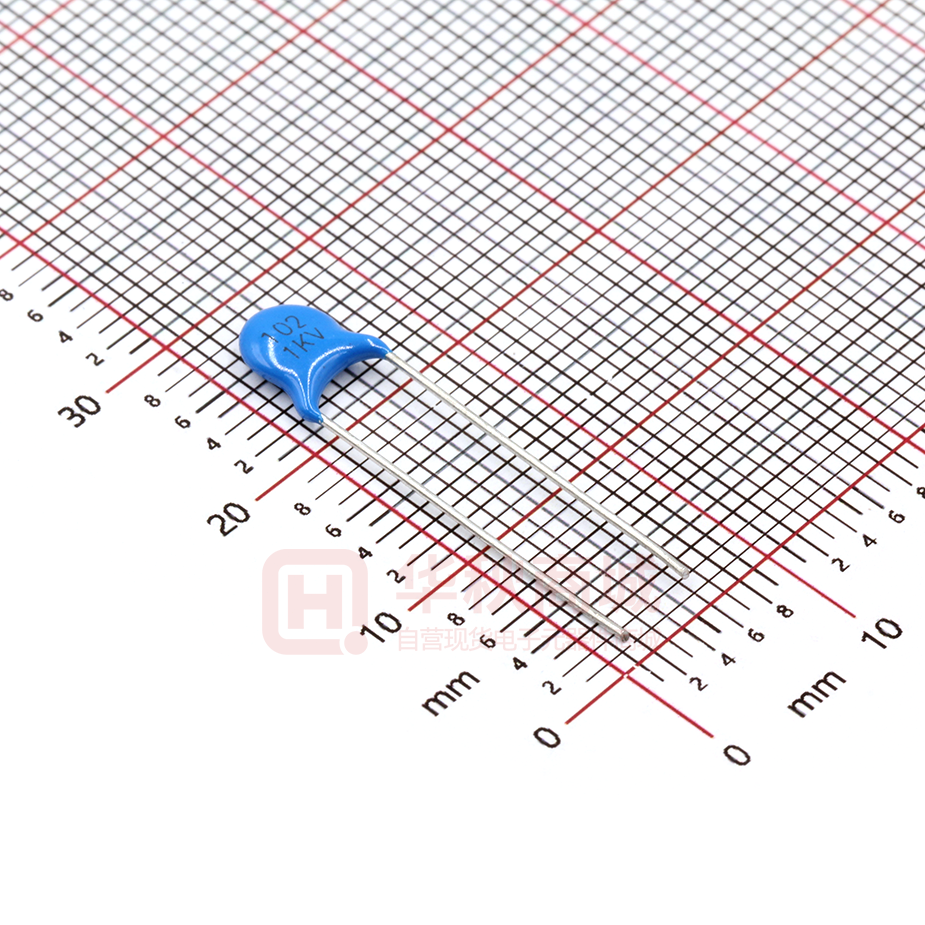

Y5P102K1KV16CC0008

规格承认书 Specification for approval 客户名称: （Customer Name） 产品名称: （Product Name） 瓷片电容(C/C) Ceramic Capacitor(C/C) 客户料号： （Customer part number） 科尼盛料号： （KNSCHA number） 型号规格: （Specifications） 拟 制 (Fiction) Y5P102K1KV16CC0008 C/C 102K/1KV P=5mm Y5P 　 　 C/C 102K/1KV P=5mm Y5P 　 　 　 制 造 (Manufacture) 客 户 (Customer) Approval Approval 审 核 (Chief) 核 准 (Approval) 检 验 (Inspect) 审 核 (Chief) 东莞市科尼盛电子有限公司 DONG GUAN KNSCHA ELECTRONICS CO.,LTD. No. 8th floor, A3 building, R&D center (Phase I), Songshan Lake Intelligent Valley, Liaobu Town, Dongguan City. TEL:0769-83698067 81035570 FAX: 0769-83861559 Email：sales@knscha.com Website: http://www.knscha.com 核 准 (Approval) 陶瓷电容器规格书 Specifications for ceramic capacitors 圆盘陶瓷电容器 Disc ceramic capacitors Edition A0 2015-02-03 BULANC DANRY RoHS H.F. REACH 修订履历 Revision history 版本 Edition A0 修订时间 Revision time Feb 03,2015 修订摘要 Revision content 首次制作 The first draft Page 2 of 16 修订人 Revision People BULANC DANRY AJC-3-017 A0 2015-02-03 The certificates with seal are validity. 目录 Directory 封面 cover.................................................................................................................................................. 1 修订履历 Revision history................................................................................................................. 2 目录 Directory........................................................................................................................................... 3 1. 范围 Scope............................................................................................................................................ 4 2. 目的 Object.............................................................................................................................................4 3. 引用标准 Normative references................................................................................................4 4. 术语和定义 Terms and definitions.......................................................................................... 4 5. 编码说明 How to order................................................................................................................. 5 6. 电容量、电压与尺寸表 Capacitance and dimension...................................................8 7. 电容器结构图 The constituent parts of capacitor........................................................... 9 8. 外型图及尺寸代码 Figure and code of dimension........................................................ 9 9. 有毒有害物质含量控制要求 Requirements for concentration limits for certain hazardous substances...................................................................................................... 10 10. 性能与试验 Performance test................................................................................................11 11. 印字 Marking +包装 Packing................................................................................................ 14 12. 贮存 Storage................................................................................................................................... 15 13. 敬告和警告 Cautions and warnings................................................................................... 16 14. 陶瓷电容器常识 general knowledge for ceramic Capacitors..............................16 Page 3 of 16 AJC-3-017 A0 2015-02-03 The certificates with seal are validity. 1. 范围 Scope 本承认规格适用于电子设备中使用的具有确定温度系数(Ⅰ类介质），具有高介电常 数(Ⅱ类介质）和具有半导体性质(Ⅲ类介质）的瓷介固定电容器。 This standard is applicable to fixed capacitors of ceramic dielectric with a defined temperature coefficient (dielectric classⅠ, classⅡ, classⅢ), intended for use in electronic equipment. 2. 目的 Object 对这类瓷介固定电容器规定优先额定值和特性，试验和测量方法以及一般特性要求。 The principal object of this standard is to prescribe preferred ratings and characteristics and to select the appropriate tests and measuring methods and to give general performance requirements for ceramic dielectric capacitors. 3. 引用标准 Normative references GB/T 2693-2001 (IDT IEC 60384-1:1999)电子设备用固定电容器 第 1 部分 总规范 Fixed capacitors for use in electronic equipmentPart 1: Generic specification GB/T 2828.1-2003 (IDT ISO 2859-1:1999) 计数抽样检验程序 第 1 部分 按接受限(AQL)检索的逐批检验抽样计划 Sampling procedures for inspection by attributesPart 1: Sampling schemes indexed by acceptance quality limit(AQL)for lot-blot inspection GB/T 2471-1995 (IDT IEC 63:1963)：电阻器和电容器优先数系 Preferred number series for resistors and capacitors GB/T 2691-1994 (IDT IEC 62:1992)：电阻器和电容器的标志代码 Marking codes for resistors and capacitors GB/T 26572-2011：电子信息产品中有毒有害物质的限量要求 Requirements for concentration limits for certain hazardous substances in electronic information products SJ/T 11364-2006：电子信息产品污染控制标识要求 Marking for control of pollution caused by electronic information products GB/T 26125-2011：电子信息产品中有毒有害物质的检测方法 Testing methods for hazardous substances in electronic information products 2011/65/EU(RoHS2.0)：电子电气设备中限制使用某些有害物质指令 The Restriction of the use of certain Hazardous substances in Electrical and Electronic Equipment 2012/19/EU (WEEE2.0)：废旧电子电气设备指令 Waste Electrical and Electronic Equipment 2013/2/EU：欧盟关于包装和包装废弃物指令 Europe Parliament and Council Directive on Packaging and packaging waste No1907/2006(REACH)：化学品注册、评估、许可和限制(高关注物质) Registration, Evaluation, Authorization and Restriction of Chemicals(SVHC) 4. 术语和定义 Terms and definitions 4.1 Ⅰ类瓷介固定电容器 Fixed capacitors of ceramic dielectric, class Ⅰ 专门设计并用在低损耗，电容量稳定性高或要求温度系数有明确规定的谐振电路 中的一种电容器。例如在电路中作温度补偿之用。 Designed with low loss, high stability of capacitance or temperature coefficient is required to have clearly defined the resonant circuit of a capacitor. For example, in the circuit for temperature compensation purposes. Page 4 of 16 AJC-3-017 A0 2015-02-03 The certificates with seal are validity. 4.2 Ⅱ类瓷介固定电容器 Fixed capacitors of ceramic dielectric, class Ⅱ 适用于旁路耦合或用在对损耗和电容量稳定性要求不高的电路中的,具有高介电常 数的一种电容器。 Applied to the bypass coupling or do not ask for much of the loss and capacitance stability circuit, a capacitor with a high dielectric constant. 4.3 Ⅲ类瓷介固定电容器 Fixed capacitors of ceramic dielectric, class Ⅲ 适用于作旁路和耦合之用的电路中，具有半导体特征的一种电容器。 Apply for bypass and coupling circuit, a capacitor with semiconductor characteristics. 4.4 额定电压 rated voltage 额定电压是在额定温度下，可以连续施加在电容器引出端上的最大直流电压。 Either the r.m.s. operating voltage of rated frequency or the d.c. operating voltage, which may be applied continuously to the terminations of a capacitor at any temperature between the lower and the upper category temperatures. 4.5 损耗角正切 tangent of loss angle(tanδ) 在规定频率的正弦电压下，电容器的损耗功率除以电容器的无功功率。 The power loss of the capacitor divided by the reactive power of the capacitor at a sinusoidal voltage at a specified frequency. 4.6 上限类别温度 upper category temperature 电容器设计所确定的能连续工作和最高环境温度。 Maximum surface temperature for which the capacitor has been designed to operate continuously. 4.7 下限类别温度 lower category temperature 电容器设计所确定的能连续工作和最低环境温度。 Minimum surface temperature for which the capacitor has been designed to operate continuously. 4.8 电容量温度特性 temperature characteristic of capacitor 电容量温度特性是在一个不超出类别温度范围的给定温度范围内，所出现的电容量 最大可逆变化。一般此变化表示相对 20℃时电容量的百分比。 The maximum reversible variation of capacitance produced over a given temperature range within the category temperature range, normally expressed as a percentage of the capacitance related to a reference temperature of 20℃. 5. 编码说明 How to order JT 1 1 CT1 CS1 CC81 102 ③ K ④ 2G ⑤ F0 ⑥ 035 ⑦ A ⑧ 048 ⑨ B ⑩ 类别 SERIES CODE CC1 F ② 类别名称 SERIES Ⅰ类温度补偿型低压陶瓷电容器 Temperature-compensated low-voltage ceramic capacitors class Ⅰ Ⅱ类高介电常数型低压陶瓷电容器 High dielectric constant low-voltage ceramic capacitors class Ⅱ Ⅲ类半导体类陶瓷电容器 Semiconductor category ceramic capacitors class Ⅲ Ⅰ类温度补偿型高压陶瓷电容器 Temperature-compensated high-voltage ceramic Page 5 of 16 材质 DIELECTRIC NP0,N80,N150,N220,N330,N470,N750, N3300,N4700,SL Y5P,BN,Y5R,Y5U,Y5V,X7R,Z5V,Z5U Y5P,Y5U,Y5V NP0,N80,N150,N220,N330,N470,N750, N3300,N4700,SL AJC-3-017 A0 2015-02-03 The certificates with seal are validity. capacitors class Ⅰ CT81 CC4 CT4 CC42 CT42 JT JK 2 Ⅱ类高介电常数型高压陶瓷电容器 High dielectric constant high-voltage ceramic capacitors class Ⅱ Ⅰ类温度补偿型径向引线陶瓷电容器（独石电容 器） Temperature compensation of radial lead ceramic capacitors class Ⅰ(monolithic capacitor) Ⅱ类高介电常数型径向引线陶瓷电容器（独石电容 器 ） Radial lead ceramic capacitors with high dielectric constant class Ⅱ (monolithic capacitor) Ⅰ类温度补偿型轴向引线陶瓷电容器（独石电容 器） Temperature compensation of axial lead ceramic capacitors class Ⅰ (monolithic capacitor) Ⅱ类高介电常数型轴向引线陶瓷电容器（独石电容 器） Axial lead with high dielectric constant ceramic capacitors class Ⅱ(monolithic capacitor) 交流陶瓷电容器 Y1 AJC JT 系列 AC ceramic capacitors class Y1 JT Series 交流陶瓷电容器 Y2 AJC JK 系列 AC ceramic capacitors class Y2 JK Series Y5P,BN,X7R,Y5R,Y5U,Y5V,Y5T NP0 X7R Y5V NP0 X7R Y5V Y5P,Y5U,Y5V Y5P,Y5U,Y5V 材质 DIELECTRIC CC1 CC81 系列（ppm/℃） CT1 CT81 CS1 系列 CODE 材质 DIELECTRIC CODE CH NP0(0±60) A 材质 DIELECTRIC Y5E (±4.7%) LH N80(-80±60) B Y5P (±10%) PH N150(-150±60) X X7R (±15%) RH N220(-220±60) LR Y5R (±15%) SH N330(-330±60) E Z5U/Y5U (+22~-56%) TH N470(-470±60) F Z5V/Y5V (+22~-82%) UJ N750(-750±60) LB BN (±10%) DL N3300(-3300±500) D Y5T (+22~-33%) EM N4700(-4700±1000) SL SL(+140~-1000) 介质种类前面的数字表示类别，如 2B 表示Ⅱ类 B 特性，3B 表示Ⅲ类 B 特性。 LR 和 LB 为低损耗材质，为含铅产品。Media type the number before the categories, such as 2B for classⅡ B properties, 3 B for class III B characteristics. LR and LB for low loss material，and which contains lead. Page 6 of 16 AJC-3-017 A0 2015-02-03 The certificates with seal are validity. ③容量 CAPACITANCE ④容量误差 CAPACITANCE TOLERANCE CODE CAPACITANCE CODE TOLERANCE 0P5 0.5PF C ±0.25PF 050 5PF D ±0.5PF 100 10PF J ±5% 500 50PF K ±10% 101 100PF M ±20% 102 1000PF S +50/-20% 223 22000PF Z +80/-20% 电容量代码由三位数组成，前面两位数字表示有效数字，后一位数字表示有效数字后零 的个数。Codes for capacitance shall be find expression in three numbers. The first two digits are significant, and the third digit is number of zero. ⑤额定电压额定 RATED VOLATGE 第一 文字 0 A 1.0 B 1.5 C 1.6 D 2.0 E 2.5 第二文字 F 3.0 G 4.0 H 5.0 I 6.0 J 6.3 K 8.0 1 10 15 16 20 25 30 40 50 60 63 80 2 100 150 160 200 250 300 400 500 600 630 800 3 1 000 1 500 1 600 2 000 2 500 3 000 4 000 5 000 6 000 6 300 8 000 4 10 000 15 000 16 000 20 000 25 000 30 000 40 000 50 000 60 000 63 000 80 000 注：单位为 V Note: unit v 例如：2A 表示 100V For example: 2A 100V ⑥脚距 LENGTH PITCH ⑦包装方式/脚长 PACKING STYLE OR LENGTH 编带 TAPE(ex) CODE 脚距 LENGTH PITCH F2 2.5±0.5mm CODE F3 3.3±0.5mm T16 F5 5.0±0.8mm F7 7.5±0.8mm F0 10.0±0.8mm T20 包装方式 packing style K 脚编带 L16 盒装 K PIN taping L16 boxed 直脚编带 L20 盒装 Straight PIN taping L20 boxed 散装 Bulk(ex) CODE 脚长 LENGTH 030 3.0mm 035 3.5mm 250 25mm Page 7 of 16 AJC-3-017 A0 2015-02-03 The certificates with seal are validity. ⑧引线型式 LEAD STYLE ⑨芯片尺寸 DIELECTRIC DIAMTER CODE 型别 style A 直脚型 straight B 内 K 型 inside kink C 外 K 型 outside kink D 前后侧弯型 front and back curve E 平膊 flat shoulder CODE 尺寸 diameter 048 4.8mm 115 11.5mm ⑩包封 COATING CODE 材料 MATERIAL B 蓝色环氧树脂包封 BLUE EPOXY RESIN 酚醛树脂包封 PHENOLIC RESIN P 6. 电容量、电压与尺寸表 Capacitance and dimension CT1 和 CT81 类电容器的电容量、电压与外形尺寸的关系见下表： Capacitance value＆ rated voltage, product diameter 产品型 号及尺 寸代码 CT1-05 额定 直流 电压 CT1-06 2B/2X 101～152 标称电容量 电容量温度系数组别 LR BN 2E / / 222～502 Dmax Tmax F 5.5 4.0 5.0 103 6.5 4.0 5.0 2F 102～103 182～332 / / 392～562 / / 103～153 8.0 4.0 5.0 CT1-10 682 / / 153～223 10.0 4.0 5.0 CT1-12 822～103 / / 12.5 4.0 5.0 CT1-05 101～561 / / 102～222 102～332 5.5 4.0 5.0 CT1-06 681～122 / / 272～392 392～562 6.5 4.0 5.0 152～272 / / 472～682 682 8.0 4.0 5.0 332～392 / / 103～123 822～103 10.0 4.0 5.0 CT1-12 472～682 / / 123～223 12.5 4.0 5.0 CT1-14 822～103 / / 333 14.0 4.0 5.0 CT81-06 101～681 101～471 101～102 821～222 102～272 6.5 4.0 CT81-08 821～152 561～102 102～182 272～392 332～682 8.0 4.0 CT81-10 182～222 122～182 222～332 472～682 103 10.0 4.0 272～472 22～2272 392～472 822～103 103 12.5 4.0 CT81-14 562 332～392 562 223 14.0 4.0 CT81-16 682 472 682 16.0 4.0 CT81-18 103 333473 18.0 4.0 CT81-06 101～471 151～331 101～561 102～122 102～222 6.5 5.0 561～102 391～561 681～102 152～222 272～332 8.0 5.0 122～181 681～102 122～152 272～392 392～562 10.0 5.0 CT1-08 CT1-08 CT1-10 CT81-12 CT81-08 CT81-10 50V 500V 1KV 2KV 822～103 尺寸（mm） 103 Page 8 of 16 d ±0.05 0.50 0.50 0.55 5.0 0.50 7.5 10.0 0.55 5.0 0.50 AJC-3-017 A0 2015-02-03 The certificates with seal are validity. CT81-12 222～272 122～152 182～272 472～682 682～103 12.5 5.0 CT81-14 332～392 222 332 103 103 14.0 5.0 CT81-16 472 272～332 392～472 153 16.0 5.0 CT81-18 562～682 392 562～682 223 18.0 5.0 CT81-06 101～331 CT81-08 391～561 101～331 102 102～152 6.5 6.0 151～331 391～471 122～152 182～222 8.0 6.0 681～102 391～681 681～122 182～272 272～392 10.0 6.0 CT81-12 122～182 821～102 152～182 332～472 472～682 12.5 6.0 CT81-14 222 222～272 562～682 103 14.0 6.0 CT81-06 101～271 / 101～221 471～561 102 6.5 7.0 CT81-08 331～391 / 331～391 681～102 152～182 8.0 7.0 471～680 / 471～681 122～182 222～272 10.0 7.0 CT81-12 821～122 / 102 222～332 332～472 12.5 7.0 CT81-14 152～182 / 392 562～682 14.0 7.0 CT81-10 CT81-10 3KV 6KV 7.5 10.0 0.55 7.5 10.0 0.55 7.5 10.0 0.55 7. 电容器结构图 The constituent parts of capacitor Design1 Table 3 NO. 部位名称 constituent ① 包封层 Coating ② ③ ④ ⑤ 材料 material 环氧树脂 Epoxy resin 酚醛树脂 phenolic resin 陶瓷介质 Ceramic medium 焊接点 Solder 焊锡 Soldering tin 电极 Electrode 银浆 Silver oxide 引脚 Lead Frame CP 线 CP wire 陶瓷 Ceramic 8. 外型图及尺寸代码 Figure and code of dimension Design2 TYPE A：直脚 Straight TYPE B：内 K 脚 Inside Kink TYPE C：外 K 脚 Outside Kink L L Page 9 of 16 AJC-3-017 A0 2015-02-03 The certificates with seal are validity. TYPE D：前后弯 Front and back curve TYPE E：平膊 flat shoulder 9. 环境管理物质含量控制要求 Requirements for concentration limits for certain hazardous substances RoHS2.0 2011/65/EU 卤素 halogen REACH No1907/2006 Table 4 物质名称 Substances 限制含量 concentration (unit: ppm) 镉及镉化合物 Cadmium and cadmium compounds
