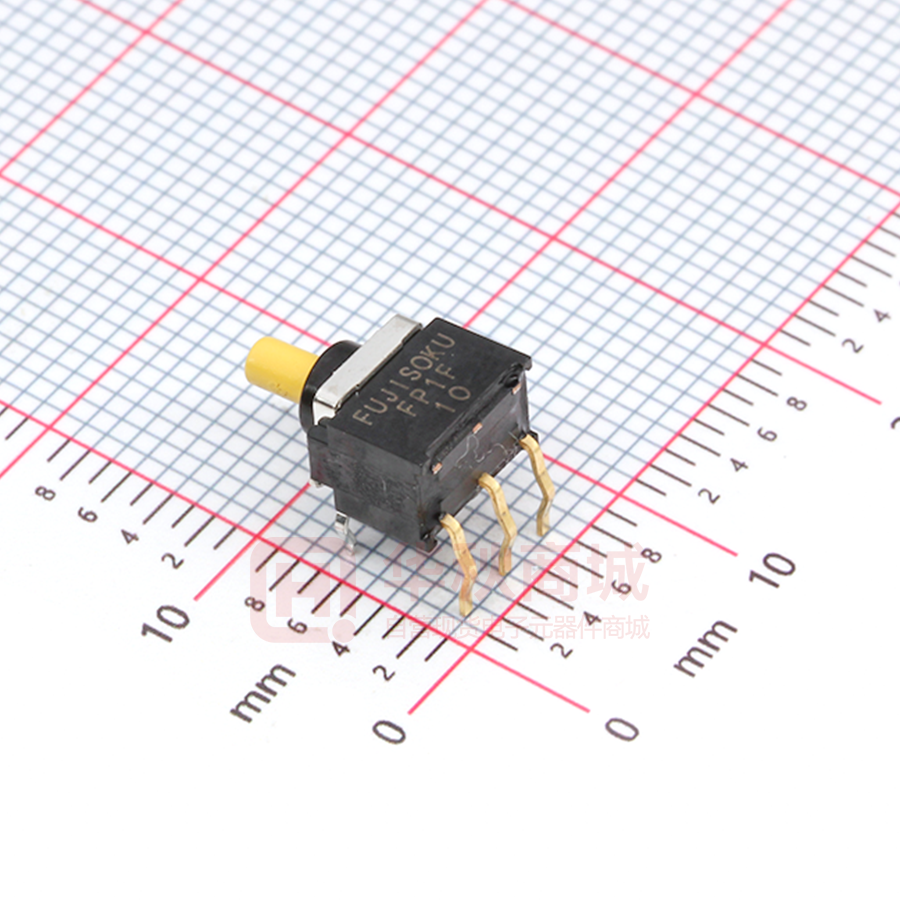

FP1F-5M-Z

FP ■ Terminal Pins: Kinked ■ Actuator Color: Yellow Ultra-Miniature Pushbutton Switches Washable RoHS Compliant ■Features ■ Specification 1. Ultra-miniature pushbutton switch for high density mounting. 2. Washable. Rating 3. Terminal pin pitch: 2.54 mm. Initial contact resistance 100mΩmax.  4. Independent detent mechanism ensures light operational feel. 5. Clip contact mechanism for long-term contact reliability. 6. Gold-plated contacts. Max. 0.4VA（28VDC max.） Min. 1μA 20mVDC 250V AC 1 minute Insulation resistance 500MΩ min.       （250VDC） Electrical life 10,000 operations at max.rating, 30,000 operations at min.rating, Mechanical life 30,000 cycles Operating force 1.47±0.98N Operating temperature range Storage temperature range ■Part Numbering F Series code P Actuator shape 2 F Number of poles Code Type Fig. Number of poles P Pushbutton 1 1 pole 2 2 poles 2 Switching function Code Switching function F ON －（ON） （1.5mA 200μVAC） Dielecteic strength −40∼＋85℃ −40∼＋85℃ M Terminal style Z Actuator shape Fig. Terminal style Code Actuator shape 2 P/C M Standard 5 Right angle 4 Vertical mounting FP SPDT Switching function PC Part No. 5-φ0.8～1.0 FP1F−2M−Z ON （ON） Connecting terminals 2−3 2−1 プリント基板孔あけ寸法図（Top view） PC Hole Layouts Terminal numbers are not shown on the switch. DPDT PC Switching function Part No. ★FP2F−2M−Z 6-φ0.8～1.0 Connecting terminals ON 2−3 5−6 （ON） 2−1 5−4 プリント基板孔あけ寸法図（Top view） PC Hole Layouts Terminal numbers are not shown on the switch. SPDT R/A Switching function Part No. 5-φ0.8～1.0 FP1F−5M−Z ON （ON） Connecting terminals 2−3 2−1 ON 2−3 5−6 （ON） 2−1 5−4 Top view） PC Hole Layouts Terminal numbers are not shown on the switch. DPDT R/A Switching function Part No. ★FP2F−5M−Z 8-φ0.8～1.0 Connecting terminals PC Hole Layouts Terminal numbers are not shown on the switch. ■Optional Accessories Part Name Dimension Gloss finish Color Cap ABS resin ：Optional Accessories. 《Sold separately》 Color Part Number White 140000481453 Red 140000481452 Black 140000481451 Gray 140000481450 The blue line shows the outline of the switch. ■Color Cap Mounting （ON） ：Momentary. ★：Made to order products. FP SPDT Switching function V/M Part No. FP1F−4M−Z ON （ON） Connecting terminals 2−3 2−1 ON 2−3 5−6 （ON） 2−1 5−4 5-φ0.8～1.0 Terminal numbers are not shown on the switch. （Top view） PC Hole Layouts DPDT V/M Switching function Part No. ★FP2F−4M−Z Connecting terminals 8-φ0.8～1.0 Terminal numbers are not shown on the switch. （Top view） PC Hole Layouts ■Handling Precautions（FP, FT, FL） 1. Soldering Specifications ⑴Manual Soldering Device：Soldering iron 380° C, Max.; 3 seconds, Max. ⑵Auto soldering Device：Jet wave type or dip type 275° C, Max.; 6 seconds, Max. ・Pre-heating should be done at temperatures from 80 to 120° C and within 120 seconds. ⑶When soldering two or more terminals to the common land, use solder resist to solder them independently. 2. Flux Cleaning ⑴Solvents :Fluorine or Alcohol type ⑵ Cleaning after soldering should be done after the PC board is exposed to room temperature (30℃ or below) for 1 to 2 hours. ⑶Do not use ultrasonic cleaning. ■Packaging Specifications Plastic Pack 100 pcs./pack U 15 OK SO IS JI FU J FU KU 231 The blue line shows the outline of the switch. （ON） ：Momentary. ★：Made to order products. 196
