MMBT5401
MMBT5401
TRANSISTOR (PNP)
FEATURES
Complimentary to MMBT5551

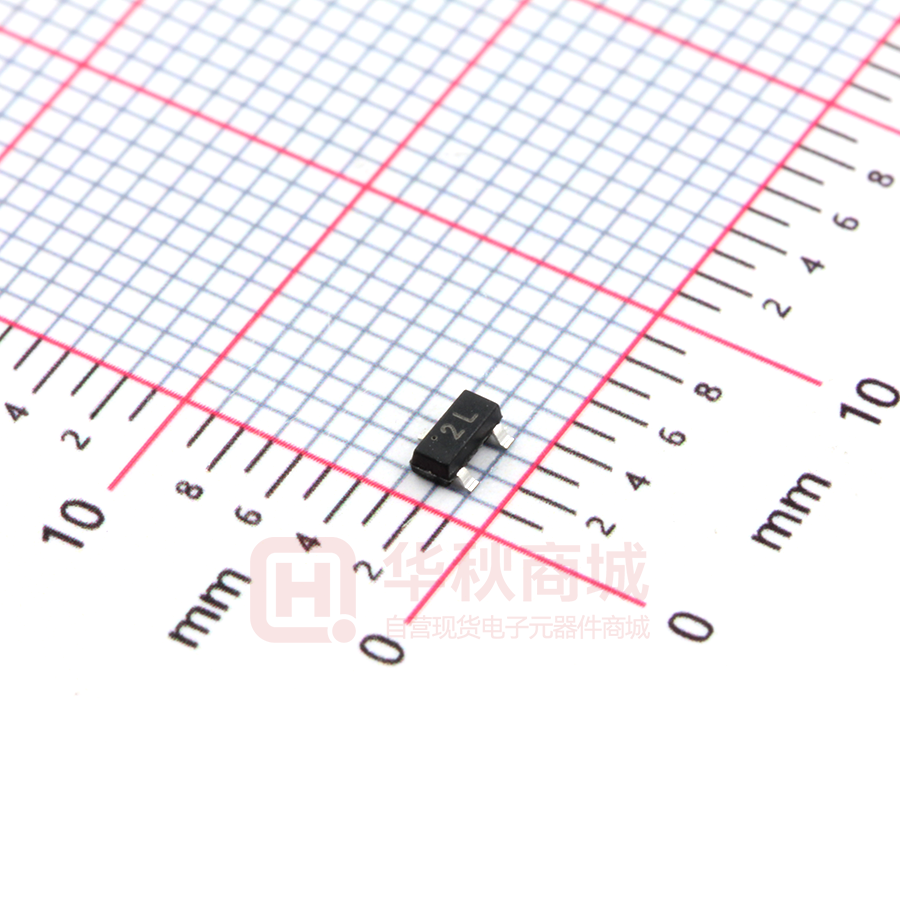

MARKING:2L
MAXIMUM RATINGS (TA=25℃ unless otherwise noted)
Symbol
Parameter
Value
Units
(符号)
(参数名称)
(额定值)
(单位)
VCBO
Collector-Base Voltage (集电极-基极电压)
-160
V
VCEO
Collector-Emitter Voltage (集电极-发射极电压)
-150
V
VEBO
Emitter-Base Voltage (发射极-基极电压)
-5
V
IC
Collector Current -Continuous (集电极电流)
-0.6
A
PC
Collector Power Dissipation (耗散功率)
0.3
W
Tj
Junction Temperature (结温)
150
℃
Tstg
Storage Temperature (储存温度)
-55-150
℃
ELECTRICAL CHARACTERISTICS (Tamb=25℃unless otherwise specified)
Parameter
(参数名称)
Symbol
(符号)
Test conditions
(测试条件)
MIN
TYP
MAX
(最小值) (典型值) (最大值)
UNIT
(单位)
Collector-base breakdown voltage
集电极-基极击穿电压
V(BR)CBO
IC= -100μA, IE=0
-160
V
Collector-emitter breakdown voltage
集电极-发射极击穿电压
V(BR)CEO
IC= -1mA, IB=0
-150
V
Emitter-base breakdown voltage
发射极-基极击穿电压
V(BR)EBO
IE=-100μA, IC=0
-5
V
Collector cut-off current
集电极-基极截止电流
ICBO
VCB=-120 V , IE=0
-1
μA
Collector cut-off current
集电极-发射极截止电流
ICEO
VCE=-120V ,
-10
μA
Emitter cut-off current
发射极-基极截止电流
IEBO
VEB=-5V , IC=0
-1
μA
DC current gain
直流电流增益
hFE
VCE=-5V, IC= -10mA
IB=0
100
400
Collector-emitter saturation voltage
集电极-发射极饱和压降
VCE(sat)
IC=-50mA, IB= -5mA
-0.5
V
Base-emitter saturation voltage
发射极-基极饱和压降
VBE(sat)
IC=-50mA, IB= -5mA
-1
V
CLASSIFICATION OF
Range
www.yongyutai.com
100-200
hFE
200-300
300-400
PAGE 1
MMBT5401
Typical Characteristics
www.yongyutai.com
PAGE 2
