S9018

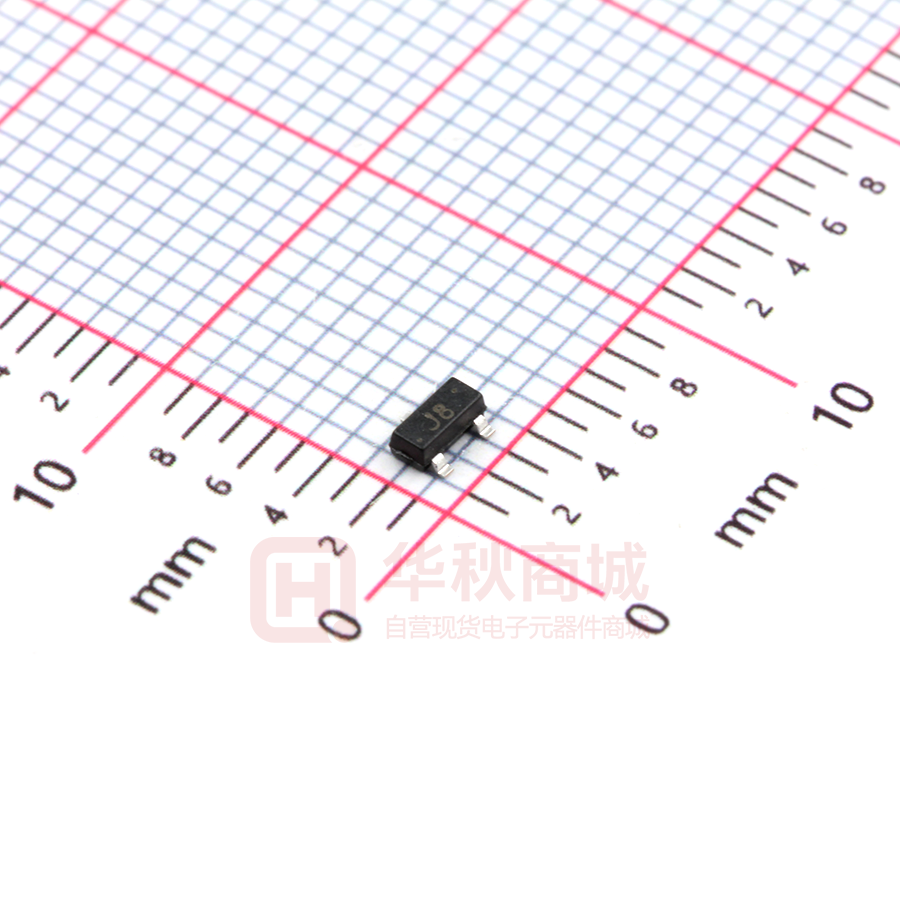

S9018 TRANSI STOR (NPN) Equivalent Circuit: MARKING: SOT-23 1.BASE 2.EMITTER 3.COLLECTOR FEATURES: ● AM/FM Amplifier, Local Oscillator of FM/VHF Tuner ● High Current Gain Bandwidth Product MAXIMUM RATINGS (Ta=25℃ unless otherwise noted Parameter Symbol Value Unit Collector-Base Voltage VCBO 30 V Collector-Emitter Voltage VCEO 15 V Emitter-Base Voltage VEBO 5 V IC 50 mA Collector Current -Puised ICM 300 mA Collector Power Dissipation PC 200 mW RΘJA 625 ℃/W Junction Temperature Tj 150 ℃ Storage Temperature Tstg -55～+150 ℃ Collector Current -Continuous Thermal Resistance From Junction To Ambient www.yongyutai.com PAGE 1 S9018 ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test Condition Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC= 100μA, IE=0 30 V Collector-emitter breakdown voltage V(BR)CEO IC= 1mA, IB=0 15 V Emitter-base breakdown voltage V(BR)EBO IE=100μA, IC=0 5 V Collector cut-off current ICBO VCB= 20 V , IE=0 0.1 μA Collector cut-off current ICEO VCB= 15V , IE=0 0.1 μA Emitter cut-off current IEBO VEB= 3V , IC=0 0.1 μA hFE VCE= 5V, IC= 10mA 50 hFE VCE= 5V, IC= 1mA 70 Collector-emitter saturation voltage VCE(sat) IC= 10mA, IB= 1mA 0.5 V Base-emitter saturation voltage VBE(sat) IC= 10 mA, IB= 1mA 1 V fT VCE= 5V, IC= 5mA f=400MHz DC current gain Transition frequency 200 50 MHz CLASSIFICATION OF hFE Rank L H Range 50-100 100-200 www.yongyutai.com PAGE 2 S9018 TYPICAL ELEC TRICAL AND THERMAL CHARACTERISTICS www.yongyutai.com PAGE 3 S9018 www.yongyutai.com PAGE 4
