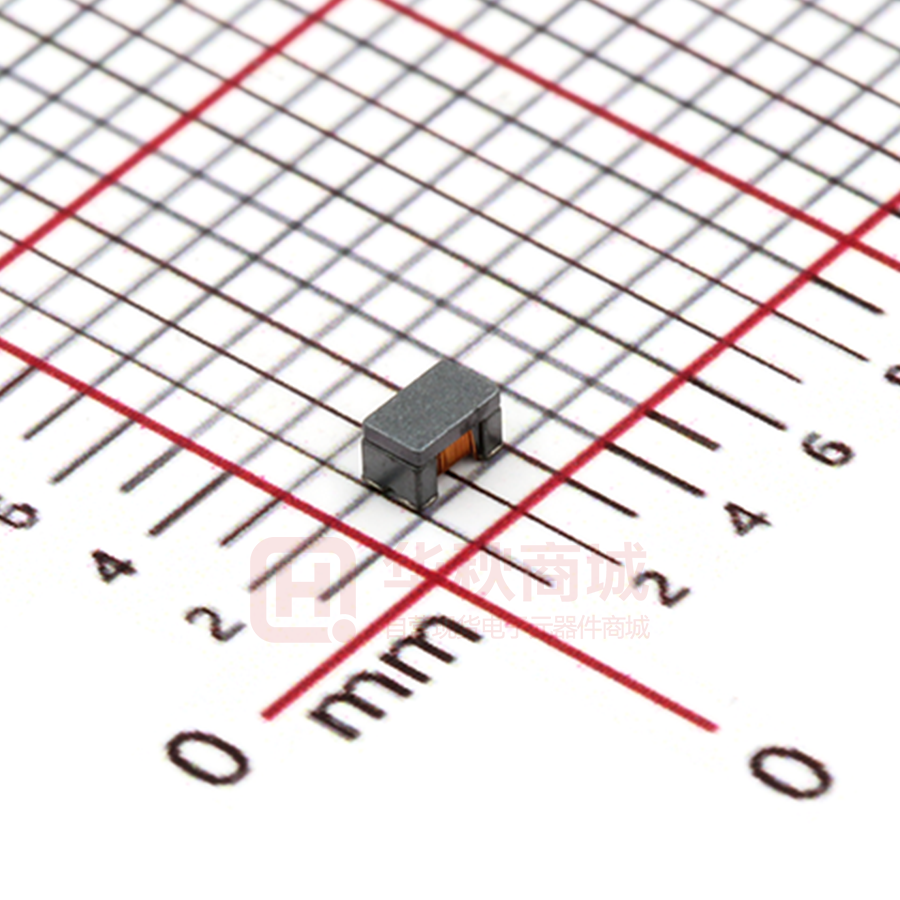

WCM2012F2SF-801-N

P1 TAI-TECH Wire Wound Type Common Mode Filter WCM2012F2SF-801-N ECN HISTORY LIST REV DATE DESCRIPTION APPROVED CHECKED DRAWN 1.0 16/11/24 新發行 楊祥忠 林志鴻 孔妍暄 備 註 www.tai-tech.com.tw P2 TAI-TECH Wire Wound Type Common Mode Filter WCM2012F2SF-801-N 1.Features 1. High common mode impedance at high frequency cause excellent noise suppression performance. 2. WCM2012F2SF series realizes small size and low profile. 2.0x1.2x1.2 mm. 3. 100% Lead(Pb) & Halogen-Free and RoHS compliant. Halogen Pb Halogen-free Pb-free 2.Dimension C A 當破損面積＜5%,產品列入允收品範圍 E W B D D 產品破損寬度 Series A(mm) B(mm) C(mm) D1(mm) D2(mm) E(mm) 2012F2SF 2.0±0.2 1.2±0.2 1.2±0.2 0.50±0.1 0.51±0.1 0.15±0.1 3.Part Numbering WCM 2012 A B F 2 S F C D E F - 801 - G N H A: Series B: Dimension C: Material Ferrite Core D: Number of Lines 2=2 lines E: Type S=Shielded , N=Unshielded F: Lead free G: Impedance 801=800Ω H: Category Code N=DR-N45 材&SP-N45 材 4.Specification TAI-TECH Part Number WCM2012F2SF-801-N DC Common mode Test Frequency Impedance Resistance (MHz) (Ω) (Ω) max. 800±25% 100 Rated Current (mA)max. 0.88 www.tai-tech.com.tw 300 Withstand Rated Volt. IR Volt. (Vdc) (Ω) min. (Vdc)max. max. 50 125 10M P3 TAI-TECH Typical Impedance v.s. Frequency Curve WCM2012F2SF-801 10000 Common Mode IMPEDANCE(Ohm) 1000 100 10 Normal Mode 1 0.1 1 10 100 1000 FREQUENCY(MHz) 5.Schematic Diagram 6. Materials No. Description Specification a. Upper Plate Ferrite b. Core Ferrite Core c Termination Tin (Pb Free) d Wire Enameled Copper Wire www.tai-tech.com.tw 10000 P4 TAI-TECH 7.Reliability and Test Condition Item Performance Operating temperature -40~+125℃ (Including self - temperature rise) Storage temperature -40~+125℃ (on board) Test Condition Electrical Performance Test Z(common mode) DCR Agilent-4291A+ Agilent -16197A Refer to standard electrical characteristics list. I.R. Temperature Rise Test Agilent-4338B Agilent4339 Rated Current < 1A ∆T 20℃Max 1.Applied the allowed DC current. 2.Temperature measured by digital surface thermometer Rated Current ≧ 1A ∆T 40℃Max Reliability Test Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC J-STD-020DClassification Reflow Profiles) Temperature：125±2℃ Life Test Applied current：rated current Duration：1000±12hrs Measured at room temperature after placing for 24±2 hrs Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC J-STD-020DClassification Reflow Profiles Humidity：85±2﹪R.H, Load Humidity Temperature：85℃±2℃ Duration：1000hrs Min. with 100% rated current Measured at room temperature after placing for 24±2 hrs Moisture Resistance Appearance：No damage. Impedance：within±15% of initial value RDC：within ±15% of initial value and shall not exceed the specification value Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC J-STD-020DClassification Reflow Profiles 1. Baked at50℃ for 25hrs, measured at room temperature after placing for 4 hrs. 2. Raise temperature to 65±2℃ 90-100%RH in 2.5hrs, and keep 3 hours, cool down to 25℃ in 2.5hrs. 3. Raise temperature to 65±2℃ 90-100%RH in 2.5hrs, and keep 3 hours, cool down to 25℃ in 2.5hrs,keep at 25℃ for 2 hrs then keep at -10℃ for 3 hrs 4. Keep at 25℃ 80-100%RH for 15min and vibrate at the frequency of 10 to 55 Hz to 10 Hz, measure at room temperature after placing for 1~2 hrs. Preconditioning: Run through IR reflow for 2 times.( IPC/JEDEC J-STD-020DClassification Reflow Profiles Condition for 1 cycle Step1：-40±2℃ 30±5min Thermal shock Step2：25±2℃ ≦0.5min Step3：125±2℃ 30±5min Number of cycles： 500 Measured at room temperature after placing for 24±2 hrs Oscillation Frequency: 10～2K～10Hz for 20 minutes Vibration Equipment： Vibration checker Total Amplitude:1.52mm±10% Testing Time : 12 hours(20 minutes, 12 cycles each of 3 orientations)。 www.tai-tech.com.tw P5 TAI-TECH Item Performance Bending Shock Solder ability Appearance：No damage. Impedance：within±15% of initial value Q：Shall not exceed the specification value. RDC：within ±15% of initial value and shall not exceed the specification value More than 95% of the terminal electrode should be covered with solder。 Test Condition Shall be mounted on a FR4 substrate of the following dimensions: >=0805 inch(2012mm):40x100x1.2mm =0805 inch(2012mm):1.2mm 0805:1kg ,
