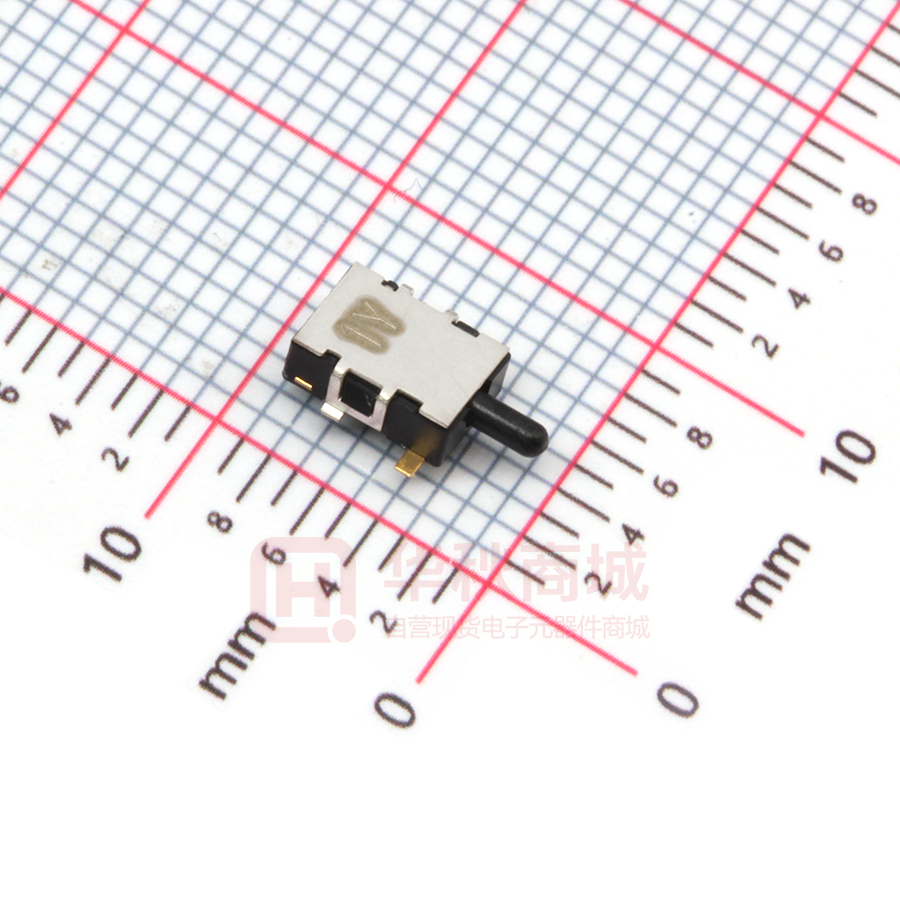

CL-DA-1CB4-A2T

CL-DA DETECT SWITCHES CL-DA内部構造図_.eps RoHS compliant INTERNAL STRUCTURE 7 3 1 4 2 5 ■ FEATURES ● High reliability by Gold contact ● RoHS compliant ● For detection of operation from side direction ● Automatic mounting possible ● Low profile design of 2mm ■ APPLICATIONS 3 6 Part name Material Flammability ① Housing Polyamide UL94V-0 ② Fixed contact ③ Terminal pin ④ Spring Stainless steel(SUS 304) ⑤ Knob Polyamide ⑥ Slider contact Copper alloy, Gold-plated ⑦ Cover Nickel silver, Silver-plated Copper alloy, Gold-plated UL94V-0 ● Detection of Communication devices, 　Audio-visual equipment, Industrial instrument, 　Security devices, etc. ■ PART NUMBER DESIGNATION CL - DA - 1 C B 4 - A 2 T Series name Form of packaging T ：aping (Reel) No. of bits 1：1 極　 1 bit Contact material 2：Gold Switching function B:ON − (OFF) C:OFF − (ON) Shape of actuator A：Standard Shape of terminal B4：Gull wing CL-DA DETECT SWITCHES ■ STANDARD SPECIFICATIONS Operating temp. range ■ ELECTRICAL CHARACTERISTICS Contact rating Switching Minimum − 40 ~ 85 °C Storage temp. range Non-washable Sealing Net weight Contact resistance 0.093 g Insulation resistance Dielectric strength ■ MECHANICAL CHARACTERISTICS Switching function Stroke Vibration Pre-travel: 0.35mm Over-travel: 2.0mm total: 2.35mm Solderability 245 ± 3 °C, 2 ~ 3 s Soldering heat Reflow：260 °C (Peak temperature) （Please refer to the profile below） 5 N {0.51 kgf} 10 s Substrate bending Width 90 mm, bend 3 mm, 5 s, 1 time Pull-off strength Continuous load 50,000cycles DC12 V, 100 mA 85 °C, 96 h Low temp. exposure − 40 °C, 96 h { } : Reference only 〈Reflow profile for soldering heat evaluation〉 Temperature 200 150 100 50 Peak : 255 +5 0 ℃ Over 230 ℃ 180 ℃ 150 ℃ Pre Heating Zone 90 ± 30 s 30 ± 10 s Heating time − 10 ~ 65 °C, Relative humidity 0 ~ 96 %, 24 h for 10 cycles High temp. exposure 5 N {0.51 kgf} 10 s (℃) 250 (Amplitude) 1.5 mmor (Acceleration) 98 m/s2, 10-500 Hz, 3 directions for 10 cycles each Load life Thermal shock Shear (Adhesion) AC250 V, 60s 490 m/s2, 11 ms 6 directions for 3 times each Humidity 5 N {0.51 kgf}, 60 s 100 M Ω (DC100 V) minimum Shock 0.75 N {0.075 kgf} Stop strength 100 m Ω maximum ■ ENVIRONMENTAL CHARACTERISTICS OFF − (ON) / ON − (OFF) Operating force 　　　　　DC12 V, 100 mA 　　　　　DC20 mV, 1 μ A Soldering Zone Reflow : two times maximum − 40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles CL-DA DETECT SWITCHES ■ OUTLINE DIMENSIONS Unless otherwise specified, tolerance : ± 0.3 (Unit : mm) ■ RECOMMENDED P.C.B. PAD DIMENSIONS (Unit : mm) 3 φ0 .9 6.6 4.2 0.9 4.2 6.4 R0 .4 5 Terminal 1 1.25 0.35 1.45 1.65 2.45 ■ LIST OF PART NUMBERS / SWITCHING FUNCTION Part number CL-DA-1BB4-A2T CL-DA-1CB4-A2T Push Push Switching function ON (OFF) Schematic OFF (ON) Schematic 2 1 2 1 CL-DA DETECT SWITCHES ■ PACKAGING SPECIFICATIONS ● Taping version is packaged in 1000 pcs. per reel. Orders will be accepted for units of 1000 pcs. Maximum number of consecutive missing pieces=2 Leader length and reel dimension are shown in the diagrams below: ● Embossed tape dimensions ● Reel dimensions (Unit: mm) (Conforms to JIS C 0806-3) (In accordance with EIAJ ET-7200A) 17.4±1 Filled Empty φ 21±0.8 End 2±0.5 Head 40 mm min. Direction of feed 20 pitches min. Leader 400 mm min. φ 100±1 Empty φ 13±0.2 21.4±1 φ 254±2 CL-DAテーピング (Unit : mm) 3.3 0.4 16 ± 0.3 7.5 ± 0.1 1.75 ± 0.1 .5 4 ± 0.1 12 ± 0.1 φ1 2 ± 0.1 +0. 0 1 ● 1 bits 2.9 Direction of feed
