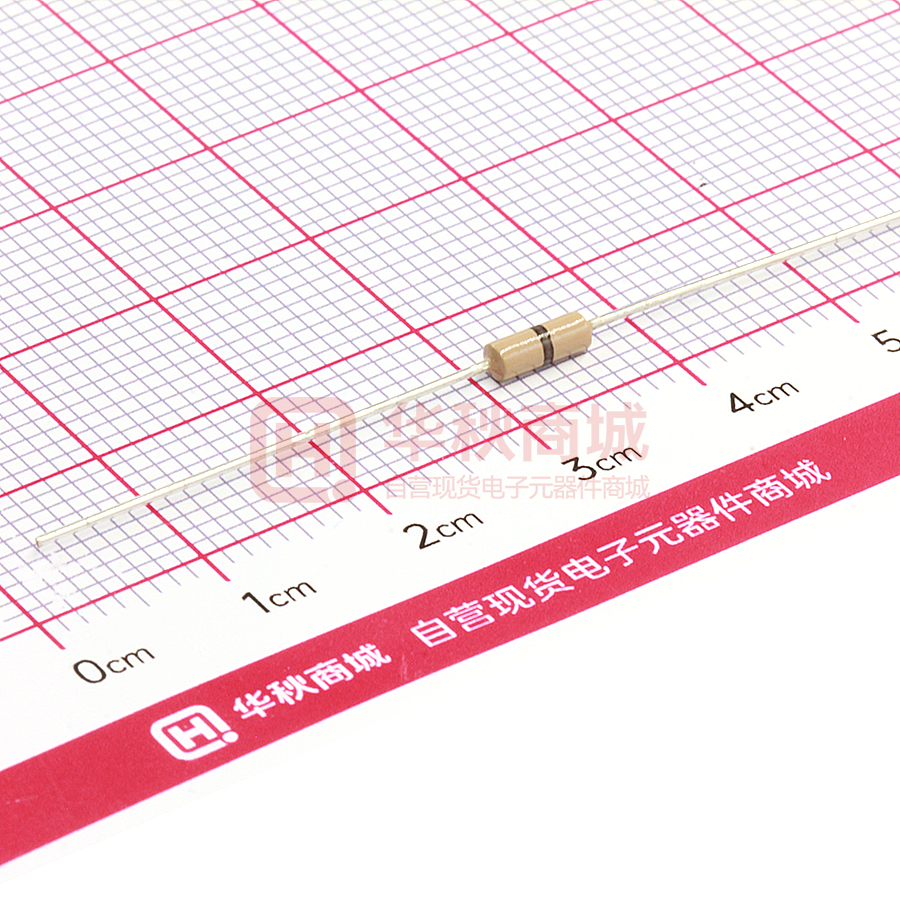

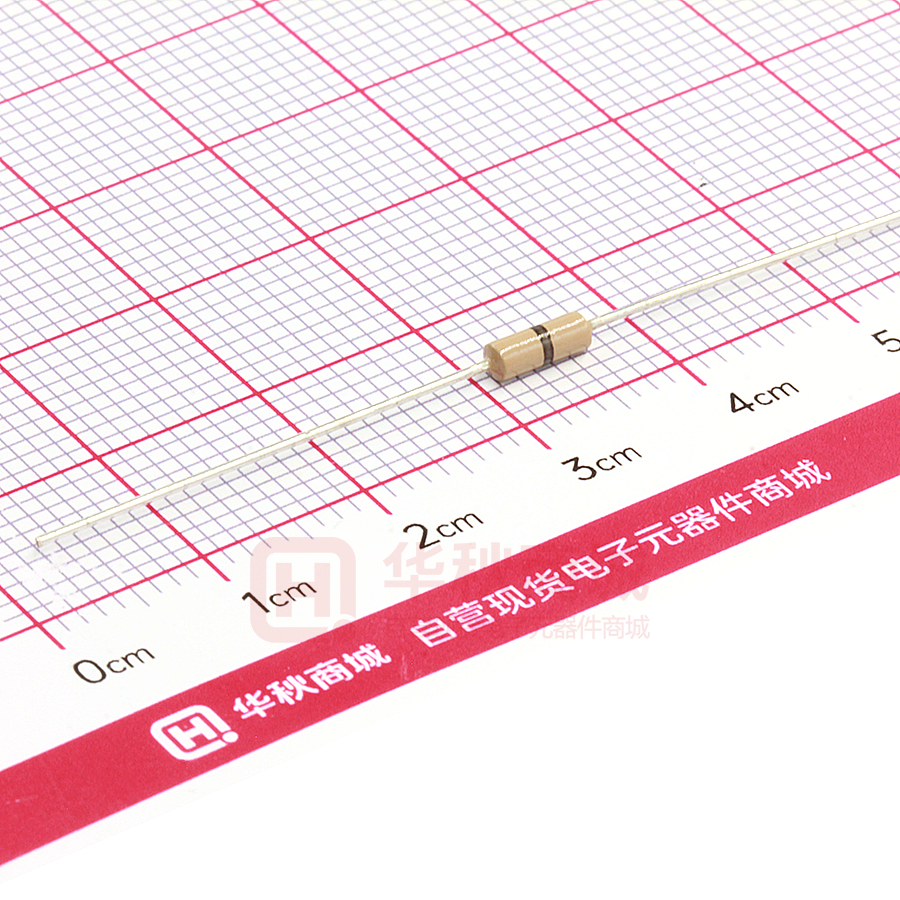

ZOR-25-T-52-0R

Approval Sheet for Zero Ohm Resistors Coating Type ZOR series YAGEO CORPORATION Headquarters: 3F, No.233-1, Pao Chiao Rd., Xindian, Taipei, Taiwan, R.O.C. Tel: 886-2-6629-9999 Fax: 886-2-6628-8885 URL: www.yageo.com Page-1 Rev. Description Issue Date Drawn Approved 00 issue new spec. Jul 16, 2007 Sara Lin Joyce Chung 01 Add derating curve Nov 04, 2008 Lynn Chen Joyce Chung 02 T.C.R is deleted; 7 test items are deleted Adjust maximum resistance and current rating. Operating temperature range is included Apr 27, 2011 Feng Ye Ken Hsu Oct 23, 2012 Feng Ye Ken Hsu 03 04 Dec. 17, 2015 Feng Ye Description Zero Ohm Resistors, Coating Type Series ZOR Rev. Page-2 Flora Shen 04 1. PRODUCT： ZERO OHM RESISTORS 2. PART NUMBER： Part number of the Zero Ohm Resistors is identified by the name, power, tolerance, packing, temperature coefficient, special type and resistance value. Example： ZOR -25 - T - 52- 0R (1) (2) (3) (4) (5) (6) (7) Series Power Resistance Packing Temperature Special Resistance Name Rating Tolerance Style Coefficient Type Value of Resistance (1) Style： ZOR SERIES (2) Power Rating： -12 = 1/6W、-25 = 1/4W (3) Tolerance：-(4) Packaging Type： R＝Paper Taping Reel T＝Tape on Box Packing B＝Bulk Packing (5) Temperature Coefficient ：-(6) Special Type： 26- = 26mm 52- = 52.4mm M = M-Type Forming for Bulk MT = MTsert ( ZOR-12 size only ) FT = FTsert ( ZOR-25 size only ) PN = PANAsert (ZOR-25 size only ) AV = Avlsert (ZOR-25 size only ) (7) Resistance Value：0R Page-3 3. DIMENSIONS Single Black Color Band Denotes Zero Resistance ψd ψD L H ψD ψd STYLE L H ZOR-12 3.3±0.4 1.8±0.3 28±2.0 0.45±0.05 ZOR-25 6.3±0.5 2.3±0.3 28±2.0 0.55±0.05 4. SPECIFICATIONS Power Rating Maximum Resistance Min. Insulation Resistance Dry Wet Min. Dielectric Withstanding Voltage Atmospheric Reduced Insulation Flammability Maximum Current Rating 1/6W, 1/4W 10m Ω or less 10000MΩ 100MΩ 500V RMS 325V RMS Resistor Insulation is Self Extinguishing within 10 Seconds After Externally Applied Flame is Removed 10 AMPS at 70 ℃ for 1/4W 8 AMPS at 70 ℃ for 1/6W -55℃ to +155℃ Operating Temperature Range 5. DERATING CURVE Rated Load (%) 70℃ 100 80 60 40 20 20 40 60 80 100 120 140 155 180 Ambient Temperature (℃) Page-4 6. ENVIRONMENTAL CHARACTERISTICS (1) Insulation Resistance Apply test terminal on lead and resistor body. The test resistance should be high than dry 10,000M ohm & wet 100M ohm. (2) Solderability Immerse the specimen into the solder pot at 260 ± 5 °C for 5 ± 0.5 seconds. At least 95% solder coverage on the termination. (3) Resistance to Solvent The specimen into the appropriate solvent of IPA condition of ultrasonic machine for 1 minutes. The specimen is no deterioration of coatings and colour code. (4) Terminal Strength Direct Load – Resistors shall be held by one terminal and the load shall be gradually applied in the direction of the longitudinal axis of the resistor unit the applied load reached 5 pounds。 The load shall be held for 10 seconds. The load of weight shall be ≧ 2.5 kg ( 24.5N ). 7. PACKING METHODS Bandolier for Axial leads STYLE a ZOR-12 6 ± 0.5 ZOR-25 6 ± 0.5 A 52.4 ± 1.2 26.0 ± 1.0 52.4 ± 1.2 26.0 ± 1.0 B1-B2 1.2 1.0 1.2 1.0 Unit:：mm S (spacing) T (max. deviation of spacing) 5 5 8. TAPE ON REEL PACKING Page-5 0.5 mm per 5 spacing 1 mm per 10 spacing Style Across Flange (A) QTY Per Reel ZOR-12 72 5,000 ZOR-25 72 5,000 9. TAPE ON BOX PACKING STYLE Stan dar d Le ad L eng th Sho r t Le ad L eng th QTY Per Box W(A) H(B) L(C) W(A) H(B) L(C) ZOR-12 81 70 260 48 102 255 5,000 ZOR-25 81 104 260 48 102 255 5,000 10. SPECIAL TYPE ( FORMING DIMENSIONS ) M TYPE Unit：mm STYLE L ψD ψd P H ZOR-12 3.3 ± 0.4 1.8 ± 0.3 0.45 ± 0.05 6.0 ± 1 10.0 ± 1 ZOR-25 6.3 ± 0.5 2.3 ± 0.3 0.55 ± 0.05 10.0 ± 1 10.0 ± 1 Page-6 MT Type Forming for Taping ( ZOR-12 size only ) FT Type Forming for Taping ( ZOR-25 size only ) PN Type Forming for Taping ( ZOR-25 size only ) Page-7 AV Type Forming for Taping 11. ( ZOR-25 size only ) Plant Address: A. China Dongguan Plant 7-1, Gaoli Road, Gaoli Industrial Zone Tangxia Zhen, Dongguan, Guangdong, China (廣東省東莞市塘廈鎮高麗工業區高麗路 7-1 號) Tel. 86-769-8772 0275 Fax. 86-769-8772 0275 #4333 B. China Mudu Plant No.158, Fengjiang Road, Mudu New District, Suzhou, Kiangsu, China (江蘇省蘇州木瀆新區楓江路 158 號) Tel. 86-512-6651 8889 Fax. 86-512-6651 9889 Page-8
